CECA120C
Check availability
2x60 WRMS | stereo | micro-amplifier
See more Features Resources

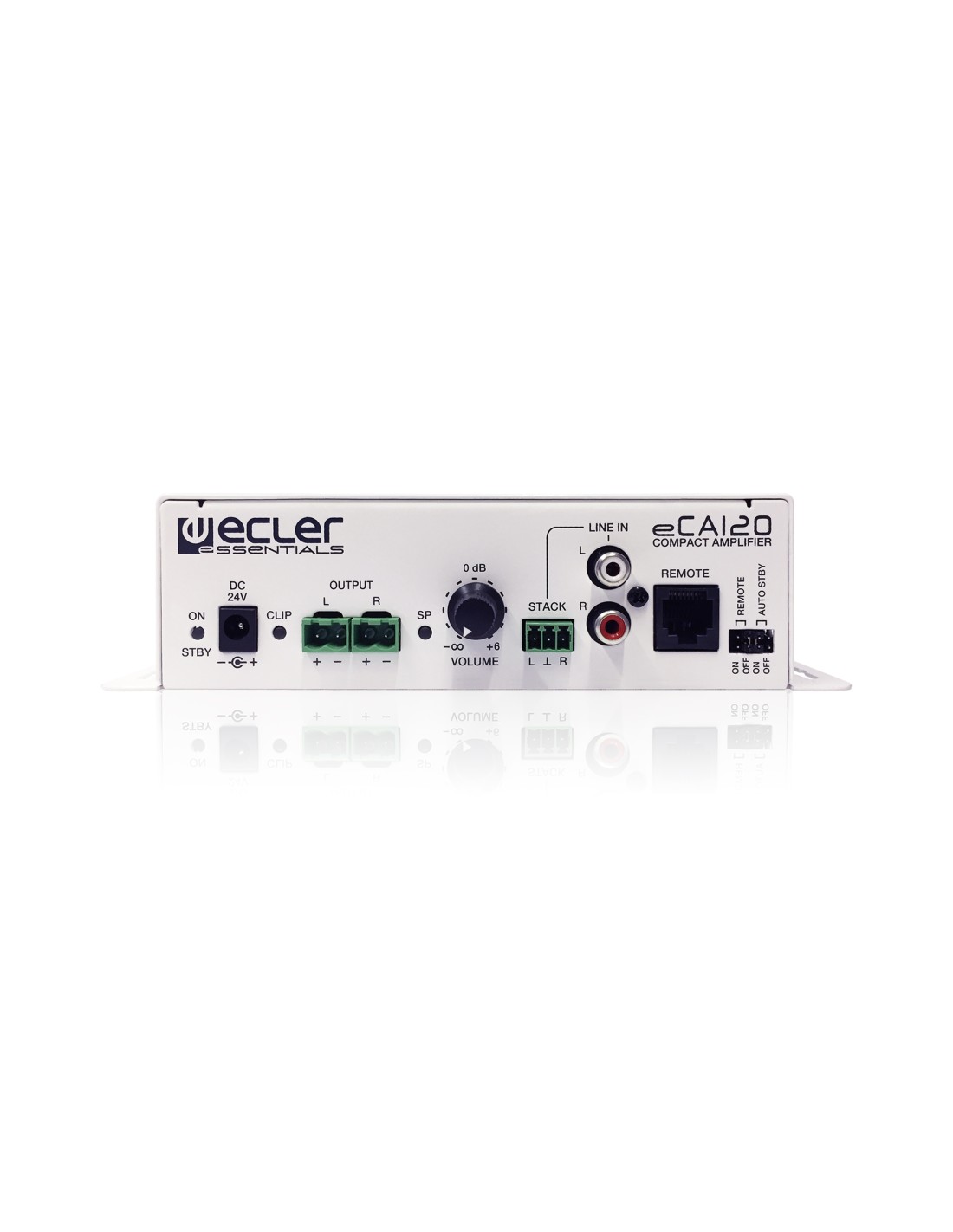

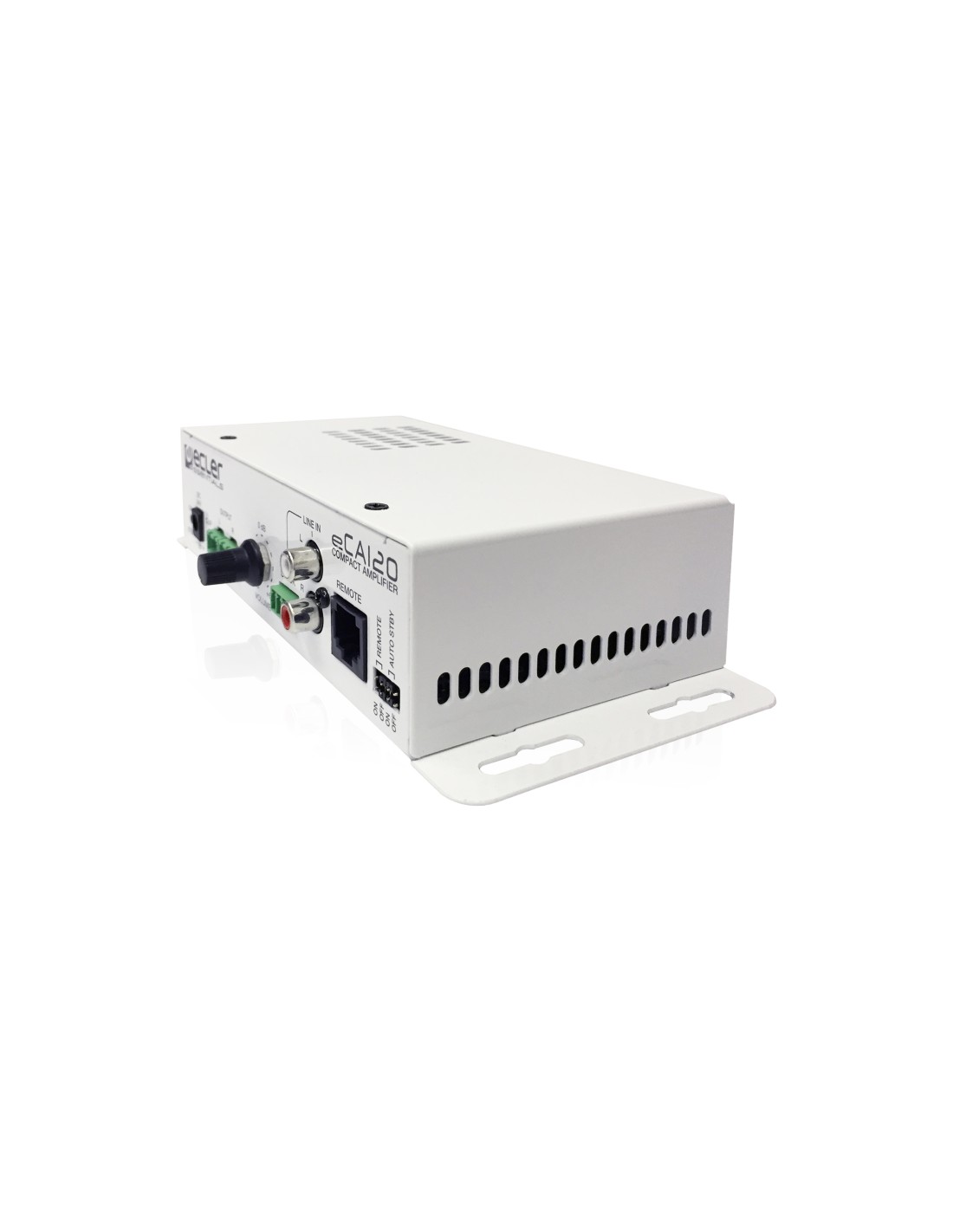

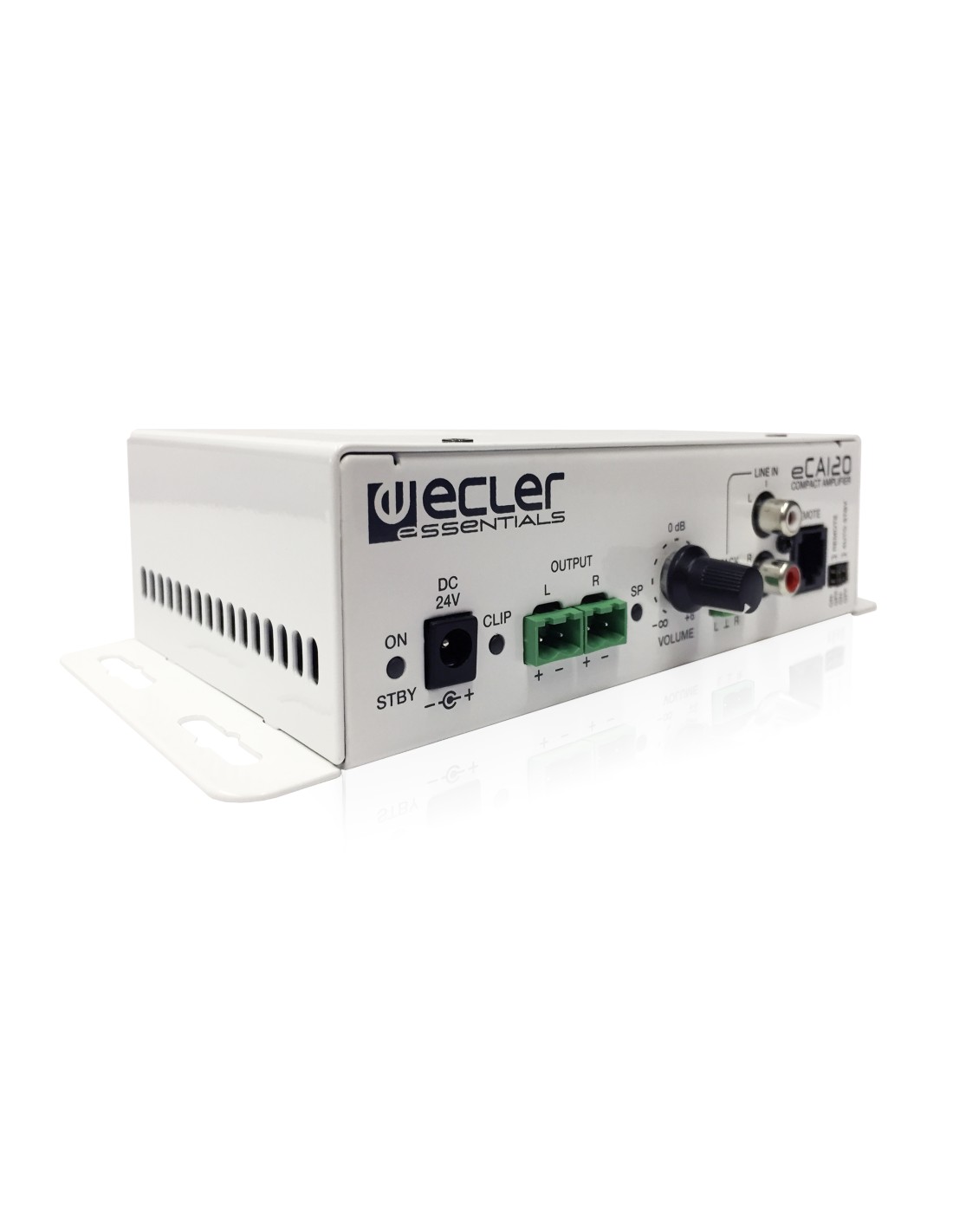

eCA120 is a 2 x 60 W RMS @ 4 ohm stereo micro-amplifier, in a very compact format and a light and silent (fanless) design. It features 1 LINE stereo input, AUTO STANDBY function and volume remote control, compatible with ECLER WPaVOL and WPaVOL-SR wall panels (0-10 VDC). External, universal and CE/UL/CCC certified power supply.
Installation options
Wall or under a surface (table, shelf, cupboard, etc.)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Optional accessories
WPaVOL series for remote control
Dimensions
190 x 48 x 90 mm / 7.48 x 1.89 x 3.54 in. (WxHxD) (knobs and connectors excluded)
Weight
0.6 kg / 1.32 lb
Shipping dimensions
220 x 60 x 170 mm / 8.66 x 2.36 x 6.7 in. (WxHxD)
Shipping weight
1.2 kg / 2.65 lb
Status
Descat
Origin Production
Spain
EAN code
8435071305020
8435071308311
Tariff code
8518408099
Shipping Location
Spain
Width (cm)
22.00
Height (cm)
6.00
Depth (cm)
17.00
Vol. (dm3)
2.24
Gross Weight (kg)
1.20
Net Weight (kg)
0.60
Format
Unit
Warranty (months)
36
Frequency response
15Hz - 30kHz (-3dB)
Input sensitivity
0dBV
Crosstalk
65dB @ 1kHz
>65dB @ 1kHz
GPIs
x1 GPI (0-10VDC) for volume control
AC mains requirement
100-240 V @ 50-60Hz + External PSU 24VDC
AC mains connector
DC24V power connector
Power supply

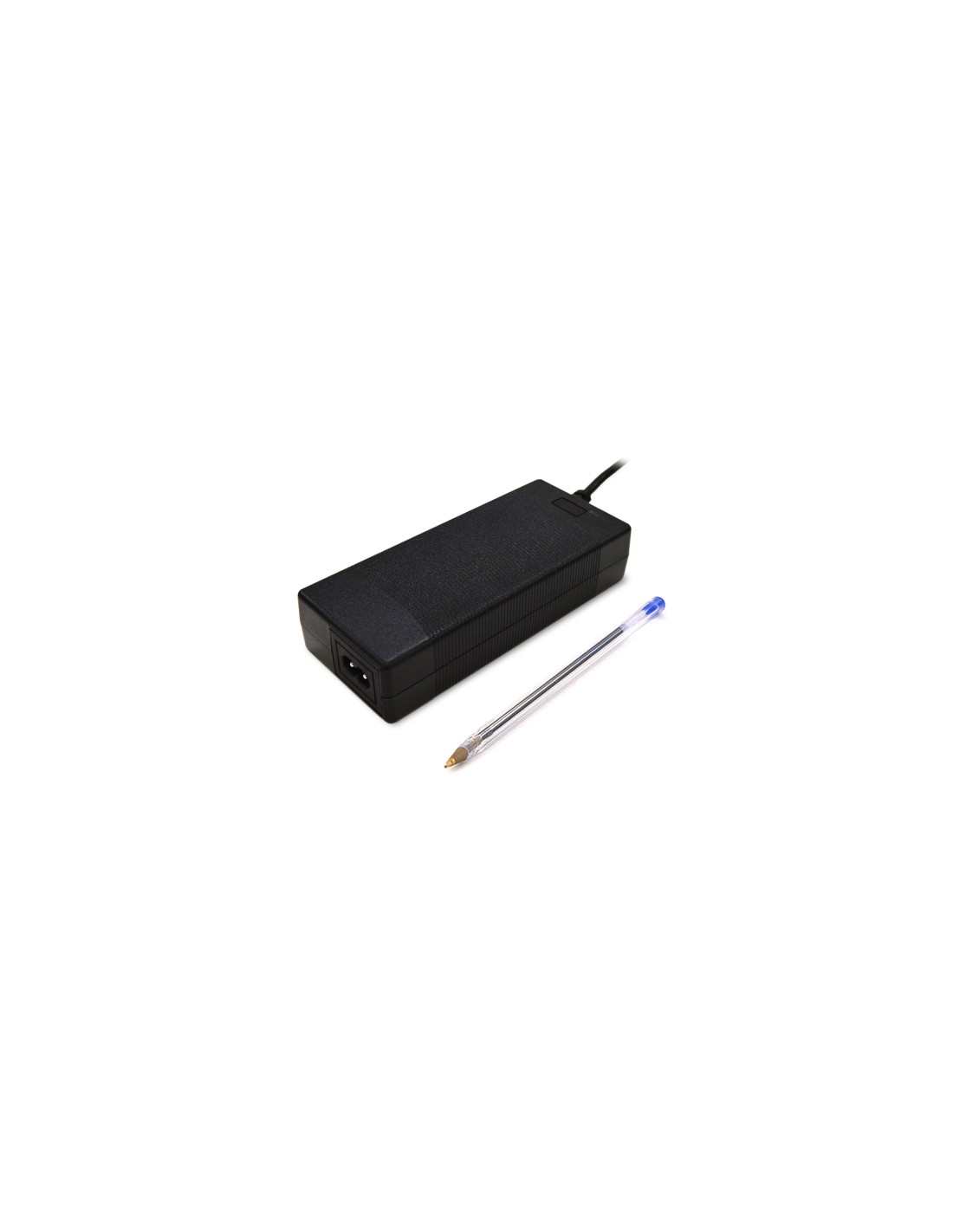

Universal external power supply
SNR
85dB (VOLUME at 0dB)
>85dB (VOLUME at 0dB)
Output connection type
Euroblock
Number of output channels
1
Number of input channels
1
Input connection type
Dual RCA and 3-pin Euroblock
Input impedance
20kΩ
>20kΩ
THD + Noise
SPKR OUT 0.15% @ 1kHz
SPKR OUT < 0.15% @ 1kHz
Cooling
Convection (fanless)
Power Consumption (STBY)
<2.5W
Output configuration
2 x 60 W RMS @ 4Ω stereo amplifier
Input configuration
LINE / STACK input
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 51W / 61VA
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 26W / 38VA
Energy save
Auto standby function
AC protection
No
DC protection
No
VHF protection
No
Short-circuit protection
No
Clip limiter
No
Long term limiter
No
Thermal protection
No
Attenuators
Front panel knob
Output settings
Stereo and parallel (mono) outputs
Auto stand-by function
Front panel jumper
Auto stand-by time
120 seconds
Signal Present
SP LED (Green)
Cliping
CLIP LED (Red)
Standby
STBY LED (Orange)
Auto standby time
120 seconds
Auto standby threshold
-40dBV (L&R)
Auto stand-by threshold
-40dBV (L&R)
Energy saving
Auto standby function
Power Consumption (STBY/SLEEP)
2.5W
<2.5W
Auto standby function
Front panel jumper
Power Consumption (1/3 POWER, @ 4Ω all channels driven)
pink noise, 51W / 61VA
Power Consumption (1/8 POWER, @ 4Ω all channels driven)
pink noise, 26W / 38VA
