| Effective Freq. Range |
83 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
158°x158° (HxV) |
| Power handling |
30 W RMS / 120 W Peak |
| Sensitivity |
84 dB (1W/1m) |
| Maximum SPL |
99 dB continuous / 105 dB peak |
| Recommended amplifier power |
60 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 30W / 15W |
| Ways |
1-way |
|---|---|
| Nominal impedance |
667Ω / 333Ω |

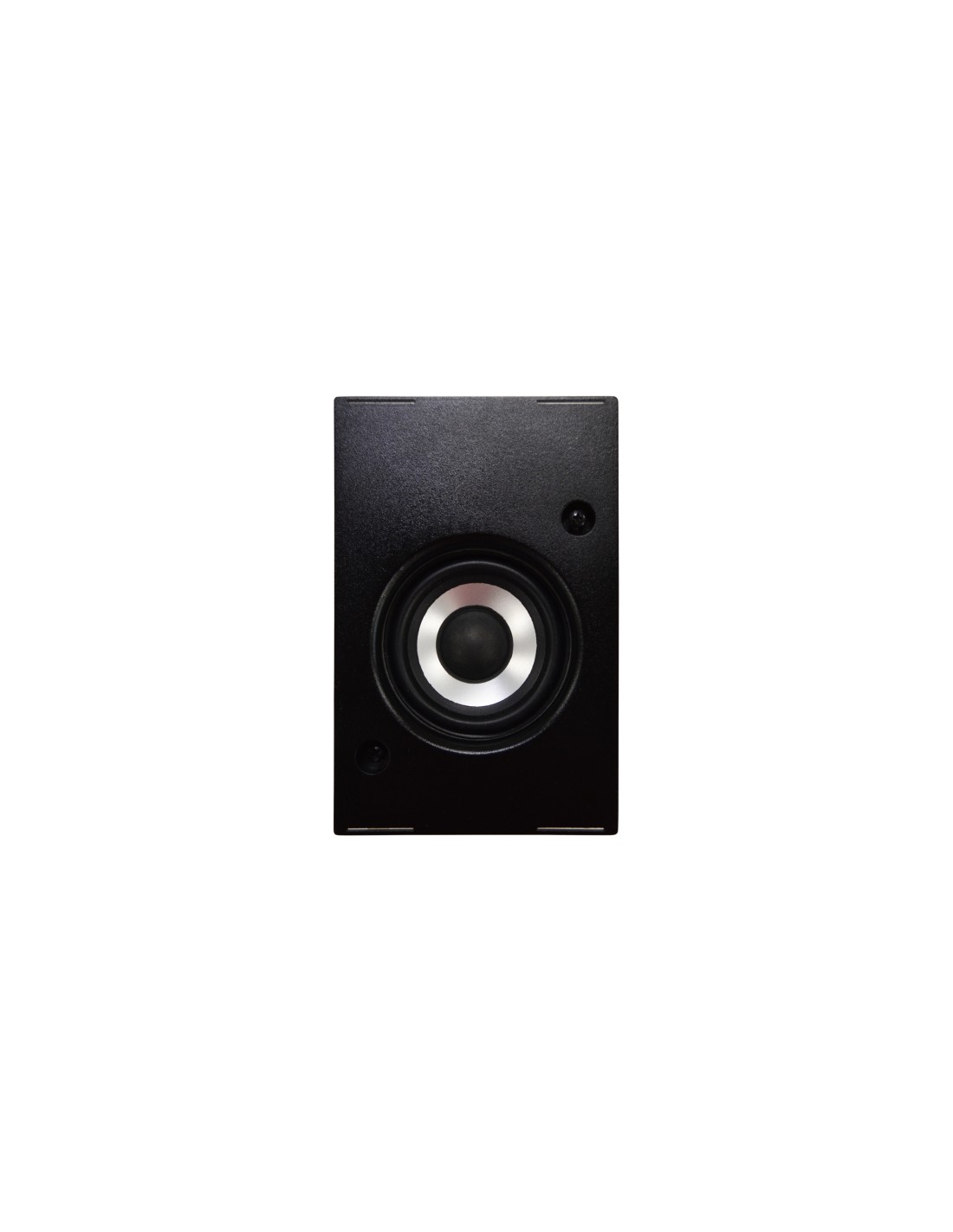

| Driver |
3" woofer |
| Connection type |
Spring terminals |
|---|---|
| Installation options |
Wall or false ceiling |
| Enclosure material |
ABS |

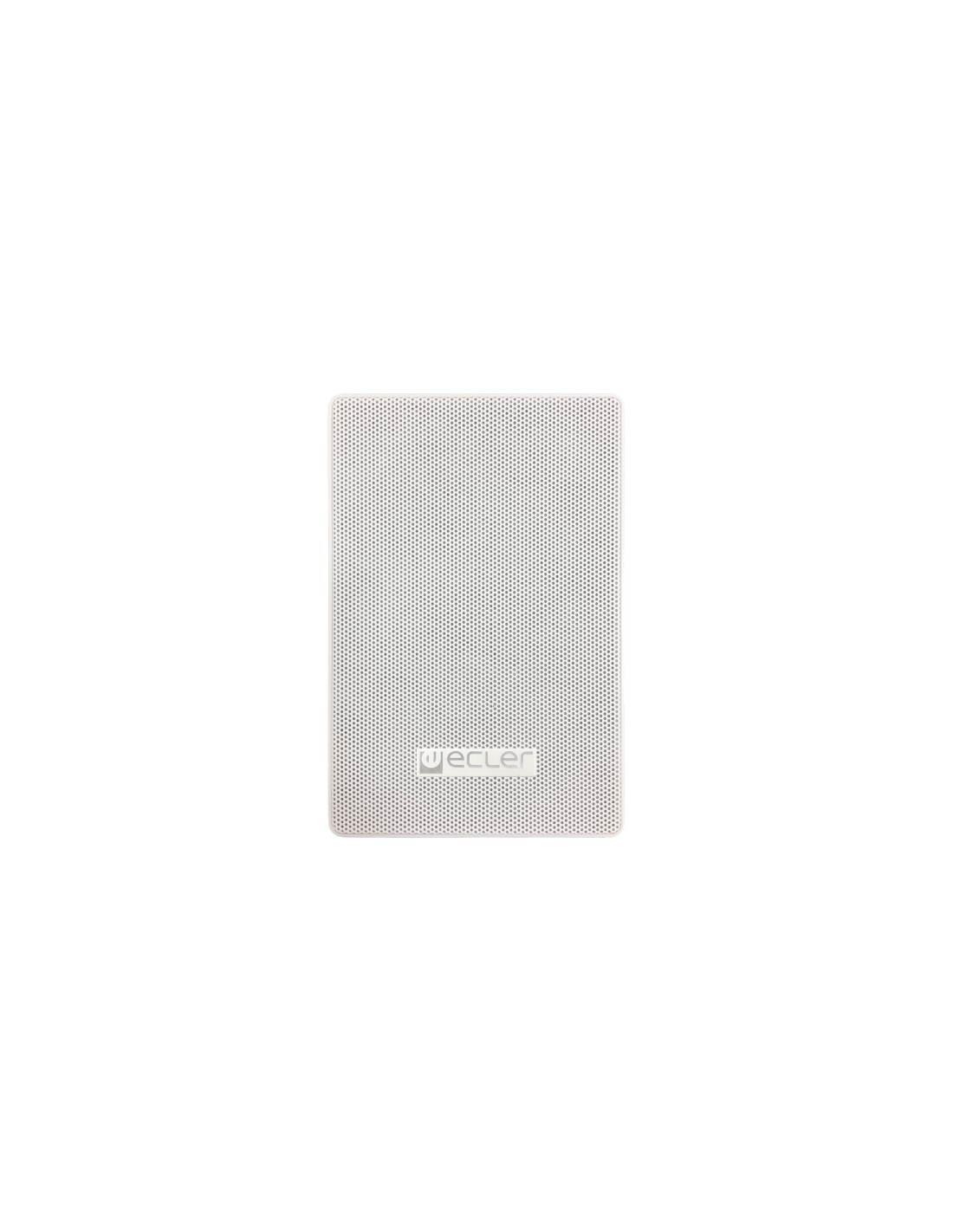

| Grille material |
Aluminium, paintable |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9003) |
| Dimensions |
110 x 165 x 80 mm / 4.33 x 6.5 x 3.15 in. (WxHxD) |
| Weight |
0.9 kg / 1.98 lb |
| Pieces per box |
8 units |
| Shipping dimensions |
120 x 100 x 180 mm / 4.72 x 3.94 x 7.07 in. (WxHxD) |
| Shipping weight |
1.0 kg / 2.2 lb |
| Format |
8 units |
| Power type selector |
Changing the position of the terminals |
| Recommended cut out diameter |
147 x 95 mm / 5.79"x3.74" |
| Required depth |
80 mm / 3,14” |
| Ceiling thickness |
2mm / 0.078” min
40mm / 1.57” max |
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071306010 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
| Width (cm) |
12.00
|
| Height (cm) |
10.00 |
| Depth (cm) |
18.00 |
| Vol. (dm3) |
2.16 |
| Gross Weight (kg) |
1.0 |
| Net Weight (kg) |
0.9 |
| Warranty (months) |
36 |
