| Number of paging zones |
16 |
|---|
| Installation options |
Desktop |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Windscreen for Microphone, jumper for internal connection and RJ45 to Euroblock adapter |
| Dimensions |
150 x 50 x 180 mm / 5.91 x 1.97 x 7.09 in. (WxHxD) (microphone excluded) |
| Weight |
0.9 kg / 1.98 lb |

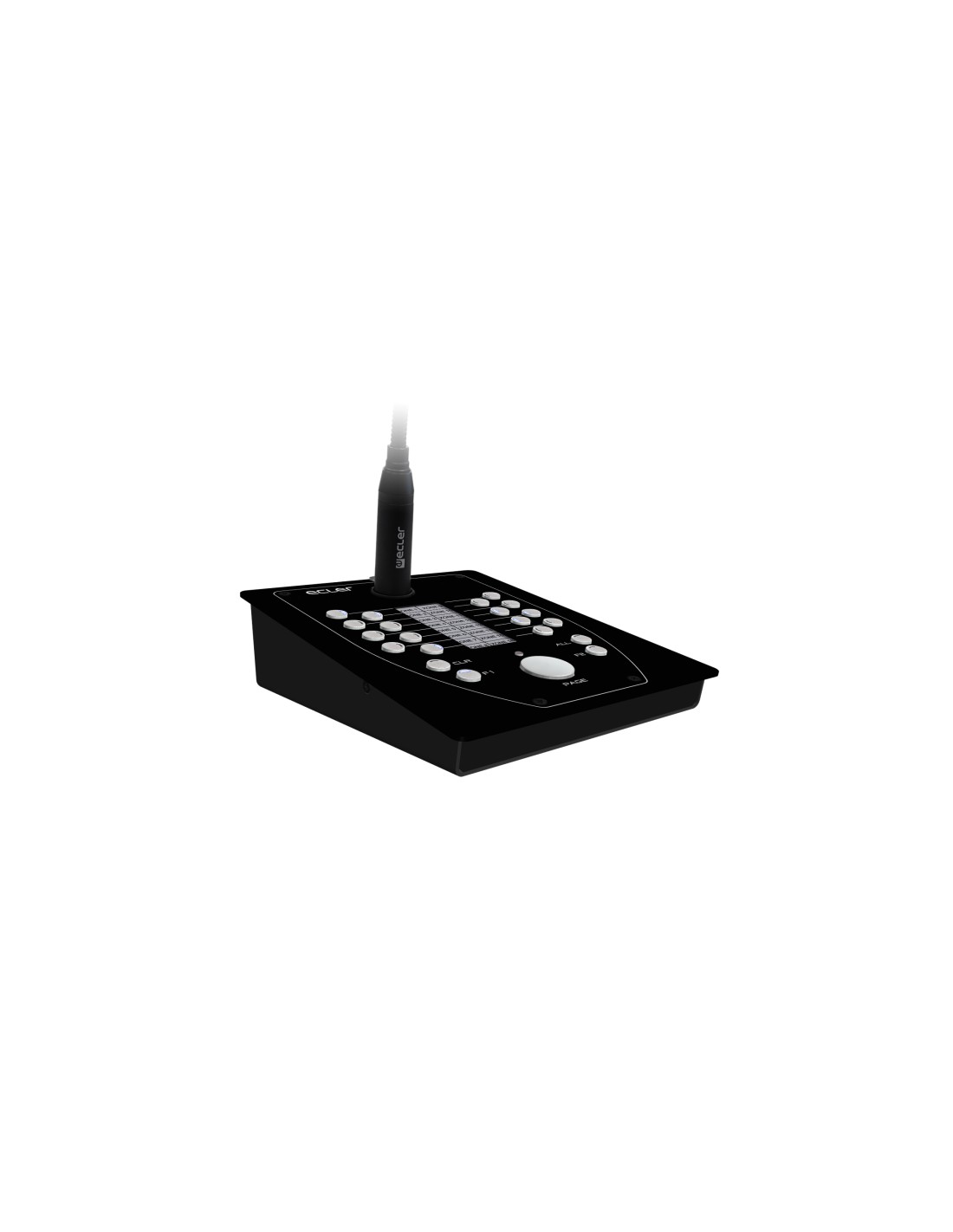

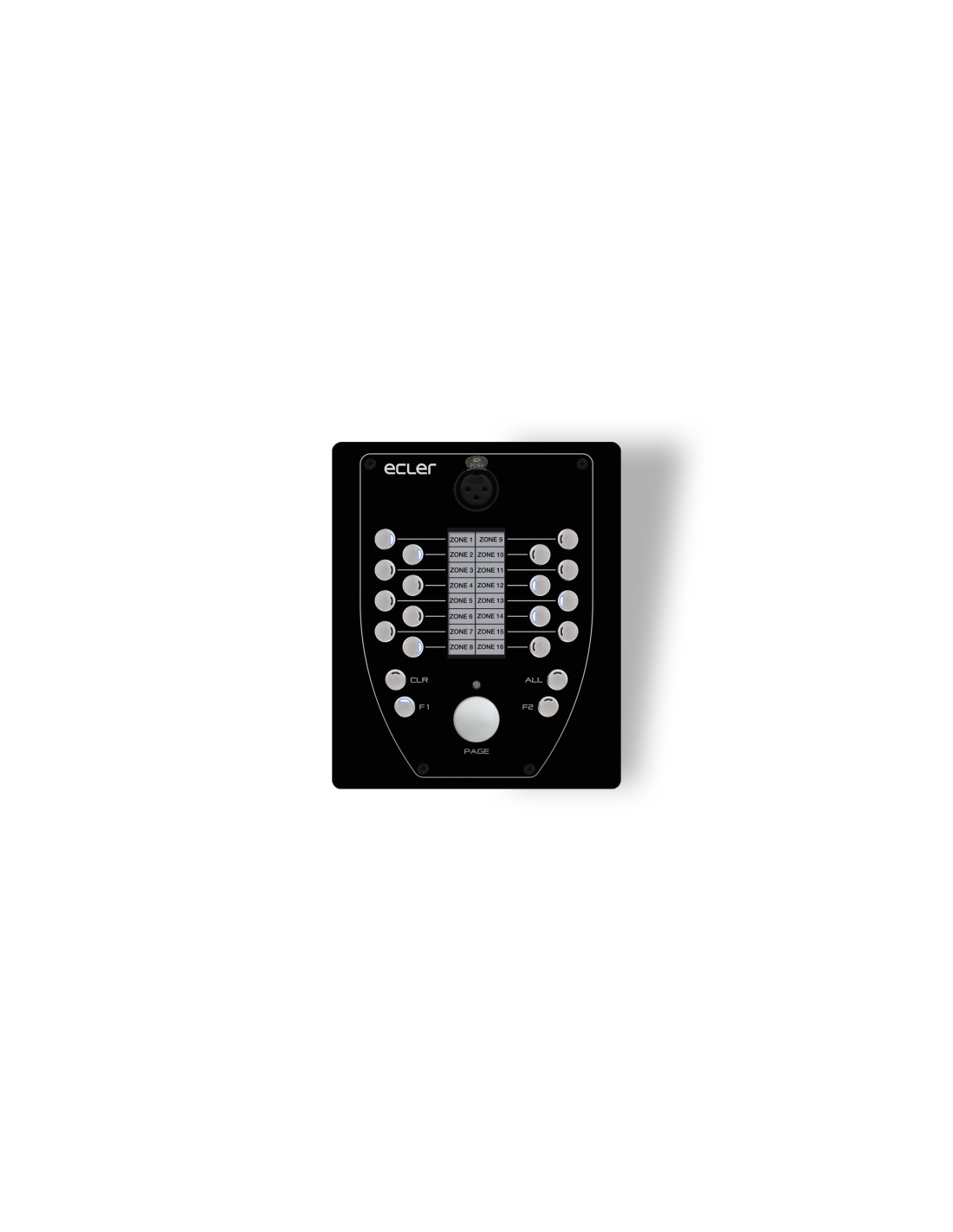

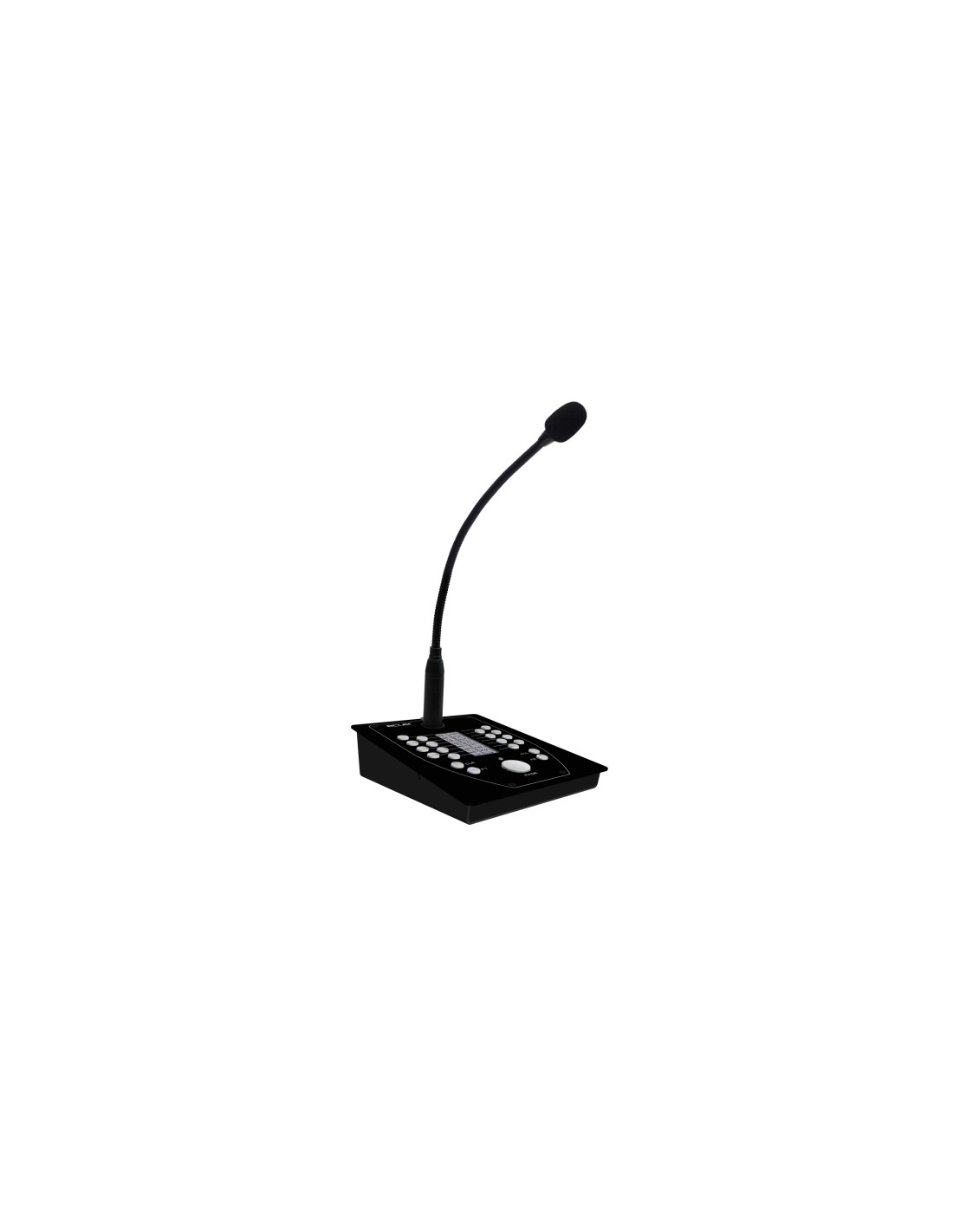

| Type |
Paging station |
| Status |
New |
|---|---|
| EAN code |
8435071306768 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Microphone type |
Removable gooseneck condenser microphone (eMCN1) |
|---|---|
| Polar pattern |
Unidirectional |
| AC mains requirement |
From RJ45 remote input: 12VDC
From External Input: 24VDC (With WP24-PSU backup power supply) |
|---|---|
| Power supply |
Optional, 24VDC (min. 80mA)
Recommended external power supply: Ecler WP24-PSU |
| Max power consumption |
From RJ45 remote input: 180mA
From External Input: 180mA |
| PoE |
Yes |
| Programing and control |
RS485 and CAN, internally selectable by JUMPER |
|---|---|
| Ethernet |
1 RJ45 connector, cable: Cat-5 or better. Supports PoE |
| Number of output channels |
1 (picked up by the microphone) |
|---|
| LED Indicators |
Green LED on All and Clear keys, Bicolor LED on other keys |
|---|---|
| Buttons |
Paging zone selection keys, PAGE key, F1, F2, All & Clear keys |
| Phantom power |
48VDC, always ON |
|---|
| Input connection type |
XLR female conection type |
|---|
| Frequency response |
50Hz – 18KHz (-10dB) |
|---|
| Resolution |
296x128 Pixels |
|---|---|
| Display |
Active Matrix Electrophoretic Display |
| Touch-panel |
No |
