CNIMBO14BK
Only a few left
Top Performance Cabinet Loudspeaker
See more Features Resources

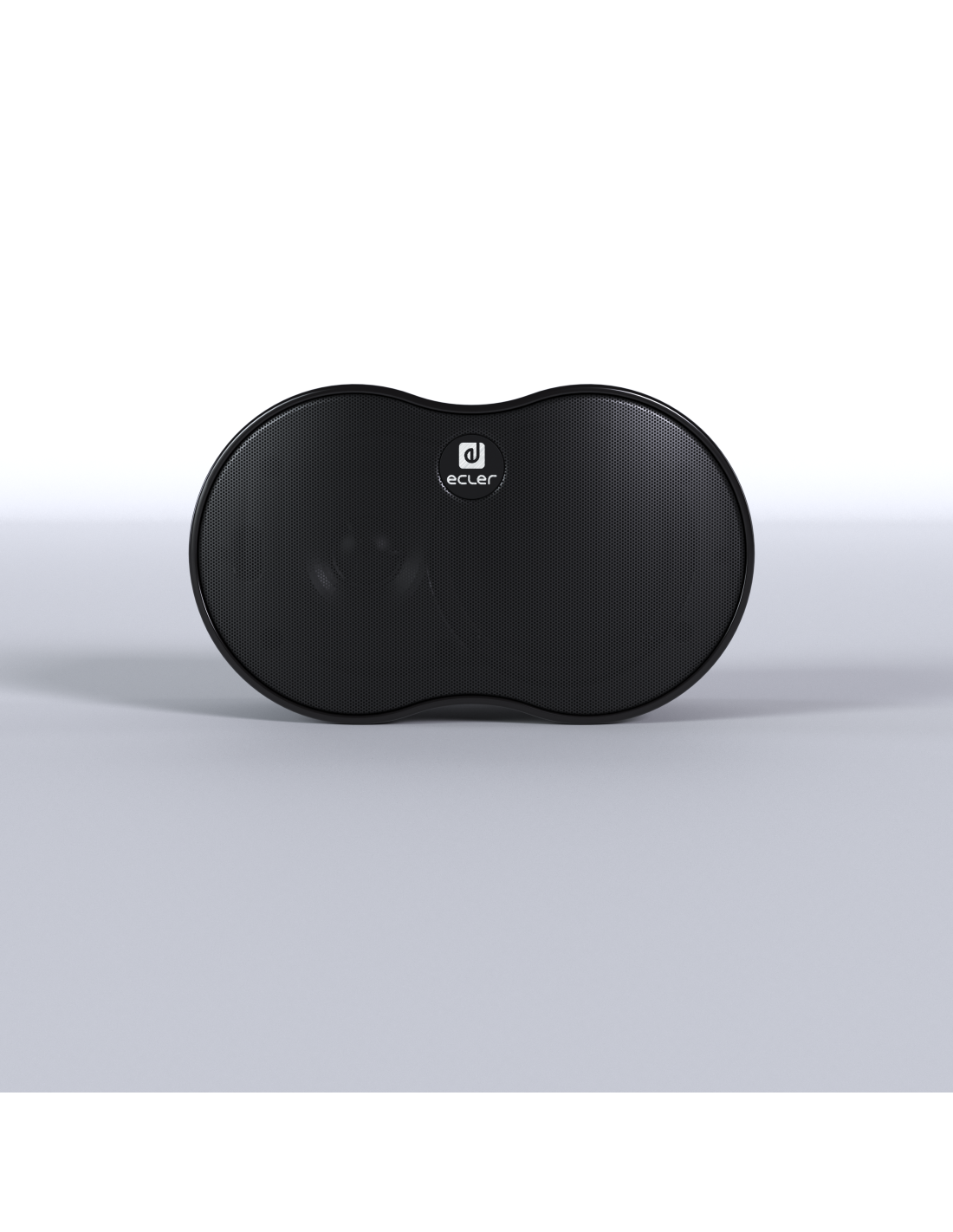

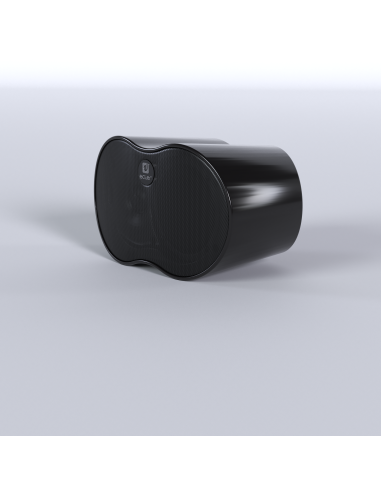

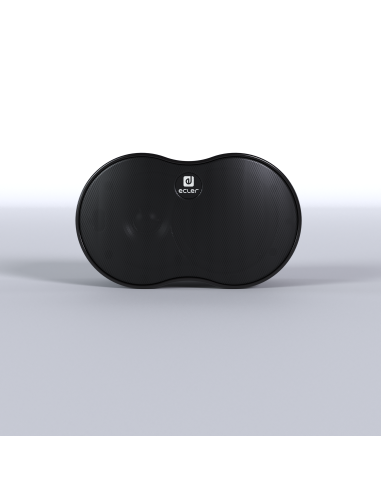

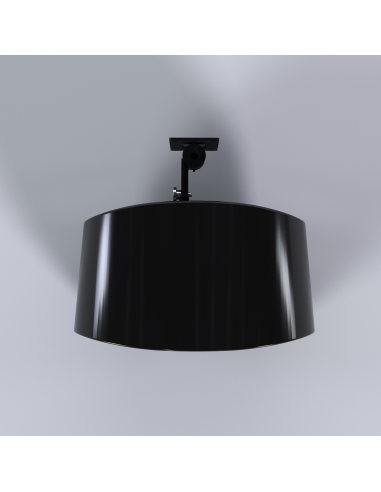

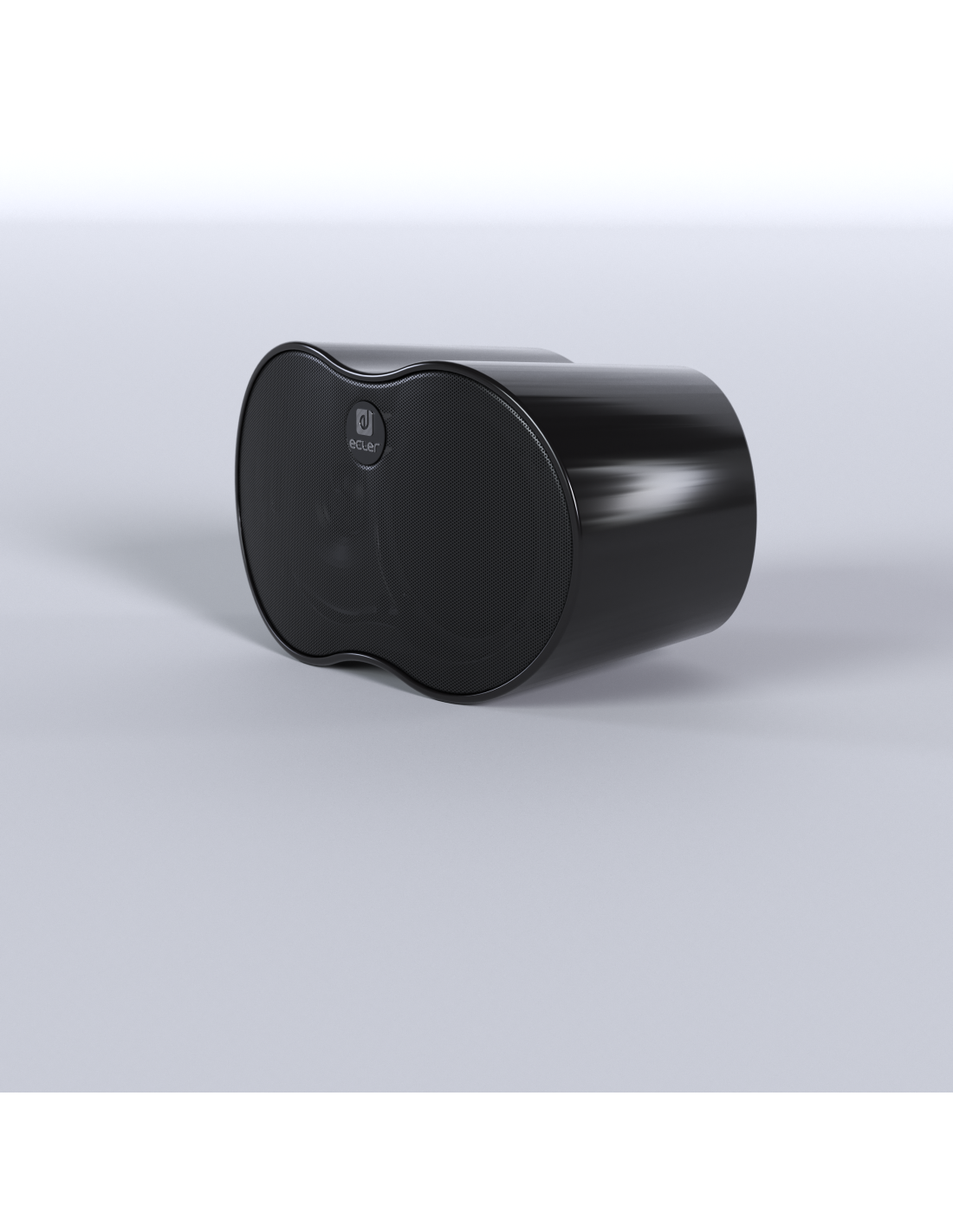

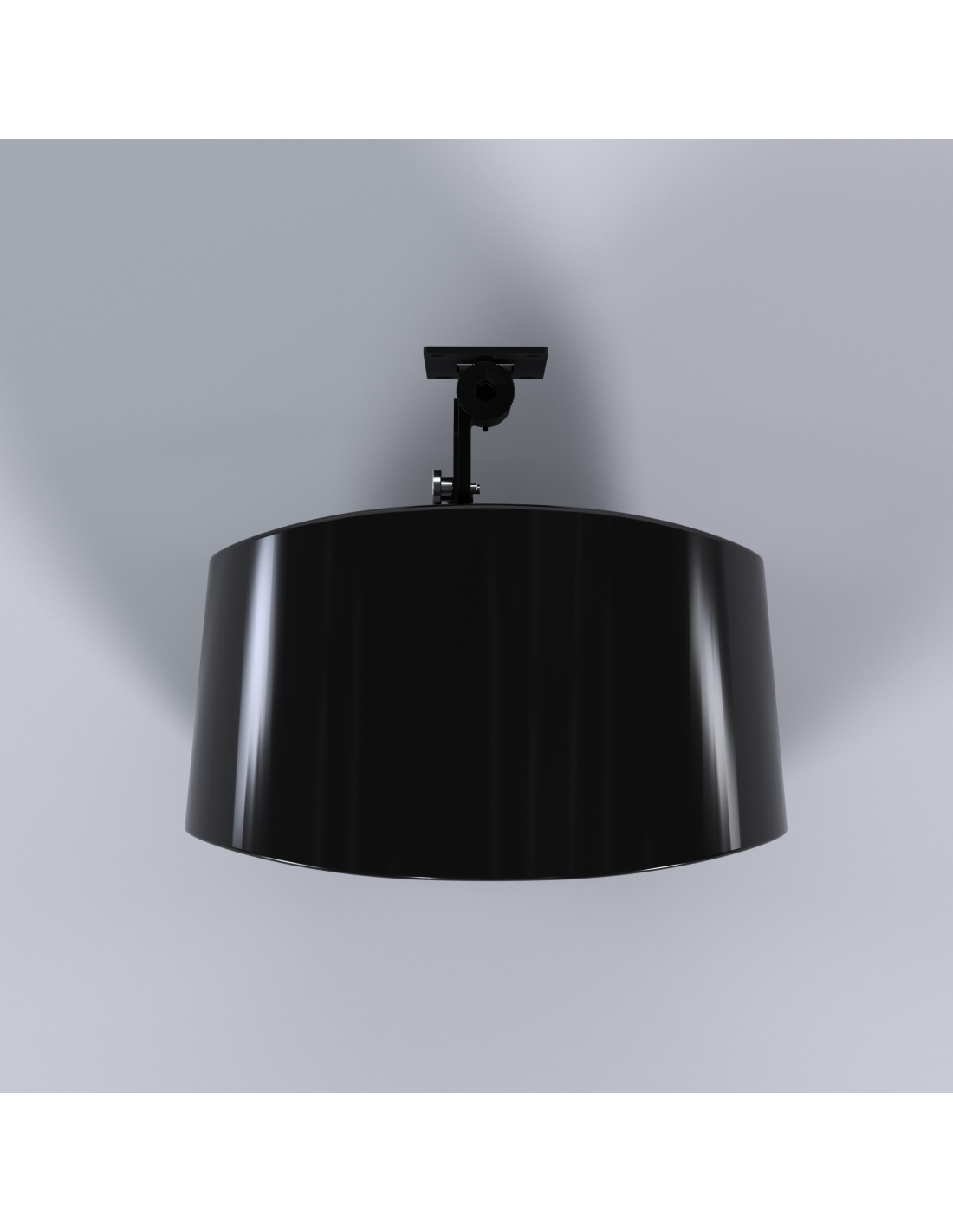

NIMBO-14 is a premium performance 2-way passive loudspeaker with 40W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. Including 1 x 4" woofer and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly. It includes a wall-mount bracket (inox), allowing tilt and pan adjustment using a single screw.
Effective Freq. Range
75Hz-20kHz (-10dB)
Coverage angle / Dispersion
128° x 196° (HxV)
Power handling
40W RMS / 160 W Peak
Sensitivity
81db (1W/1m)
Maximum SPL
97dB continuous / 103 dB peak
Recommended amplifier power
80W RMS
Ways
2-ways full range
Low frequency driver
1 x 4" Woofer
High frequency driver
1" silk dome tweeter
Nominal impedance
8Ω
Crossover filter
1,65 kHz

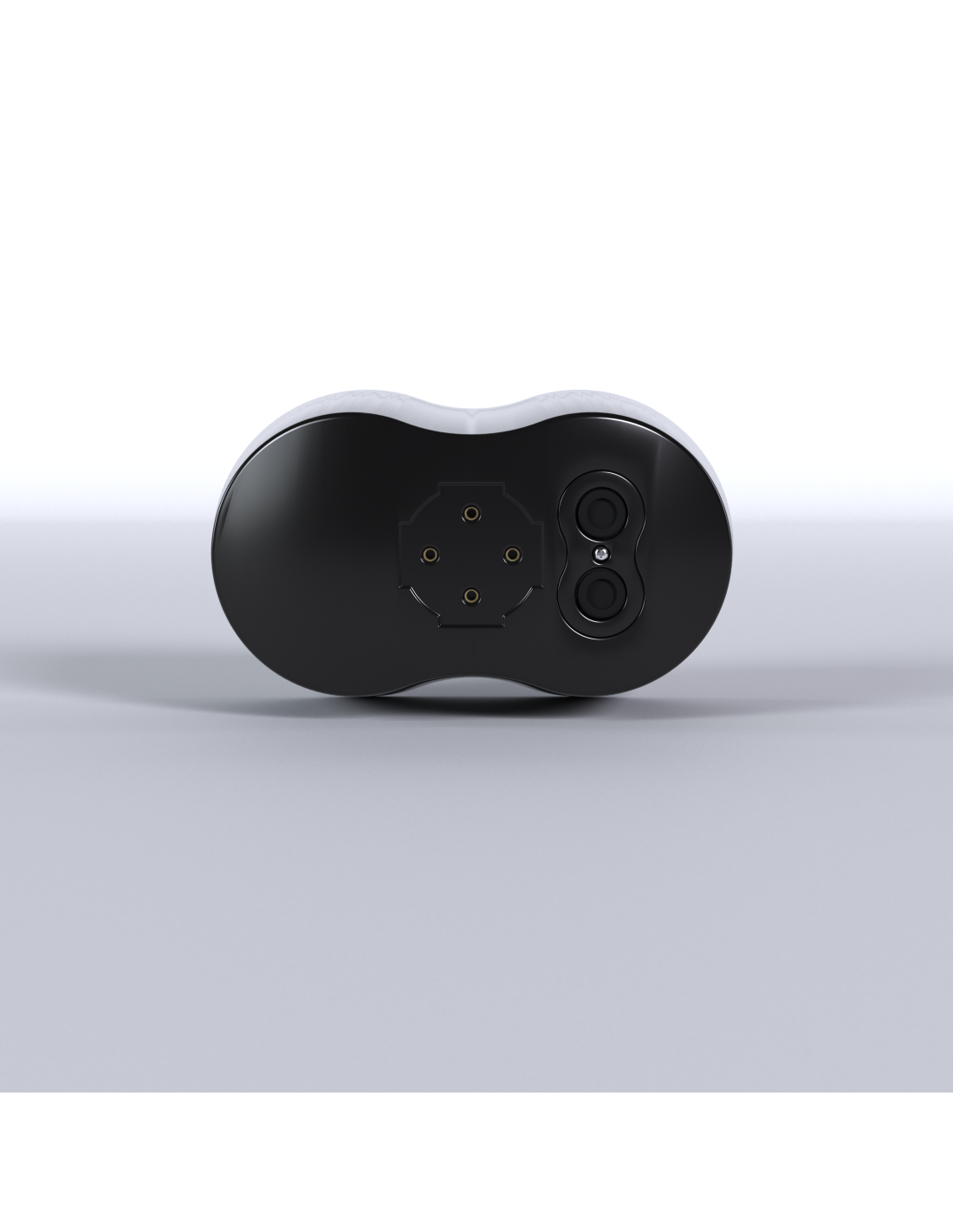

Connection type
Double INPUT/LINK connector, Euroblock type
Installation options
Surface / Wall mounting
Environmental
IP44 rated
Enclosure material
ABS reinforced with fibreglass
Grille material
Aluminium
Grille fixing system
Pressure mount system
Operating temperature
Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
Storage humidity
90% HR
<90% HR
Included accessories
Wall-mount bracket, 2x Euroblock connector
Optional accessories
GROUNDY and CEILY brackets
Finished colour
White (RAL9003), Black (RAL9005), Gold (RAL1036, approx.) or Titanium (RAL9007 MATT).
White (RAL9003), Black (RAL9005) or
Gold (RAL1036, approx.)
Dimensions
250 x 148.7x 150 mm / 9.84 x 5.85 x 5.91 in. (WxHxD)
Weight
1.7 kg / 3.75 lb
Pieces per box
1
Shipping dimensions
330 x 250 x 240 mm / 13 x 9.84 x 9.45 in.
Shipping weight
2,7 kg / 5,95 lb
Status
New
Origin Production
Spain
EAN code
BK: 8435071344036
GD: 8435071344050
WH: 8435071344043
Tariff code
8518220000
Shipping Location
Spain
Width (cm)
33.5
Height (cm)
26.5
Depth (cm)
24.5
Vol. (dm3)
21.75
Net Weight (kg)
1,70 kg
Format
Unit
Warranty (months)
60

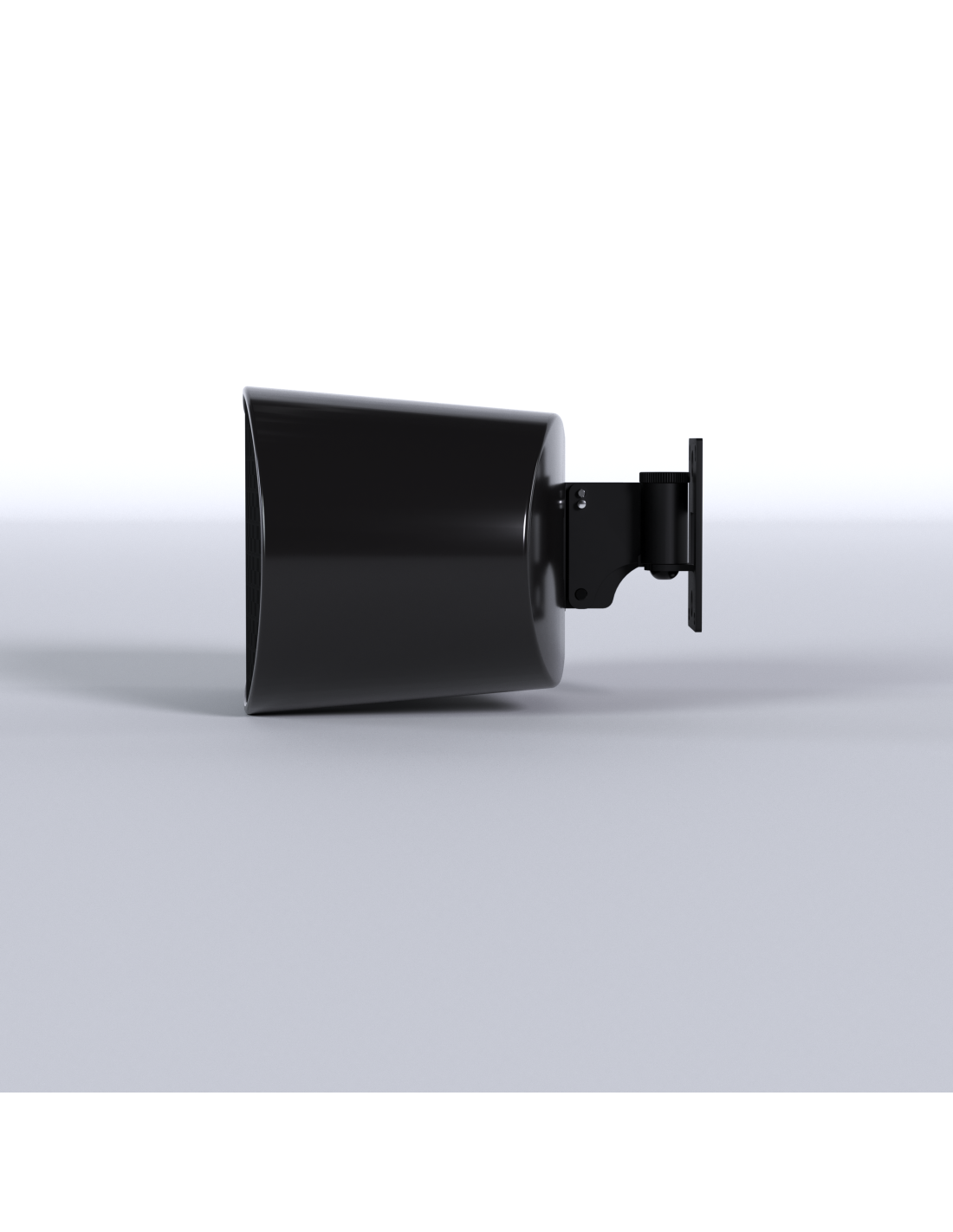

Mounting system
Wall-mount bracket (inox)
