CVIDA24Q
Check availability

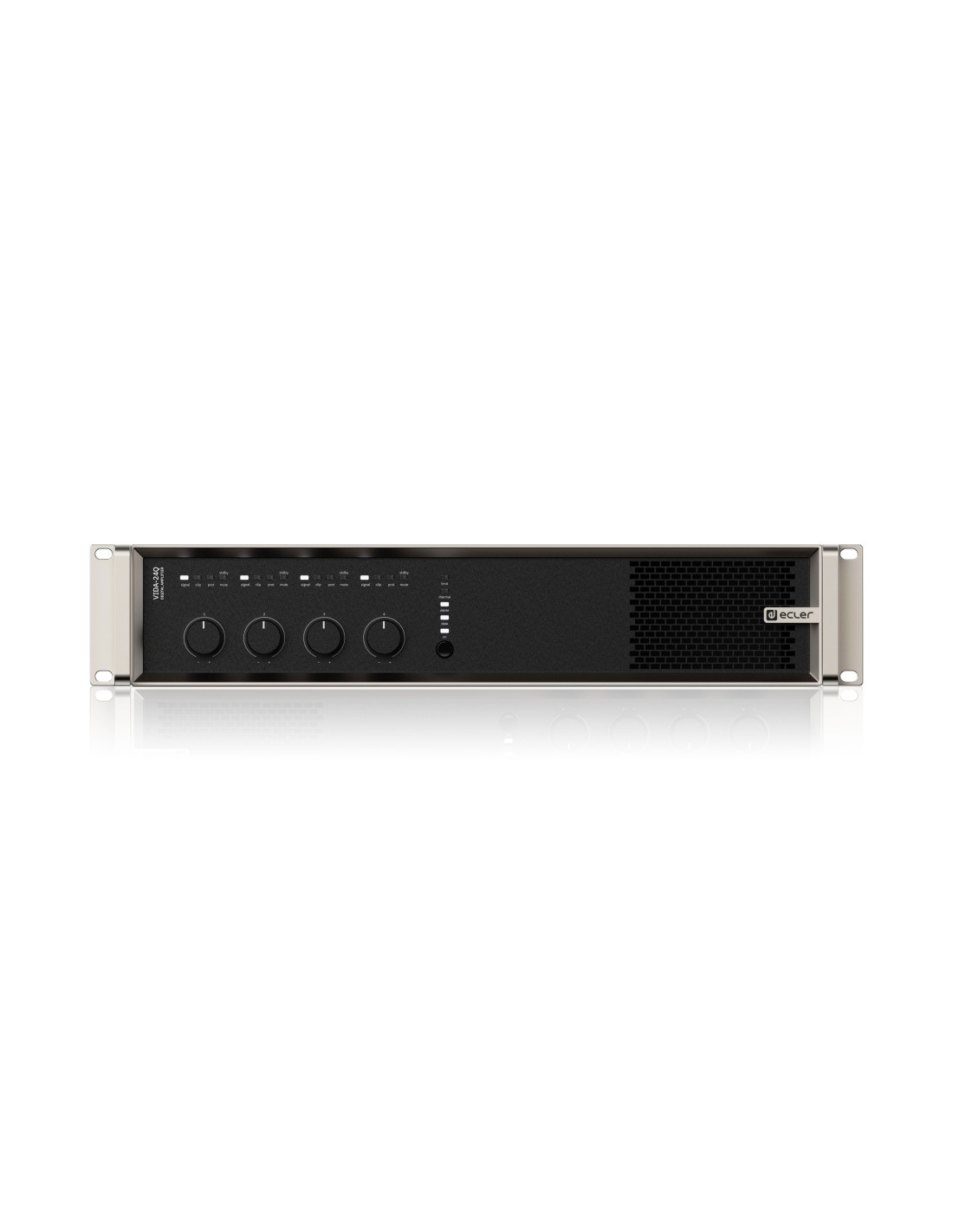

Dante/AES67 Digital Amplifier with DSP and Player
See more Features Resources

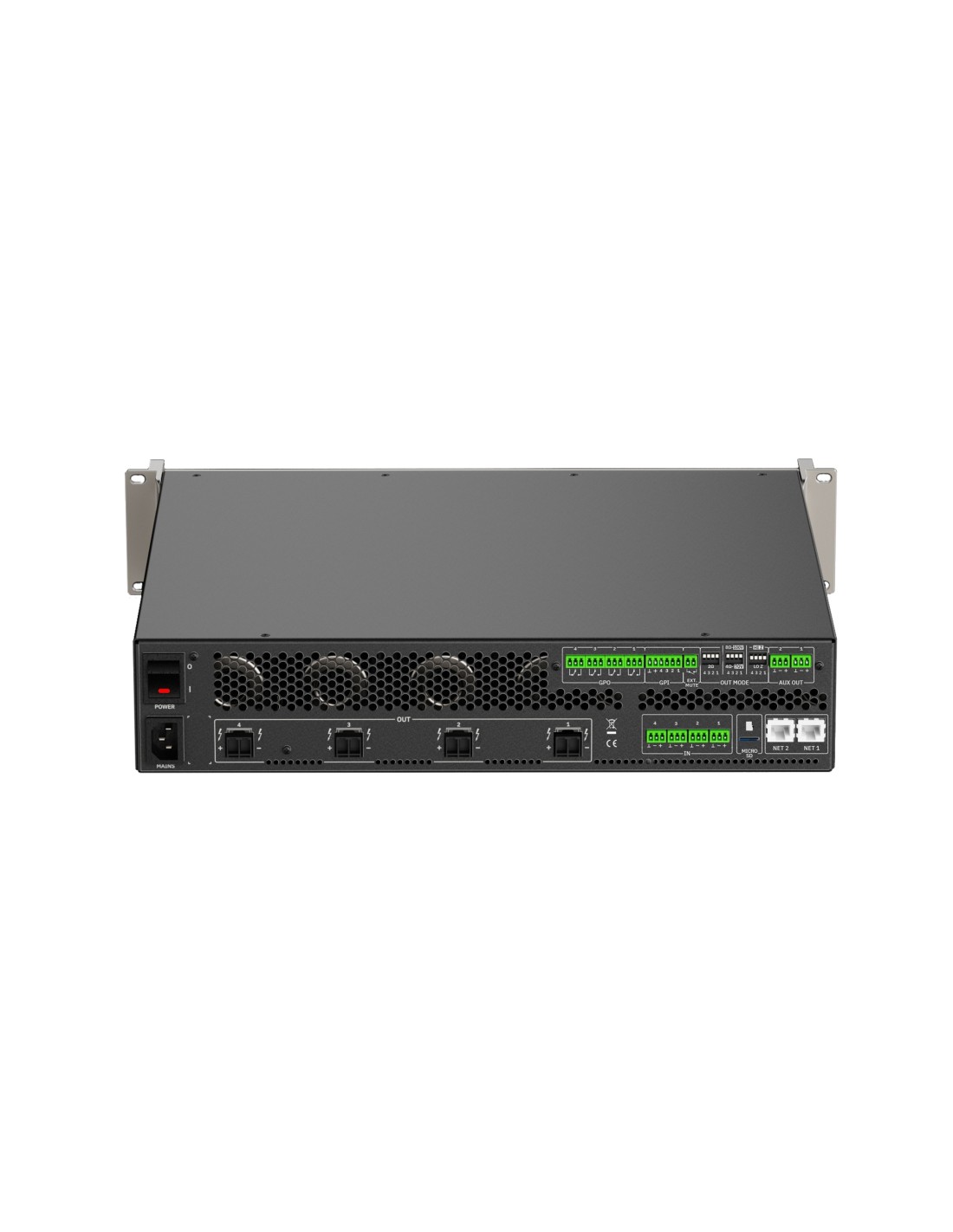

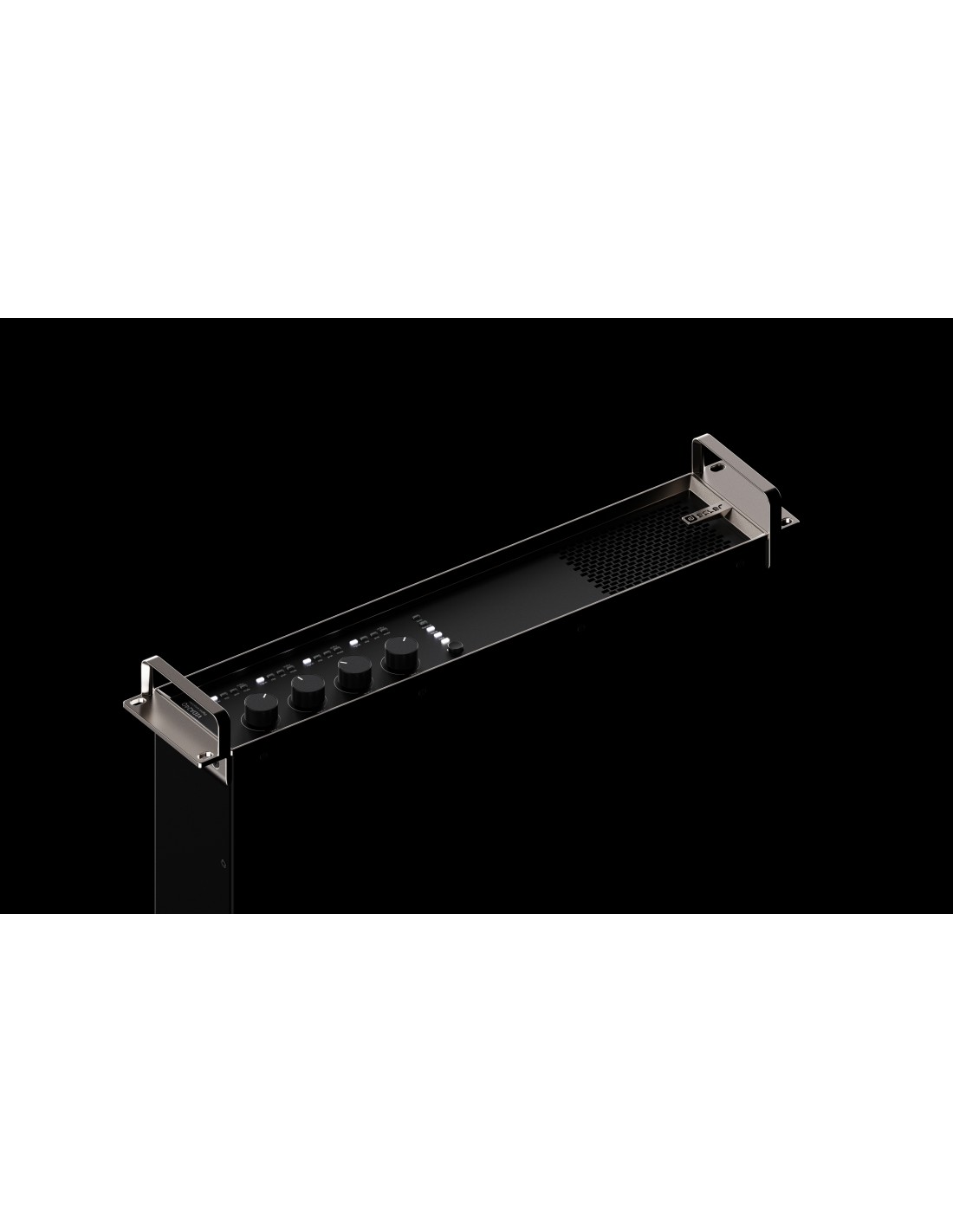

VIDA-24Q is a 2400W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player - with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and Dante/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing - matrix -, audio signal processing - such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.
Installation options
Rack 19" installation & desktop
Operating temperature
Min: -10⁰C ; 14⁰F
Max: 50⁰C ; 122⁰F
Operating humidity
5 - 85% RH, non-condensing
Storage temperature
Min: -10⁰C ; 14⁰F
Max: 50⁰C ; 122⁰F
Storage humidity
5 - 85% RH, non-condensing
Included accessories
Mains cords, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware
Dimensions
482.6 x 88 x 410 mm / 19 x 3.46 x 16.14 in. (WxHxD)
Weight
9.3 kg / 20.5 lb
Shipping dimensions
650 x 125 x 600 mm / 25.59 x 4.92 x 23.62 in. (WxHxD)
Shipping weight
12.3 kg / 27.1 lb
Status
New
Origin Production
Spain
EAN code
8435071315937
Tariff code
8518400000
Shipping Location
Spain
Width (cm)
60
Height (cm)
14
Depth (cm)
65
Vol. (dm3)
54.60
Gross Weight (kg)
12.2
Net Weight (kg)
9.5
Format
Unit
Warranty (months)
60
Processor
Quad core 64bits 1,5GHz
Sampling rate
48 kHz
Resolution
24 bit
Frequency response
15Hz-25kHz
Input sensitivity
-6 to +6 dBV
-3,78 to 8,2 dBu
0,5 to 2 Vrms
CMRR
65 Typ
>65 Typ
Crosstalk
80 dB
>80 dB
Programing and control

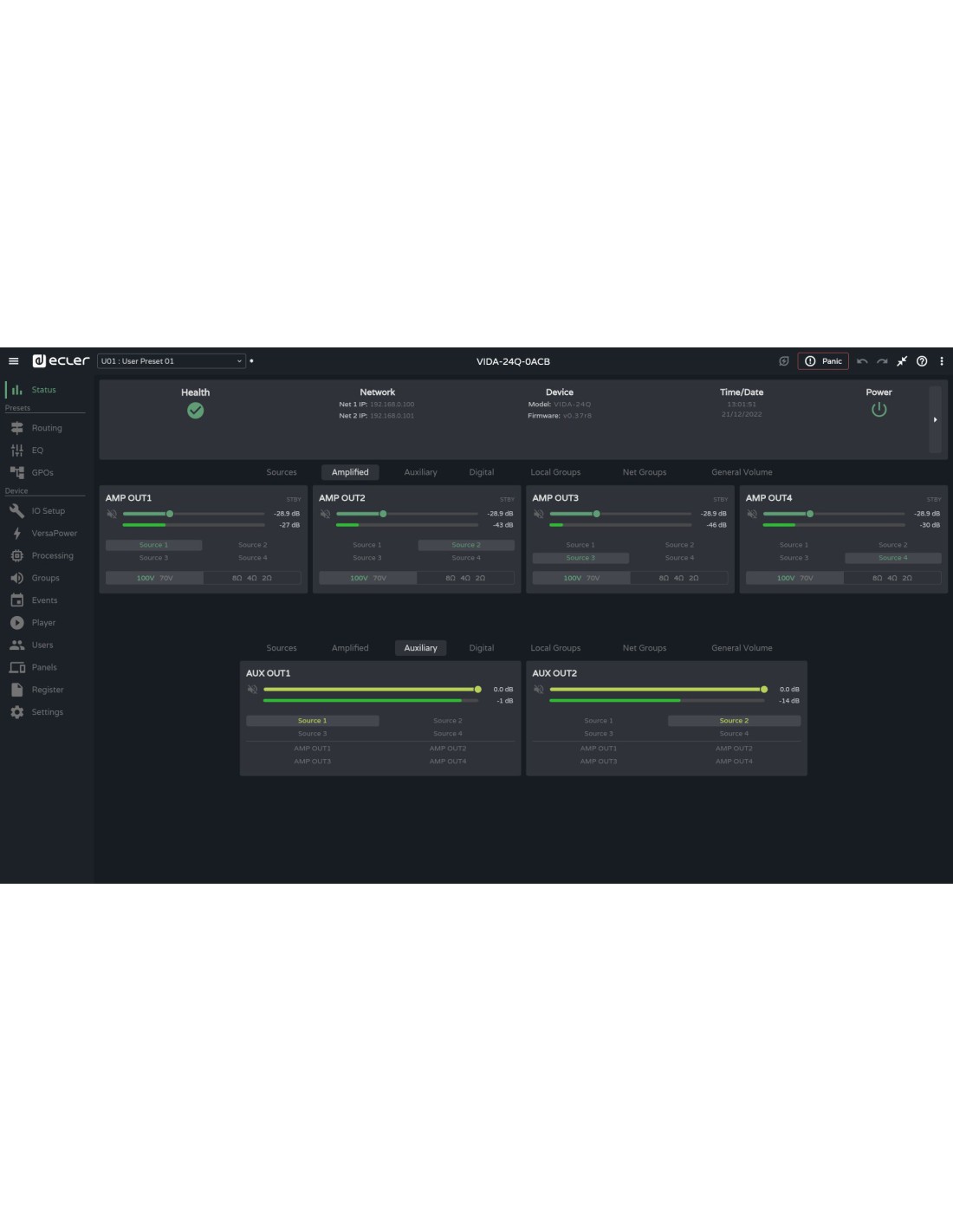

Embedded web application
GPIs
x4 GPIs (0-10V)
AC mains requirement
100-240 V @ 50-60Hz (±10%)
AC mains connector
IEC C14 inlet
Power supply
Universal, regulated SMPS with PFC
SNR
95 dBA
Output connection type
2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
Power
3,6 W
10,2 VA
4,1 W
23,8 VA
68 W
89 VA
72 W
122 VA
483 W
493 VA
498 W
536 VA
848 W
888 VA
855 W
865 VA
Number of output channels
4
Number of input channels
4 analogue input channels.
4 DANTE/AES67 Network Rx channels.
1 embedded player, 1 embedded signal generator
4 analogue input channels.
4 DANTE™/AES67 Network Rx channels.
1 embedded player, 1 embedded signal generator
Input connection type
Digital: Ethernet, managed via Dante/AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm
Digital: Ethernet, managed via Dante™/AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm
Ethernet, managed via Dante™/AES67 Controller
IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm
Max output power @ 100V
600W

2400W
Max output power @ 70V
600W

2000W
Input impedance
24kΩ
>24kΩ
Max input level
+18 dBV
+20,2 dBu
THD + Noise
0,1%
0,015 Typ
< 0,1%
0,015 Typ
Damping factor
500

>500
Cooling
Fan
Latency
2,8 ms
Maximum fan noise
53 dB
Ethernet
Ethernet Base-Tx 10/100/1000Mb Auto X-Over
Output configuration
Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω.
Output mode selection per channel.
Rear panel DIP SWITCH selectors
Input configuration
Digital matrix 4 in x 6 out
Efficiency
72%
AC protection
N/A
DC protection
Yes
Short-circuit protection
Yes
Clip limiter
Yes
Long term limiter
Yes
Thermal protection
Yes
External MUTE
Yes, contact
Attenuators
Programmable Front panel knobs
Signal Present
SP LED (White) per channel
Cliping
CLIP LED (Red) per channel
Standby
N/A
Number of inputs
4 analogue input channels.
4 DANTE™/AES67 Network Rx channels.
1 embedded player, 1 embedded signal generator
Dynamic range
114 dB
GPOs
x4 NC / NO contacts
Retention time
5 years

> 5 years
Accuracy
±1 minute / month
Micro SD
SDXC
Capacity
Up to 2TB
File system
FAT16, FAT 32, VFAT (read/wirte)
NTFS (read)
Multi-partition up to 1
Playable audio files
mp3, ogg, WAV, FLAC, AIFF
Files analysis
65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder
Folder hierarchy
Up to 8 containing the root directory
Sorting
UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order
Amplification technology
Class D
DANTE Protocol
Dante/AES67 4x Tx / 4x Rx channels (2/2 flows)
Primary and secondary capability. RJ-45 ports
(Settings by embedded web application)
Dante™/AES67 4x Tx / 4x Rx channels (2/2 flows)
Primary and secondary capability. RJ-45 ports
Dante™/AES67 4x Tx / 4x Rx channels
Primary and secondary capability. RJ-45 ports
Power ON/OFF
Yes, back panel switch
Thermal
THERMAL LED (Red) per unit
Protect
PROT LED (Red) per channel
Analogue input connection type
IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm
Number of amplified outputs
4
Amplified output connection type
2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
Voltage gain
28 to 40 dBV
30,2 to 42,2 dBu
Power factor correction
0,96

> 0,96
HF protection
Yes
ON / OFF
No
Output mode settings
Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel
RUN/SLEEP mode
Yes, front panel push-button
Standby / Mute
STBY/MUTE LED (White) per channel
Limit
LIMIT LED (Red) per unit
Data
DATA LED (White) per unit
On
ON LED (White) per unit
Digital processing
32/64 bit
Inputs processing
Noise gate, HPF, Freq. Shifter, compressor/limiter
Outputs processing
Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out
Limiters independent for every amp out
Smart VersaPower management
Others
Preset management, Internal matrix, priority & backup signals managemnet, local & network groups, events management incl. calendar
Digital input connection type
Ethernet, managed via Dante™/AES67 Controller
Energy saving
Auto standby function programmable per channel
Sleep Mode function selectable
Auto standby function programmable per channel
Sleep Mode funtion selectable
Number of auxiliar outputs
2
Auxiliar output connection type
AUX1-2: 3-pin Euroblock, balanced
Number of digital outputs
4
Digital output connection type
Ethernet, managed via Dante/AES67 Controller
Ethernet, managed via Dante™/AES67 Controller
Current Draw
0,09 Arms

0,1 Arms

0,52 Arms

0,75 Arms

2,33 Arms

3,88 Arms

4,16 Arms

7,37 Arms
Thermal Loss
3,1 kcal/h
12,3 BTU/h
3,5 kcal/h
14 BTU/h
58,5 kcal/h
232,1 BTU/h
61,9 kcal/h
245,7 BTU/h
157,4 kcal/h
624,6 BTU/h
170,3 kcal/h
675,8 BTU/h
214,1 kcal/h
849,8 BTU/h
219,3 kcal/h
870,3 BTU/h
Dante
DANTE/AES67 LED (White) per unit

DANTE™/AES67 LED (White) per unit
Battery
VARTA CR2032 3V, 230mAh
RUN/SLEEP mode
Yes, front panel push-button
