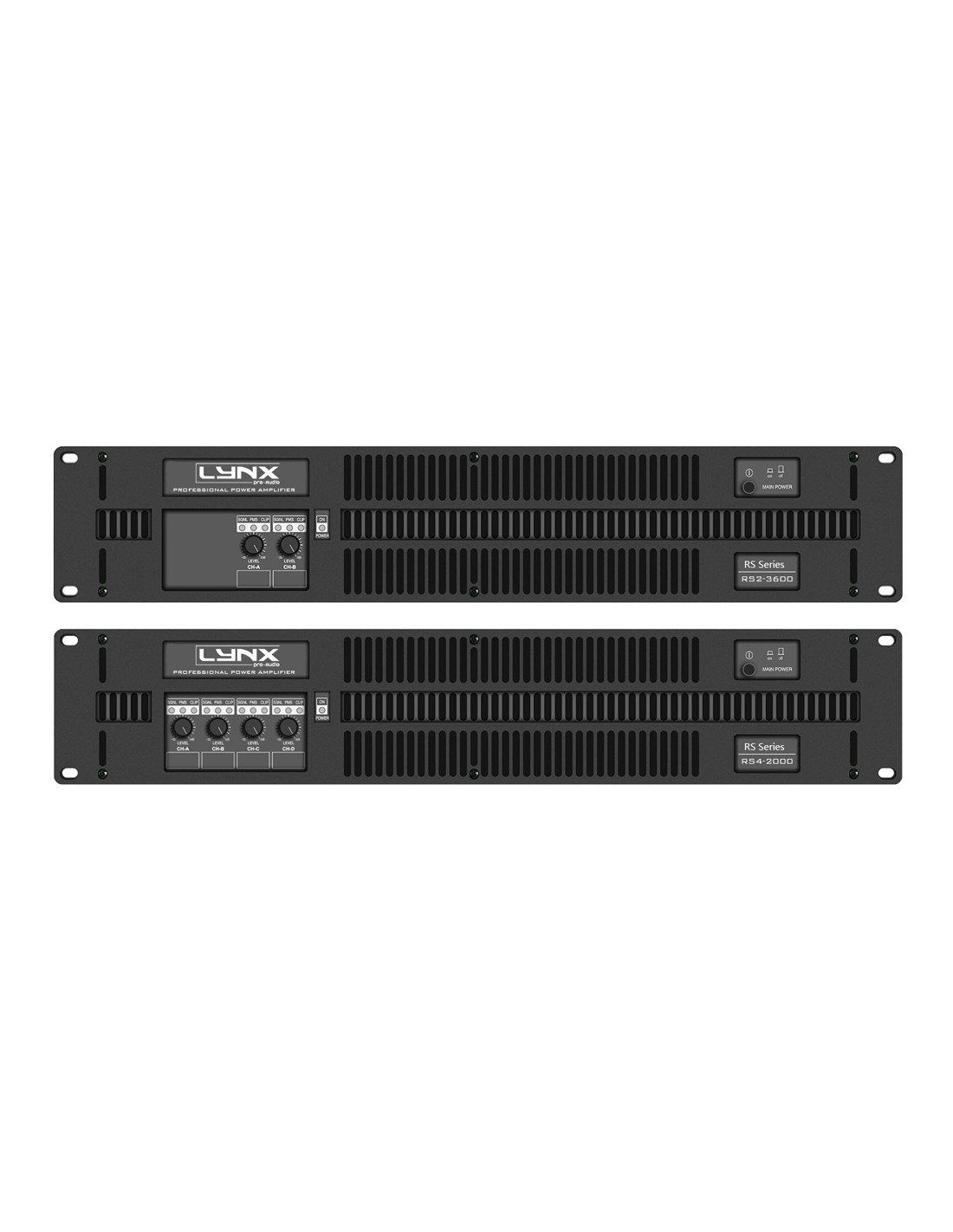

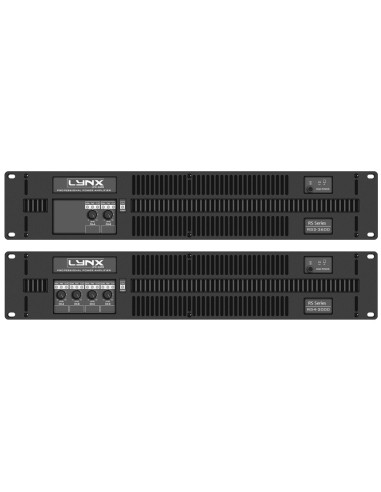

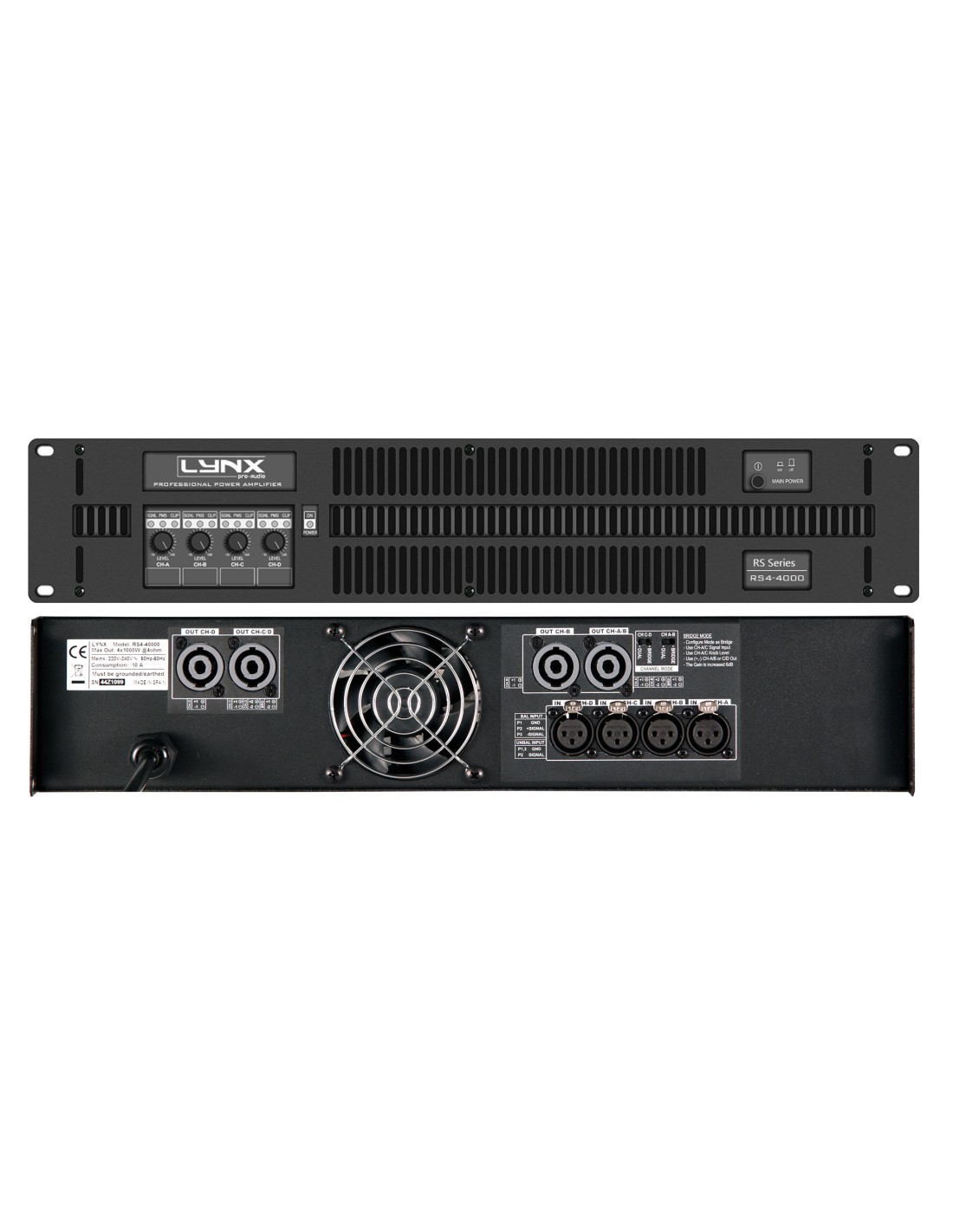

RS4-6000
RS4-6000
RS4-6000
RS4-6000

RS4-6000

CLYRS46000
Check availability
4 x 1500W amplifier
See more Features Resources

The cost-effective RS Series amplifiers are designed for professionals who demand quality, reliability and value. RS amplifiers represent the best compromise between economy and performances, taking advantage of latest improvements in electronic assembly.
Dimensions
WxHxD (mm): 483 x 89 x 320
WxHxD (inches): 19 x 3.5 x 12.6
Weight
8.5 Kg / 18.7 lbs
Status
New
EAN code
8436612043005
Tariff code
8518900000
Shipping Location
Spain
Frequency response
Power Bandwidth ± 0.25dB: 20 Hz – 20 KHz
Input sensitivity
Rated Power: 4.7 to 0.9 V
Crosstalk
20Hz-1KHz: 75 dB
20Hz-1KHz: >75 dB
AC mains requirement
Operating Voltage (50Hz-60Hz): 170V -265V AC / 90V – 140V AC
Operating On Idling (@230V): 0.5 A
1/8 Rated Power (@4 Ohm): 15 A
SNR
20Hz-20KHz: 106 dB
Number of output channels
4
Max output power @ 100V
4 x 800 W
Max output power @ 70V
4 x 1500 W
THD + Noise
20Hz-20KHz: 0.05%
20Hz-20KHz: <0.05%
Damping factor
20-500Hz @ 8 Ohms: 500
20-500Hz @ 8 Ohms: >500
Gain
26/32/38dB
DC protection
Yes
Short-circuit protection
Yes
Thermal protection
Yes

Customers who bought this product also bought:

Customers who bought this product also bought:

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Dimensions WxHxD (mm): 483 x 89 x 320 WxHxD (inches): 19 x 3.5 x 12.6
Weight 8.5 Kg / 18.7 lbs
LOGISTICS
Status New
EAN code 8436612043005
Tariff code 8518900000
Shipping Location Spain
ELECTRICAL
AC mains requirement Operating Voltage (50Hz-60Hz): 170V -265V AC / 90V – 140V AC Operating On Idling (@230V): 0.5 A 1/8 Rated Power (@4 Ohm): 15 A
ANALOGUE AUDIO OUTPUT PORTS
Crosstalk 20Hz-1KHz: >75 dB
20Hz-1KHz: 75 dB
CHANNELS
Number of output channels 4
SIGNAL
SNR 20Hz-20KHz: 106 dB
Damping factor 20-500Hz @ 8 Ohms: >500
20-500Hz @ 8 Ohms: 500
PROTECTIONS
DC protection Yes
Short-circuit protection Yes
Thermal protection Yes
SETTINGS
Gain 26/32/38dB
ANALOGUE AUDIO INPUTS
Input sensitivity Rated Power: 4.7 to 0.9 V
LINE OUTPUTS
Frequency response Power Bandwidth ± 0.25dB: 20 Hz – 20 KHz
THD + Noise 20Hz-20KHz: <0.05%
20Hz-20KHz: 0.05%
OUTPUT POWER - All channels driven @ 1%THD
Max output power @ 100V 4 x 800 W
Max output power @ 70V 4 x 1500 W
