CF0008004005
Available
240W mixer amplifier with USB/SD/FM/Bluetooth/DAB+
See more Features Resources

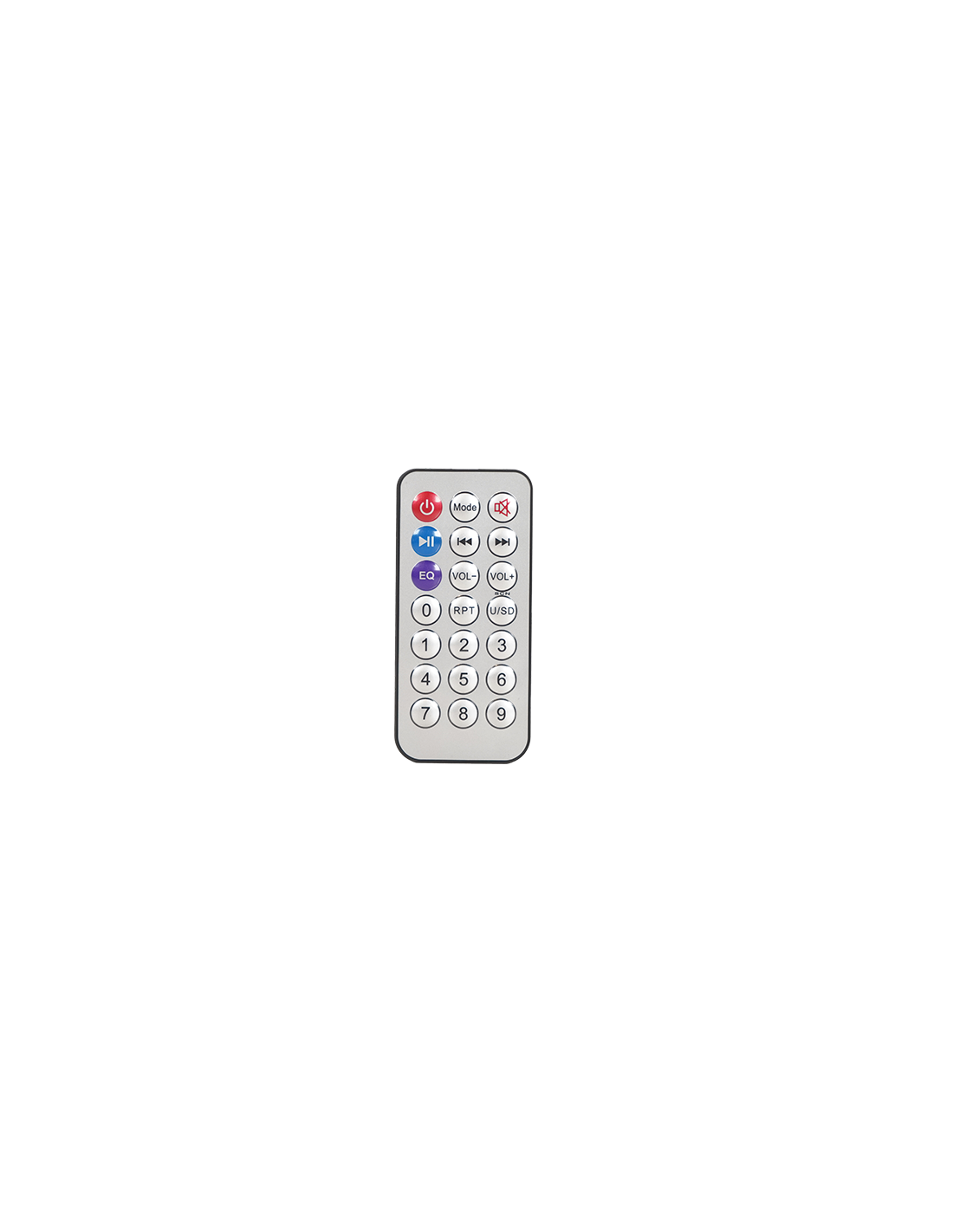

240W mixer amplifier with USB/SD/FM/Bluetooth/DAB+ Frequency 60Hz-15kHz : Output: 100V/70V and 4/8/16 Ω Inputs: - XLR balanced with +48V phantom power. - Mic/Line 6.3 mm unbalanced 2-3 switchable inputs - Line 1-2 via RCA Output: RCA 484 × 405 × 88 mm | 8.6 kg Includes remote control
Dimensions
484 x 88 x mm (WxHxD)
Weight
8,6 kg
Status
New
EAN code
8435071316903
Tariff code
8518400090
Shipping Location
Spain
Power supply
110 V AC to 230 V AC; 50-60Hz
Output connection type
RCA
Number of output channels
2
Number of input channels
4
Input connection type
Mic 1: balanced XLR
Mic/Line 2-3: Jack 6,3 mm
Line 3-4: RCA
Max output power @ 100V
240 W
Max output power @ 70V
240 W
Input impedance
MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA.
Power Consumption (1/8 POWER, @ 4Ω)
240 W
THD + Noise
THD: 0,5%
Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
THD: <0,5%
Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
Max output level
0,755 (0 dBV)

Customers who bought this product also bought:

Customers who bought this product also bought:

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

SYSTEM
Number of input channels 4
PHYSICAL
Dimensions 484 x 88 x mm (WxHxD)
Weight 8,6 kg
LOGISTICS
Status New
EAN code 8435071316903
Tariff code 8518400090
Shipping Location Spain
ELECTRICAL
Power supply 110 V AC to 230 V AC; 50-60Hz
CHANNELS
Number of output channels 2
POWER CONSUMPTION
Power Consumption (1/8 POWER, @ 4Ω) 240 W
ANALOGUE AUDIO INPUTS
THD + Noise THD: <0,5% Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
THD: 0,5% Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
LINE INPUTS
Input connection type Mic 1: balanced XLR Mic/Line 2-3: Jack 6,3 mm Line 3-4: RCA
Input impedance MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA.
LINE OUTPUTS
Output connection type RCA
Max output level 0,755 (0 dBV)
OUTPUT POWER - All channels driven @ 1%THD
Max output power @ 100V 240 W
Max output power @ 70V 240 W
