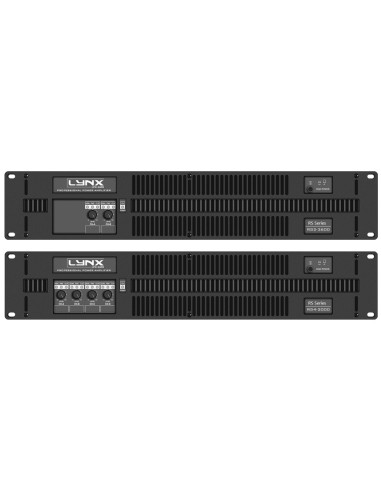

RS4-10000
RS4-10000
RS4-10000
RS4-10000

RS4-10000

CLYRS410000
Check availability
4 x 2500 W amplifier
See more Features

The cost-effective RS Series amplifiers are designed for professionals who demand quality, reliability and value. RS amplifiers represent the best compromise between economy and performances, taking advantage of latest improvements in electronic assembly.
Status
New
EAN code
8436612043012
Tariff code
8518900000
Shipping Location
Spain
Frequency response
Power Bandwidth ± 0.25dB: 20 Hz – 20 KHz
Input sensitivity
Rated Power: 5.3 V – 1.1 V
Crosstalk
20Hz-1KHz: 75 dB
20Hz-1KHz: >75 dB
AC mains requirement
Operating Voltage (50Hz-60Hz): 170V -265V AC / 90V – 140V AC
Operating On Idling (@230V): 0.5 A
1/8 Rated Power (@4 Ohm): 16 A
SNR
20Hz-20KHz: 107.5 dBA
Number of output channels
4
THD + Noise
20Hz-20KHz: 0.05%
20Hz-20KHz: <0.05%
Damping factor
20-500Hz @ 8 Ohms: 500
20-500Hz @ 8 Ohms: >500
Gain
26 – 40 dB
DC protection
Yes
Short-circuit protection
Yes
Thermal protection
Yes

Customers who bought this product also bought:

Customers who bought this product also bought:

LOGISTICS
Status New
EAN code 8436612043012
Tariff code 8518900000
Shipping Location Spain
ELECTRICAL
AC mains requirement Operating Voltage (50Hz-60Hz): 170V -265V AC / 90V – 140V AC Operating On Idling (@230V): 0.5 A 1/8 Rated Power (@4 Ohm): 16 A
ANALOGUE AUDIO OUTPUT PORTS
Crosstalk 20Hz-1KHz: >75 dB
20Hz-1KHz: 75 dB
CHANNELS
Number of output channels 4
SIGNAL
SNR 20Hz-20KHz: 107.5 dBA
Damping factor 20-500Hz @ 8 Ohms: >500
20-500Hz @ 8 Ohms: 500
PROTECTIONS
DC protection Yes
Short-circuit protection Yes
Thermal protection Yes
SETTINGS
Gain 26 – 40 dB
ANALOGUE AUDIO INPUTS
Input sensitivity Rated Power: 5.3 V – 1.1 V
LINE OUTPUTS
Frequency response Power Bandwidth ± 0.25dB: 20 Hz – 20 KHz
THD + Noise 20Hz-20KHz: <0.05%
20Hz-20KHz: 0.05%
OUTPUT POWER - All channels driven @ 1%THD
