FXMA-120DFMB
FXMA-120DFMB
FXMA-120DFMB
FXMA-120DFMB
FXMA-120DFMB
FXMA-120DFMB

FXMA-120DFMB

CF0008004004
Check availability

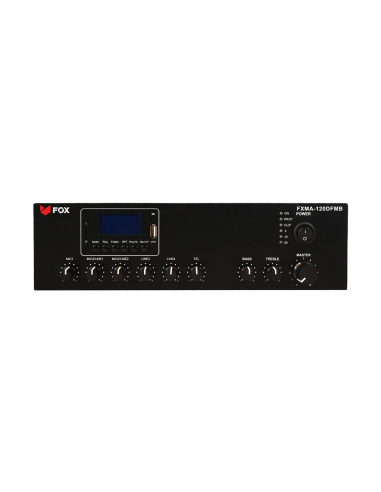

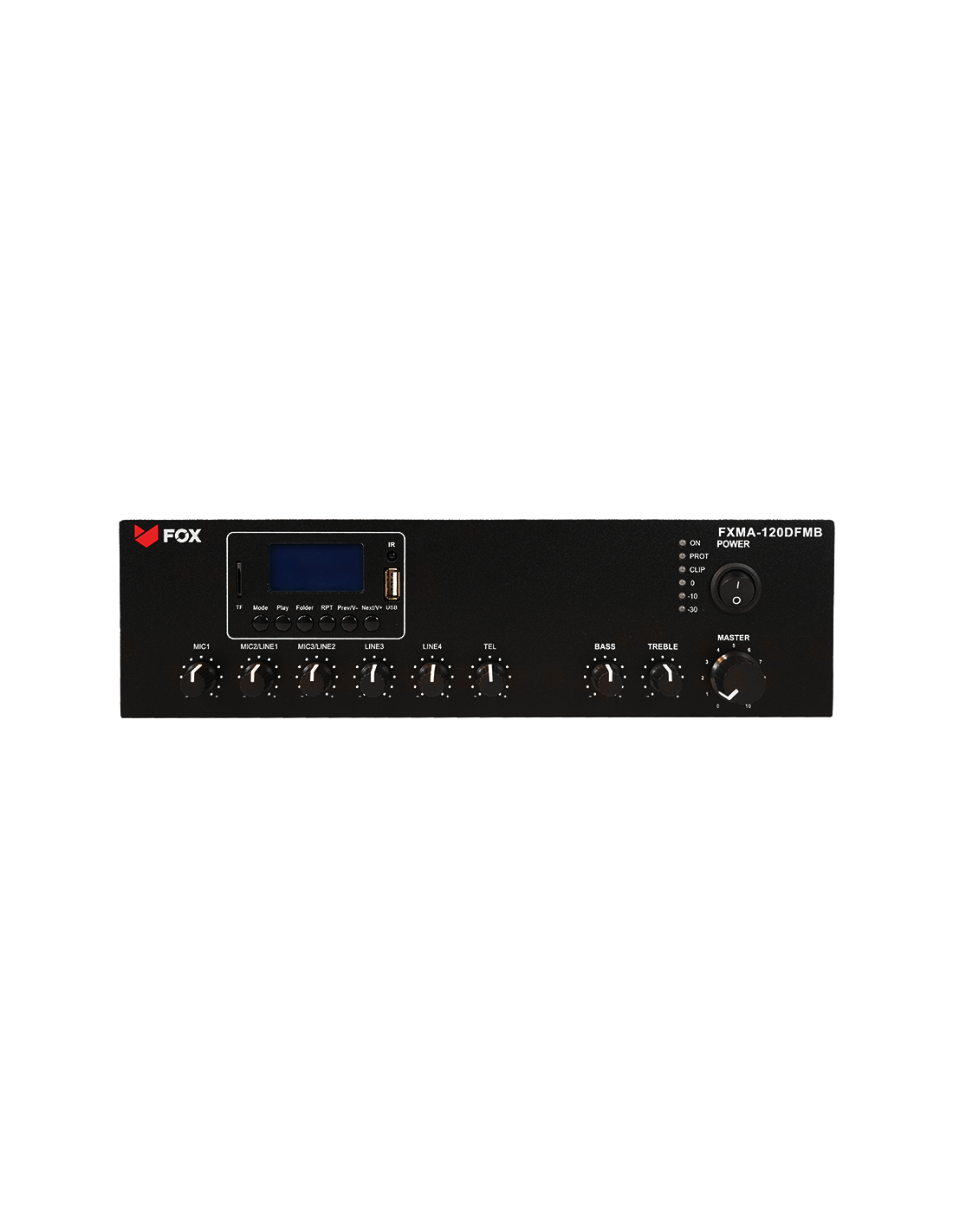

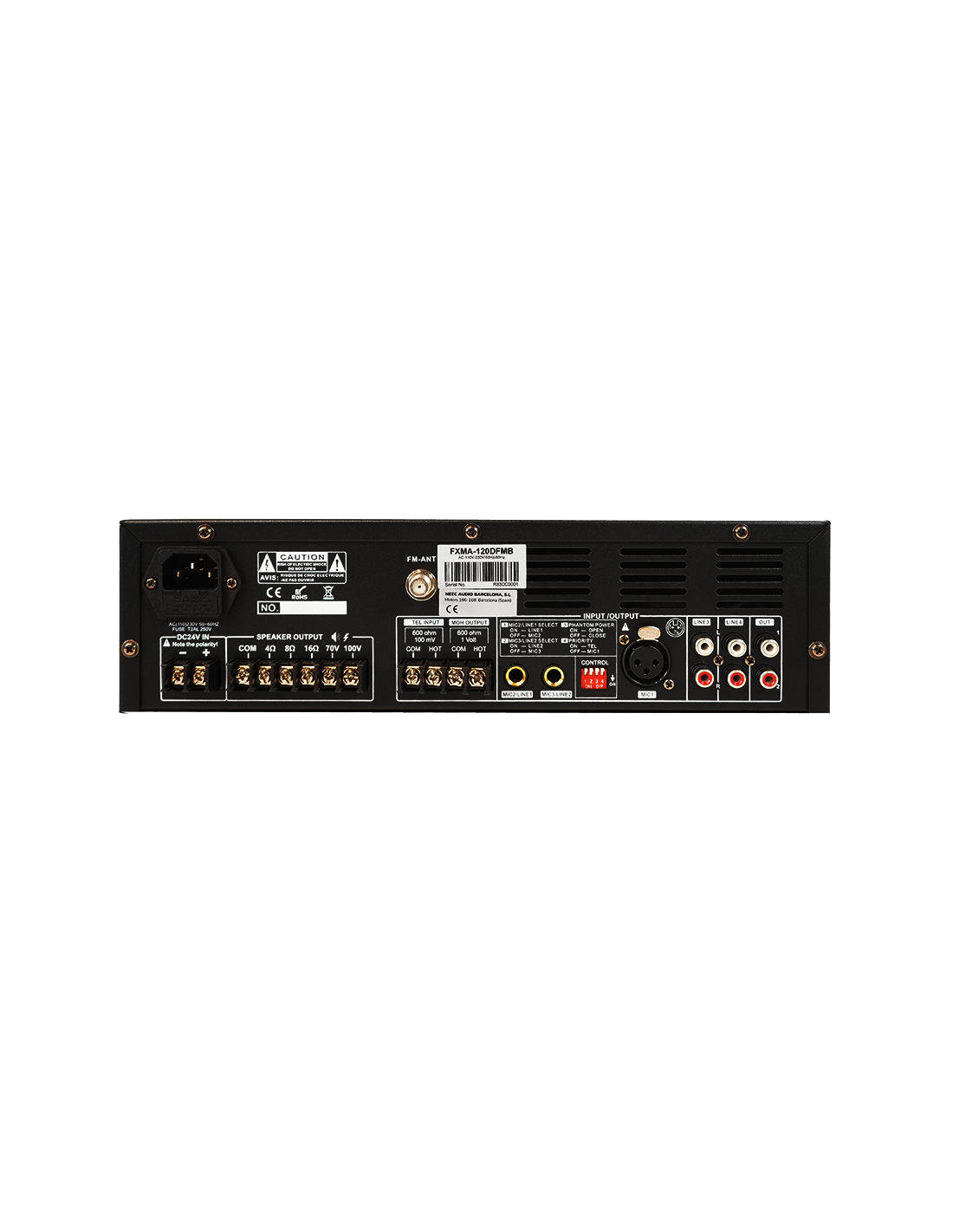

120W mixer amplifier with USB/SD/FM/Bluetooth/DAB+
See more Features Resources

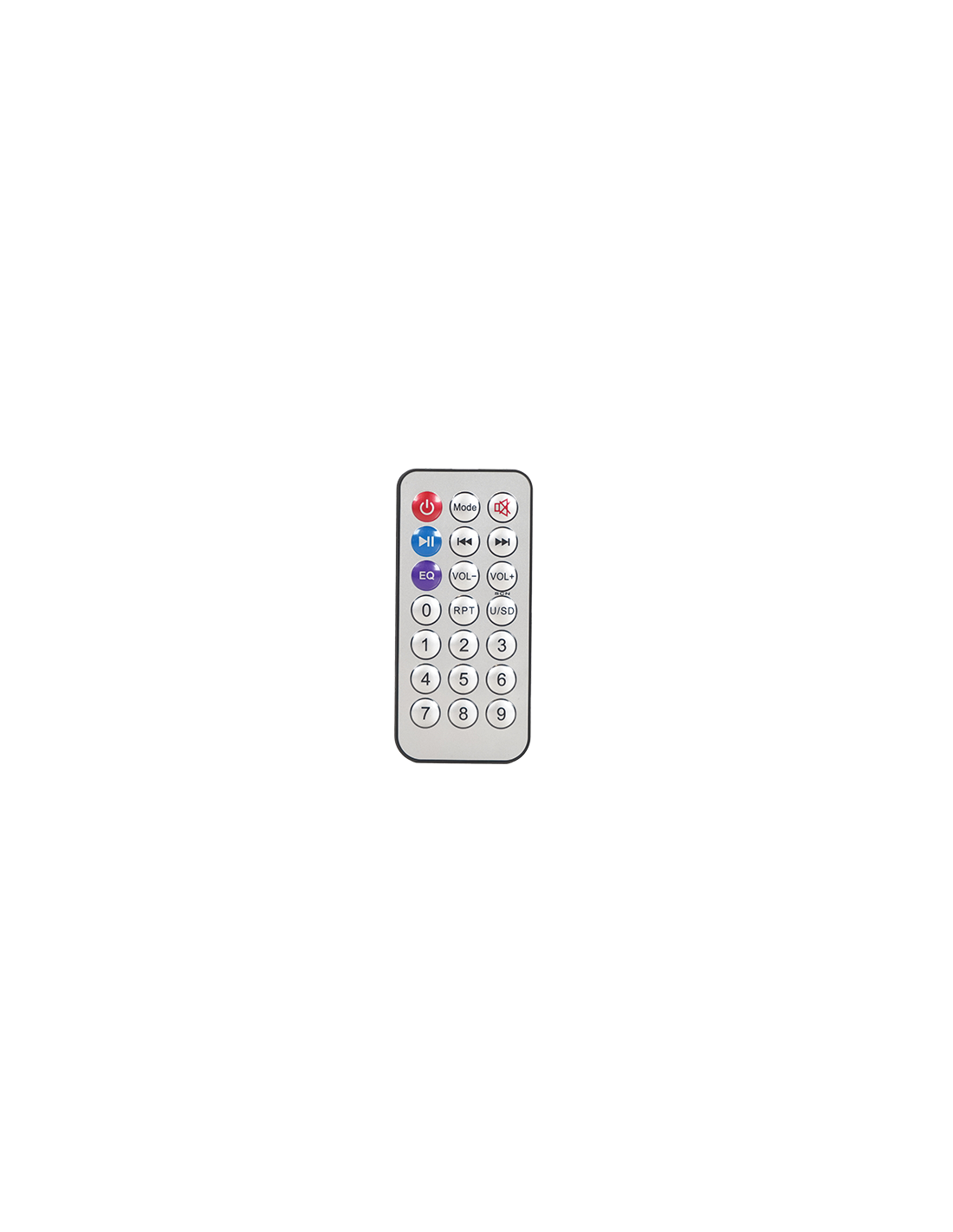

120W mixer amplifier with USB/SD/FM/Bluetooth/DAB+ Frequency 60Hz-15kHz : Output: 100V/70V and 4/8/16 Ω Inputs: - XLR balanced with +48V phantom power. - Mic/Line 6.3 mm unbalanced 2-3 switchable inputs - Line 1-2 via RCA Output: RCA 320 × 210 × 90 mm | 4.7 kg Includes remote control
Dimensions
320x90x210 mm (WxHxD)
Weight
4,7 kg
Status
New
EAN code
8435071316897
Tariff code
8518400090
Shipping Location
Spain
Power supply
115 V AC to 230 V AC o 24V DC; 50-60Hz
Output connection type
RCA
Number of output channels
2
Number of input channels
4
Input connection type
Mic 1: balanced XLR
Mic/Line 2-3: Jack 6,3 mm
Line 3-4: RCA
Max output power @ 100V
120 W
Max output power @ 70V
120 W
Input impedance
MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA.
Power Consumption (1/3 POWER, @ 4Ω)
120 W
Short-circuit protection
Yes
Clip limiter
Yes
Thermal protection
Yes
Tone control
Microphone 1-3, Line 1-4, Bass/Treble and MASTER.
THD + Noise
THD: 0,5%
Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
THD: <0,5%
Signal/ Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
Max output level
0,755 (0 dBV)
