14x8 | digital zoner | DSP | plug&play
See more Features Resources

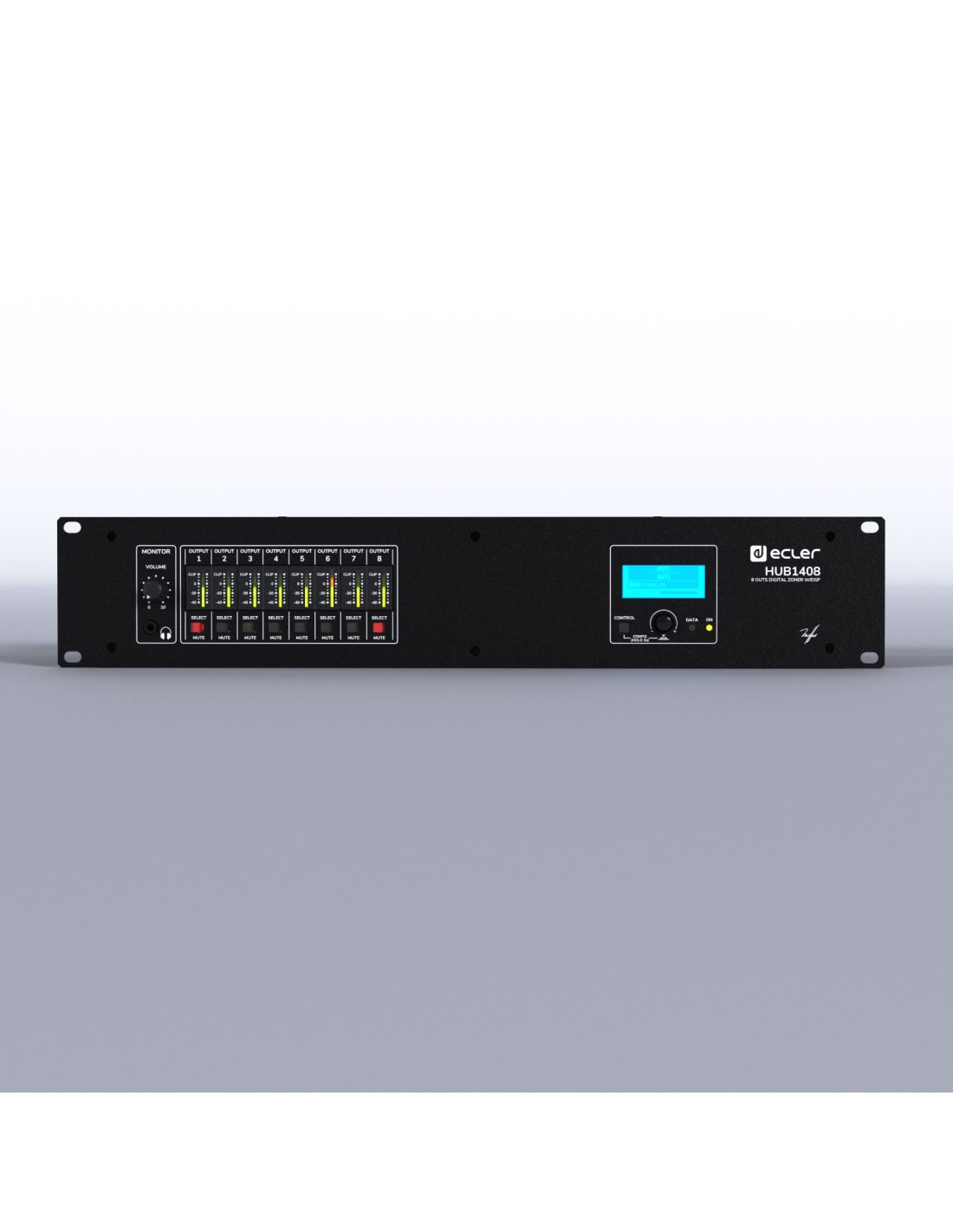

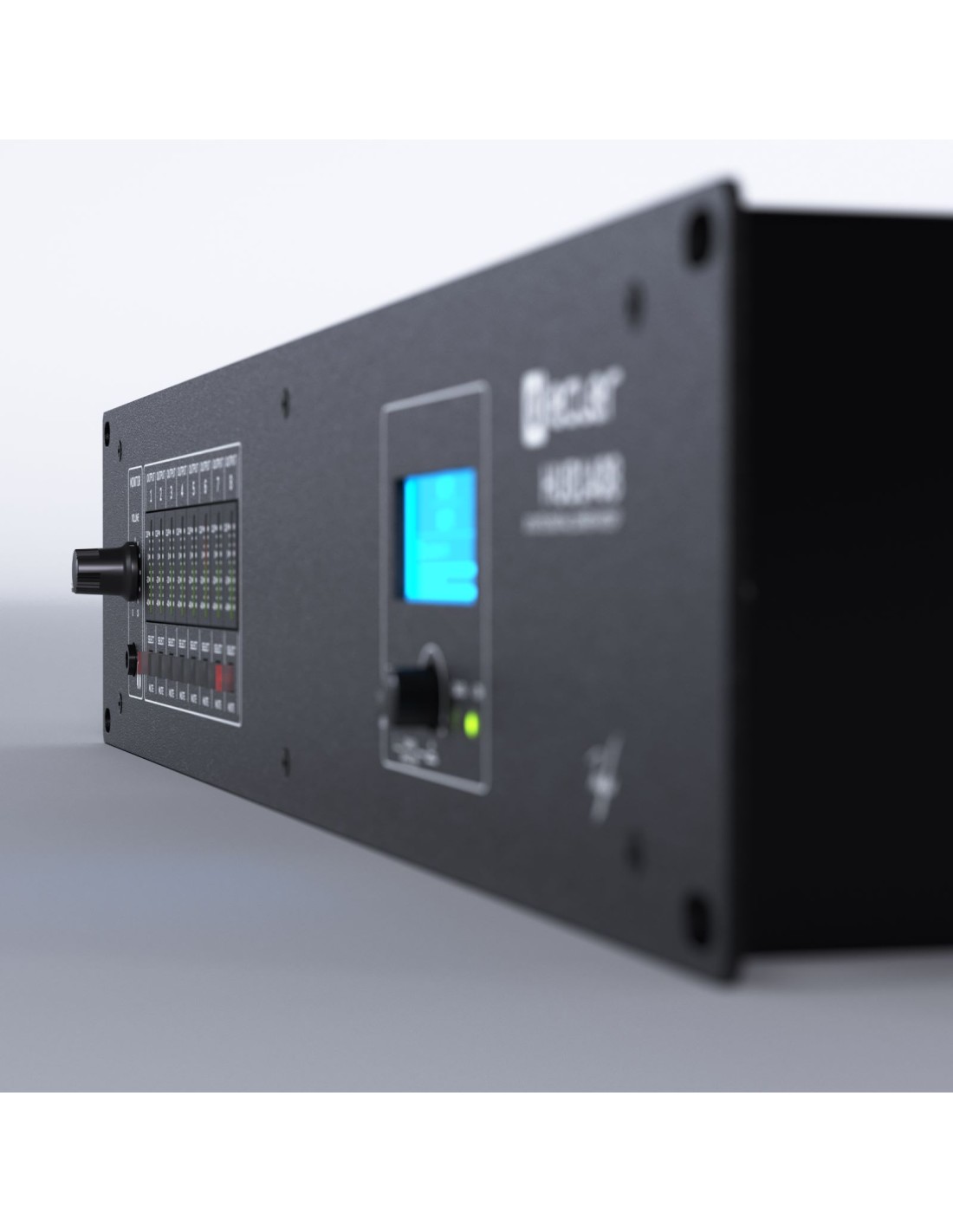

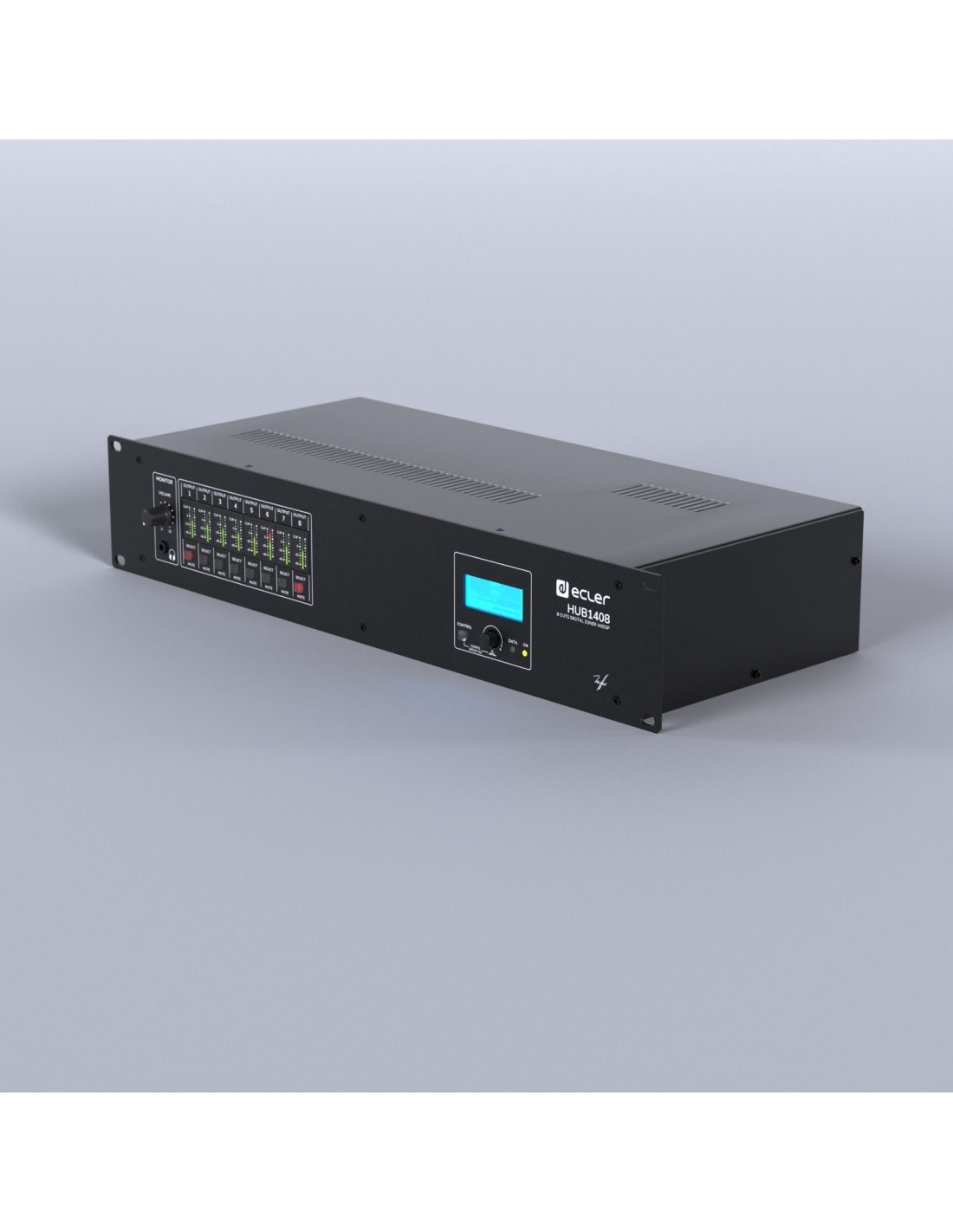

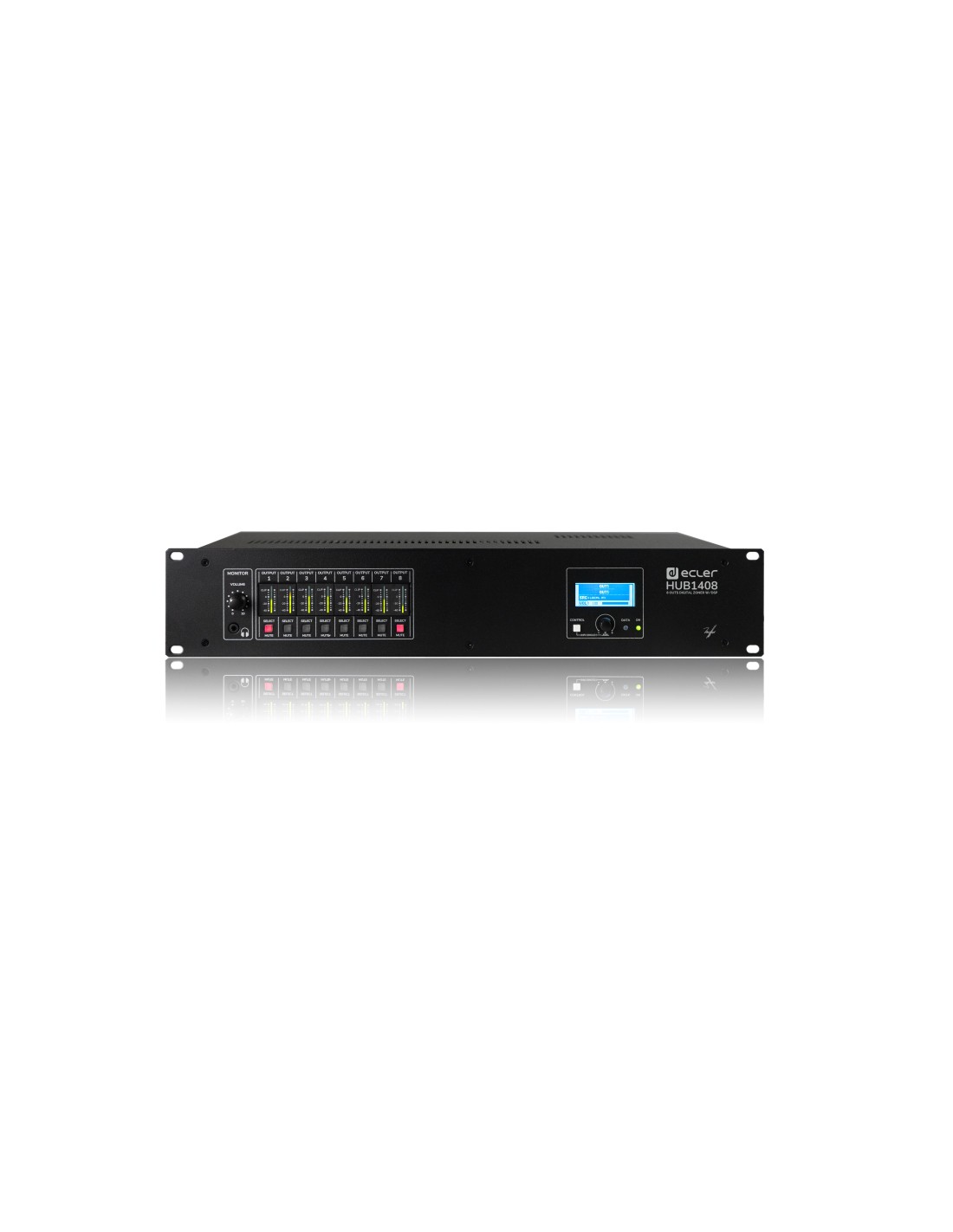

HUB1408 is a digital zone manager with 14 inputs and 8 outputs. It has the HANGAR embedded web-server application (control from standard web browser in Windows / MacOS, etc.) for its configuration; remote control from physical wall installation panels, call (paging) stations and applications for mobile devices (Android, iOS). Includes DSP with specific functions for both inputs and outputs. HUB Series offers multiple possibilities, being intuitive and easy to configure. From the least experienced user to the most expert, you can set up a professional audio installation in a matter of minutes (Plug and Play). It is the perfect solution for any type of sound that requires managing and controlling different zones.

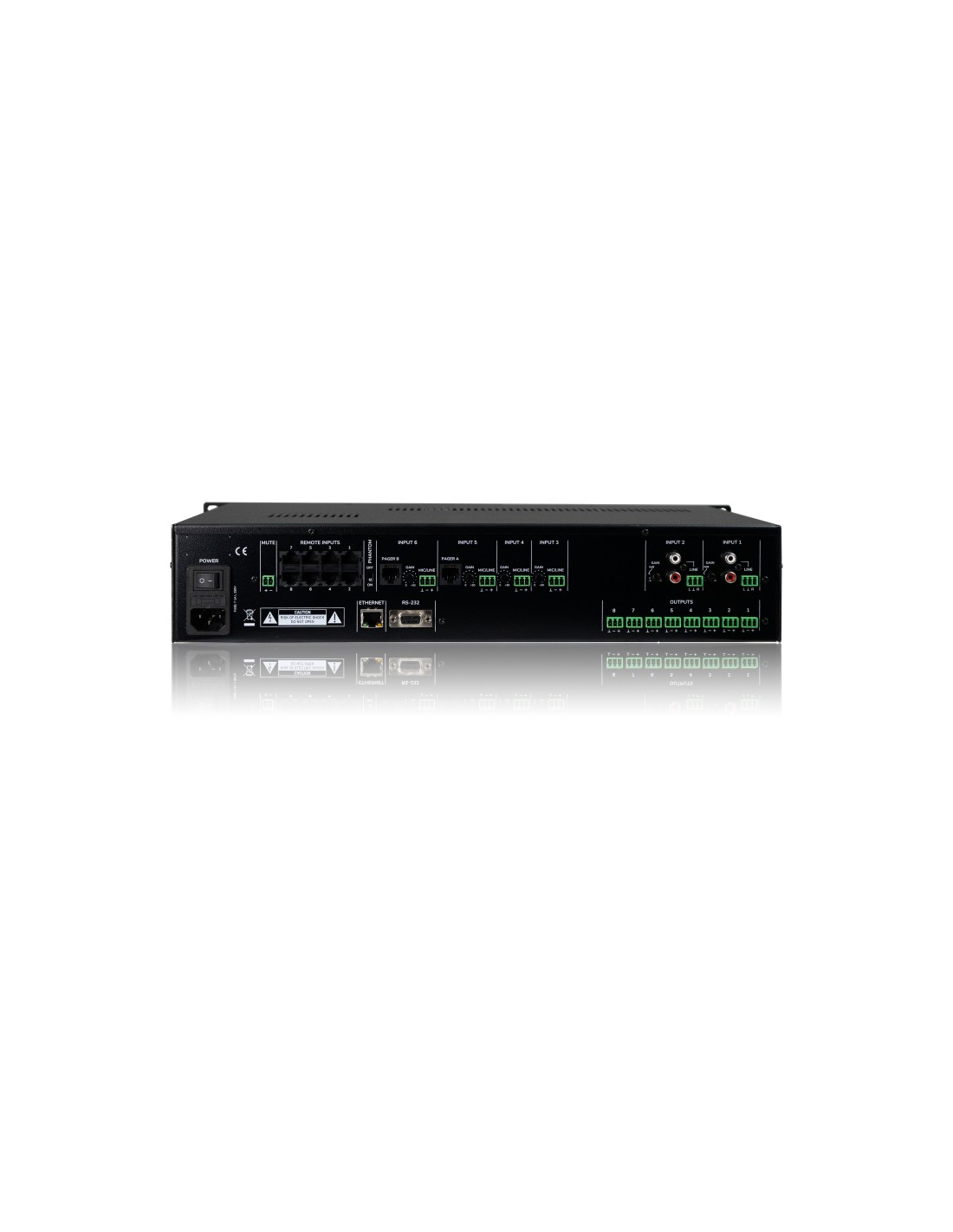

Connection type
Euroblock, 3-pin, balanced
Line: RCA female with Euroblock stack, Unbalanced
Mic/Line: Euroblock (Symmetrical), Balanced
Remote: RJ45 Connector, Balanced
Installation options
19" rack format (2RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Optional accessories
eMCONTROL1-type physical wall panels, eMPAGE-type paging stations, WPaMIX-T
Dimensions
482.6 x 88.0 x 200.0 mm / 19.0 x 3.5 x 7.9 in. (WxHxD)
Weight
3.60 kg / 7.93 lb
Shipping dimensions
550 x 120 x 390 mm / 21.65 x 4.72 x 15.35 in. (WxHxD)
Shipping weight
5.6 kg / 12.35 lb
Status
New
Origin Production
Spain
EAN code
8435071310222
Tariff code
8518400000
Shipping Location
Spain
Width (cm)
55.00
Height (cm)
12.00
Depth (cm)
39.00
Vol. (dm3)
25.74
Gross Weight (kg)
5.60
Net Weight (kg)
3.74
Format
Unit
Warranty (months)
36
Processor
Floating point 32/64bit
Sampling rate
48 kHz
Resolution
24 bit, AKM
Frequency response
10Hz ~ 20kHz (+0dB / -0.5dB)

<10Hz ~ 20kHz (+0dB / -0.5dB)
Number of input ports
2 (IN1-2), Line
4 (IN3-6), Mic/Line
8 (IN7-14), Remote
Input sensitivity
Line: +5 / -15dBV External potentiometer adjustment
Mic/Line: +0 / -50dBV External potentiometer adjustment
Remote: 0dBV without adjustment
Input impedanc
Line: 13kΩ
Mic/Line: 24kΩ electronically balanced
Remote: 24kΩ electronically balanced
Line: >13kΩ
Mic/Line: >24kΩ electronically balanced
Remote: >24kΩ electronically balanced
CMRR
Mic/Line: 60dB (20Hz - 20kHz)
Remote: 60dB (20Hz - 20kHz)
Mic/Line: >60dB (20Hz - 20kHz)
Remote: >60dB (20Hz - 20kHz)
Number of output ports
8, Line
Crosstalk
90dB, 20Hz - 20kHz

>90dB, 20Hz - 20kHz
Serial port
RS-232 interface with DB9 connector
Programing and control
Hangar (embedded web application), Ecler pilot (Android/iOS
application), TPNET (UDP/RS232)
Digital remote controls
Remote bus, RS485
GPIs
1, MUTE port
AC mains requirement
100-240 VAC @ 50-60Hz
AC mains connector
C14 IEC connector
Power consumption
20W
Phantom power
Mic/Line: +48VDC (rear panel switch)
Input impedance
Line: 13kΩ
Mic/Line: 24kΩ electronically balanced
Remote: 24kΩ electronically balanced
Max input level
12dBV
THD + Noise
0.005% (1kHz, 1Vrms)

< 0.005% (1kHz, 1Vrms)
Latency
1.5 ms
<1.5 ms
Ethernet
1, RJ-45
Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m
Dynamic range
AD:111dB, DA: 115dB
Max output level
12dbV
Headphones
From Out1 to Out8 selectable, Mini-Jack 3,5mm (200mW – 200Ω)
From Out1 to Out8 selectable, Mini-Jack 3,5mm (>200mW – 200Ω)
Secondary power supply
+12VDC, 0,6A max. (short circuit protected)
