CCA40
Check availability
2x20 WRMS | stereo | micro-amplifier | EQ
See more Features Resources

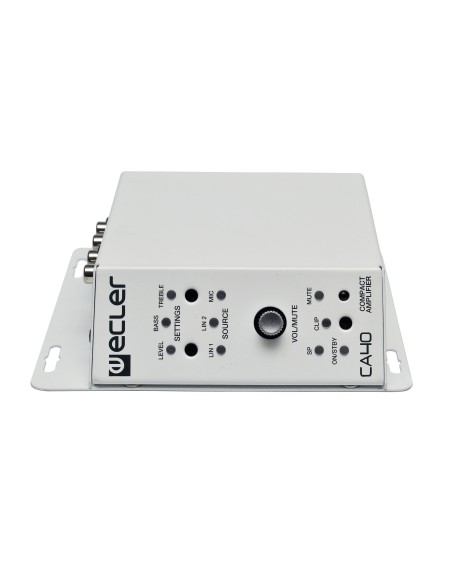

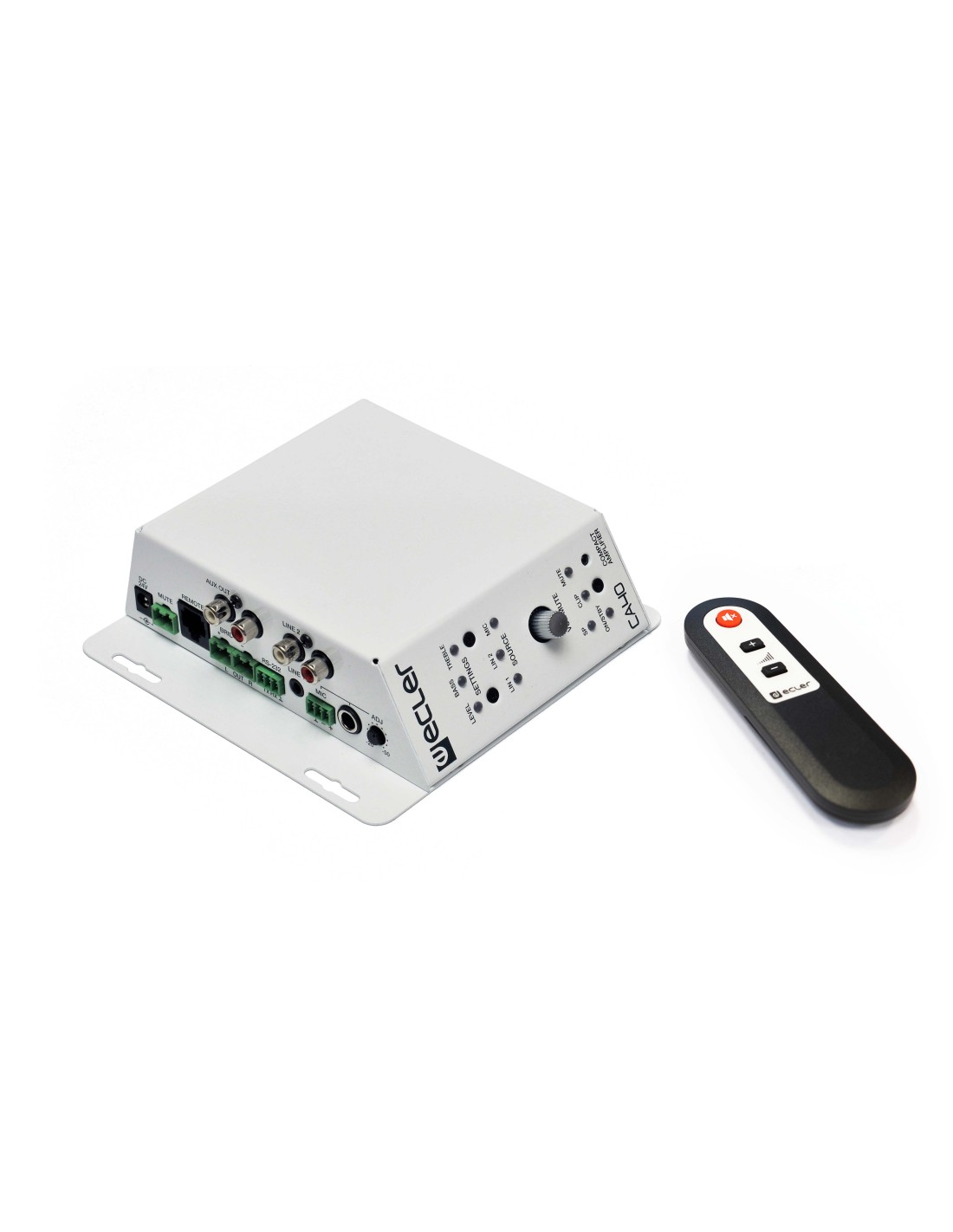

CA40 is a 2 x 20 WRMS @ 4Ω stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port, IR receiver and 0-10 VDC remote port. It is an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms, meeting rooms, multimedia presentations, retail shops, etc.
Installation options
Wall or under a surface (table, shelf, cupboard, etc.)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Included accessories

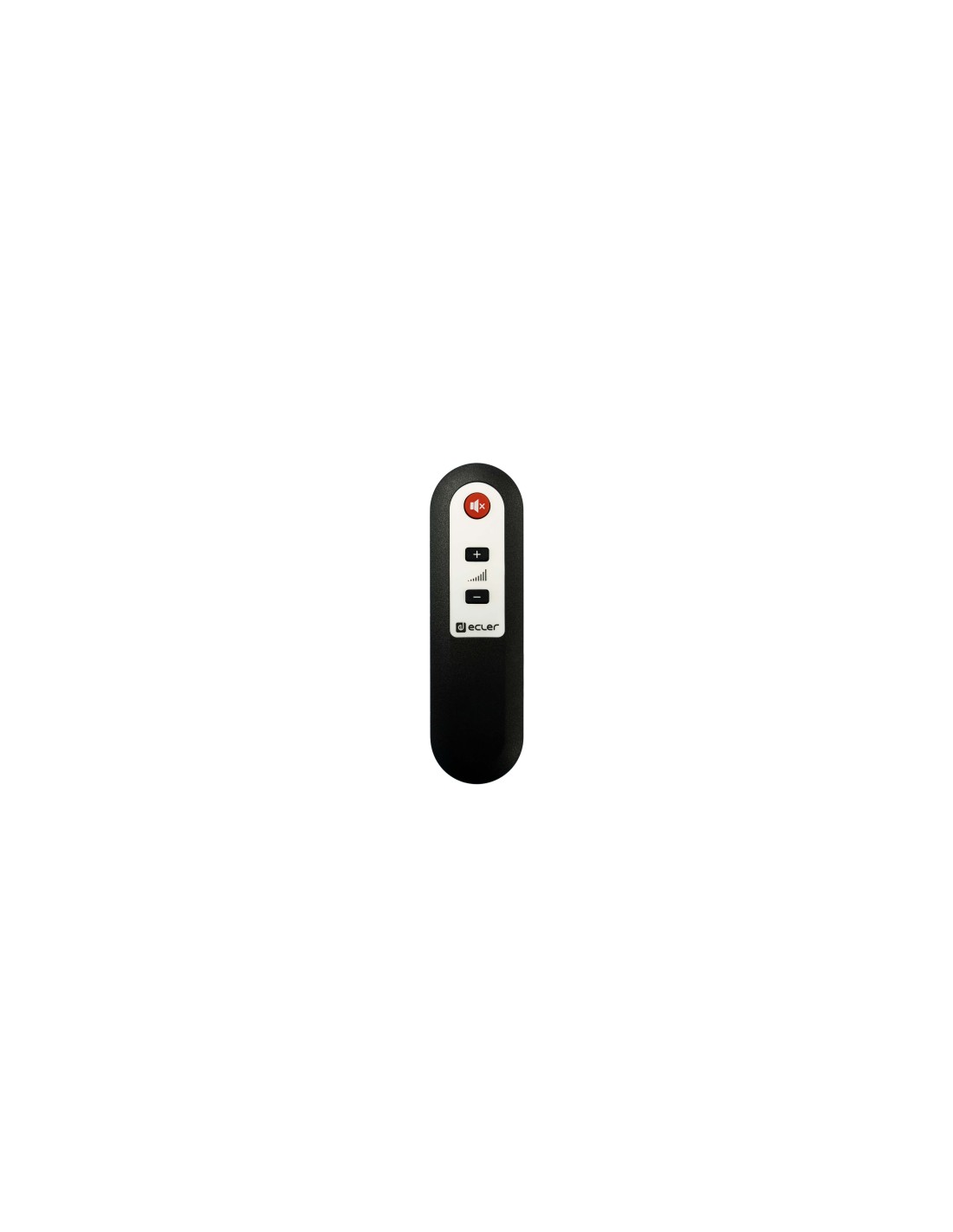

REVO-IR remote control
Optional accessories
WPaVOL or WPaVOL-SR for remote control
Dimensions
155 x 45 x 155 mm / 6.1 x 1.77 x 6.1 in. (WxHxD)
Weight
0.65 kg / 1.43 lb
Shipping dimensions
220 x 60 x 170 mm / 8.66 x 2.36 x 6.7 in. (WxHxD)
Shipping weight
1.4 kg / 3.1 lb
Status
New
Origin Production
China
EAN code
8435071304542
Tariff code
8518400000
Shipping Location
Spain
Width (cm)
22.00
Height (cm)
6.00
Depth (cm)
17.00
Vol. (dm3)
2.24
Gross Weight (kg)
1.40
Net Weight (kg)
1.00
Format
Unit
Warranty (months)
36
Frequency response
20Hz - 50kHz (-3dB)
Input sensitivity
LINE: 0dBV (-6dBV internally selectable)
MIC: -20 to -50dBV
CMRR
MICRO (BAL): 65dB @ 1kHz
MICRO (BAL): >65dB @ 1kHz
Crosstalk
55dB @ 1kHz
>55dB @ 1kHz
Serial port
RS-232
Programing and control
EclerCOMM software or CA-NET protocol
GPIs
Volume & Input selection (0-10V. based)
AC mains requirement
100-240 V @ 50-60Hz + External PSU 24VDC
AC mains connector
DC24V power connector
Power supply

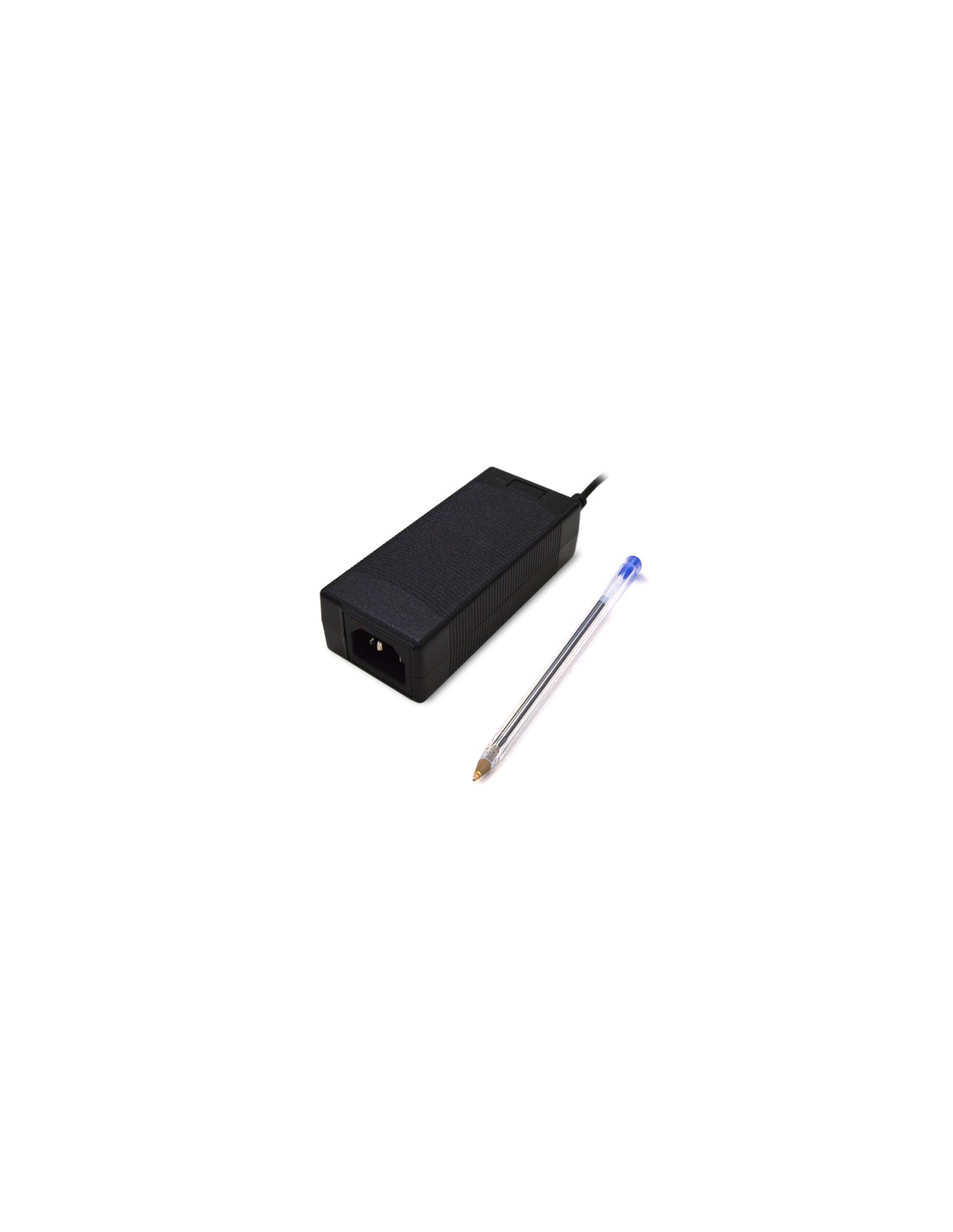

Universal external power source
SNR
LINE: 85dB
MIC (BAL): 65dB
LINE: >85dB
MIC (BAL): >65dB

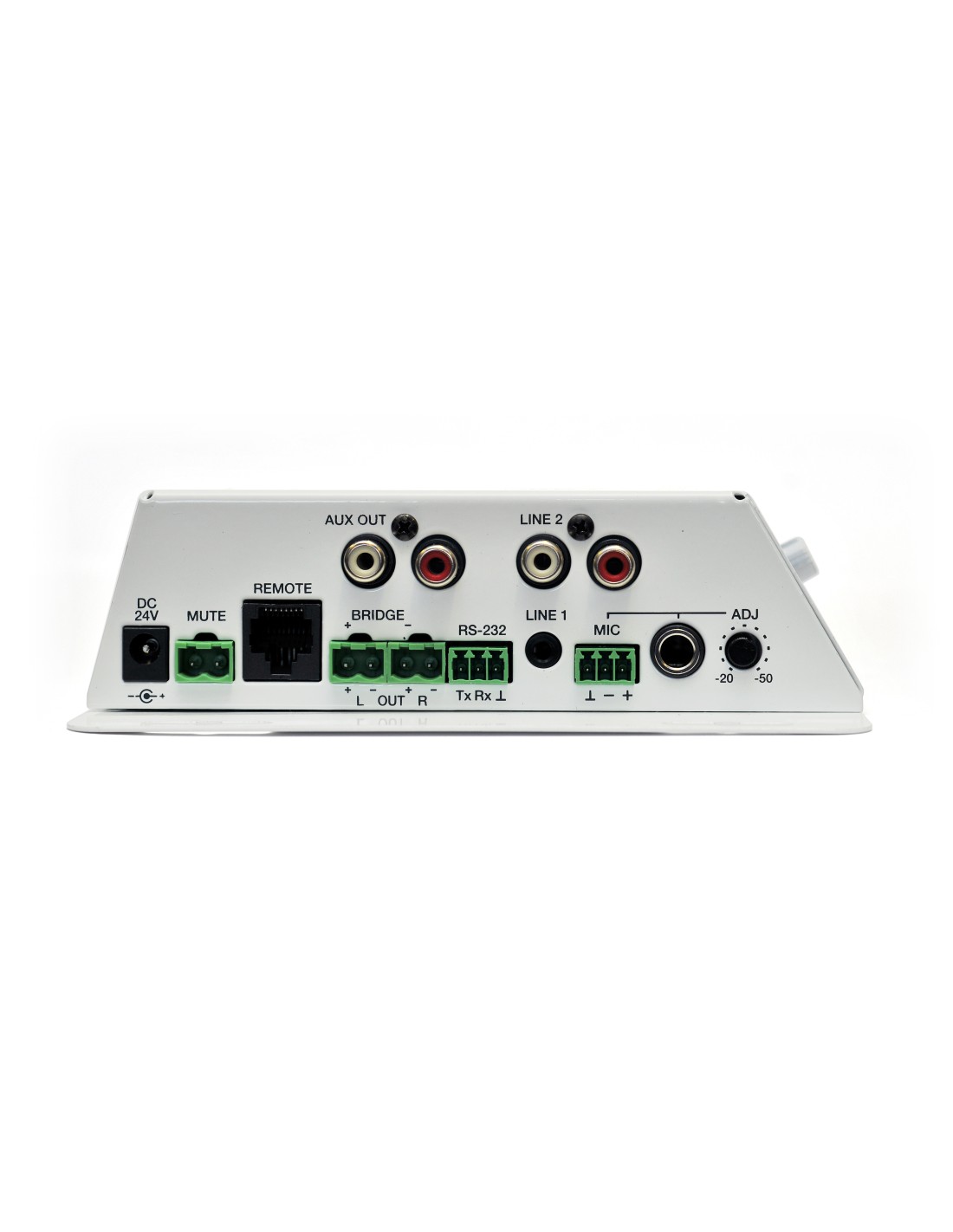

Output connection type
Euroblock
Number of output channels
2 + 1 AUX
Number of input channels
3
Input connection type
MIC: balanced Euroblock or jack
LINE: unbalanced minijack or double RCA
Input impedance
LINE: 8kΩ
MIC: 1kΩ
LINE: >8kΩ
MIC: >1kΩ
THD + Noise
SPRK OUT: 0.15% @ 1kHz
AUX OUT: 0.02%
SPRK OUT: < 0.15% @ 1kHz
AUX OUT: < 0.02%
Cooling
Convection (fanless)
Power Consumption (STBY)
<3W
Output configuration
2 x 20 W RMS @ 4Ω amplifier
Input configuration
1 MIC input
2 LINE inputs
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 13W / 32VA
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 7W / 21VA
Energy save
Auto standby function
AC protection
No
DC protection
No
VHF protection
No
Short-circuit protection
No
Clip limiter
No
Long term limiter
No
Thermal protection
No
External MUTE
Power free contact (infrared remote)
Attenuators

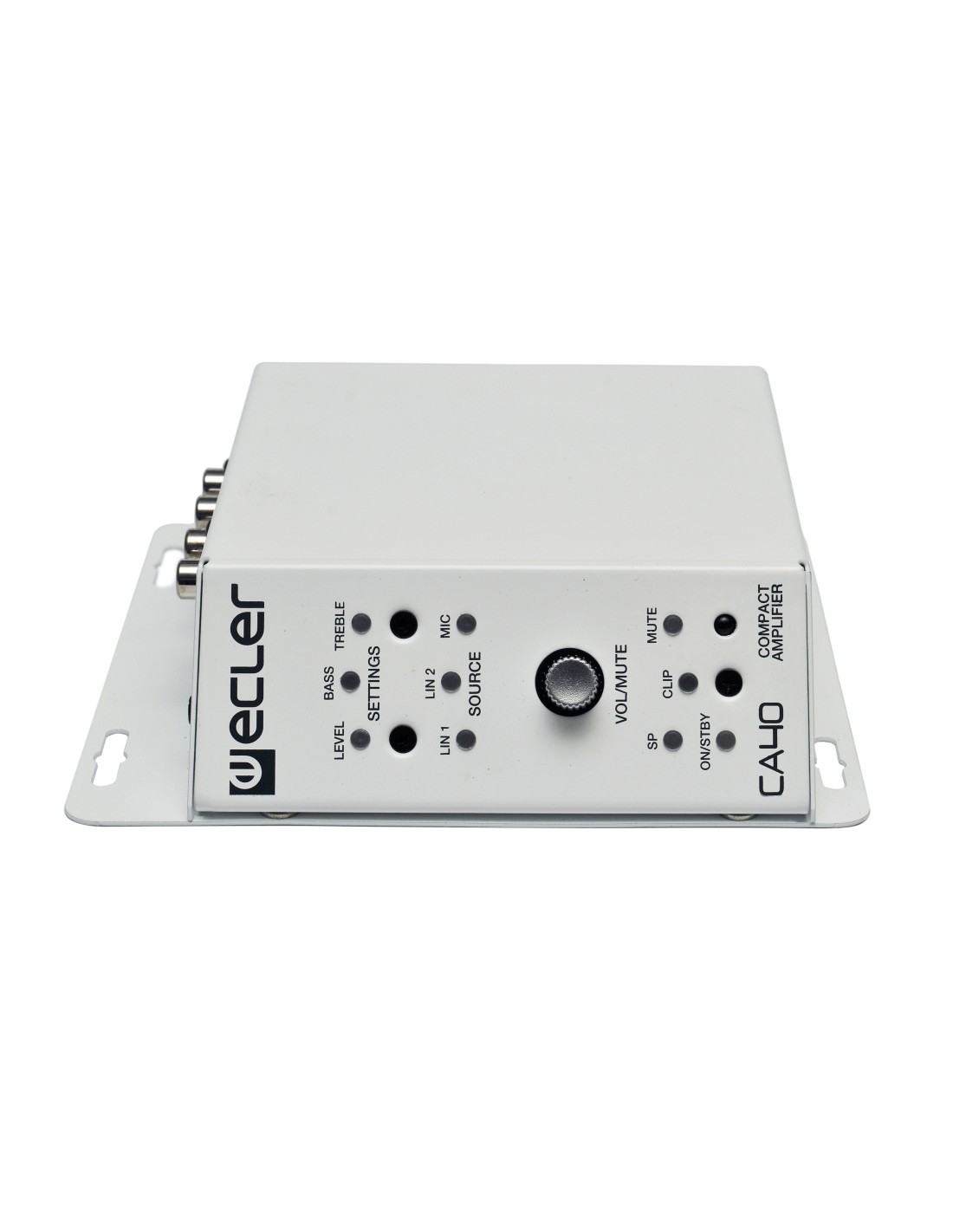

Front panel knob
Tone control
2-band independent tone control (Bass, Treble) for the microphone in-jack and 1&2 line-in connection.
Output settings
Stereo, parallel, and bridged mono outputs
Auto stand-by function

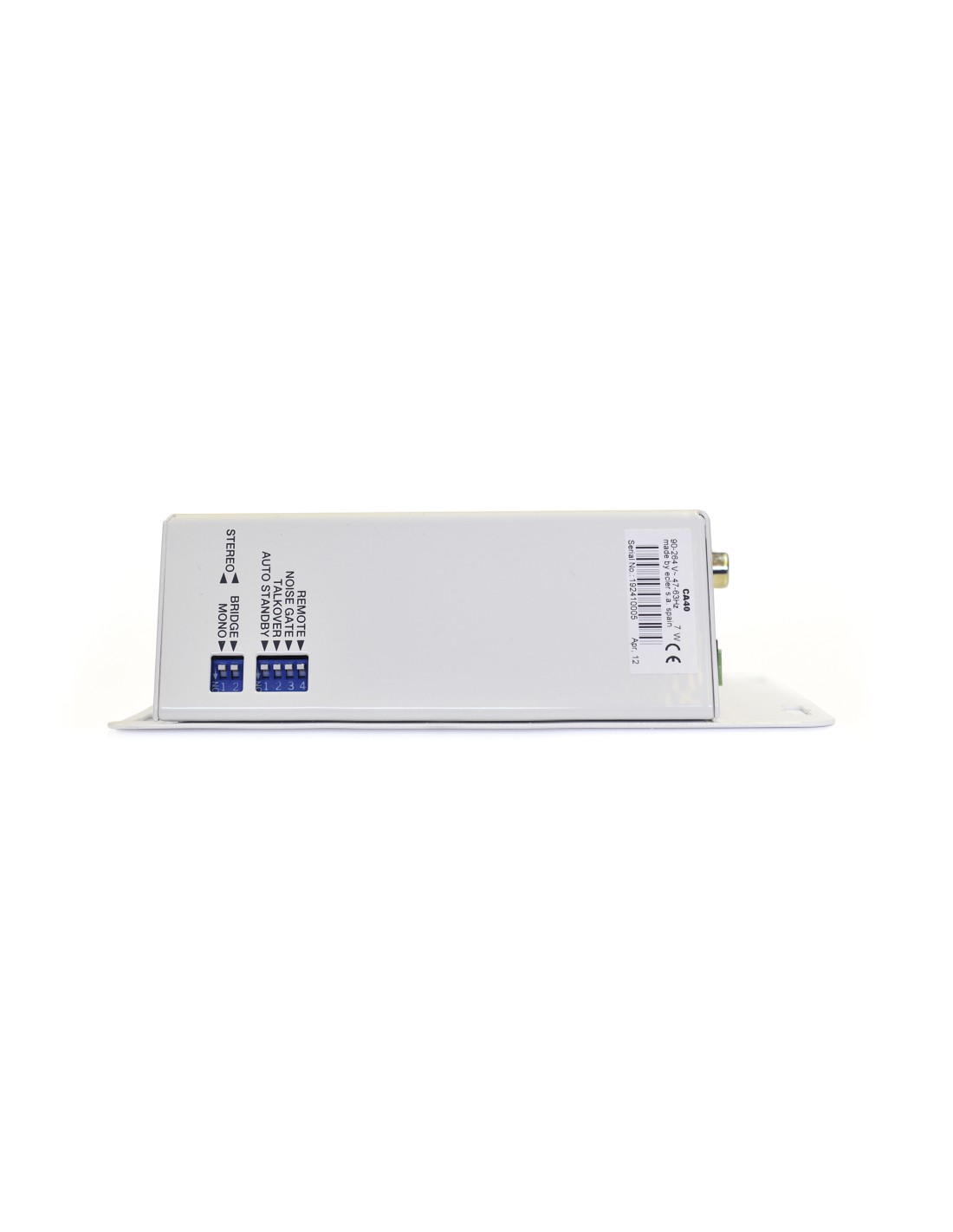

Rear panel micro switch
Auto stand-by time
120 seconds
Signal Present
SP LED (Green)
Cliping
CLIP LED (Red)
Standby
STBY LED (Orange)
Auto standby time
120 seconds
Energy saving
Auto standby function
Power Consumption (STBY/SLEEP)
3W
<3W
Auto standby function
Rear panel micro switch
Power Consumption (1/3 POWER, @ 4Ω all channels driven)
pink noise, 13W / 32VA
Power Consumption (1/8 POWER, @ 4Ω all channels driven)
pink noise, 7W / 21VA
