HDMI® 8x8 18Gbps Matrix with Audio De-Embedders and Display
See more Features Resources

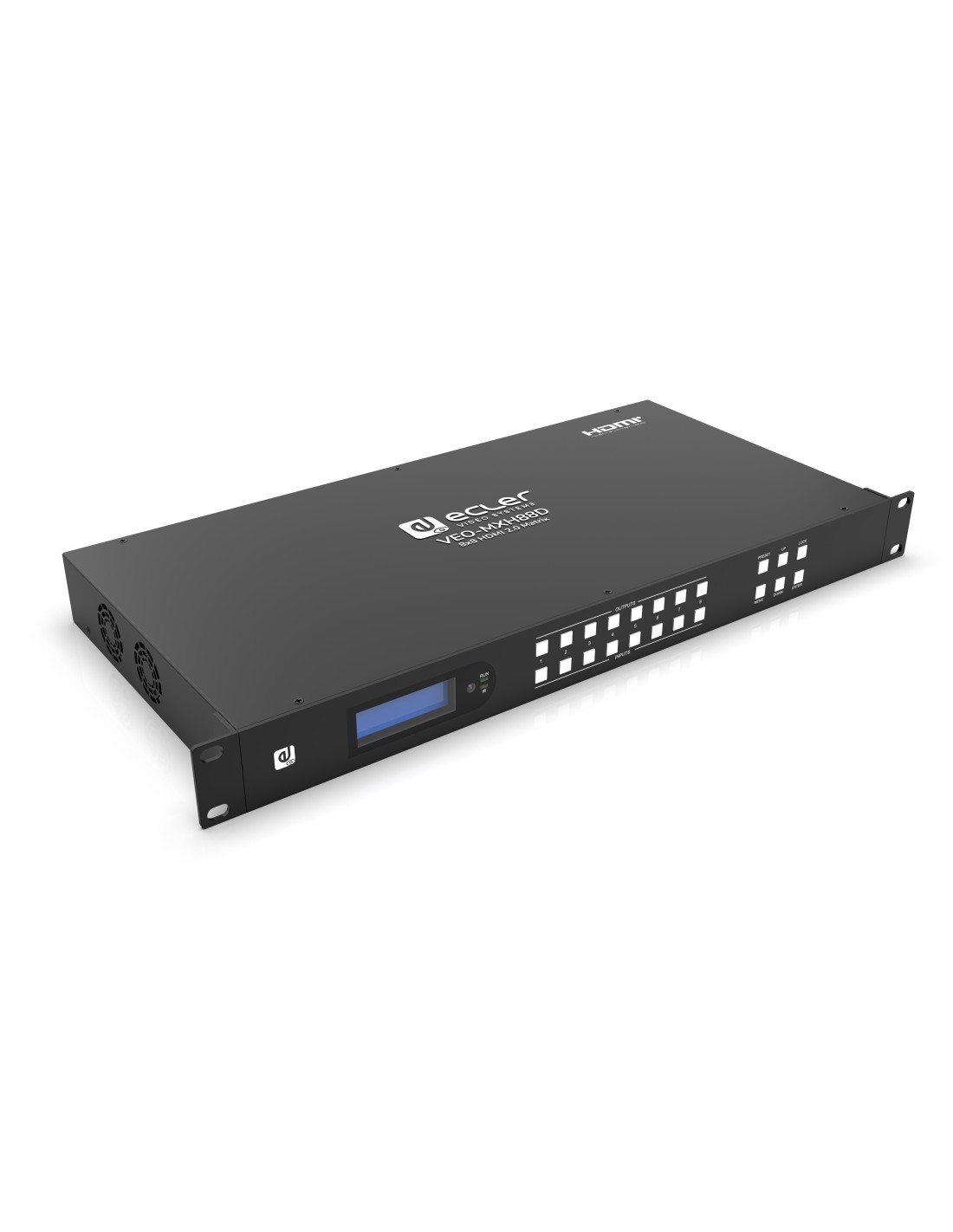

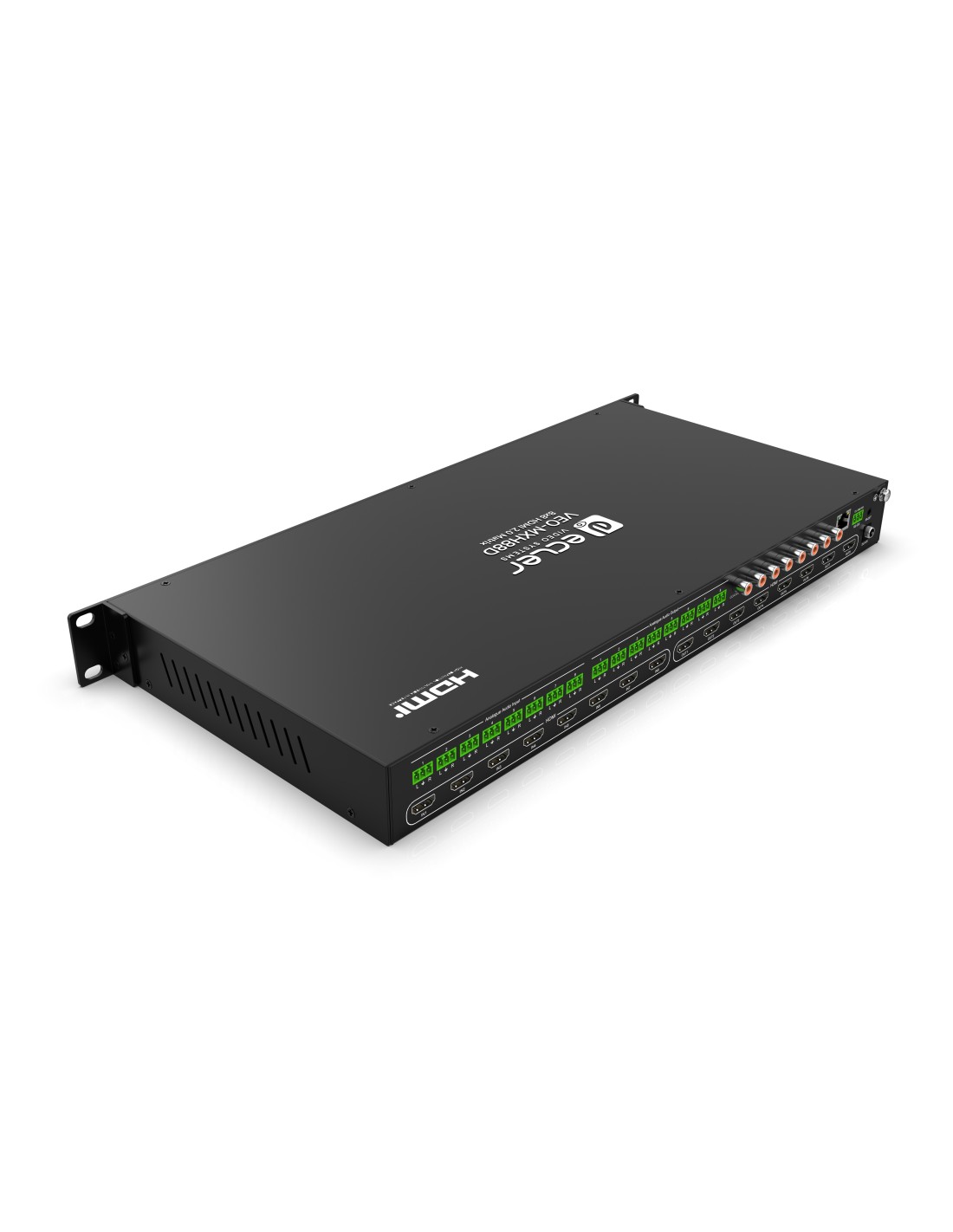

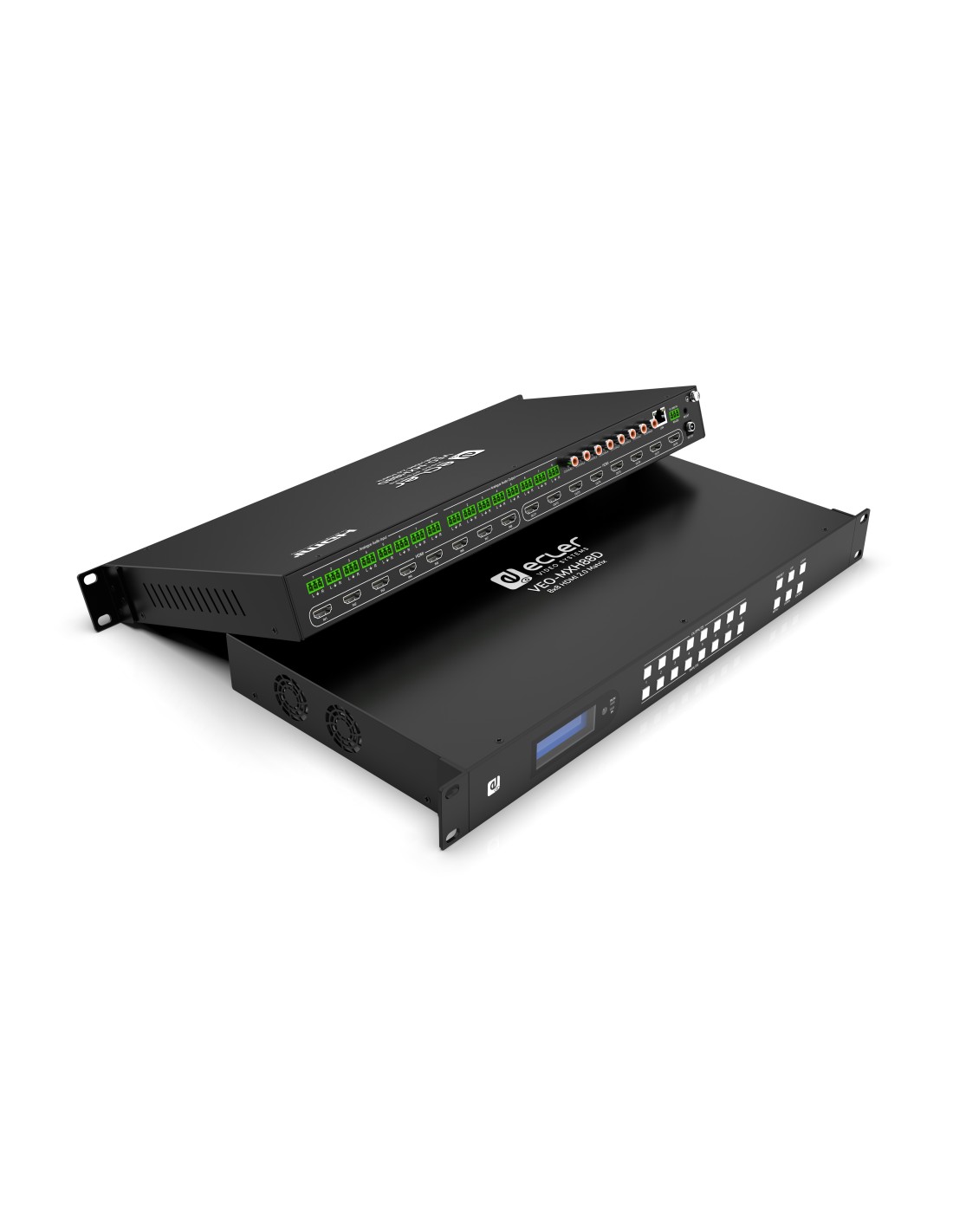

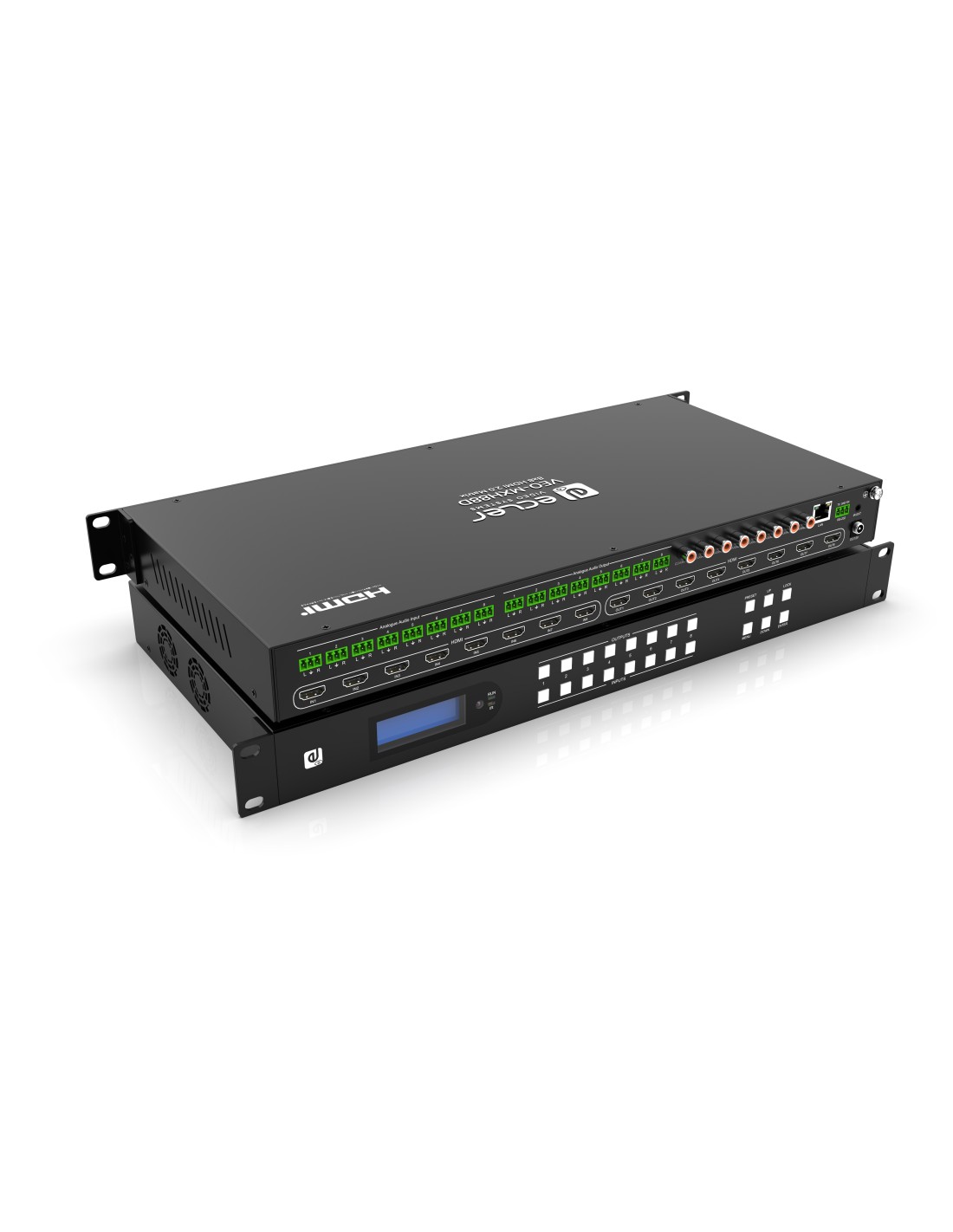

VEO-MXH88D is an 8x8 HDMI® matrix designed to handle high-quality video and audio signals. It supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling. VEO-MXH88D offers 8 analogue audio inputs and 16 analogue and digital audio de-embedding outputs, allowing for flexible audio management. The device features EDID management, which ensures optimal compatibility between connected devices, an LCD display and an integrated WebGUI, providing a user-friendly interface for configuration and control of the unit as well as, multiple other options for addressing HDMI® sources, including the frontal panel's selection buttons, serial commands, TCP/IP, and IR (infrared) control. The VEO-MXH88D is compliant with HDCP 2.2 and 1.4. This makes it suitable for professional applications that require secure handling of video and audio signals. Furthermore, supports for up to 8 presets allows for quick and convenient recall of specific configurations.
Installation options
Desktop
Operating temperature
Min: 0°C; 32°F
Max: 40°C; 104°F
Operating humidity
90% HR
<90% HR
Included accessories

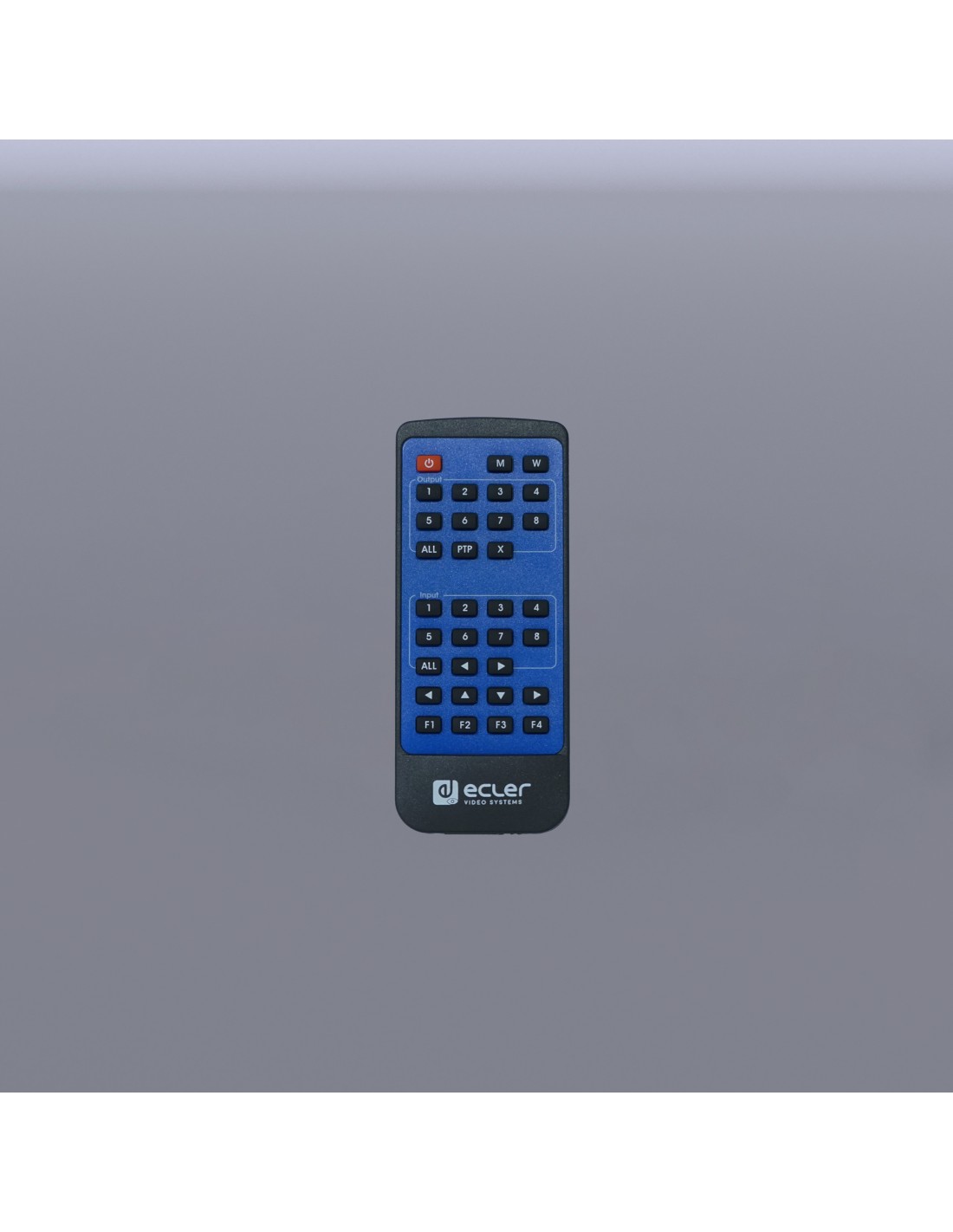

17 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU
Finished colour
Black
Dimensions
482.3 x 44 x 217.5 mm / 18.99 x 1.73 x 8.56 in. (WxHxD)
Weight
2,8 Kg / 6,17 lb
Shipping dimensions
500 x 85 x 264 mm. / 19.69 x 3.35 x 10.39 in. (WxHxD)
Shipping weight
3.7 Kg / 8.16 lb
Status
New
Origin Production
China
EAN code
8435071316804
Tariff code
8517620000
Shipping Location
Spain
Width (cm)
50
Height (cm)
8.5
Depth (cm)
26.4
Vol. (dm3)
11.22
Gross Weight (kg)
3.7
Net Weight (kg)
2.9
Format
Unit
Warranty (months)
60
AC mains connector
100-240VAC 50-60Hz with EU, UK ,US , AU blades
Power consumption
28W
Video Input Connectors
8 x HDMI Type A Female, 2.0, 18 Gbps
8 x HDMI® Type A Female, 18 Gbps
Video Output Connectors
8 x HDMI Type A Female, 2.0, 18 Gbps
8 x HDMI® Type A Female, 18 Gbps
Video Input Resolutions
480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
Video Output Resolutions
480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
Chroma Subsampling
YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz)
Colour Depth
8-bit, 10-bit, 12-bit
Colour Space
RGB, YUV
HDCP
2.2
HDR
HDR10, Dolby Vision, HLG
HDMI Distance
10m with Ecler VEO Cables (up to 1080p)
5m with Ecler VEO Cables (up to 4K)
Audio Input Connectors
8 x 3 pin Euroblock connector
Audio Output Connectors
8 x 3 pin Euroblock connector, 8 x Coaxial Digital Out connector
Audio Formats
PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X
Sample Rate
up to 192KHZ
ARC/eARC
ARC
Control Buttons
1 x Enter, 1 x Lock , 1 x Up, 1 x Down, 1 x Preset Selection, 1 x Menu, 8 x Input Selection, 8 x Output Selection, Remote control
EDID Management
Software, Front Panel Buttons
Status Indicators
Input LED, LCD Display
Power supply
External power supply
DC mains connector
12VDC-3A with coaxial DC connector
Chassis material
Metal
Control Connectors
Euroblock, RJ-45, IR 3,5mm stereo jack
Audio De-Embedding
Yes
Audio Embedding
Yes
Control Protocols
Web, Telnet, RS-232, IR, Front panel Buttons and LCD Display
Network Connectors
1 x RJ-45

Customers who bought this product also bought:

Customers who bought this product also bought:

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Installation options Desktop
Operating temperature Min: 0°C; 32°F Max: 40°C; 104°F
Operating humidity <90% HR
90% HR
Included accessories 17 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU
Finished colour Black
Dimensions 482.3 x 44 x 217.5 mm / 18.99 x 1.73 x 8.56 in. (WxHxD)
Weight 2,8 Kg / 6,17 lb
Shipping dimensions 500 x 85 x 264 mm. / 19.69 x 3.35 x 10.39 in. (WxHxD)
Shipping weight 3.7 Kg / 8.16 lb
Format Unit
Chassis material Metal
LOGISTICS
Status New
Origin Production China
EAN code 8435071316804
Tariff code 8517620000
Shipping Location Spain
Width (cm) 50
Height (cm) 8.5
Depth (cm) 26.4
Vol. (dm3) 11.22
Gross Weight (kg) 3.7
Net Weight (kg) 2.9
Warranty (months) 60
ELECTRICAL
AC mains connector 100-240VAC 50-60Hz with EU, UK ,US , AU blades
Power consumption 28W
Power supply External power supply
DC mains connector 12VDC-3A with coaxial DC connector
DEVICE CONTROL
Control Buttons 1 x Enter, 1 x Lock , 1 x Up, 1 x Down, 1 x Preset Selection, 1 x Menu, 8 x Input Selection, 8 x Output Selection, Remote control
EDID Management Software, Front Panel Buttons
Status Indicators Input LED, LCD Display
Control Connectors Euroblock, RJ-45, IR 3,5mm stereo jack
Control Protocols Web, Telnet, RS-232, IR, Front panel Buttons and LCD Display
VIDEO PERFOMANCES
Video Input Connectors 8 x HDMI Type A Female, 2.0, 18 Gbps
8 x HDMI® Type A Female, 18 Gbps
Video Output Connectors 8 x HDMI Type A Female, 2.0, 18 Gbps
8 x HDMI® Type A Female, 18 Gbps
Video Input Resolutions 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
Video Output Resolutions 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
Chroma Subsampling YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz)
Colour Depth 8-bit, 10-bit, 12-bit
Colour Space RGB, YUV
HDCP 2.2
HDR HDR10, Dolby Vision, HLG
HDMI Distance 10m with Ecler VEO Cables (up to 1080p) 5m with Ecler VEO Cables (up to 4K)
AUDIO PERFORMANCES
Audio Input Connectors 8 x 3 pin Euroblock connector
Audio Output Connectors 8 x 3 pin Euroblock connector, 8 x Coaxial Digital Out connector
Audio Formats PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X
Sample Rate up to 192KHZ
ARC/eARC ARC
Audio De-Embedding Yes
Audio Embedding Yes
NETWORK
Network Connectors 1 x RJ-45
