CEHMA250
Available
250 WRMS | powered | audio mixer
See more Features Resources

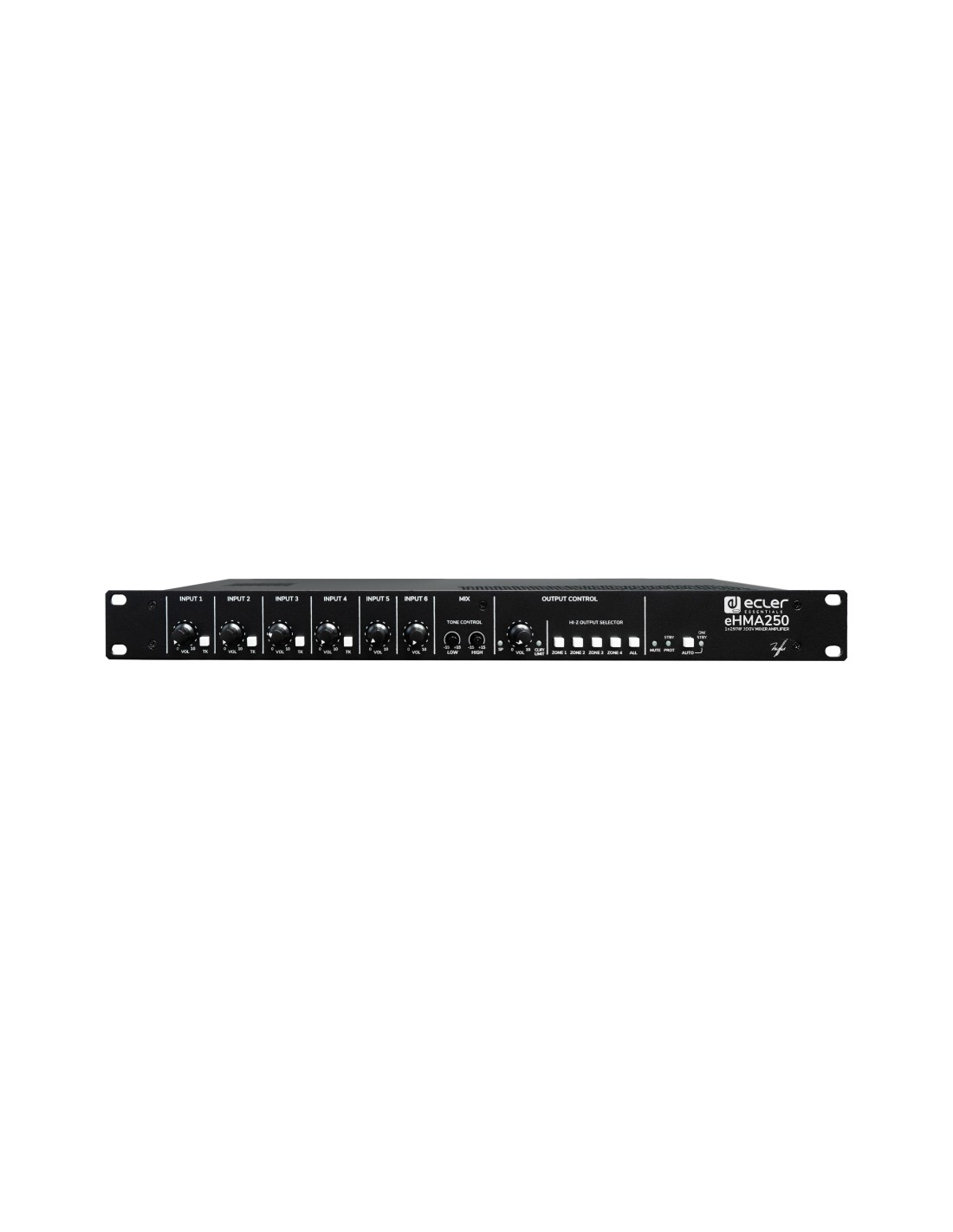

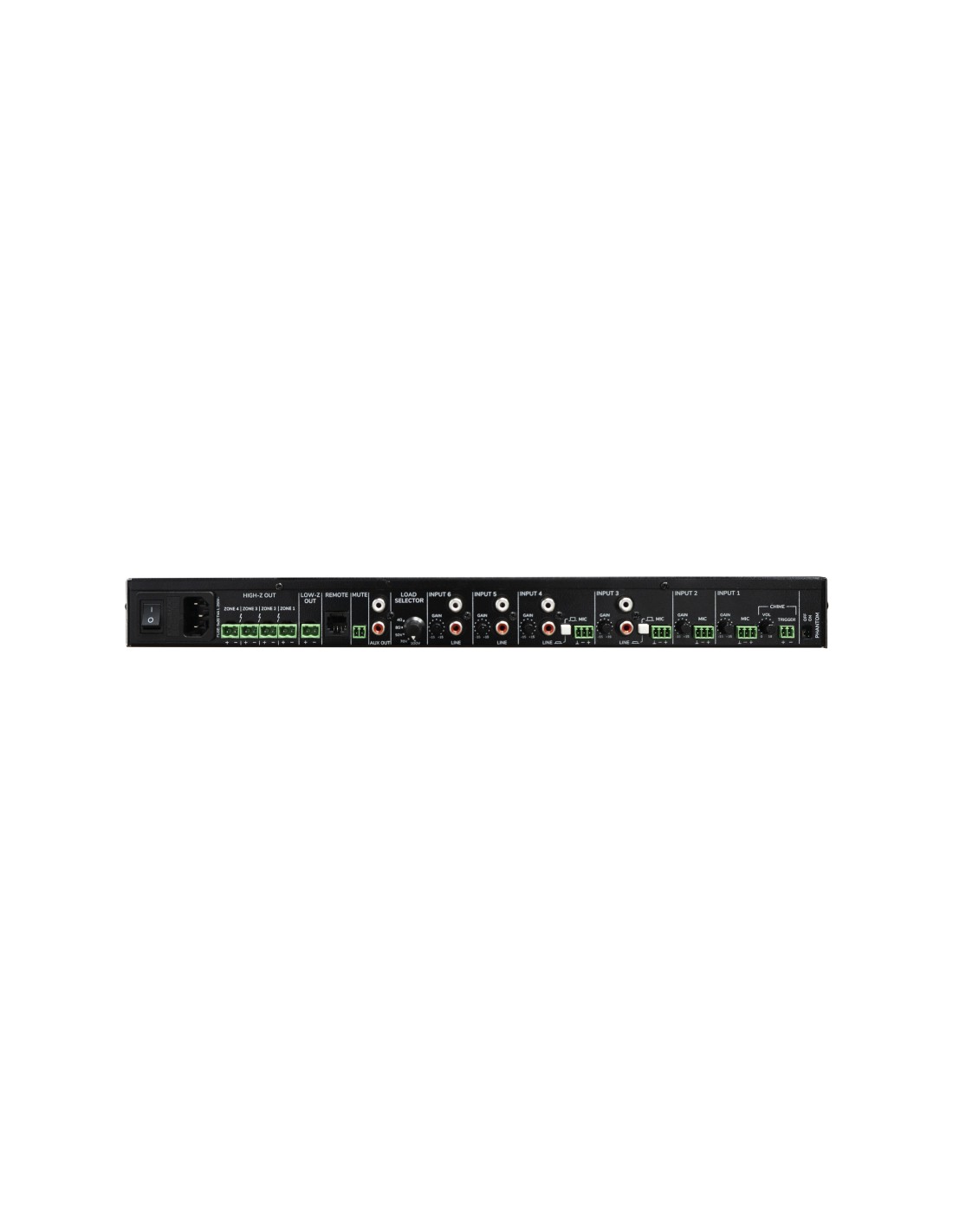

eHMA250 is a self-powered audio mixer including 2 MIC inputs, 2 MIC/LINE ST inputs, 2 LINE ST inputs and one AUX/REC output. Supports both low (4 and 8Ω) and high impedance (50, 70 and 100V) loudspeaker lines, with independent 4-ZONE ON/OFF switches (ZONE 1, ZONE 2, ZONE 3 and ZONE 4), besides a low impedance output and an auxiliary output. It also includes an audio priority system (voice messages, emergencies, etc.) available in 4 inputs and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and Remote port (RJ45) for remote volume control, compatible with Ecler WPaVOL.
Connection type
Euroblock
Euroblock, double RCA
Installation options
19" rack format (1 or 2 RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Optional accessories
WPa series for remote control
Dimensions
435 x 44 x 220 mm / 17.1 x 1.7 x 8.7 in. (WxHxD)
Weight
3 kg / 6.6 lb
Shipping dimensions
390 x 70 x 580 mm / 15.35 x 2.76 x 22.83 in. (WxHxD)
Shipping weight
4.3 kg / 9.48 lb
Status
New
EAN code
8435071310116
Tariff code
8518400000
Shipping Location
Spain
Number of input ports
6 MIC/LINE level
Input sensitivity
MIC1-4: -20 to -50dBV
LINE2-4: -20 to -50dBV
LINE 5-6: -15 to +15dBV
CMRR
MIC: 65dB @ 1kHz
MIC: >65dB @ 1kHz
Number of output ports
5 + 1 AUX
Crosstalk
65dB @ 1kHz
>65dB @ 1kHz
GPIs
x1 GPI (0-10VDC) for volume control
AC mains requirement
100-240 V @ 50-60Hz
AC mains connector
AC socket connector (IEC)
Control Buttons
1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF, 1x CHIME TRIGGER, 1x ZONE ON/OFF, 1x ALL ZONES ON/OFF, 1xMains switch
Status Indicators
SP, CLIP, MUTE, ON/STBY, STBY/PROT
Power supply
Universal
Phantom power
MIC: +15VDC (ON/OFF ext switch)
Output connection type
Euroblock
Number of output channels
5 + 1 AUX
Number of input channels
6
Input connection type
MIC: balanced Euroblock
LINE: unbalanced double RCA
Max output power @ 100V
250W
Max output power @ 70V
250W
Input impedance
MIC: 1kΩ
LINE: 4kΩ
MIC: >1kΩ
LINE: >4kΩ
Gain
Rear panel knobs per channel
Power Consumption (STBY)
8W
Output configuration
1 x 250W (4 x ZONE ON/OFF selection switches)
Input configuration
2 MIC inputs
2 LINE/MIC inputs
2 LINE inputs
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 95W
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 45W
Energy save
Auto standby function
Efficiency
82% @ max power
AC protection
No
DC protection
No
VHF protection
No
Short-circuit protection
No
Clip limiter
No
Long term limiter
No
Thermal protection
No
External MUTE
External dry contact closure
Attenuators
Front panel knobs per channel
Tone control
2-band EQ
2-band EQ (BASS/TREBLE) for Mix Output
Output settings
4Ω / 8Ω / 50V / 70V / 100V outputs (Load selector)
Auto stand-by function
Front panel switch
Auto stand-by time
120 seconds
Signal Present
SP LED (Green)
Cliping
CLIP LED (Red)
Standby
STBY LED (Orange)
Filters
High-Z OUTPUT: 70Hz / 12dB/oct
Low-Z OUTPUT: 20Hz / 12dB/oct
Tone Frequency Cut
Bass: 100Hz ± 15dB
Treble: 10kHz ± 15dB
Talkover
Yes
Power ON/OFF
Rear panel switch and front panel indicator
Protect
PROT LED (Red)
