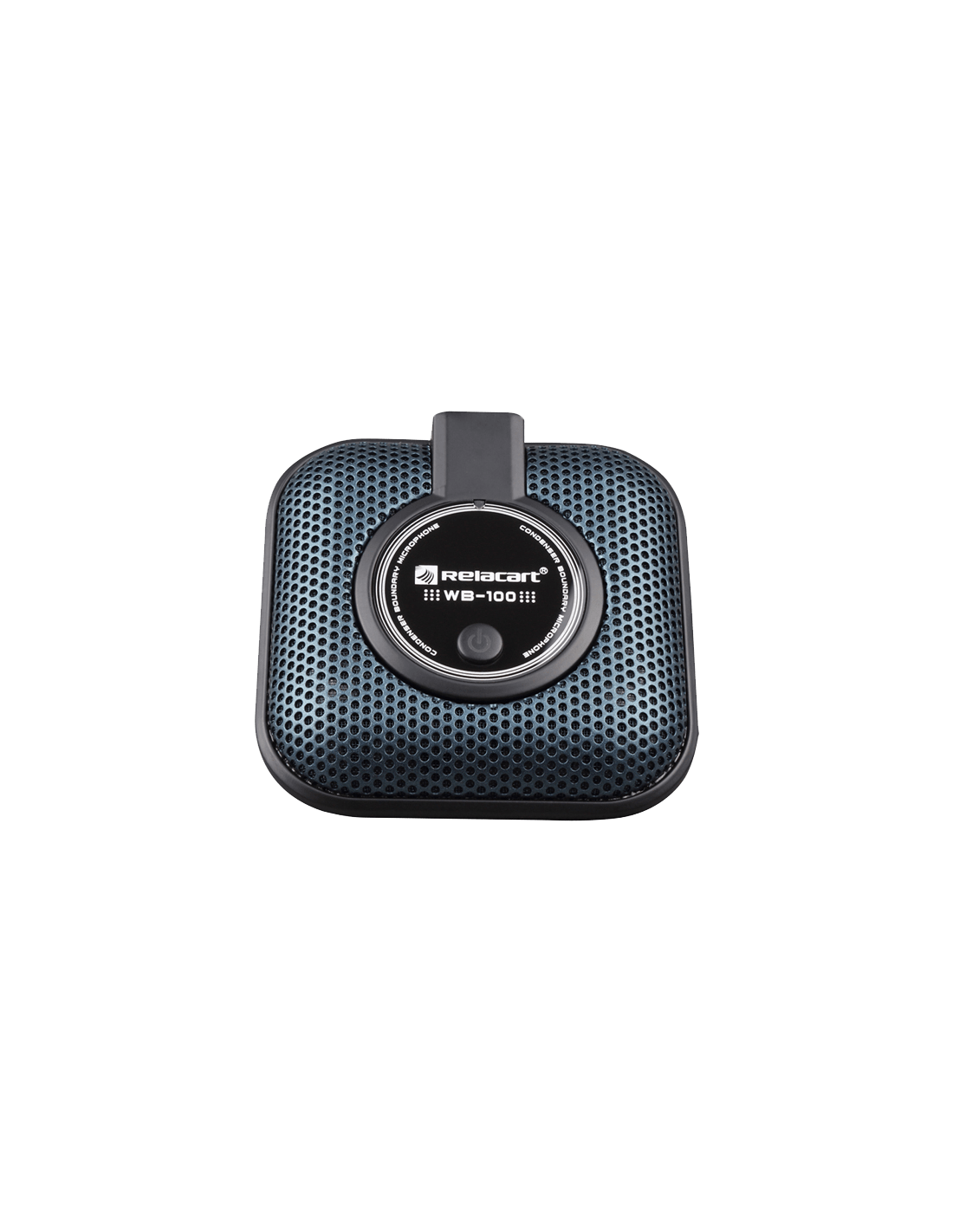

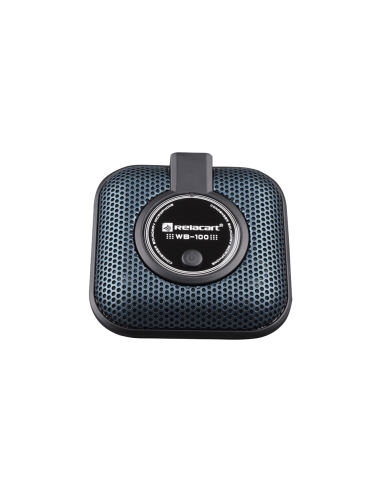

WB-100
CRLWB100
Check availability
Surface wire microphone with PTT and PTM
WB-100 is a wide frequency response condenser cardioid boundary microphone, designed for flat placement applications, providing high-quality sound pickup, conference, professional recording, TV broadcasting and other high-demand pickup applications.
- Sensitivity
- -36dB 1Pa at 1V
- Dimensions
- 110x18x110 mm (WxHxD)
- Weight
- 300g
- Status
- New
- EAN code
- 6974749660020
- Tariff code
- 8518100000
- Shipping Location
- Spain
- Frequency response
- 65Hz-18kHz
- Output impedance
- 200Ω
- SNR
- 67dB
>67dB - Phantom power
- 24-52V DC
- Max power consumption
- 8mA (Typical)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Sensitivity |
-36dB 1Pa at 1V |
|---|
PHYSICAL
| Dimensions |
110x18x110 mm (WxHxD) |
|---|---|
| Weight |
300g |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
6974749660020 |
| Tariff code |
8518100000 |
| Shipping Location |
Spain |
MICS
| Output impedance |
200Ω |
|---|
ELECTRICAL
| Max power consumption |
8mA (Typical) |
|---|
SIGNAL
| SNR |
>67dB 67dB |
|---|
MIC INPUTS
| Phantom power |
24-52V DC |
|---|
LINE OUTPUTS
| Frequency response |
65Hz-18kHz |
|---|
