RDA10
CRLRDA10
Check availability

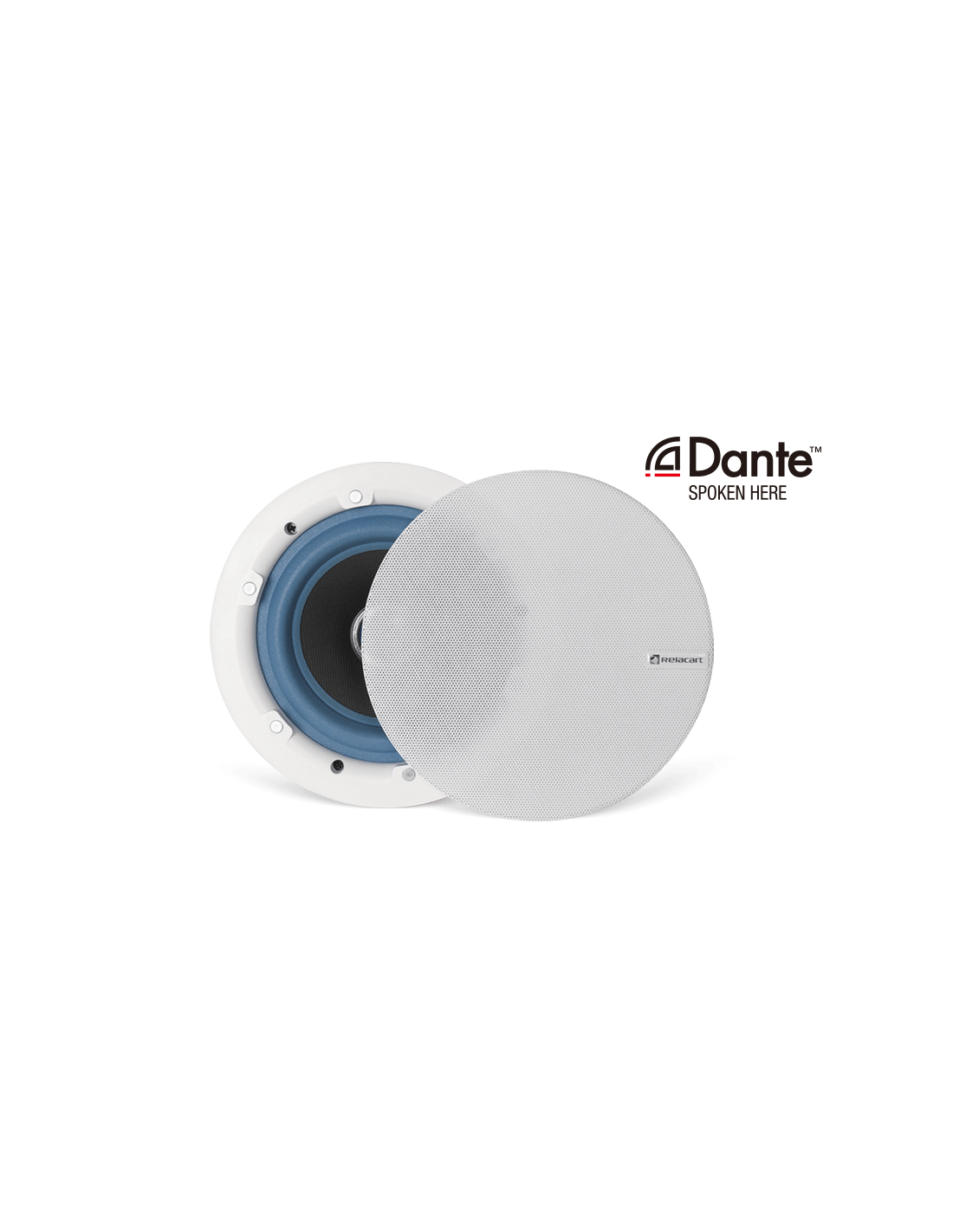

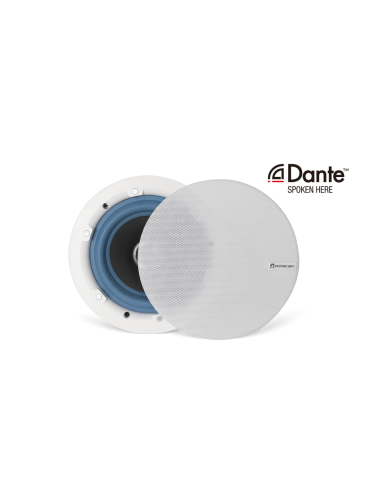

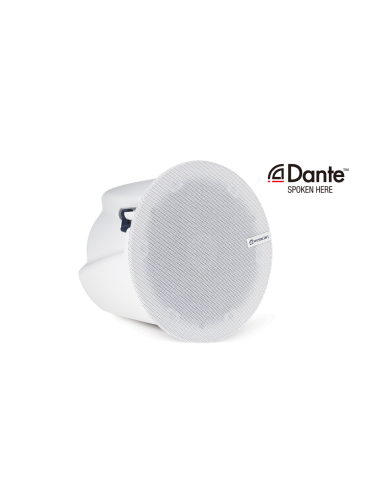

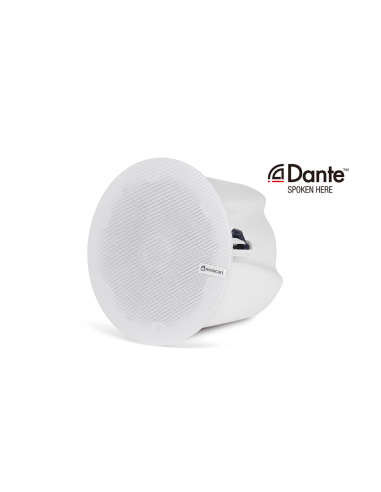

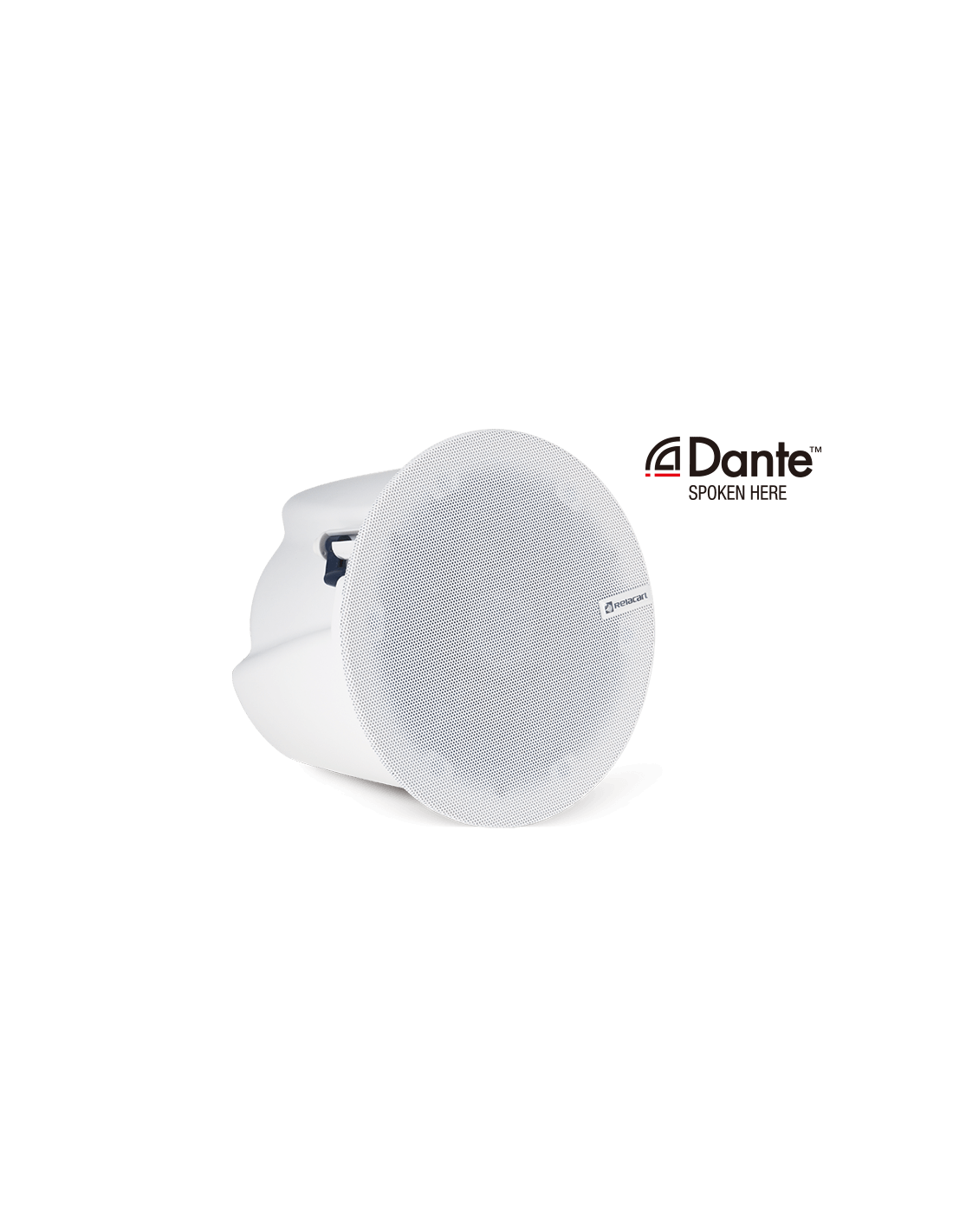

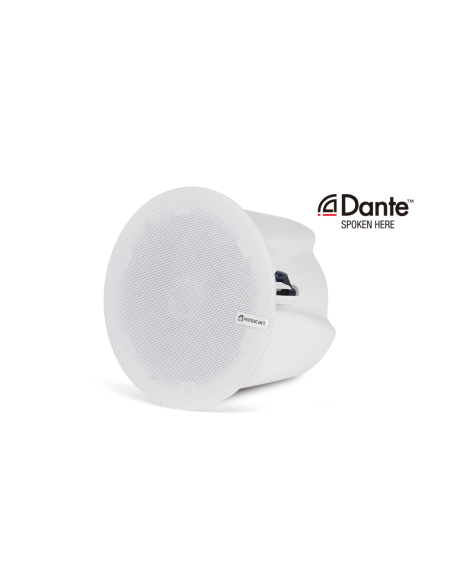

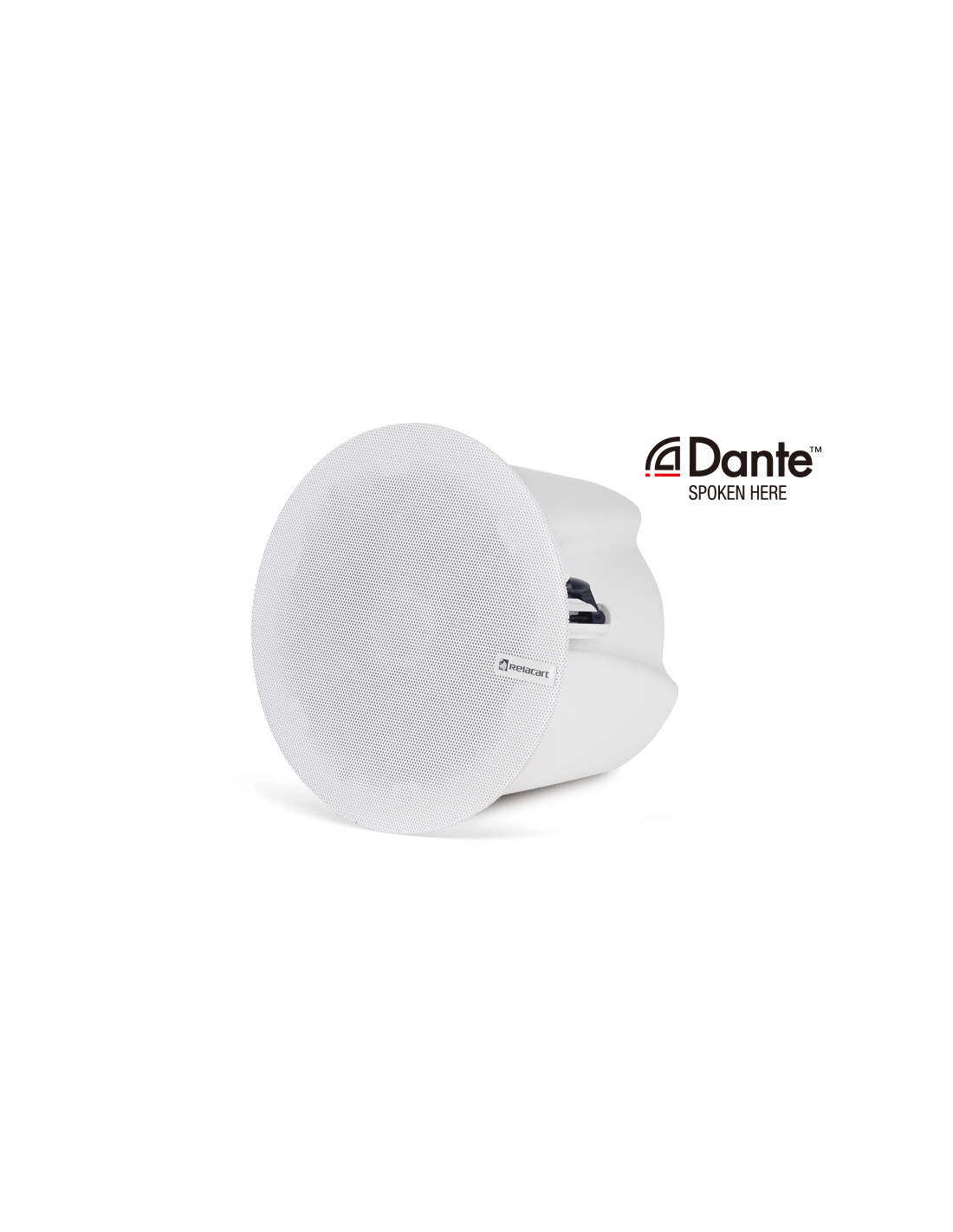

Self-powered Dante coaxial ceiling speaker
The RDA10 is a 6.25-inch full-frequency coaxial ceiling speaker with a Class D digital audio amplifier providing up to 30 W of power. It features built-in full-band coaxial full-band ceiling speakers that are easily and quickly installed using standard bending clips. Thanks to its bezel-free structure and exquisite slim design, it blends seamlessly into the ceiling environment, making it the ideal choice for hotels, conference rooms, shopping malls, educational institutions, hospitals, retail stores, performing arts centers, restaurants, airports, chapels and boardrooms.
- Effective Freq. Range
- (-3dB): 90Hz-17KHz
- Coverage angle / Dispersion
- Horizontal 90°/ Vertical 90°
- Sensitivity
- 90dB
- Recommended amplifier power
- RMS power: PoE: 10W / PoE+: 20W
- Connection type
- RJ45
- Dimensions
- 6,5"-210x150 mm (WxD)
- Weight
- About 1,8kg
- Status
- New
- EAN code
- 6974749660259
- Tariff code
- 8518210000
- Shipping Location
- Spain
- Input sensitivity
- Dante input
- Power supply
- Standard POE/POE+
- Recommended cut out diameter
- Ø190
- Powered outputs
- PoE 10W/PoE + 20W
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
(-3dB): 90Hz-17KHz |
|---|---|
| Coverage angle / Dispersion |
Horizontal 90°/ Vertical 90° |
| Sensitivity |
90dB |
| Recommended amplifier power |
RMS power: PoE: 10W / PoE+: 20W |
PHYSICAL
| Connection type |
RJ45 |
|---|---|
| Dimensions |
6,5"-210x150 mm (WxD) |
| Weight |
About 1,8kg |
| Recommended cut out diameter |
Ø190 |
POWERED
| Powered outputs |
PoE 10W/PoE + 20W |
|---|
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
6974749660259 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
Standard POE/POE+ |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
Dante input |
|---|
