BOB-22
CBOB22
Available

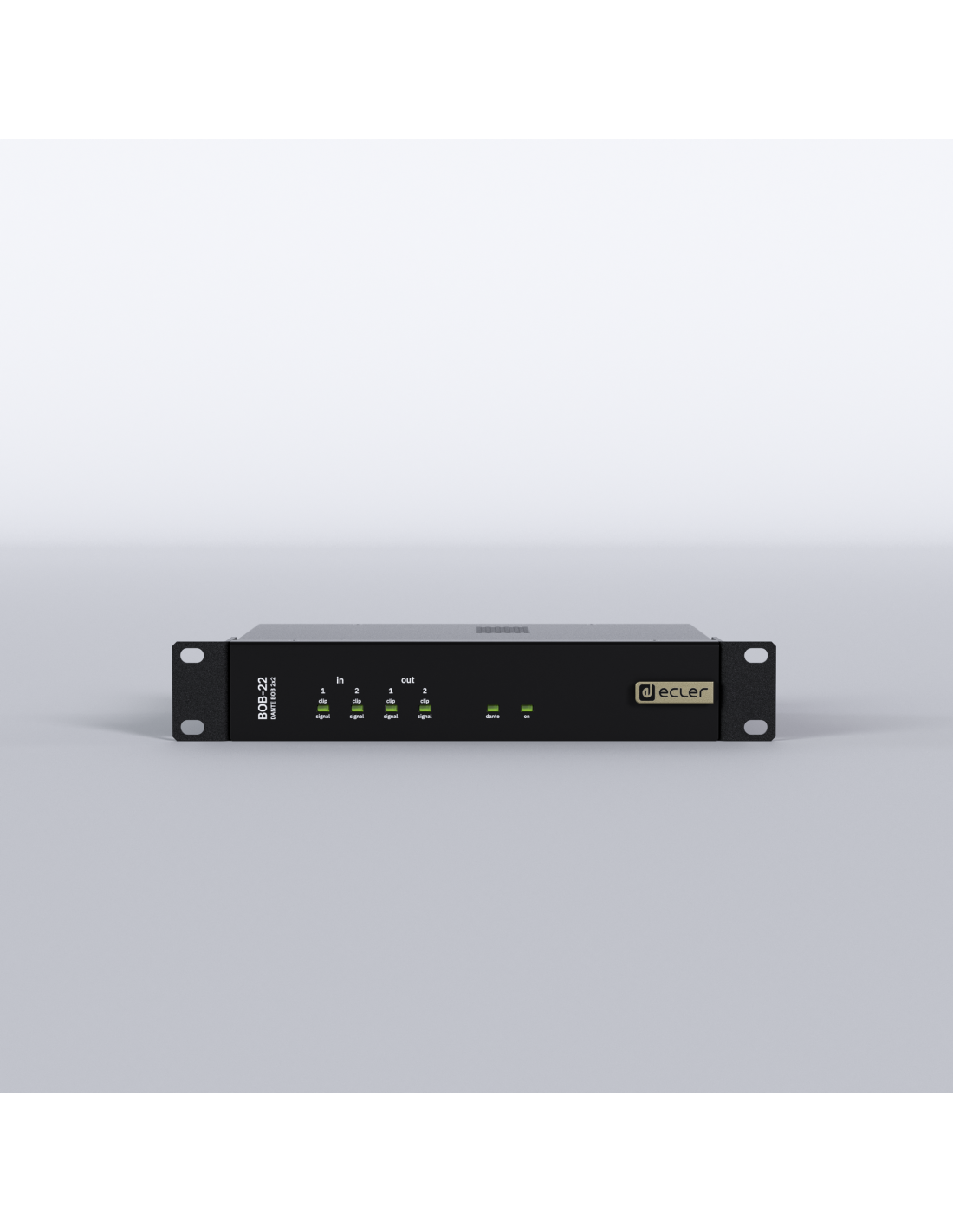

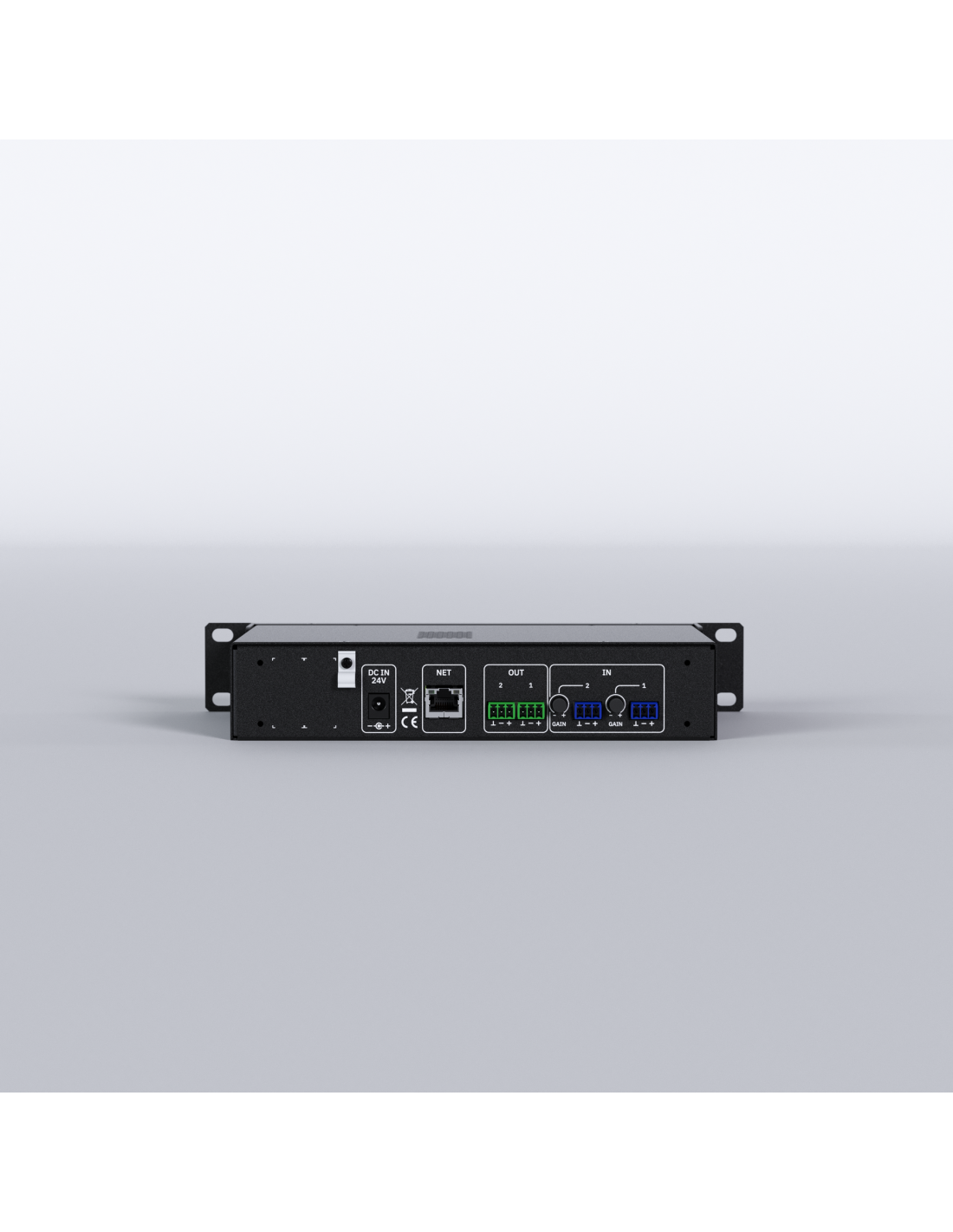

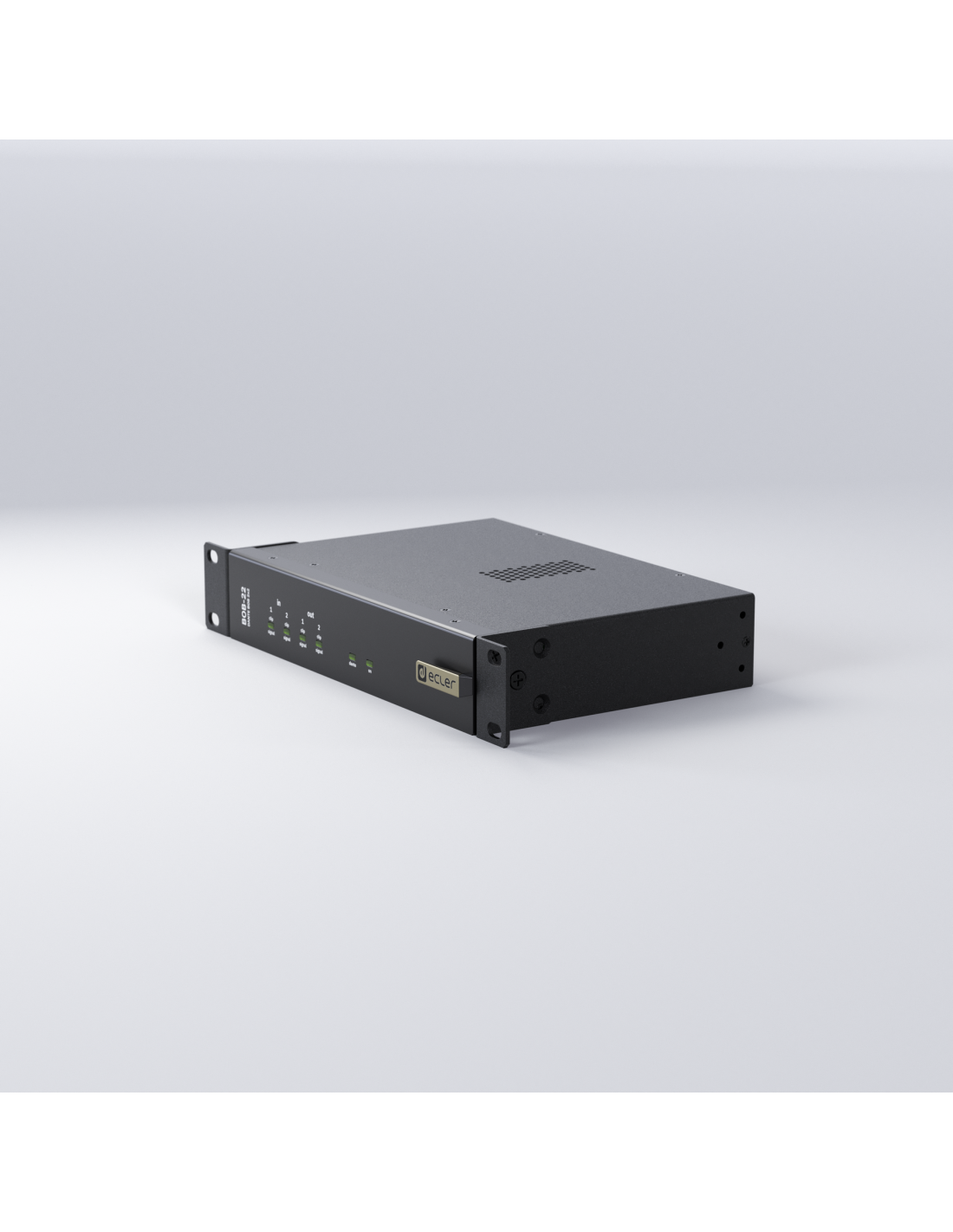

Dante/AES67 Digital Audio Interface BOB 2x2
BOB-22 is a digital audio interface, 2xMIC/LINE audio inputs and 2 LINE level audio outputs, Dante/AES67 (Audio Over IP) Break Out Box. It enables the conversion of up to 2 Dante/AES67 channels into 2 analogue audio LINE level output signals and vice versa, converting 2 MIC/LINE analogue audio input signals into 2 Dante/AES67 channels for transmission over an Ethernet network.
The device features PoE (Power over Ethernet) for DC power directly from PoE-enabled Ethernet switches. An optional 24VDC external PSU is available (sold separately).
BOB-22 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler, or with any other third-party Dante/AES67 devices, but it is not a native EclerNet / EclerPLEX guest unit.
- Connection type
- Euroblock, 3-pin, balanced
- Installation options
- Desktop, 19" racks (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
- Included accessories
- 4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer
- Dimensions
- 266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD)
266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) - Weight
- 1.1 Kg / 2.43 lb.
- Shipping dimensions
- 430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD)
- Shipping weight
- 1.7 Kg / 3.75 lb.
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 0 - 20 kHz
- Number of input ports
- 2, MIC/LINE level
- Input sensitivity
- -50dBV to +0dBV
- Input impedanc
- 4 kΩ
- CMRR
- 56dB typ.
- Number of output ports
- 2, LINE level
- Output impedance
- 316 ohms
- Crosstalk
- better than 95 dB
- Programing and control
- Dante® Controller
- AC mains requirement
- 90-265VAC @ 50-60Hz (External PSU: 24VDC)
- Power consumption
- 14 VA / 8 W
- Power supply
- 24VDC External PSU (sold separately)
- Phantom power
- +48VDC, Internal jumper activation
- Input impedance
- 4 kΩ
- Max input level
- +18dBV +20dBu
- THD + Noise
- THD+Noise @ 1kHz, 0dBV input (line) 0.005%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.40% - Latency
- ADC 0.81 ms DAC 0.56 ms Total 1.37 ms
- Ethernet
- 1, RJ-45 connector
10 /100Mb, 1GB Auto X-Over - Ventilation
- Passive
- Dynamic range
- ADC:110dB, DAC:115dB
- Max output level
- +18dBV +20dBu
- Protocols
- Dante® / AES67 (2/2 flows)
- Number of digital input ports
- 2
- Number of digital output ports
- 2
- Interfaces
- 1 x RJ-45
- Secondary power supply
- PoE: class 0 802.3af Poe PD compliant
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
Euroblock, 3-pin, balanced |
|---|---|
| Installation options |
Desktop, 19" racks (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
90% HR |
| Included accessories |
4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer |
| Dimensions |
266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD) 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) |
| Weight |
1.1 Kg / 2.43 lb. |
| Shipping dimensions |
430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD) |
| Shipping weight |
1.7 Kg / 3.75 lb. |
MICS
| Output impedance |
316 ohms |
|---|
ELECTRICAL
| AC mains requirement |
90-265VAC @ 50-60Hz (External PSU: 24VDC) |
|---|---|
| Power consumption |
14 VA / 8 W |
| Power supply |
24VDC External PSU (sold separately) |
| Ventilation |
Passive |
| Secondary power supply |
PoE: class 0 802.3af Poe PD compliant |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
ADC 0.81 ms DAC 0.56 ms Total 1.37 ms |
| Dynamic range |
ADC:110dB, DAC:115dB |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
2, MIC/LINE level |
|---|---|
| Input impedanc |
4 kΩ |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
2, LINE level |
|---|---|
| Crosstalk |
better than 95 dB |
AUDIO OVER IP
| Protocols |
Dante® / AES67 (2/2 flows) |
|---|---|
| Number of digital input ports |
2 |
| Number of digital output ports |
2 |
| Interfaces |
1 x RJ-45 |
CONNECTIVITY
| Programing and control |
Dante® Controller |
|---|---|
| Ethernet |
1, RJ-45 connector
10 /100Mb, 1GB Auto X-Over |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-50dBV to +0dBV |
|---|
MIC INPUTS
| Phantom power |
+48VDC, Internal jumper activation |
|---|
LINE INPUTS
| CMRR |
56dB typ. |
|---|---|
| Input impedance |
4 kΩ |
| Max input level |
+18dBV +20dBu |
LINE OUTPUTS
| Frequency response |
0 - 20 kHz |
|---|---|
| THD + Noise |
THD+Noise @ 1kHz, 0dBV input (line) 0.005%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.40% |
| Max output level |
+18dBV +20dBu |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
