BOB-04
CBOB04
Available

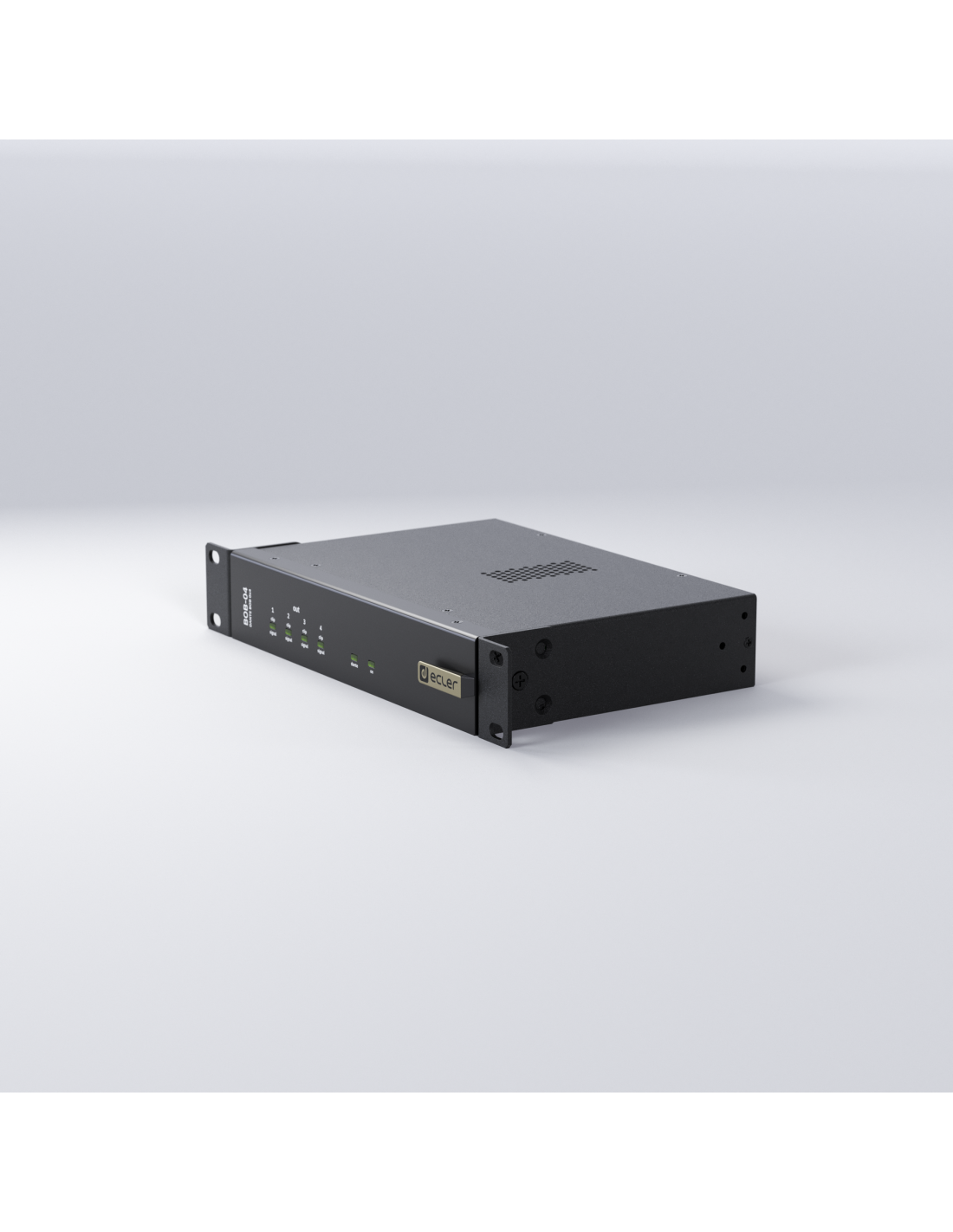

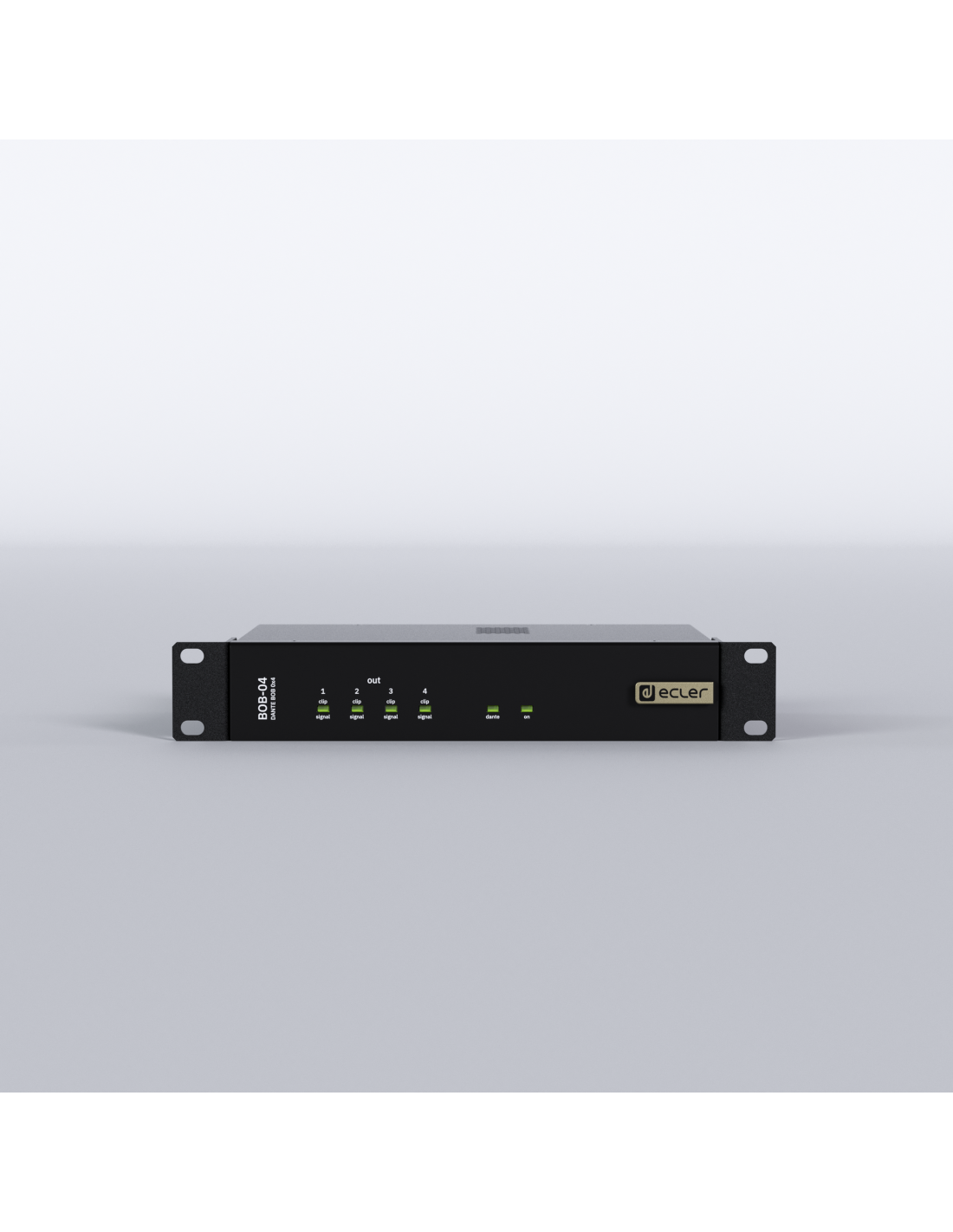

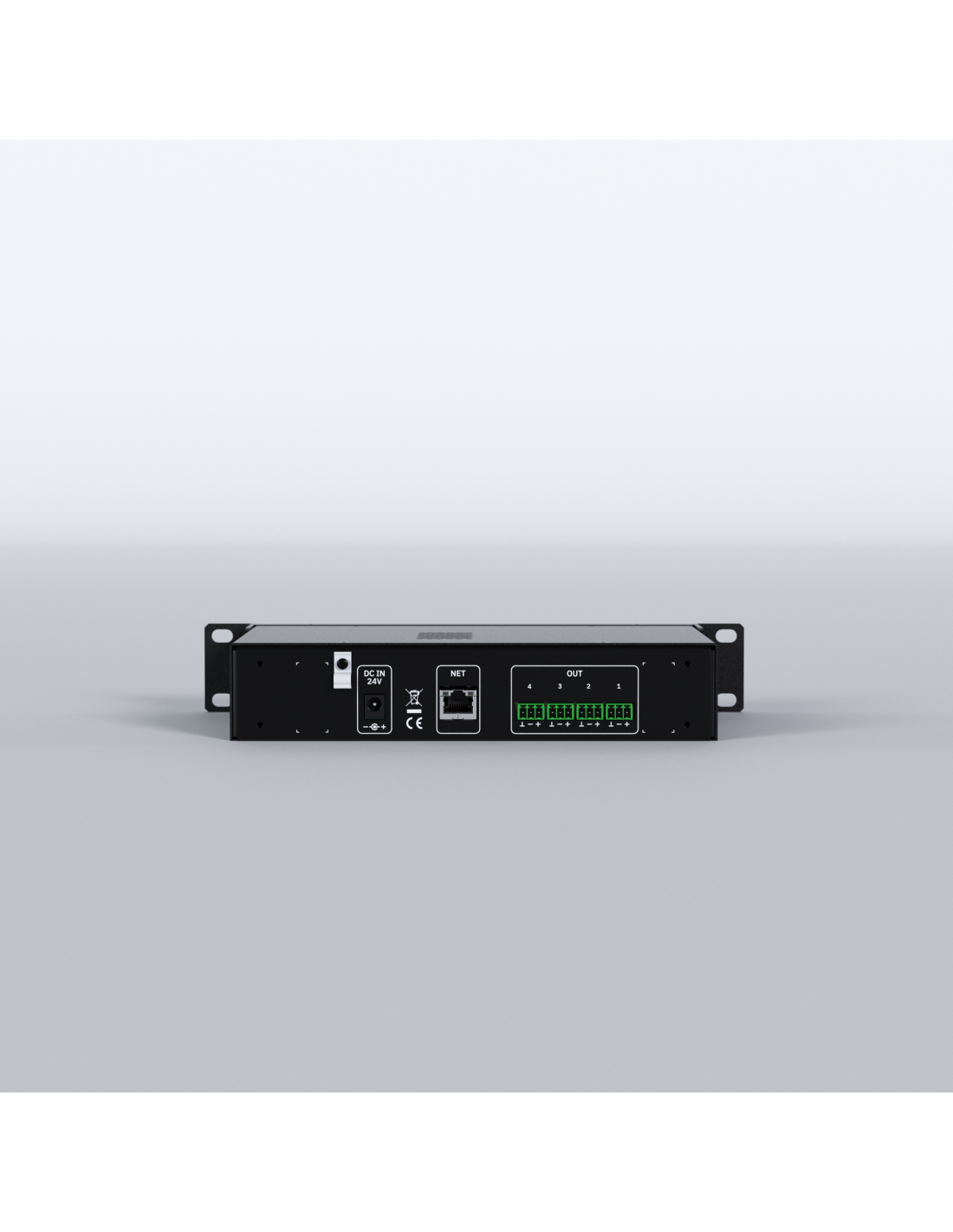

Dante/AES67 Digital Audio Interface BOB 0x4
BOB-04 is a digital audio Dante/AES67(Audio Over IP) Break Out Box. It delivers 4 LINE level audio outputs, converted from 4 Dante/AES67 (Audio Over IP), received from the Ethernet digital audio LAN it is connected to.
The device features PoE (Power over Ethernet), DC supply directly from PoE ready Ethernet switches. An optional 24VDC external PSU is available (sold separately).
BOB-04 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler, or with any other third-party Dante/AES67 devices, but it is not a native EclerNet / EclerPLEX guest unit.
- Connection type
- Euroblock, 3-pin, balanced
- Installation options
- Desktop, 19" racks (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
- Included accessories
- 4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer
- Dimensions
- 266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD)
266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) - Weight
- 1.1 Kg / 2.43 lb.
- Shipping dimensions
- 430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD)
- Shipping weight
- 1.65Kg / 3.64 lb.
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 0 - 20 kHz
- Number of output ports
- 4, LINE level
- Output impedance
- 316Ω
- Crosstalk
- better than 95 dB
- Programing and control
- Dante® Controller
- AC mains requirement
- 90-265VAC @ 50-60Hz (External PSU: 24VDC)
- Power consumption
- 13 VA / 7 W
- Power supply
- 24VDC External PSU (sold separately)
- Latency
- 1 / 2 / 5 ms (selectable)
- Ethernet
- 1, RJ-45 connector
10 /100Mb, 1GB Auto X-Over - Ventilation
- Passive
- Dynamic range
- 115 dB typ.
- Max output level
- +18dBV+20dBu
- Protocols
- Dante® / AES67 (2 flows)
- Number of digital output ports
- 4
- Interfaces
- 1 x RJ-45
- Secondary power supply
- PoE: class 0 802.3af Poe PD compliant
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
Euroblock, 3-pin, balanced |
|---|---|
| Installation options |
Desktop, 19" racks (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
90% HR |
| Included accessories |
4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer |
| Dimensions |
266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD) 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) |
| Weight |
1.1 Kg / 2.43 lb. |
| Shipping dimensions |
430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD) |
| Shipping weight |
1.65Kg / 3.64 lb. |
MICS
| Output impedance |
316Ω |
|---|
ELECTRICAL
| AC mains requirement |
90-265VAC @ 50-60Hz (External PSU: 24VDC) |
|---|---|
| Power consumption |
13 VA / 7 W |
| Power supply |
24VDC External PSU (sold separately) |
| Ventilation |
Passive |
| Secondary power supply |
PoE: class 0 802.3af Poe PD compliant |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
1 / 2 / 5 ms (selectable) |
| Dynamic range |
115 dB typ. |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
4, LINE level |
|---|---|
| Crosstalk |
better than 95 dB |
AUDIO OVER IP
| Protocols |
Dante® / AES67 (2 flows) |
|---|---|
| Number of digital output ports |
4 |
| Interfaces |
1 x RJ-45 |
CONNECTIVITY
| Programing and control |
Dante® Controller |
|---|---|
| Ethernet |
1, RJ-45 connector
10 /100Mb, 1GB Auto X-Over |
LINE OUTPUTS
| Frequency response |
0 - 20 kHz |
|---|---|
| Max output level |
+18dBV+20dBu |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
