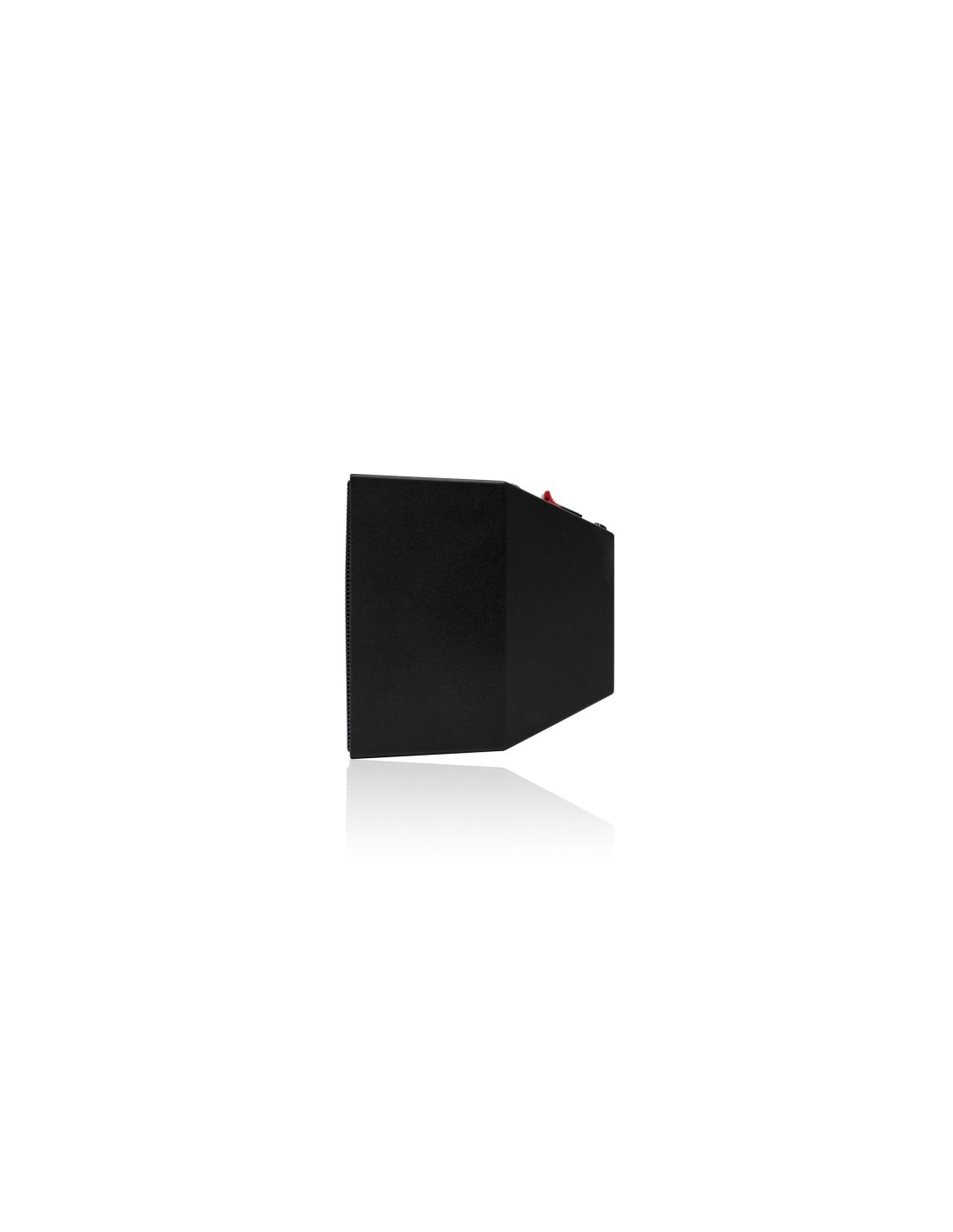

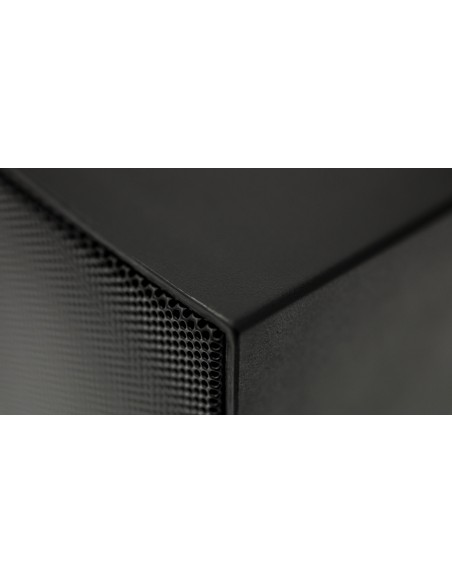

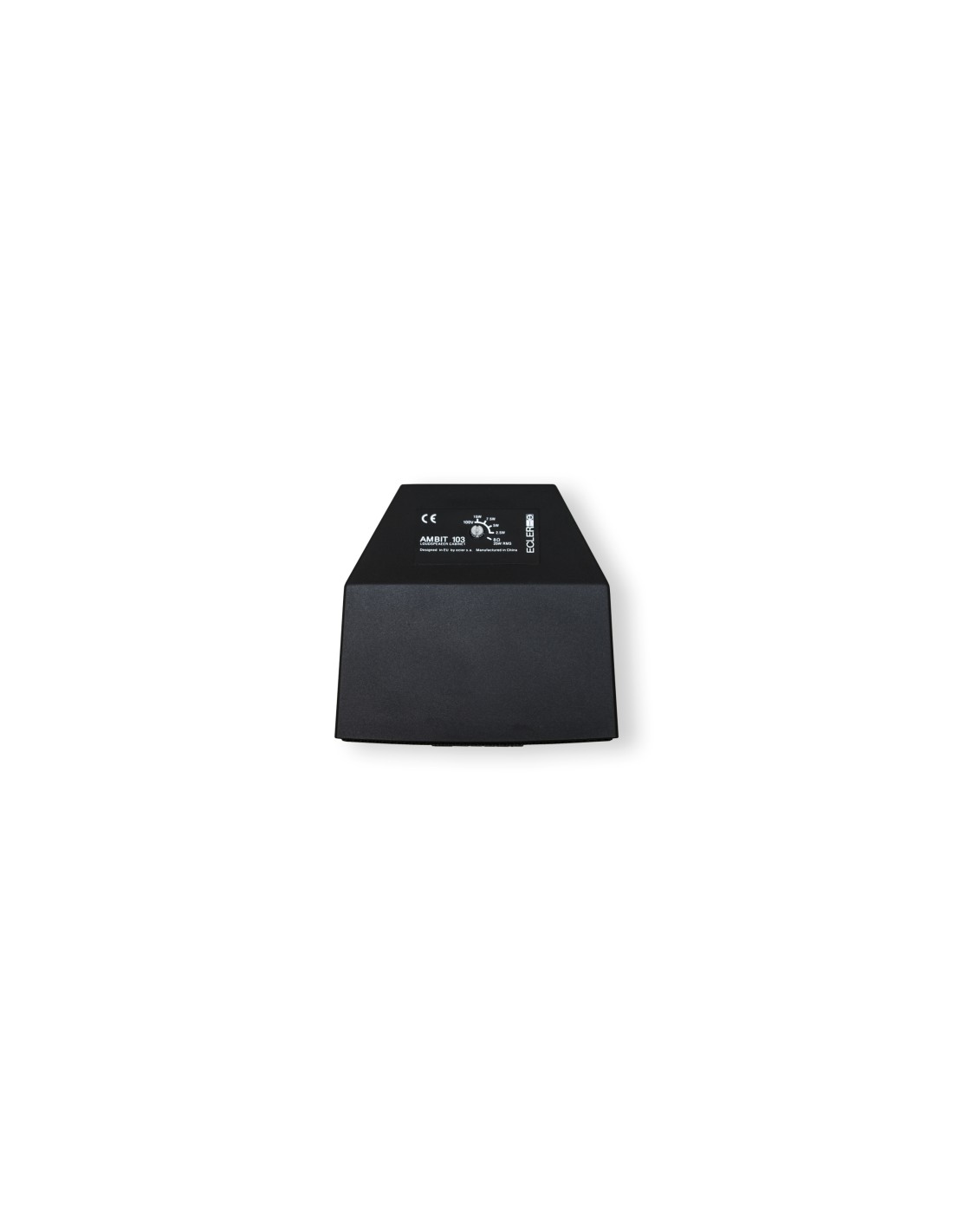

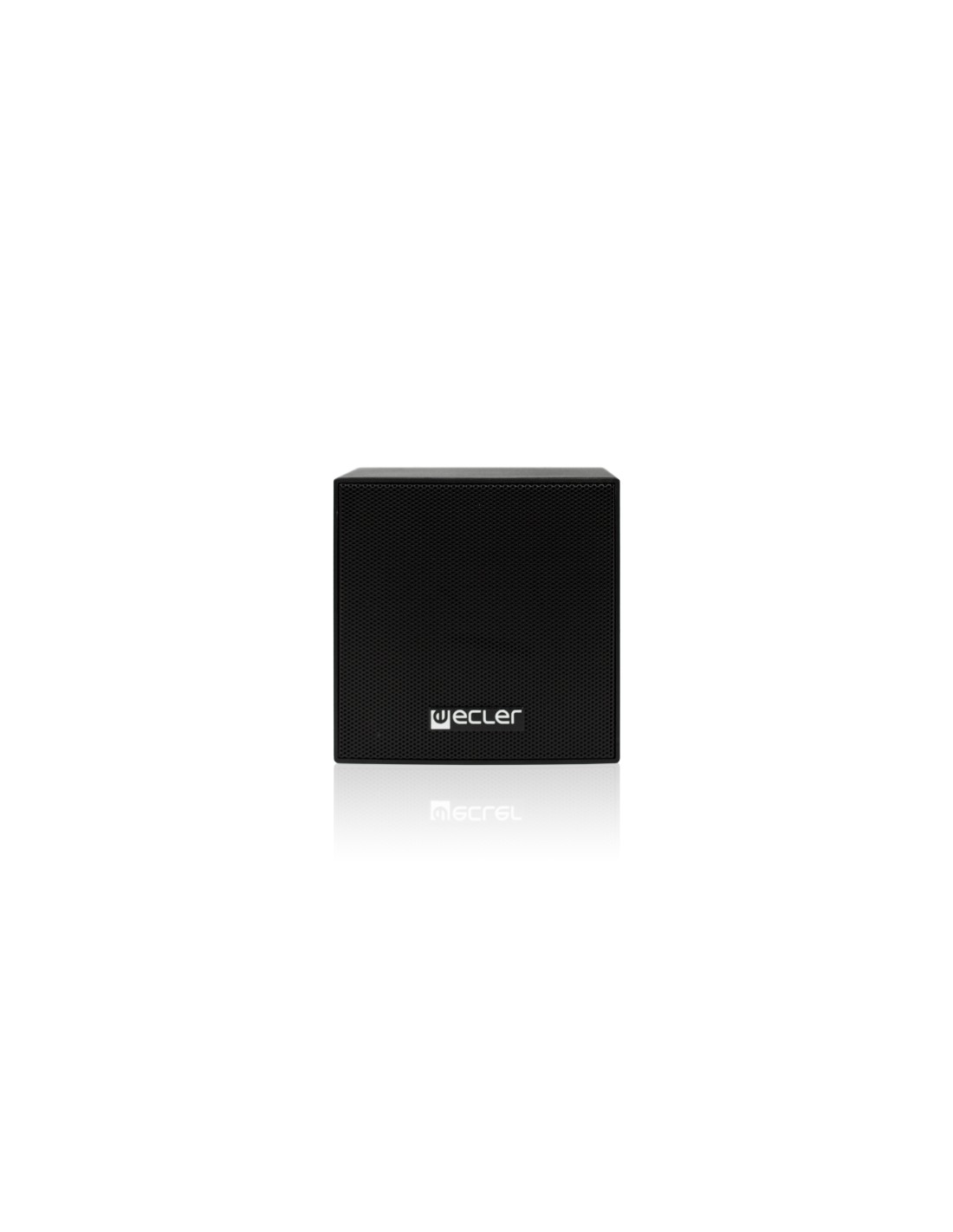

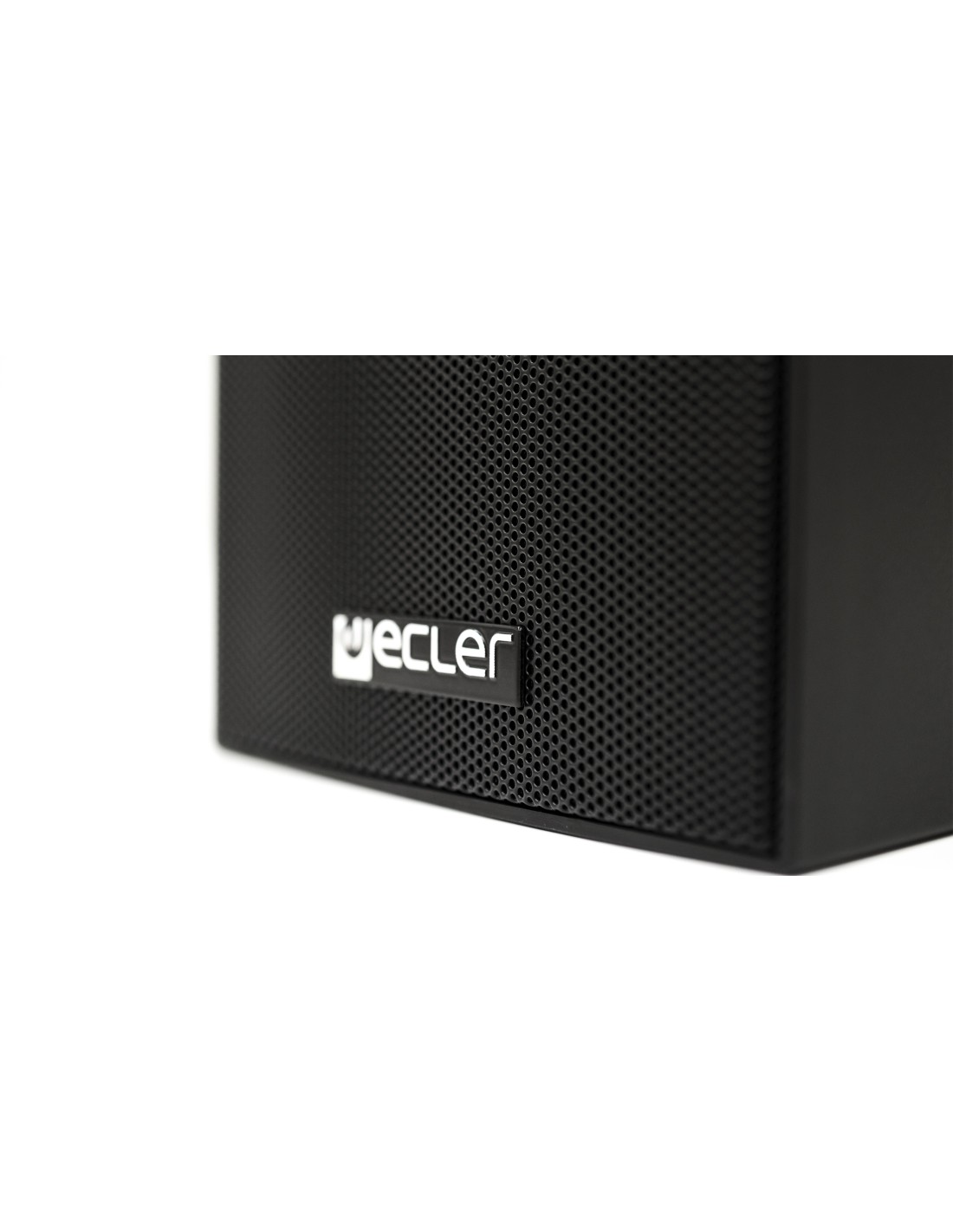

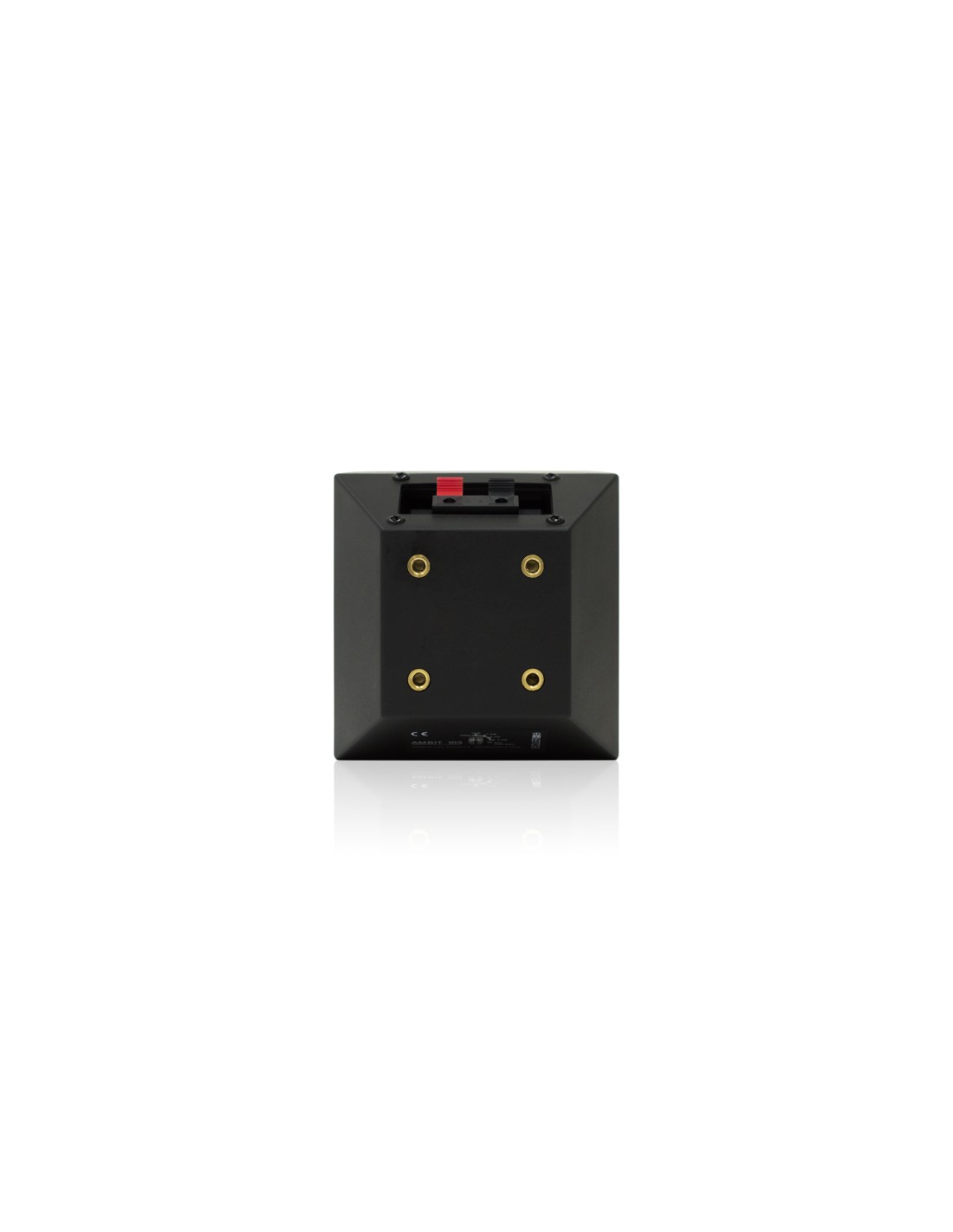

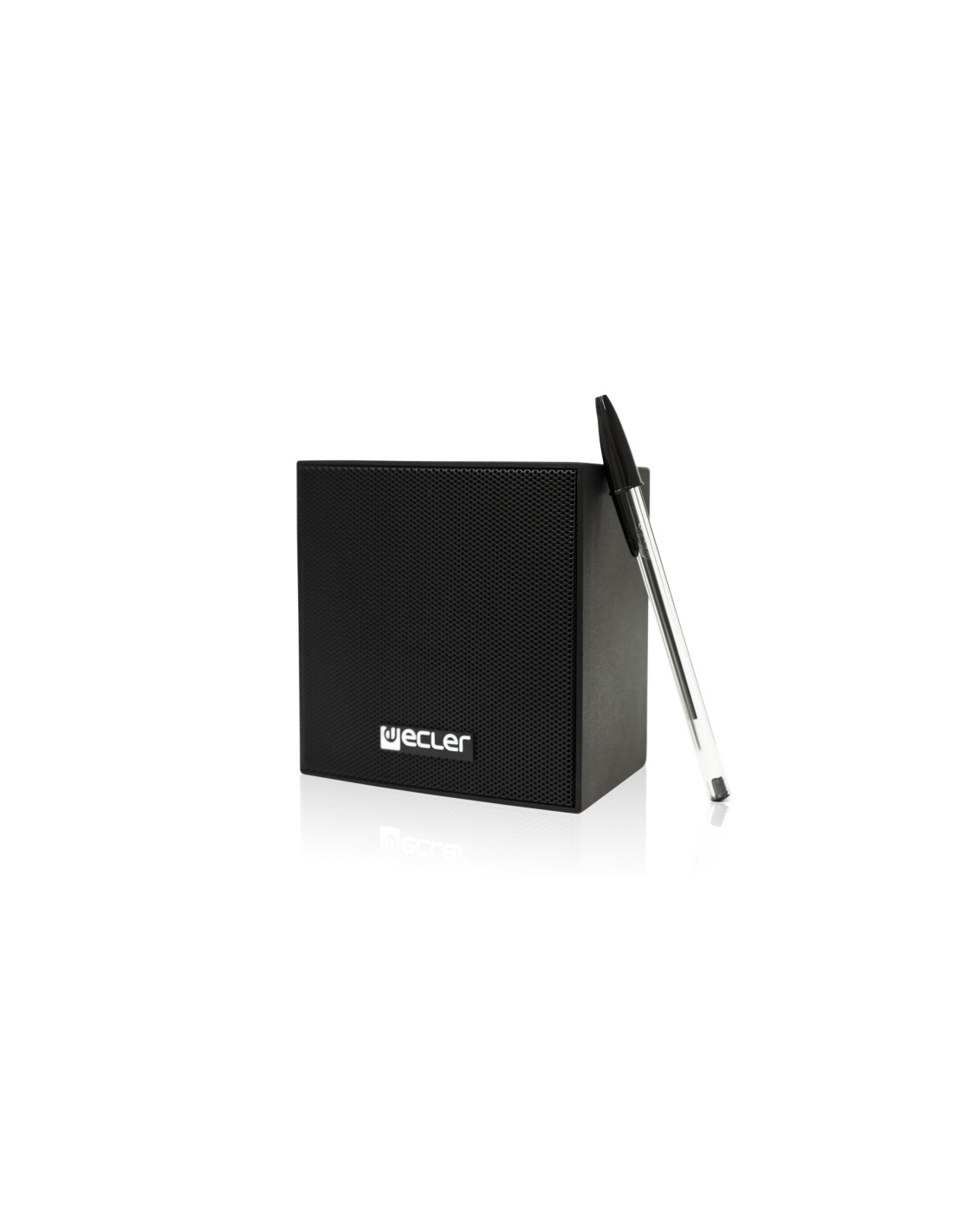

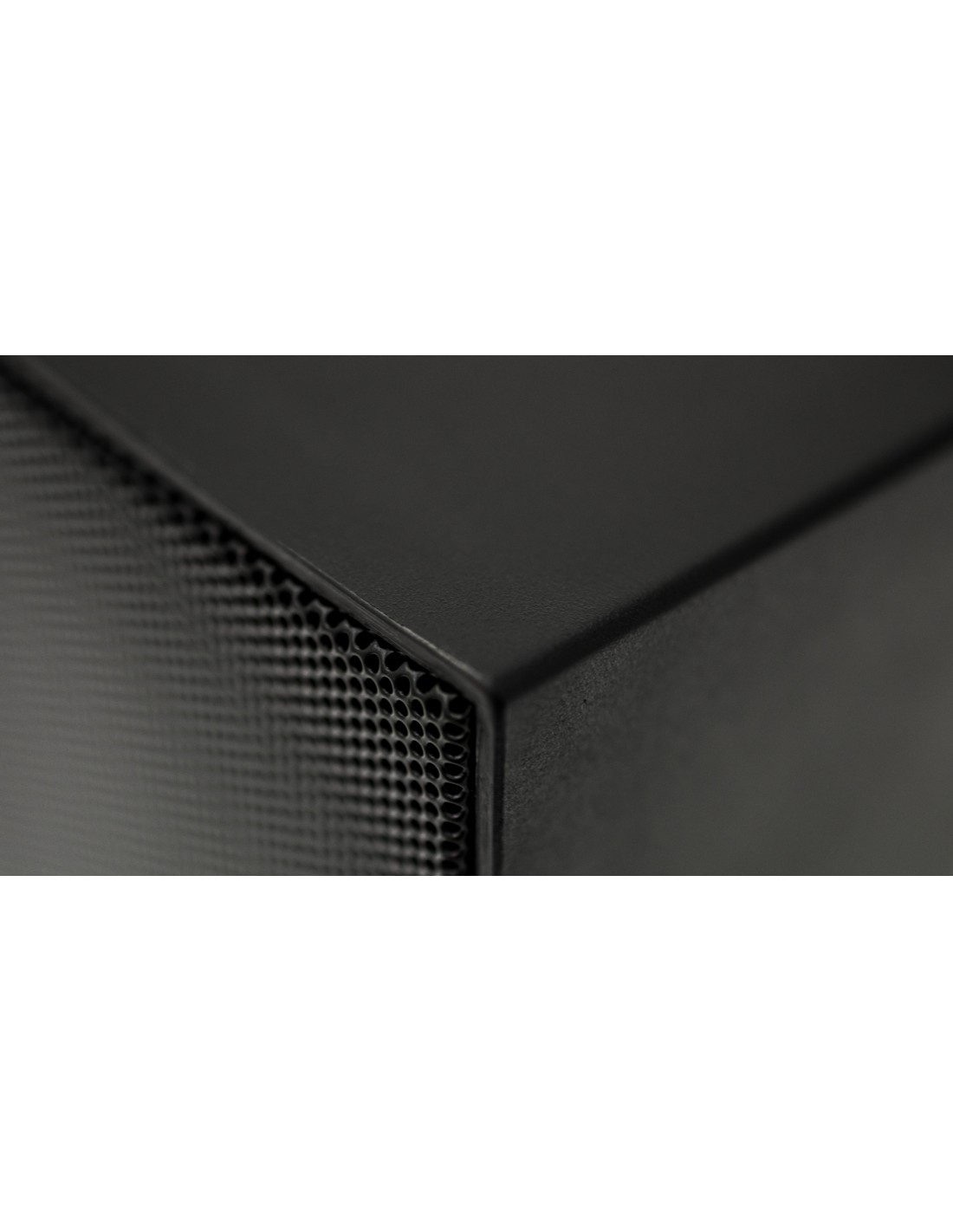

eAMBIT103 BK
CEAMB103BK
Available
3" | 2-way | 25 WRMS | discreet design
eAMBIT103 is an ultra compact 2-way coaxial loudspeaker cabinet with neutral an discreet design. It mounts a 3.5” woofer and 0.5" tweeter. It is especially suitable for background music reinforcement in retail shops, restaurants, cafés, corporate premises and education rooms.
- Effective Freq. Range
- 150Hz - 20kHz (-3dB)
- Coverage angle / Dispersion
- 207°x207° (HxV)
- Power handling
- 25 W RMS / 100 W Peak
- Sensitivity
- 87 dB (1W/1m)
- Maximum SPL
- 101 dB continuous / 107 dB Peak
- Recommended amplifier power
- 50 W RMS
- Ways
- 2 ways
- Low frequency driver
- 3,5" woofer
- High frequency driver
- 0,5 tweeter"
- Nominal impedance
- 8Ω
- Connection type
- Spring loaded input terminals
- Environmental
- IP54 rated
- Enclosure material
- ABS
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories
- Includes on-wall hardware, safety sling, screws and wrench for fast installation
- Finished colour
- White (RAL 9016) or black (RAL 9005)
- Dimensions
- Without accessories: 120 x 120 x 118 mm / 4.72 x 4.72 x 4.65 in. (WxHxD)
- Weight
- 1.275 kg / 2.81 lb
- Pieces per box
- Pair
- Shipping dimensions
- 300 x 170 x 210 mm / 11.81 x 6.69 x 8.27 in. (WxHxD)
- Shipping weight
- 1.45 kg / 3.2 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071301541
WH: 8435071301527 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 30.00
- Height (cm)
- 17.00
- Depth (cm)
- 21.00
- Vol. (dm3)
- 10.71
- Gross Weight (kg)
- 1.45
- Net Weight (kg)
- 1.28
- Format
- Pair
- Warranty (months)
- 36
- Mounting system
- Cabinet
- Power options (Hi Z Multi-tap)
- 70/100V: 15W / 7,5W / 5W / 2,5W / 8Ω
- Power type selector
- Selector
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
150Hz - 20kHz (-3dB) |
|---|---|
| Coverage angle / Dispersion |
207°x207° (HxV) |
| Power handling |
25 W RMS / 100 W Peak |
| Sensitivity |
87 dB (1W/1m) |
| Maximum SPL |
101 dB continuous / 107 dB Peak |
| Recommended amplifier power |
50 W RMS |
| Power options (Hi Z Multi-tap) |
70/100V: 15W / 7,5W / 5W / 2,5W / 8Ω |
TRANSDUCERS
| Ways |
2 ways |
|---|---|
| Low frequency driver |
3,5" woofer |
| High frequency driver |
0,5 tweeter" |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Spring loaded input terminals |
|---|---|
| Environmental |
IP54 rated |
| Enclosure material |
ABS |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Includes on-wall hardware, safety sling, screws and wrench for fast installation |
| Finished colour |
White (RAL 9016) or black (RAL 9005) |
| Dimensions |
Without accessories: 120 x 120 x 118 mm / 4.72 x 4.72 x 4.65 in. (WxHxD) |
| Weight |
1.275 kg / 2.81 lb |
| Pieces per box |
Pair |
| Shipping dimensions |
300 x 170 x 210 mm / 11.81 x 6.69 x 8.27 in. (WxHxD) |
| Shipping weight |
1.45 kg / 3.2 lb |
| Format |
Pair |
| Mounting system |
Cabinet |
| Power type selector |
Selector |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071301541
WH: 8435071301527 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
30.00 |
| Height (cm) |
17.00 |
| Depth (cm) |
21.00 |
| Vol. (dm3) |
10.71 |
| Gross Weight (kg) |
1.45 |
| Net Weight (kg) |
1.28 |
| Warranty (months) |
36 |
