2x60 WRMS | stereo | micro-amplifier | EQ
See more Features Resources

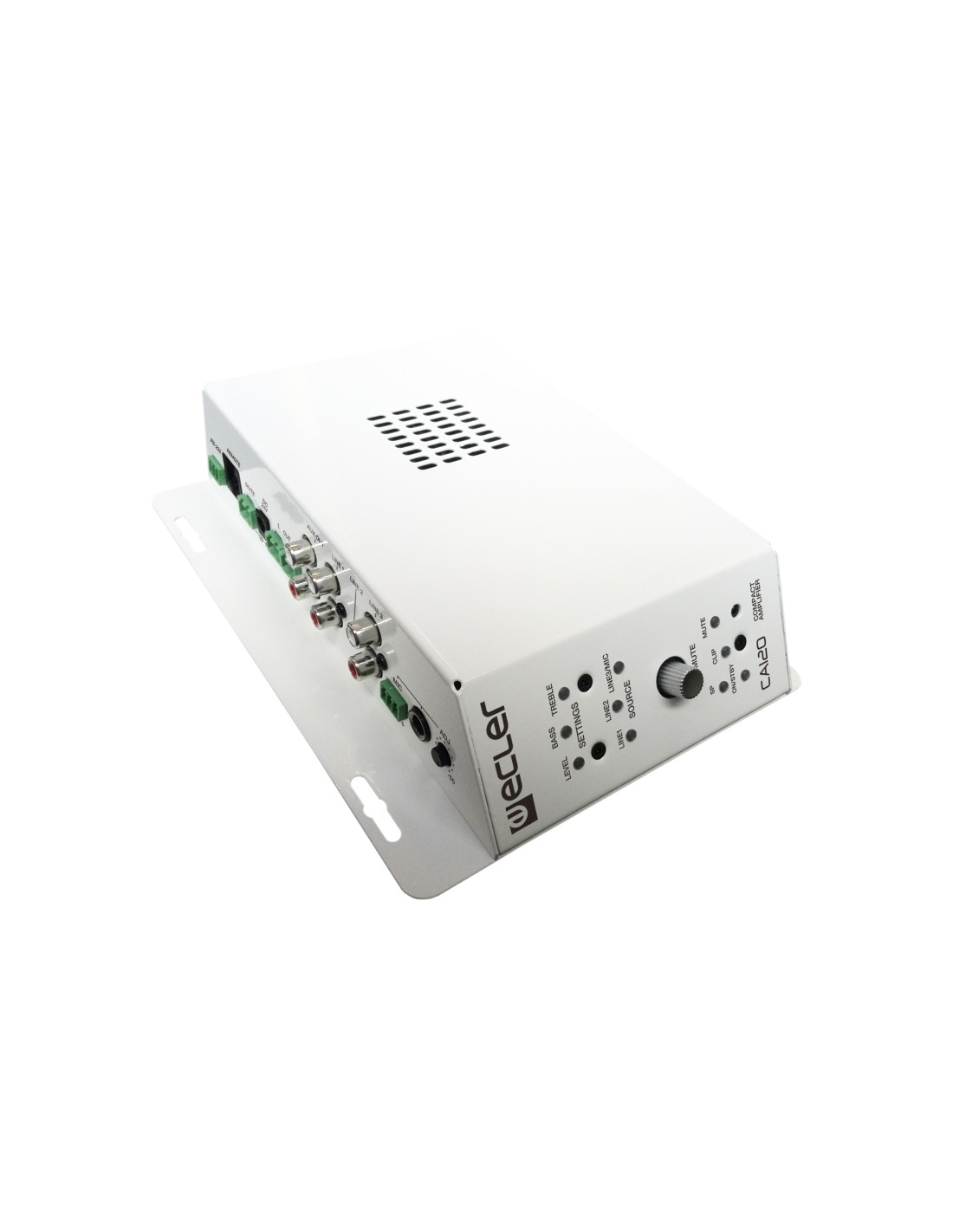

CA120 is a 2 x 60 WRMS @ 4 ohm stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port, IR receiver and 0-10 VDC remote port. It's an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms, meeting rooms, multimedia presentations, retail shops, etc.
Installation options
Wall or under a surface (table, shelf, cupboard, etc.)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Included accessories
REVO-IR remote control
Optional accessories
WPaVOL or WPaVOL-SR for remote control
Dimensions
160 x 48 x 210 x mm / 6.3 x 1.89 x 8.27 in. (WxHxD)
Weight
0.95 kg / 2.1 lb
Shipping dimensions
340 x 60 x 220 mm / 13.39 x 2.36 x 8.66 in. (WxHxD)
Shipping weight
1.7 kg / 3.75 lb
Status
Descat
Origin Production
Spain
EAN code
8435071304849
8435071308298
Tariff code
8518408099
Shipping Location
Spain
Width (cm)
34.00
Height (cm)
6.00
Depth (cm)
22.00
Vol. (dm3)
4.49
Gross Weight (kg)
1.70
Net Weight (kg)
0.95
Format
Unit
Warranty (months)
36
Frequency response
15Hz - 30kHz (-3dB)
Input sensitivity
LINE: -6dBV (0dBV internally selectable)
MIC (BAL): -20 to -50dBV
CMRR
MICRO (BAL): 65dB @ 1kHz
MICRO (BAL): >65dB @ 1kHz
Crosstalk
65dB @ 1kHz
>65dB @ 1kHz
Serial port
RS-232
Programing and control
EclerCOMM software or CA-NET protocol
GPIs
Volume & Input/preset selection (0-10V based)
AC mains requirement

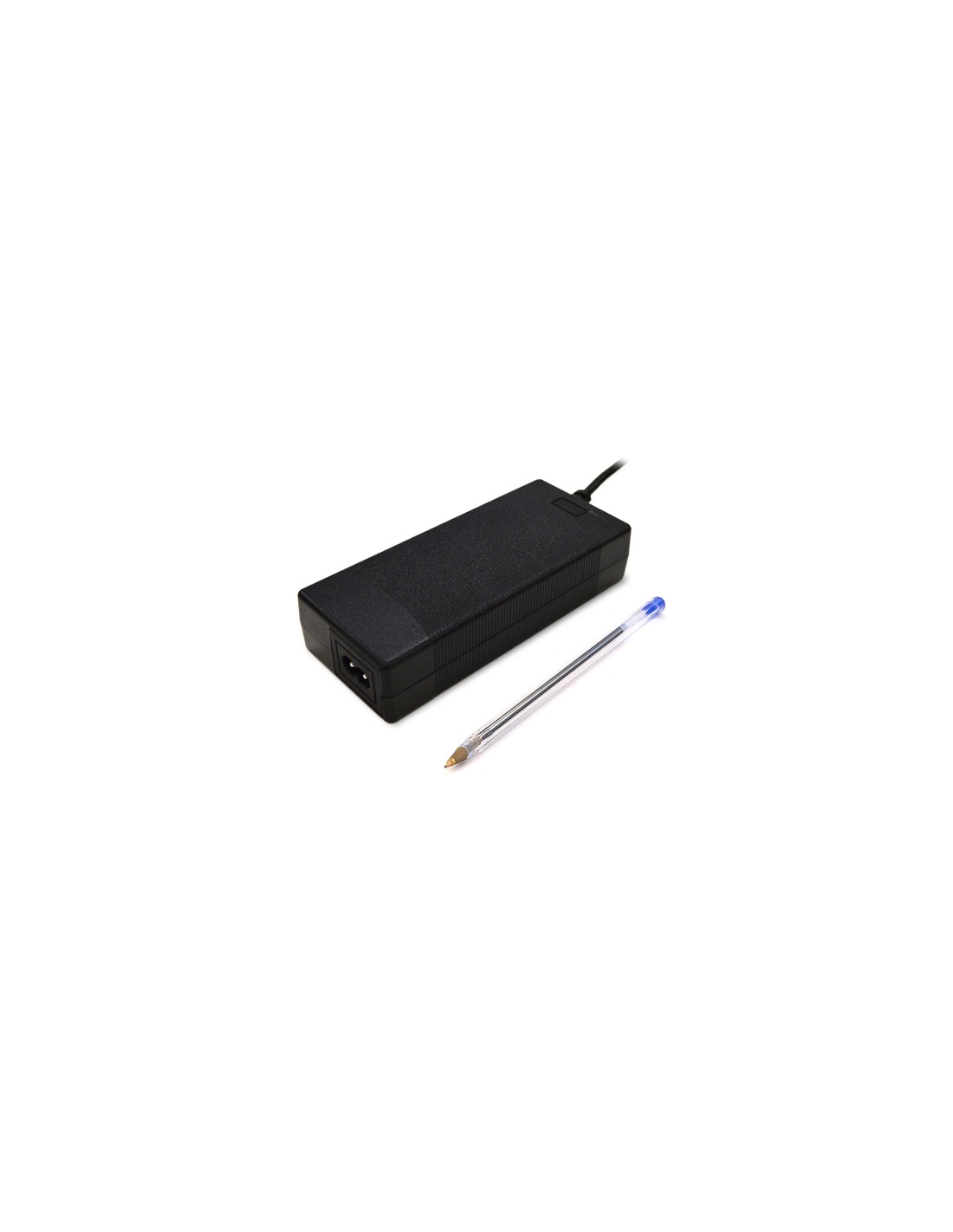

100-240V @ 50-60Hz + External PSU 24VDC
AC mains connector
DC24V power connector
Power supply
Universal
SNR
LINE: 85dB
MIC: 65dB
LINE: >85dB
MIC: >65dB
Output connection type
Euroblock
Number of output channels
2 + 1 AUX
Number of input channels
3
Input connection type
MIC: balanced Euroblock or jack
LINE: unbalanced minijack or double RCA
Input impedance
LINE: 8kΩ
MIC: 1kΩ
LINE: >8kΩ
MIC: >1kΩ
THD + Noise
SPKR OUT: 0.15%
AUX OUT: 0.02%
SPKR OUT: < 0.15%
AUX OUT: < 0.02%
Cooling
Convection (fanless)
Power Consumption (STBY)
<2.5W
Output configuration
2 x 60 WRMS @ 4Ω stereo amplifier
Input configuration
1 MIC/LINE input
2 LINE inputs
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 58VA / 52W
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 33VA / 24W
Energy save
Auto stand by function
Efficiency
TBC
AC protection
No
DC protection
No
VHF protection
No
Short-circuit protection
No
Clip limiter
No
Long term limiter
No
Thermal protection
No
External MUTE
Power free contact (infrared remote)
Attenuators
Front panel knob
Tone control
2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
Output settings
STEREO-MONO outputs
Auto stand-by function
Rear panel micro switch
Auto stand-by time
120 seconds
Signal Present
SP LED (Green)
Cliping
CLIP LED (Red)
Standby
STBY LED (Orange)
Auto standby time
120 seconds
Energy saving
Auto stand by function
Power Consumption (STBY/SLEEP)
2.5W
<2.5W
Auto standby function
Rear panel micro switch
Power Consumption (1/3 POWER, @ 4Ω all channels driven)
pink noise, 58VA / 52W
Power Consumption (1/8 POWER, @ 4Ω all channels driven)
pink noise, 33VA / 24W

Customers who bought this product also bought:

Customers who bought this product also bought:

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

SYSTEM
Number of input channels 3
PHYSICAL
Installation options Wall or under a surface (table, shelf, cupboard, etc.)
Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity <85% HR
85% HR
Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity <90% HR
90% HR
Included accessories REVO-IR remote control
Optional accessories WPaVOL or WPaVOL-SR for remote control
Dimensions 160 x 48 x 210 x mm / 6.3 x 1.89 x 8.27 in. (WxHxD)
Weight 0.95 kg / 2.1 lb
Shipping dimensions 340 x 60 x 220 mm / 13.39 x 2.36 x 8.66 in. (WxHxD)
Shipping weight 1.7 kg / 3.75 lb
Format Unit
LOGISTICS
Status Descat
Origin Production Spain
EAN code 8435071304849 8435071308298
Tariff code 8518408099
Shipping Location Spain
Width (cm) 34.00
Height (cm) 6.00
Depth (cm) 22.00
Vol. (dm3) 4.49
Gross Weight (kg) 1.70
Net Weight (kg) 0.95
Warranty (months) 36
ELECTRICAL
AC mains requirement 100-240V @ 50-60Hz + External PSU 24VDC
AC mains connector DC24V power connector
Power supply Universal
ANALOGUE AUDIO OUTPUT PORTS
Crosstalk >65dB @ 1kHz
65dB @ 1kHz
CONNECTIVITY
Serial port RS-232
Programing and control EclerCOMM software or CA-NET protocol
REMOTE CONTROL CONNECTIONS
GPIs Volume & Input/preset selection (0-10V based)
CHANNELS
Number of output channels 2 + 1 AUX
Output configuration 2 x 60 WRMS @ 4Ω stereo amplifier
Input configuration 1 MIC/LINE input 2 LINE inputs
SIGNAL
SNR LINE: >85dB MIC: >65dB
LINE: 85dB MIC: 65dB
POWER CONSUMPTION
Power Consumption (STBY) <2.5W
Power Consumption (1/3 POWER, @ 4Ω) pink noise, 58VA / 52W
Power Consumption (1/8 POWER, @ 4Ω) pink noise, 33VA / 24W
Power Consumption (STBY/SLEEP) <2.5W
2.5W
Power Consumption (1/3 POWER, @ 4Ω all channels driven) pink noise, 58VA / 52W
Power Consumption (1/8 POWER, @ 4Ω all channels driven) pink noise, 33VA / 24W
TECHNOLOGIES
Cooling Convection (fanless)
Energy save Auto stand by function
Efficiency TBC
Energy saving Auto stand by function
PROTECTIONS
AC protection No
DC protection No
VHF protection No
Short-circuit protection No
Clip limiter No
Long term limiter No
Thermal protection No
SETTINGS
Output settings STEREO-MONO outputs
Auto stand-by function Rear panel micro switch
Auto stand-by time 120 seconds
Auto standby function Rear panel micro switch
MONITORING
Signal Present SP LED (Green)
Cliping CLIP LED (Red)
Standby STBY LED (Orange)
ANALOGUE AUDIO INPUTS
Input sensitivity LINE: -6dBV (0dBV internally selectable) MIC (BAL): -20 to -50dBV
CONTROL CONNECTIVITY
External MUTE Power free contact (infrared remote)
MONITORING AND CONTROL
Tone control 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
Auto standby time 120 seconds
LINE INPUTS
CMRR MICRO (BAL): >65dB @ 1kHz
MICRO (BAL): 65dB @ 1kHz

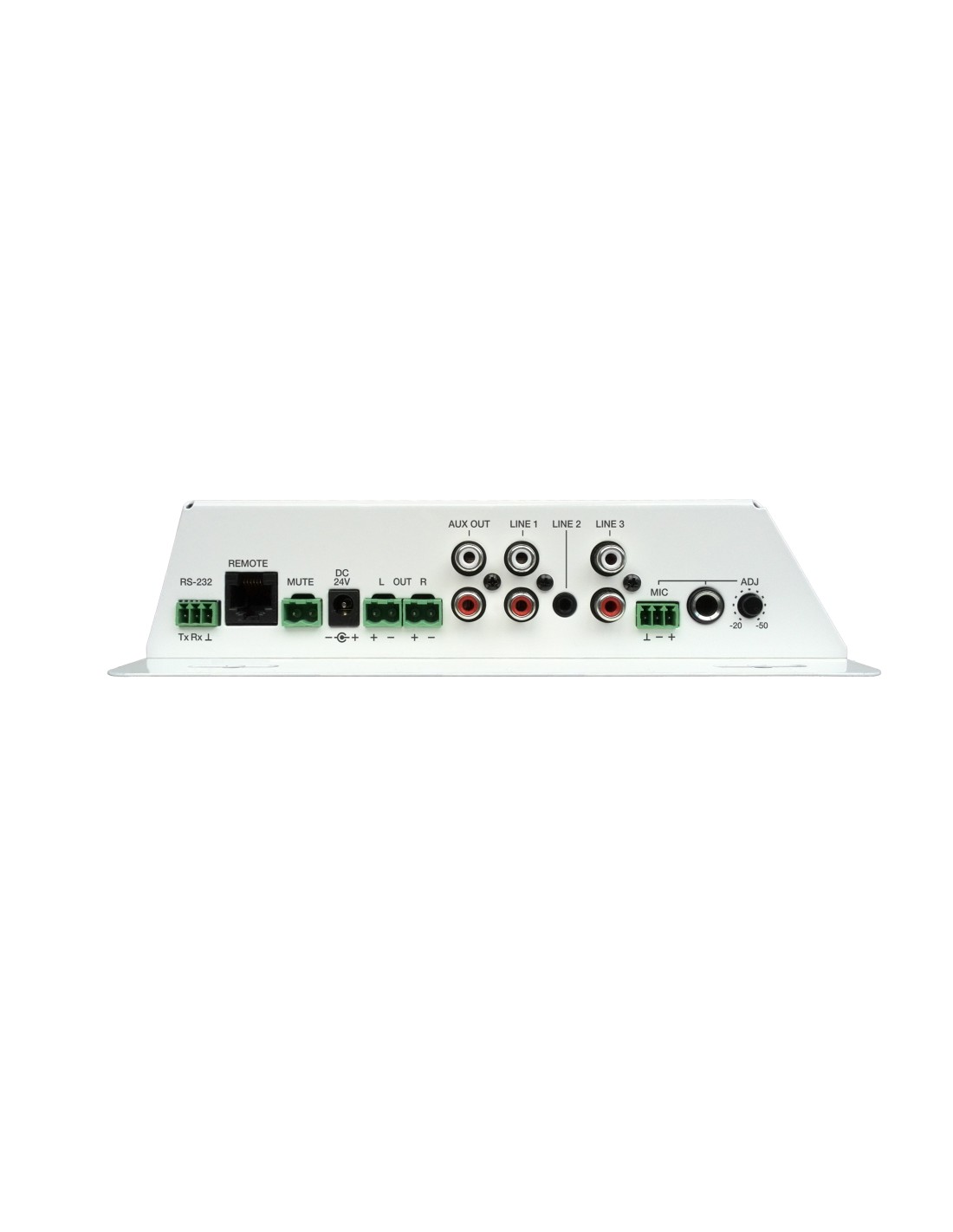

Input connection type MIC: balanced Euroblock or jack LINE: unbalanced minijack or double RCA
Input impedance LINE: >8kΩ MIC: >1kΩ
LINE: 8kΩ MIC: 1kΩ
LINE OUTPUTS
Frequency response 15Hz - 30kHz (-3dB)
Output connection type Euroblock
THD + Noise SPKR OUT: < 0.15% AUX OUT: < 0.02%
SPKR OUT: 0.15% AUX OUT: 0.02%
LOCAL CONTROL

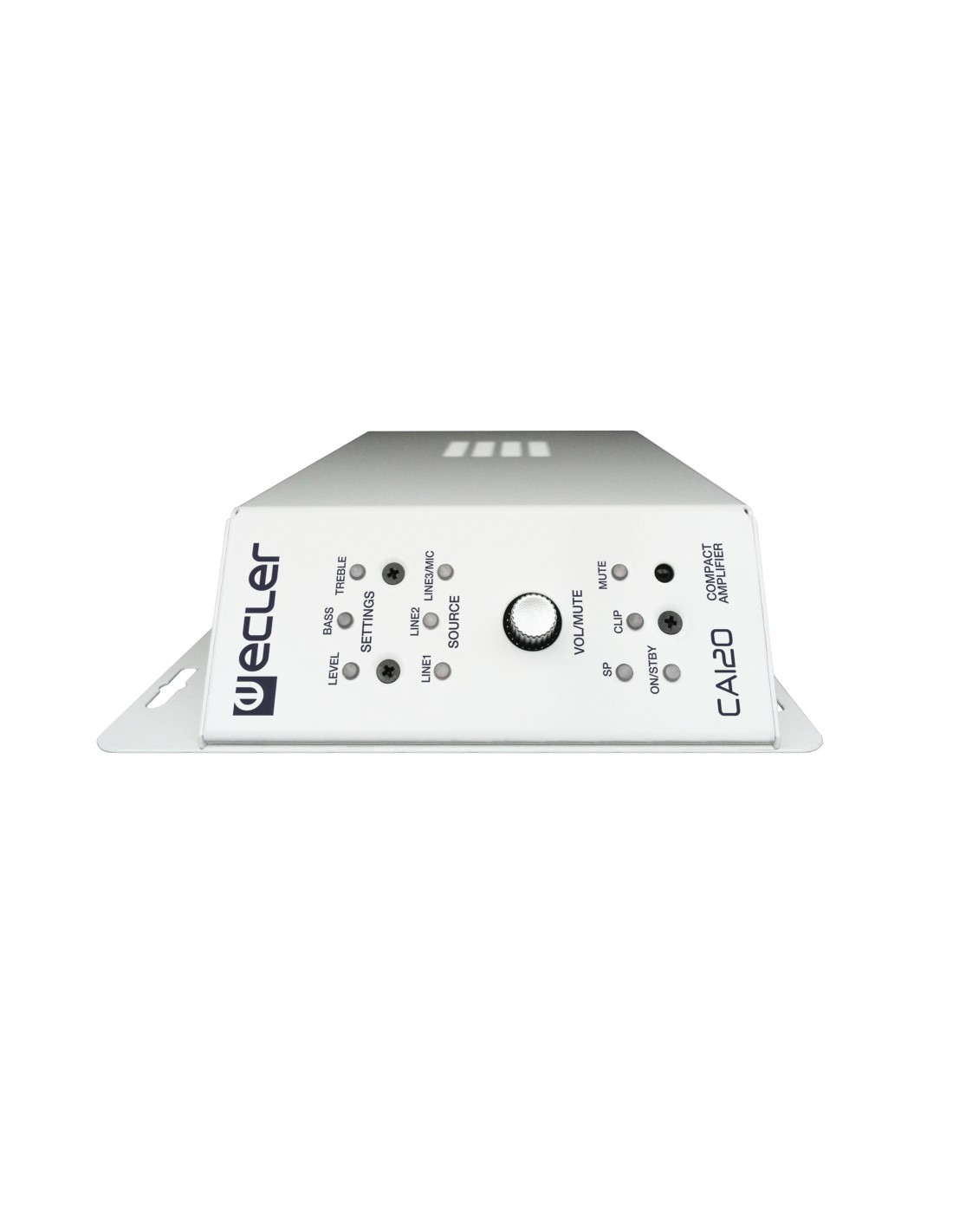

Attenuators Front panel knob
OUTPUT POWER - All channels driven @ 1%THD
