Available
8" | 2-way | 60 WRMS | rust-proof grill
See more Features Resources

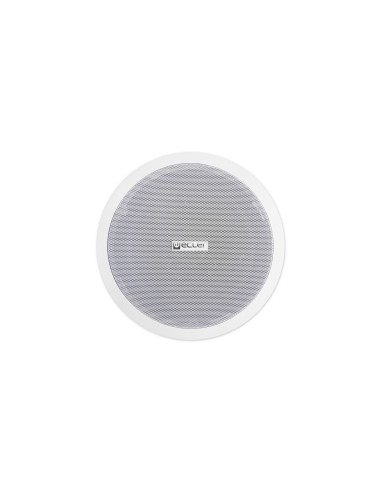

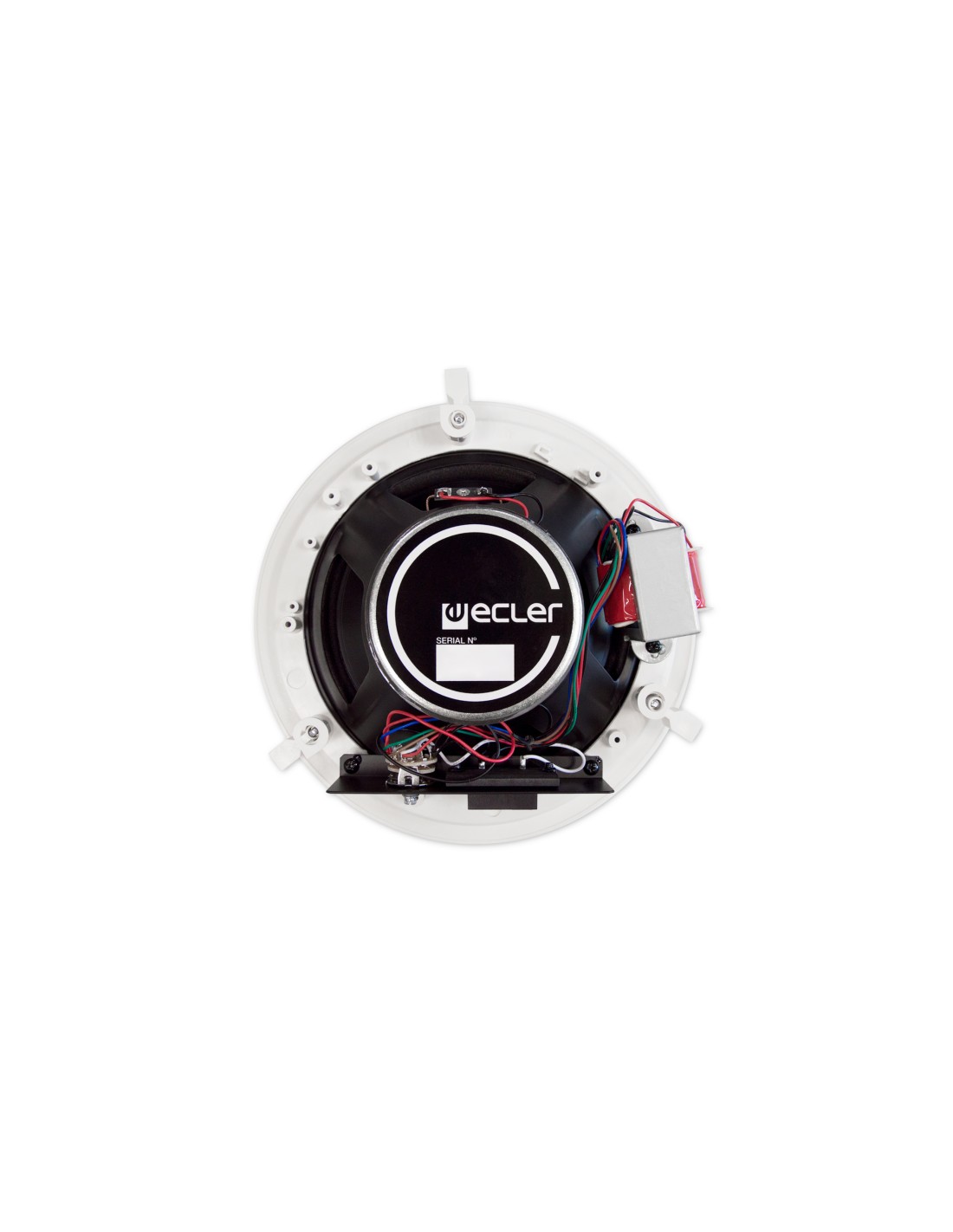

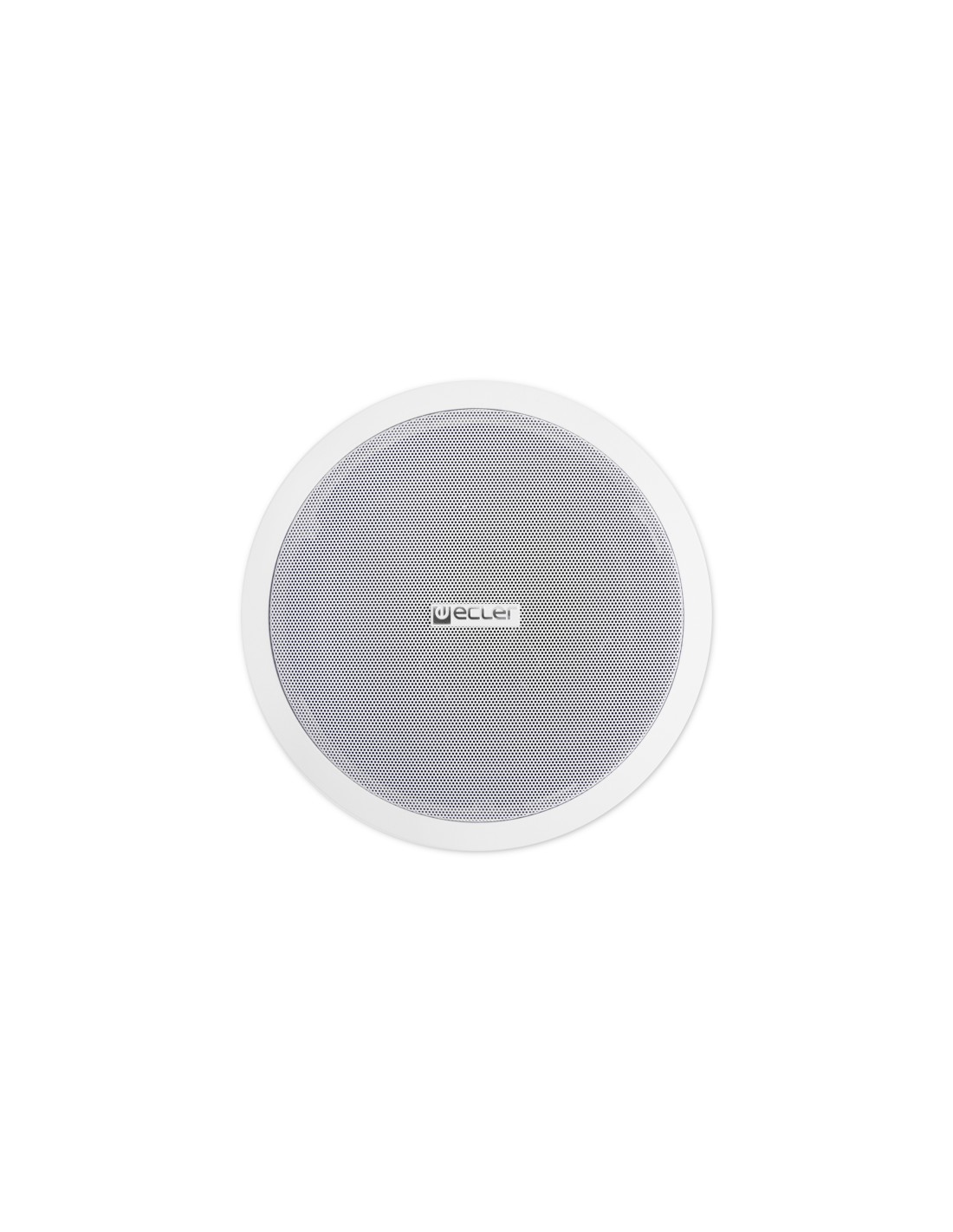

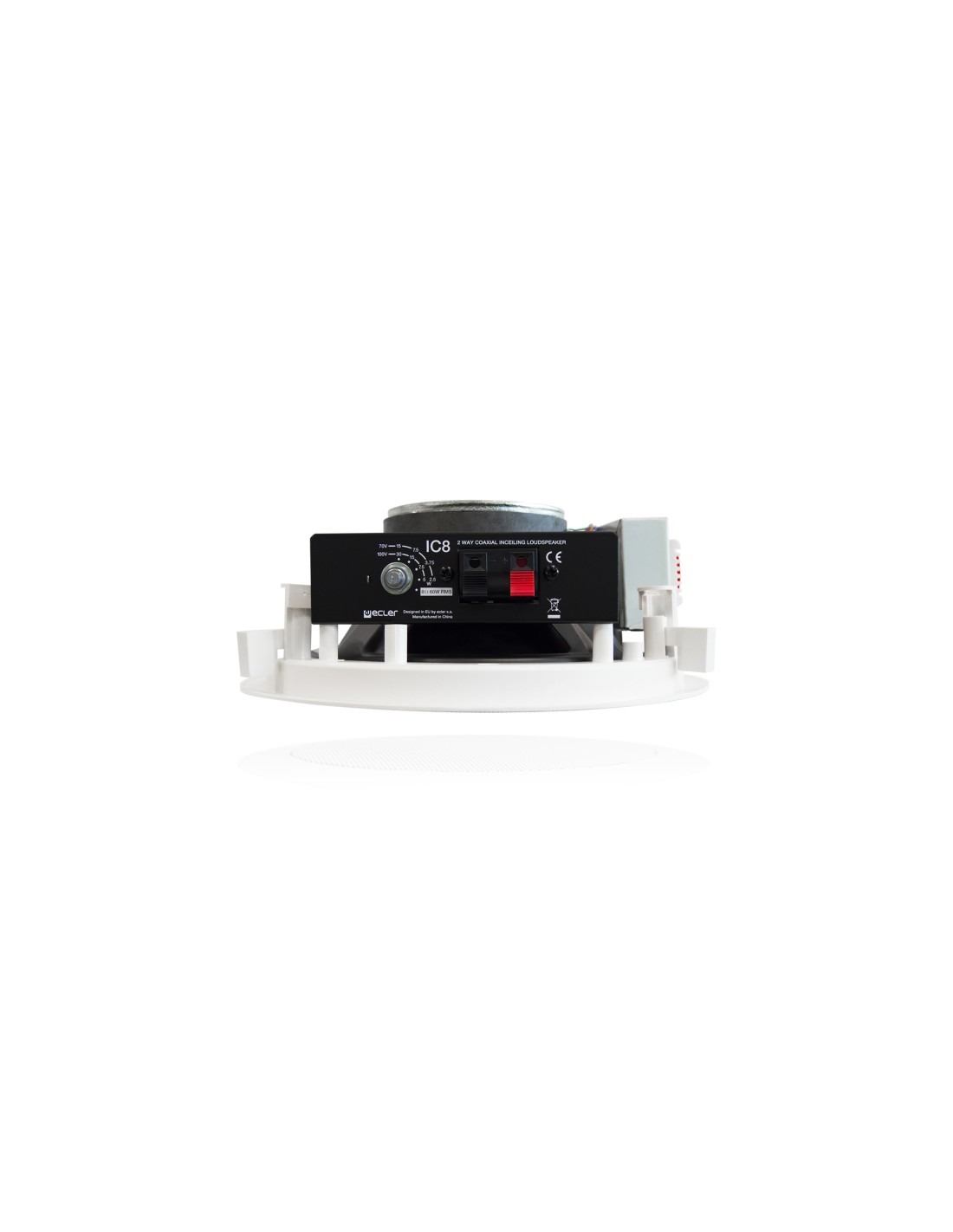

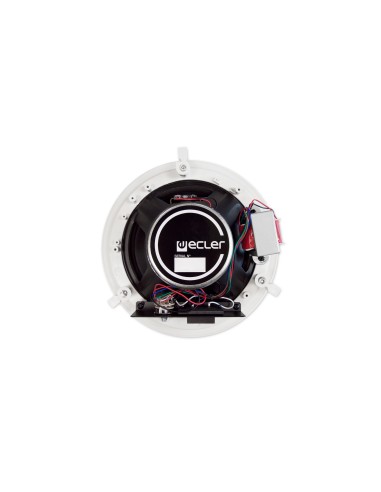

IC8 2-way loudspeaker is the perfect option for 70/100 V and low impedance sound solutions. It mounts an 8” woofer and a 1" tweeter in a discreet design. IC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.
Effective Freq. Range
65 Hz-20 kHz (-10dB)
Coverage angle / Dispersion
135°
Power handling
60 W RMS / 240 W Peak
Sensitivity
94 dB (1W/1m)
Maximum SPL
112 dB continuous / 118 dB peak
Recommended amplifier power
120 W RMS
Ways
2-ways full range
Low frequency driver
8" woofer
High frequency driver
1" tweeter
Nominal impedance
8Ω
Connection type
Clip-type input terminals
Installation options
In-ceiling, in-wall
Enclosure material
ABS
Grille material
Aluminium rust proof
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
Storage humidity
90% HR
<90% HR
Included accessories
Cutting and painting templates included
Finished colour
White (RAL 9010)
Weight
2.3 kg / 5.07 lb
Pieces per box
2 units
Shipping dimensions
290 x 290 x 260 mm / 11.41 x 11.41 x 10.23 in. (WxHxD)
Shipping weight
2.60 kg / 5.73 lb
Status
New
Origin Production
China
EAN code
8435071302630
Tariff code
8518210000
Shipping Location
Spain
Width (cm)
29.00
Height (cm)
29.00
Depth (cm)
26.00
Vol. (dm3)
21.87
Gross Weight (kg)
2.60
Net Weight (kg)
2.30
Format
Pair
Warranty (months)
36
Mounting system
3 rotating tabs
Power options (Hi Z Multi-tap)
100V: 30W / 15W / 7,5W / 5W / 8Ω
70V: 15W / 7,5W / 3,75W / 2,5W / 8Ω
Recommended cut out diameter
222 mm / 8.74"
External diameter
245 mm / 9.64"
Required depth
91 mm / 3.58"
Ceiling thickness
5mm / 0.19” min
20mm / 0.78” max
Internal diameter
219 mm / 8.62"
