FXMA-60DFMB
FXMA-60DFMB
FXMA-60DFMB
FXMA-60DFMB
FXMA-60DFMB
FXMA-60DFMB

FXMA-60DFMB

CF0008004003
Available
60W mixer amplifier with USB/SD/FM/Bluetooth/DAB+
See more Features Resources

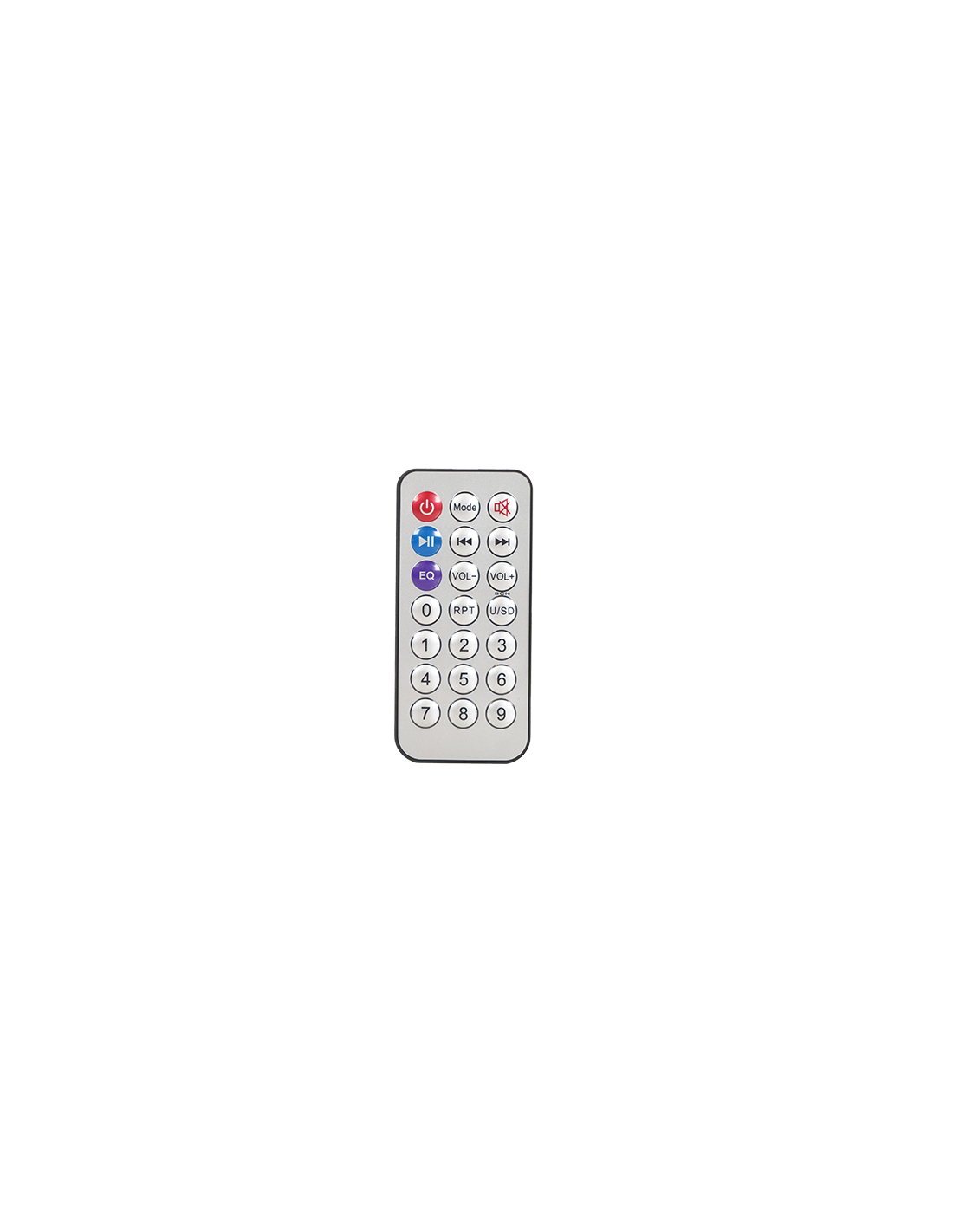

60W mixer amplifier with USB/SD/FM/Bluetooth/DAB+. Frequency 60Hz-15kHz : Output: 100V/70V and 4/8/16 Ω. Inputs: · XLR balanced with +48V phantom power. · Mic/Line 6.3 mm unbalanced 2-3 switchable inputs. · Line 1-2 via RCA. Output: RCA. 320 × 210 × 90 mm | 4.1 kg. Includes remote control.
Dimensions
320x90x210 mm (WxHxD)
Weight
4,1 kg
Status
New
EAN code
8435071316880
Tariff code
8518400090
Shipping Location
Spain
Power supply
115V AC to 230V AC o 12V DC; 50-60Hz
Phantom power
+48 V DC Mic 1
Output connection type
RCA
Number of output channels
2
Number of input channels
4
Input connection type
Mic 1: balanced XLR
Mic/Line 2-3: Jack 6,3 mm
Line 3-4: RCA
Max output power @ 100V
60 W
Max output power @ 70V
60 W
Input impedance
MIC 1-3: 5-8mV, 600Ω; Line 1-2, 150-470mV, 10KΩ, unbalanced RCA
Power Consumption (1/3 POWER, @ 4Ω)
100 W
Short-circuit protection
Yes
Clip limiter
Yes
Thermal protection
Yes
THD + Noise
THD: 0,5%
Signal/Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
THD: <0,5%
Signal/Noise ratio: Line ≥ 85dB, Mic ≥ 72dB
Max output level
0,755 (0 dBV)
