DUO-NET PLAYER
CDUONTPLAYER
Quedan pocas uds
Reproductor de audio dual multimedia y streaming
DUO-NET PLAYER es una doble fuente de audio que incorpora compatibilidad total con la plataforma software/hardware EclerNet: paneles gráficos de control de usuario (UCP), control remoto desde controlador digital WPNETTOUCH, protocolo de integración TP-NET, etc. Incorpora dos reproductores estéreo independientes, cada uno de ellos capaz de reproducir streamings recibidos desde Internet (estaciones de radio online, etc.) o bien contenidos de audio almacenados localmente o en ubicaciones de red.
DUO-NET PLAYER puede ser empleado como un reproductor aislado o bien como una pieza más de un sistema en red EclerNet, así como coexistir e integrarse en ambos casos con dispositivos de terceros.
- Tipo de conexión
- Euroblock, 3-pin, balanced
- Opciones de instalación
- 19" rack format (1RU)
- Temperatura de funcionamiento
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Humedad de funcionamiento
- 85% HR
<85% HR - Temperatura de almacenamiento
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Humedad de almacenamiento
- 90% HR
<90% HR - Accesorios incluidos

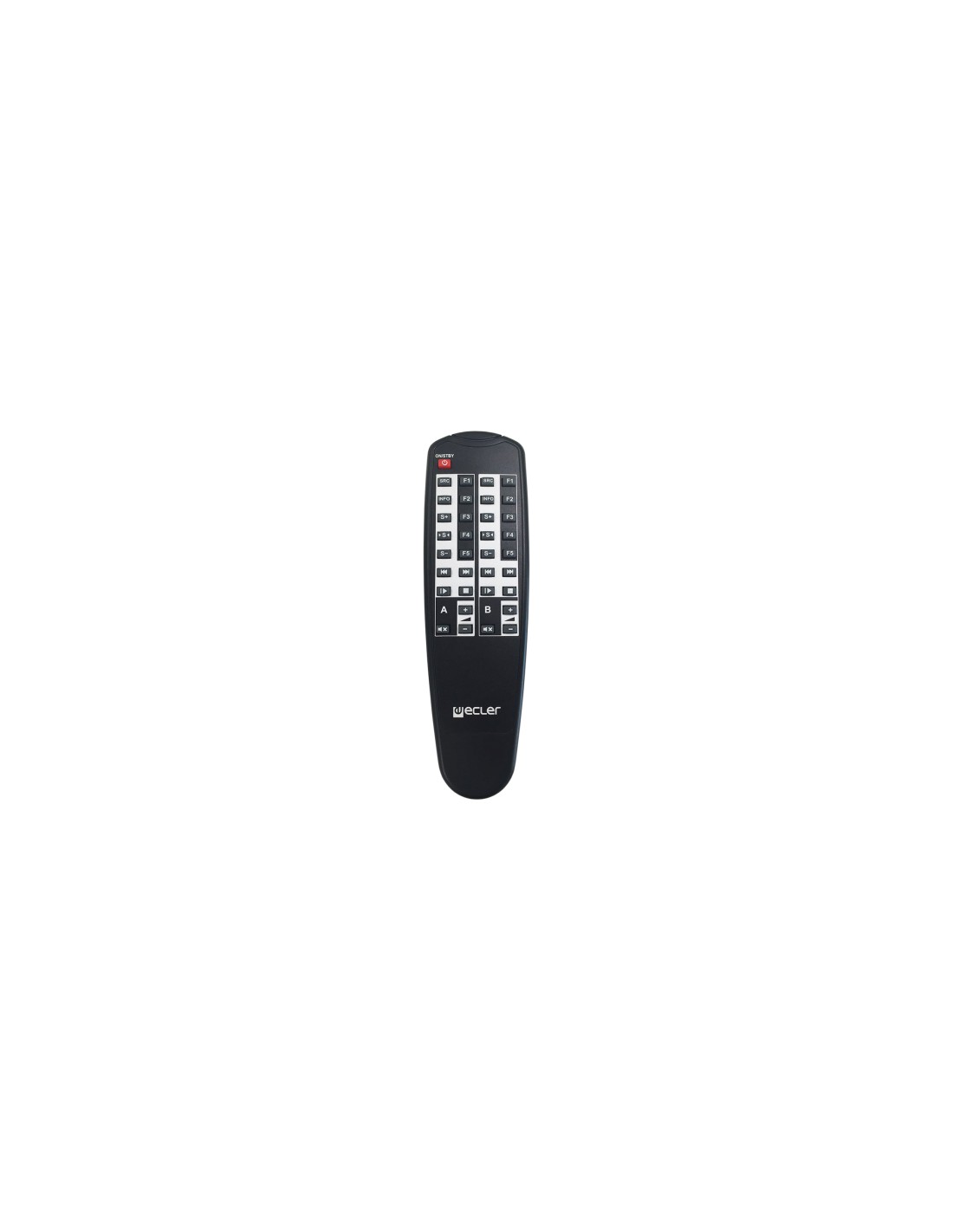

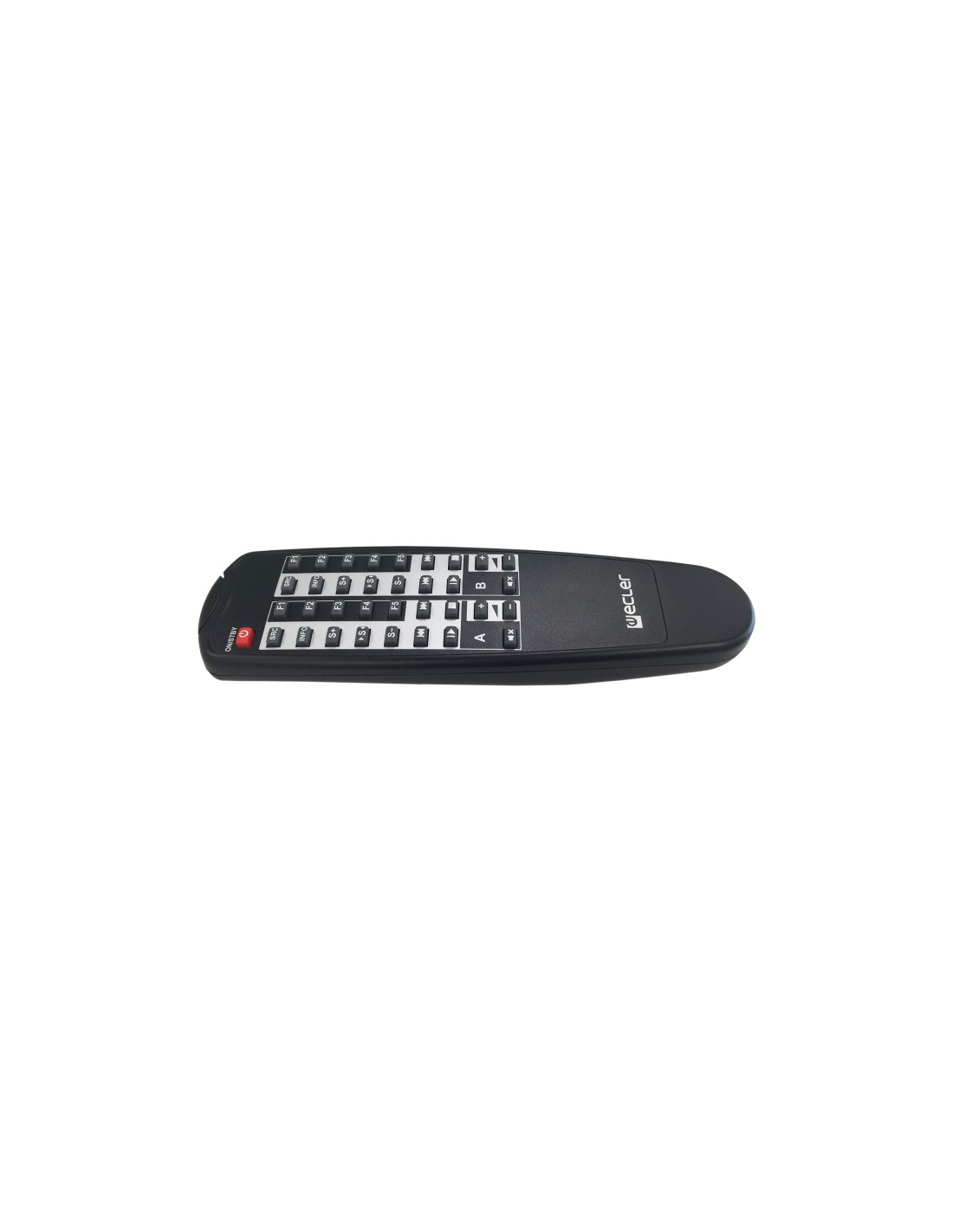

- Main power cable, IR remote control unit, Remote control battery (2 x AAA, LR-03 1,5V)
Main power cable, IR remote control unit, Remote control battery (2 x AAA, LR-03 1,5V) - Accesorios opcionales
- WPm series control panels
- Dimensiones
- 482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD)
- Peso
- 1.8 kg / 3.97 lb
- Dimensiones de envío
- 560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD)
- Peso del envío
- 2.6 kg / 5.73
- Estado
- New
- Código EAN
- 8435071305396
- Código arancelario
- 8519890000
- Lugar de envío
- Spain
- Processor
- TBC
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 5Hz - 24kHz (-3dB)
- Output impedance
- 300Ω
- Serial port
- RS-232, DB9 connector
- Programing and control
- EclerNet Manager software, UCP control system, WPmSCREEN remote management, TP-NET protocol
- GPIs
- 4, 0 to 10VDC
- AC mains requirement
- 100-240VAC + External PSU 17.5VDC
- AC mains connector
- External PSU connector
- Consumo de energía
- 15VA
- Alimentación
- Universal external power supply (multi-plug)
- Indicadores LED
- USB, SD, NETWORK, PLAYER A/B, F1-F5, PLAY/PAUSE
- Latency
- TBC
- Ethernet
- 1, RJ45 connector
10 /100Mb - Visor
- LCD 160x64 pixels
- THD + Ruido
- 0.005% (1kHz, 1Vrms)
< 0.005% (1kHz, 1Vrms) - USB
- USB 2.0 High Speed (480 Mbps). Supports mass storage class devices (externally powered above 500mA current draw)
- Dynamic range
- -100dB (from 20Hz to 20kHz)
TBC - Max output level
- +12dBV
- Bit rate
- TBC
- Audio sources
- Network locations (Samba protocol), USB, SD, Internet Radio Streams
- Compatible file formats
- mp3, ogg, WAV, AAC, FLAC, OPUS
- Number of outputs
- 2, stereo
- Retention time
- 84 hours aprox.
- Accuracy
- ±1 minute / month
- Buttons
- ENCODER, F1-F5, MENU, PREV, NEXT, PLAY, STOP, PLAYER A/B
- Micro SD
- Supports SD ver1.0, SDHC
- Capacity
- USB: Up to 2TB
Micro SD: Up to 32GB - File system
- Supports FAT16, FAT 32 and VFAT
Multi-partition up to 1 - Playable audio files
- mp3, wav, ogg, aac, flac
- Files analysis
- 65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder - Folder hierarchy
- Up to 100 folders
- Sorting
- Sorting in alphabetical order
Up to 100 files by folder
(Folders/files over 100 sorted in the FAT order)
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SISTEMA
| Processor |
TBC |
|---|
FÍSICO
| Tipo de conexión |
Euroblock, 3-pin, balanced |
|---|---|
| Opciones de instalación |
19" rack format (1RU) |
| Temperatura de funcionamiento |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Humedad de funcionamiento |
<85% HR 85% HR |
| Temperatura de almacenamiento |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Humedad de almacenamiento |
<90% HR 90% HR |
| Accesorios incluidos |
Main power cable, IR remote control unit, Remote control battery (2 x AAA, LR-03 1,5V) Main power cable, IR remote control unit, Remote control battery (2 x AAA, LR-03 1,5V) |
| Accesorios opcionales |
WPm series control panels |
| Dimensiones |
482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD) |
| Peso |
1.8 kg / 3.97 lb |
| Dimensiones de envío |
560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD) |
| Peso del envío |
2.6 kg / 5.73 |
LOGÍSTICA
| Estado |
New |
|---|---|
| Código EAN |
8435071305396 |
| Código arancelario |
8519890000 |
| Lugar de envío |
Spain |
MICS
| Output impedance |
300Ω |
|---|
ELECTRICAL
| AC mains requirement |
100-240VAC + External PSU 17.5VDC |
|---|---|
| AC mains connector |
External PSU connector |
| Consumo de energía |
15VA |
| Alimentación |
Universal external power supply (multi-plug) |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
TBC |
| Dynamic range |
TBC -100dB (from 20Hz to 20kHz) |
| Bit rate |
TBC |
CONNECTIVITY
| Serial port |
RS-232, DB9 connector |
|---|---|
| Programing and control |
EclerNet Manager software, UCP control system, WPmSCREEN remote management, TP-NET protocol |
| Ethernet |
1, RJ45 connector
10 /100Mb |
REMOTE CONTROL CONNECTIONS
| GPIs |
4, 0 to 10VDC |
|---|
REAL-TIME CLOCK
| Retention time |
84 hours aprox. |
|---|---|
| Accuracy |
±1 minute / month |
LOCAL STORAGE
| Micro SD |
Supports SD ver1.0, SDHC |
|---|---|
| Capacity |
USB: Up to 2TB
Micro SD: Up to 32GB |
| File system |
Supports FAT16, FAT 32 and VFAT
Multi-partition up to 1 |
| Playable audio files |
mp3, wav, ogg, aac, flac |
| Files analysis |
65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder |
| Folder hierarchy |
Up to 100 folders |
| Sorting |
Sorting in alphabetical order
Up to 100 files by folder
(Folders/files over 100 sorted in the FAT order) |
ANALOGUE AUDIO INPUTS
| THD + Ruido |
< 0.005% (1kHz, 1Vrms) 0.005% (1kHz, 1Vrms) |
|---|
ANALOGUE AUDIO OUTPUTS
| Number of outputs |
2, stereo |
|---|
CONTROL CONNECTIVITY
| USB |
USB 2.0 High Speed (480 Mbps). Supports mass storage class devices (externally powered above 500mA current draw) |
|---|
MONITORING AND CONTROL
| Indicadores LED |
USB, SD, NETWORK, PLAYER A/B, F1-F5, PLAY/PAUSE |
|---|---|
| Buttons |
ENCODER, F1-F5, MENU, PREV, NEXT, PLAY, STOP, PLAYER A/B |
MEDIA PLAYER
| Audio sources |
Network locations (Samba protocol), USB, SD, Internet Radio Streams |
|---|---|
| Compatible file formats |
mp3, ogg, WAV, AAC, FLAC, OPUS |
LINE OUTPUTS
| Frequency response |
5Hz - 24kHz (-3dB) |
|---|---|
| Max output level |
+12dBV |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|---|
| Visor |
LCD 160x64 pixels |
