FXMA-6Z500FMB

Reference CF0008004006

Available

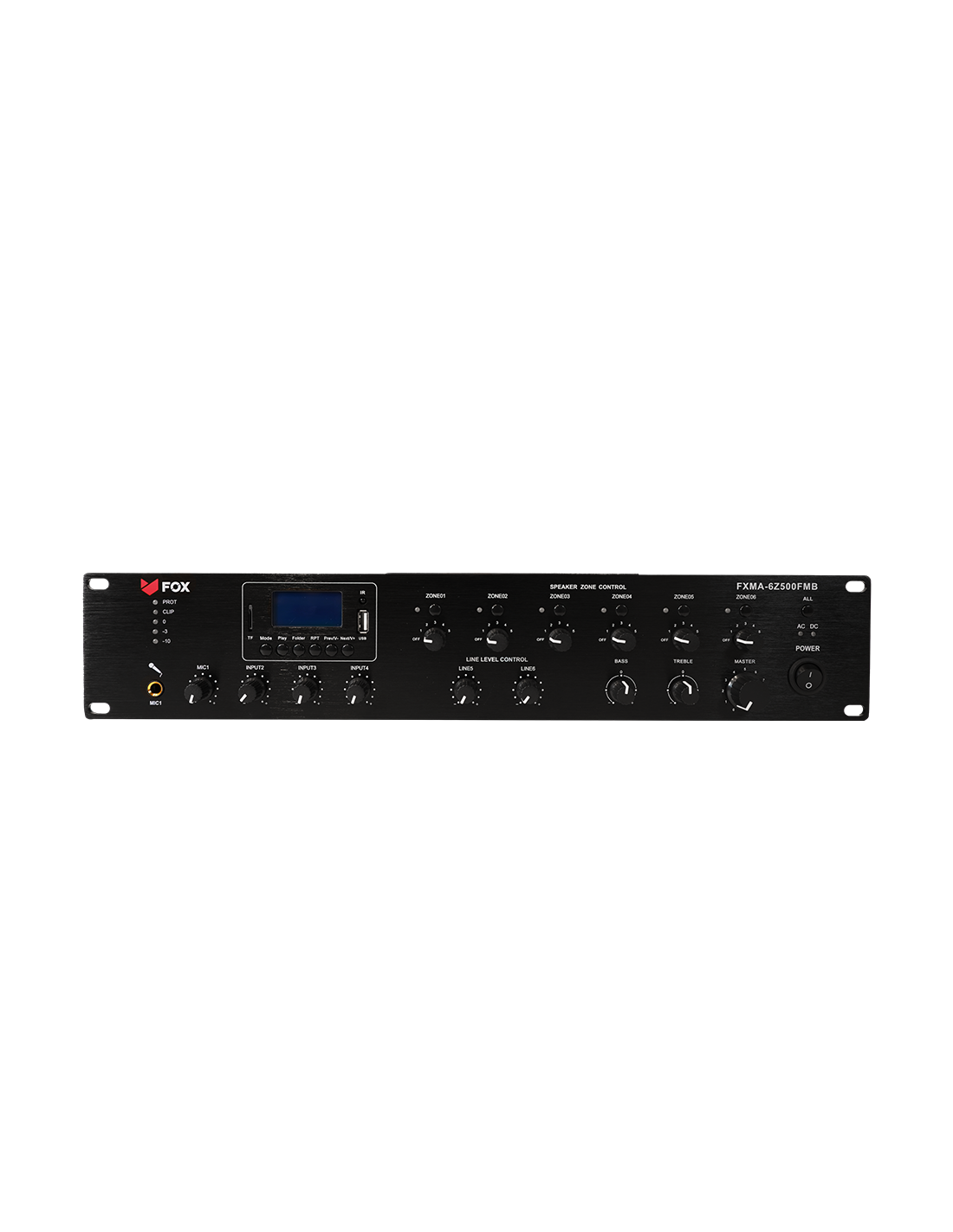

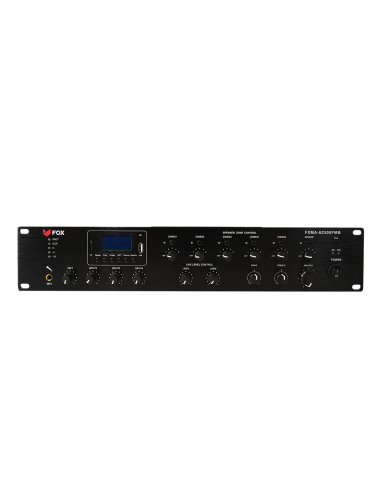

6 zone mixer amplifier with USB/SD/MP3/FM/Bluetooth

See more Features Resources

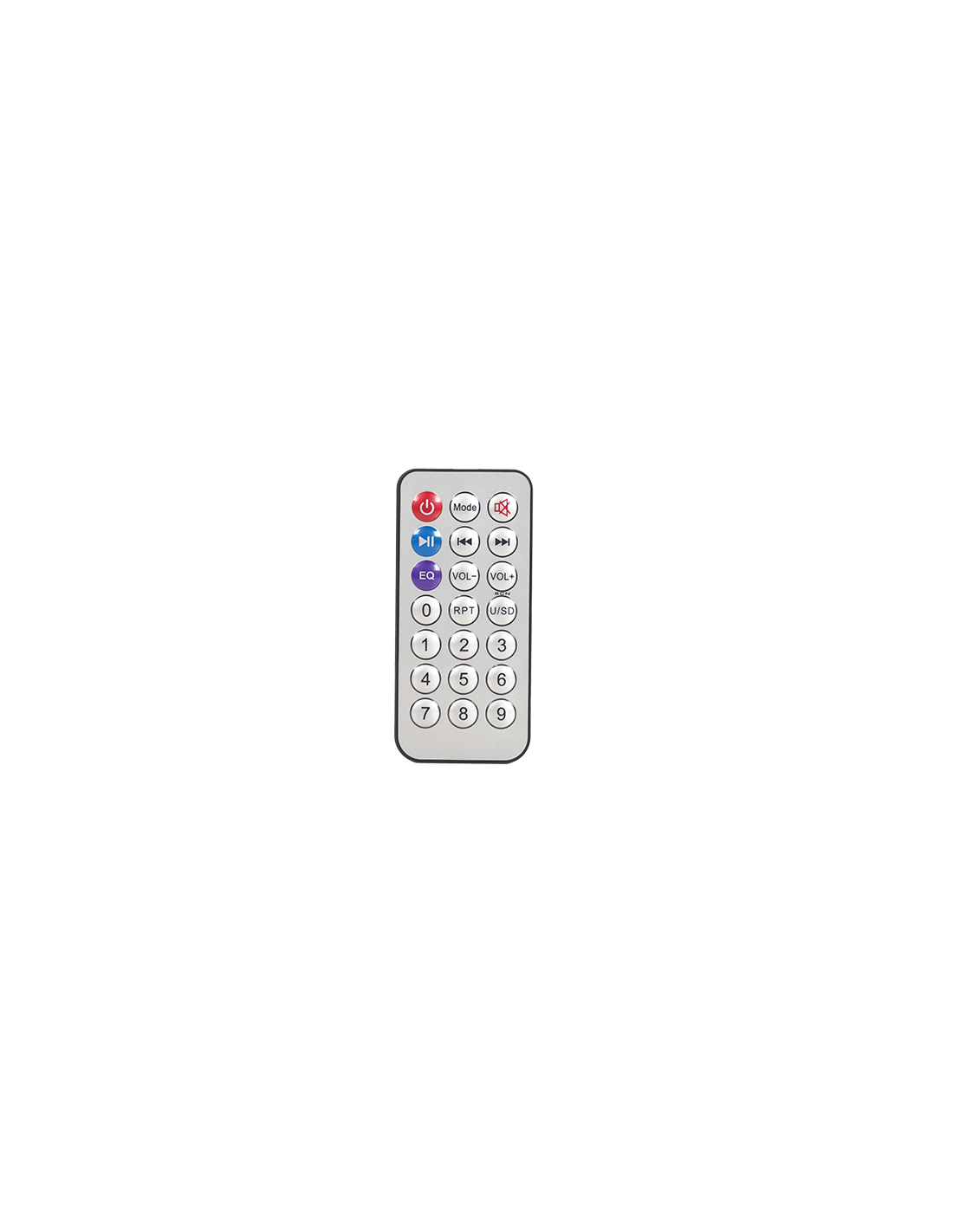

6 zone mixer amplifier with USB/SD/MP3/FM/Bluetooth 100V / 4/16Ω | 500W RMS. Level, bass and height controls for each output channel Rack or desktop mount. Inputs: - 2 x 6.3 mm - 3 x RCA 438 × 405 × 88 mm | 11.5 kg Compatible with FXMA-6ZPM microphones Includes remote control

Dimensions: 438x88x405 mm (WxHxD)
Weight: 11,5 kg
Status: New
EAN code: 8435071316910
Tariff code: 8518400090
Shipping Location: Spain
Power supply: 230 V AC o 24V DC; 50-60Hz
Phantom power: +48 V DC Mic 1/ Line 2-3-4
Output connection type: RCA
Number of output channels: 6
Number of input channels: 6

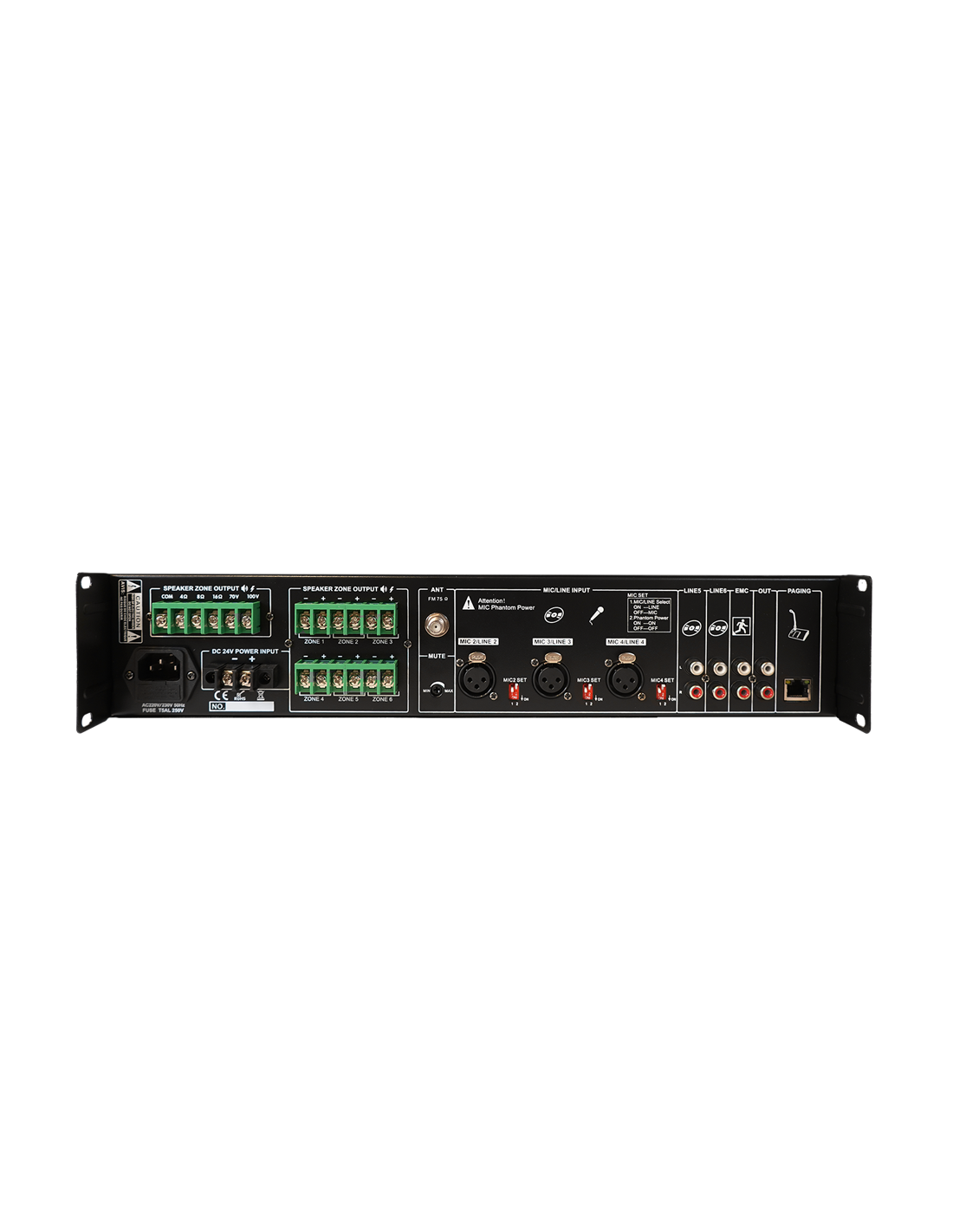

Input connection type: Mic 1: Jack 6,3 mm unbalanced
Mic/Line 2-3-4: balanced XLR
Line 5-6: RCA
EMC (evacuation): RCA
Paging Station FXMA-67pm for RJ-45
Max output power @ 100V: 500 W
Max output power @ 70V: 500 W
Input impedance: Mic1-4: 2,5mV, 600Ω; Line 5-6: 250mV, 10KΩ; EMC: 250mV
Power Consumption (1/3 POWER, @ 4Ω): 650 W
Short-circuit protection: Yes
Clip limiter: Yes
Thermal protection: Yes
THD + Noise: THD: 0,1
Signal/Noise ratio: ≥ 85dB, Mic ≥ 72dB
THD: <0,1
Signal/Noise ratio: ≥ 85dB, Mic ≥ 72dB
Max output level: 0,755 (0 dBV)

User Manual PDF EN CF0008004006

Download (1.44MB)

Data sheet CF0008004006

Download (905.68KB)

CE CF0008004006

Download (72.6KB)

Services and facilities implemented

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

New Ecler price list available

Void Acoustics Air 12 now available

Ecler en Zegna

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Ecler en el campo del CD Tondela

Void Acoustics en primera edición Soundit Festiv

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

Subject

Email address

Attachment

Message

I agree to the terms and conditions and the privacy policy

SYSTEM

Number of input channels	6

PHYSICAL

Dimensions	438x88x405 mm (WxHxD)
Weight	11,5 kg

LOGISTICS

Status	New
EAN code	8435071316910
Tariff code	8518400090
Shipping Location	Spain

ELECTRICAL

Power supply	230 V AC o 24V DC; 50-60Hz

CHANNELS

Number of output channels	6

POWER CONSUMPTION

Power Consumption (1/3 POWER, @ 4Ω)	650 W

PROTECTIONS

Short-circuit protection	Yes
Clip limiter	Yes
Thermal protection	Yes

ANALOGUE AUDIO INPUTS

THD + Noise	THD: <0,1 Signal/Noise ratio: ≥ 85dB, Mic ≥ 72dB THD: 0,1 Signal/Noise ratio: ≥ 85dB, Mic ≥ 72dB

MIC INPUTS

Phantom power	+48 V DC Mic 1/ Line 2-3-4

LINE INPUTS

Input connection type	Mic 1: Jack 6,3 mm unbalanced Mic/Line 2-3-4: balanced XLR Line 5-6: RCA EMC (evacuation): RCA Paging Station FXMA-67pm for RJ-45
Input impedance	Mic1-4: 2,5mV, 600Ω; Line 5-6: 250mV, 10KΩ; EMC: 250mV

LINE OUTPUTS

Output connection type	RCA
Max output level	0,755 (0 dBV)

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 100V	500 W
Max output power @ 70V	500 W
