GLOBE5RM BK
CGLOBE5RMBK
Available
5" | 2-way | 35 WRMS | WiSpeak | powered | 360º H dispersion | rail mount

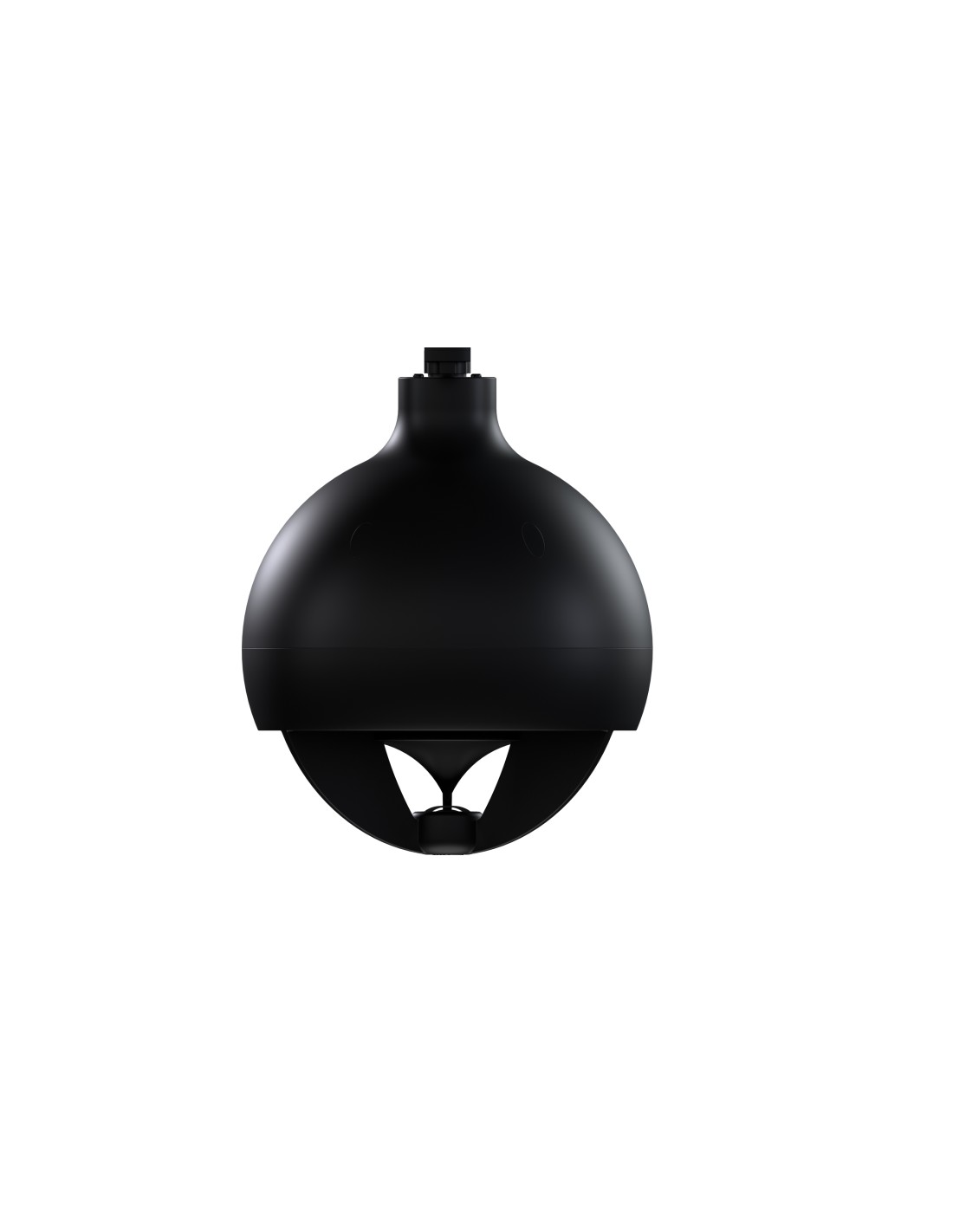

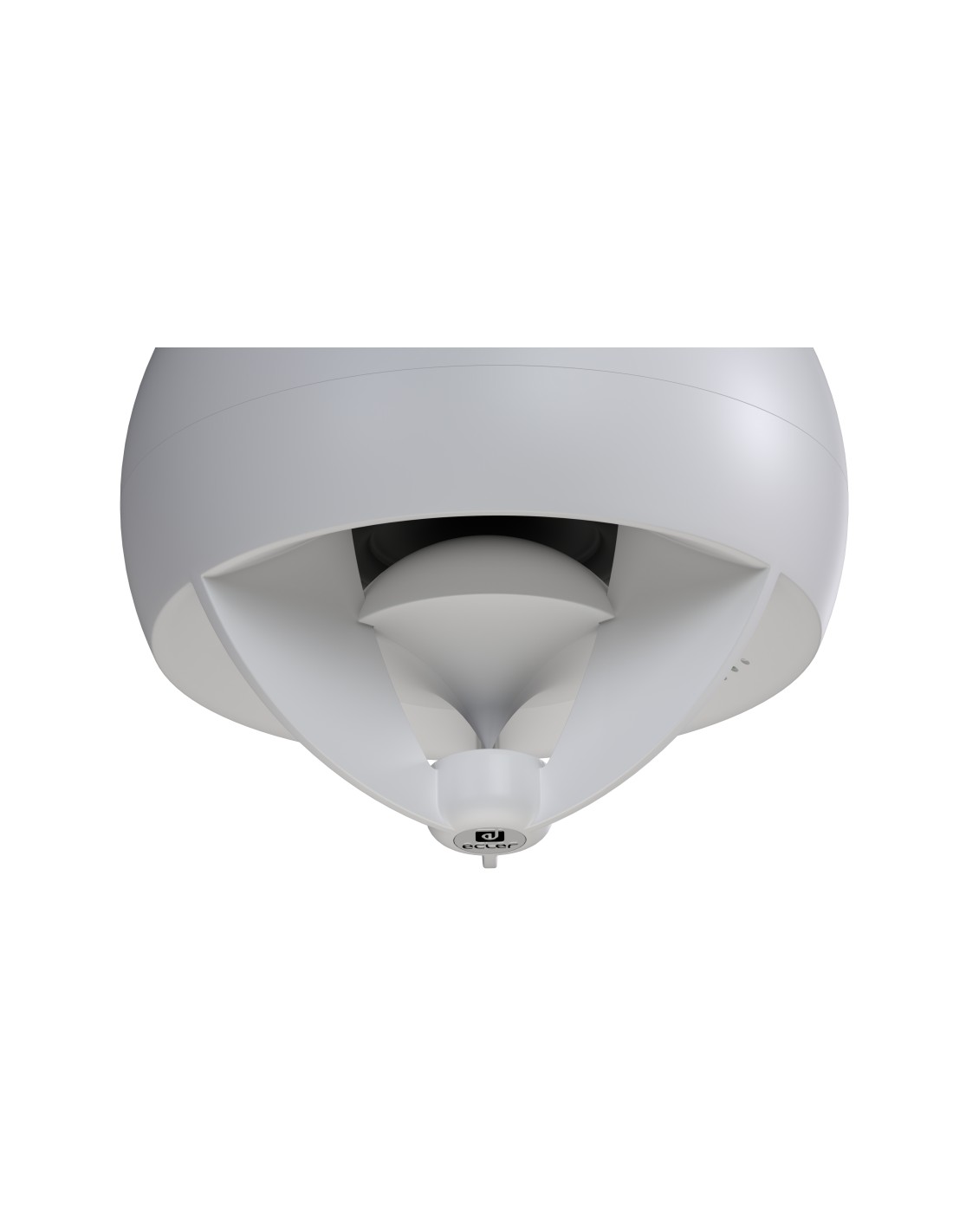

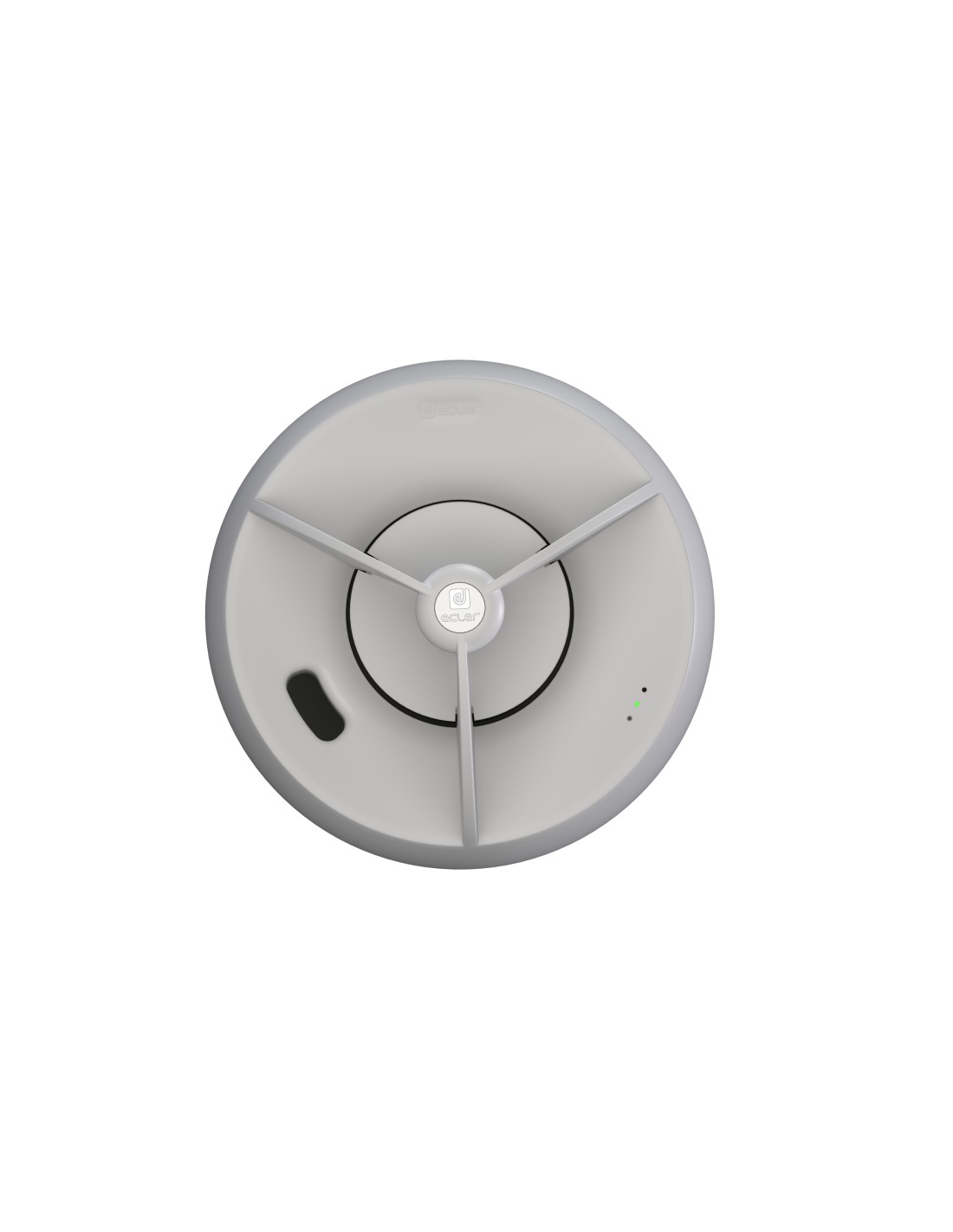

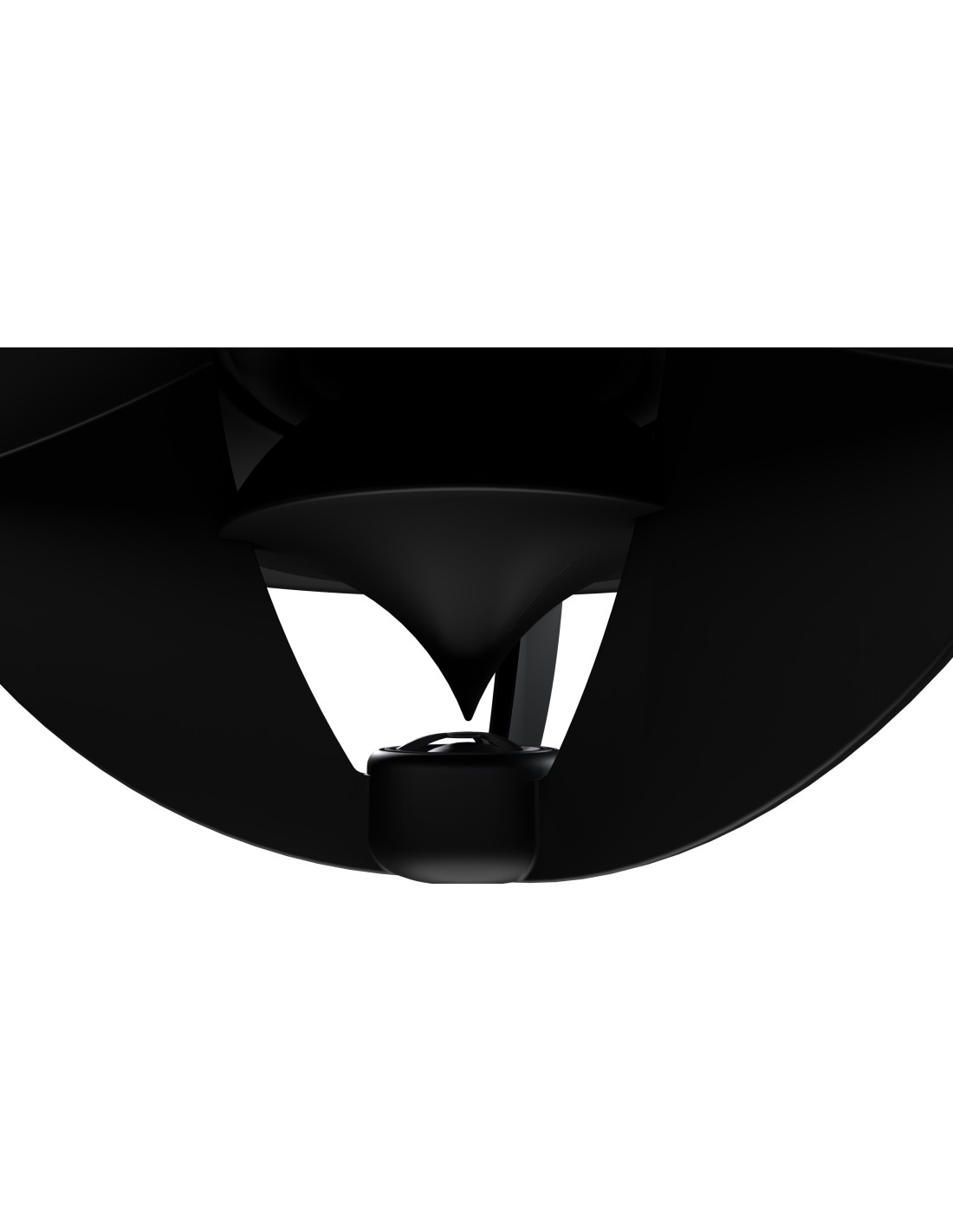

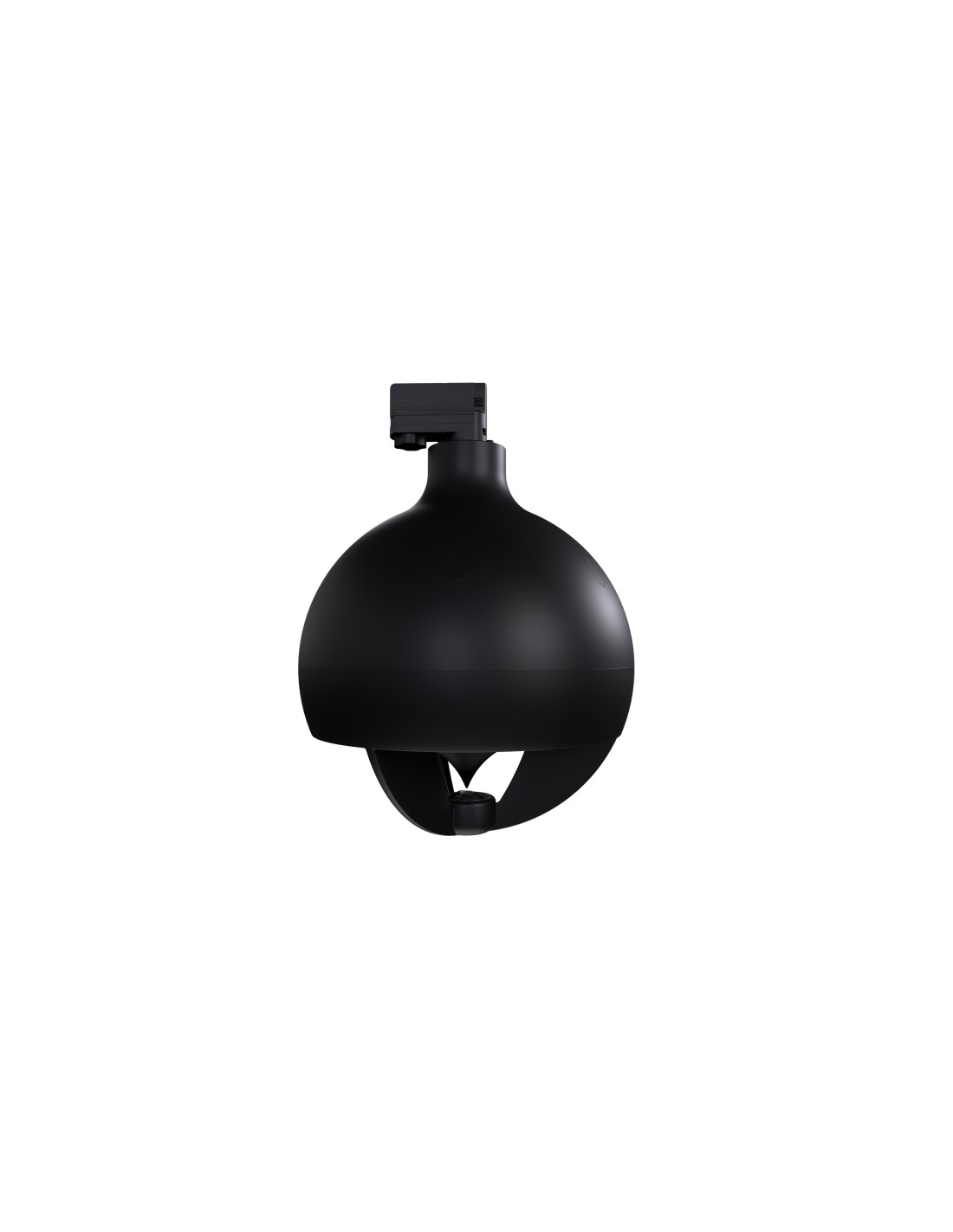

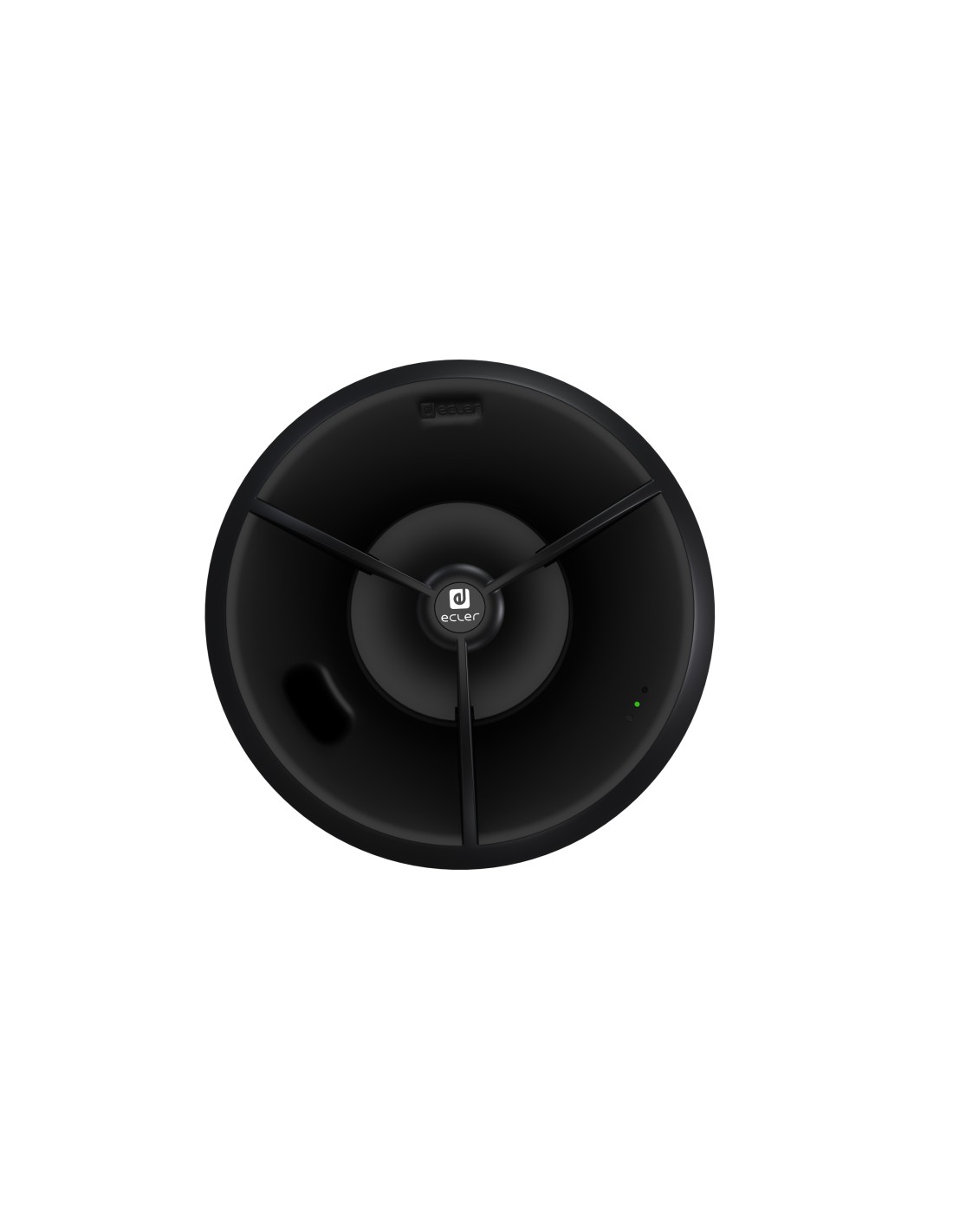

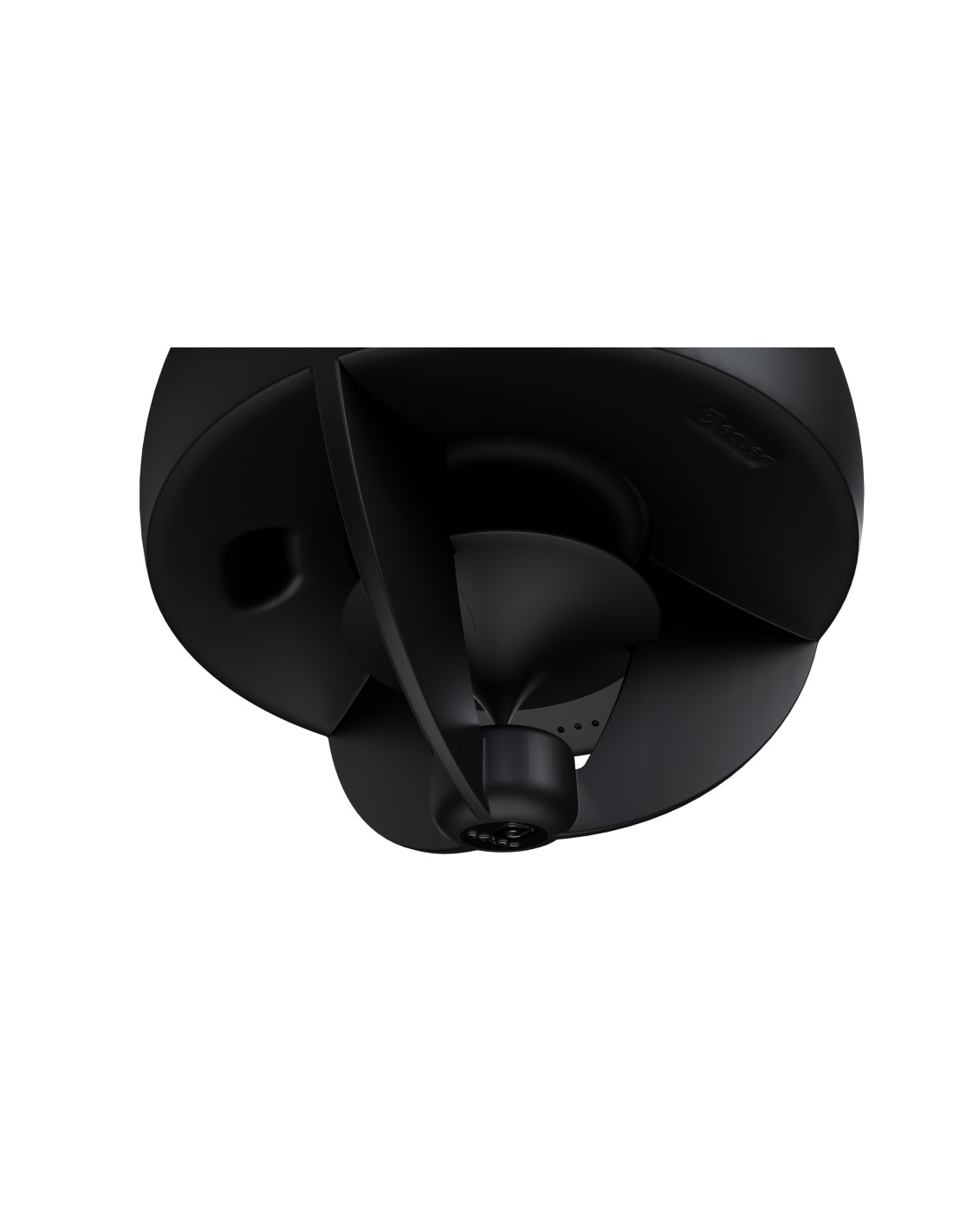

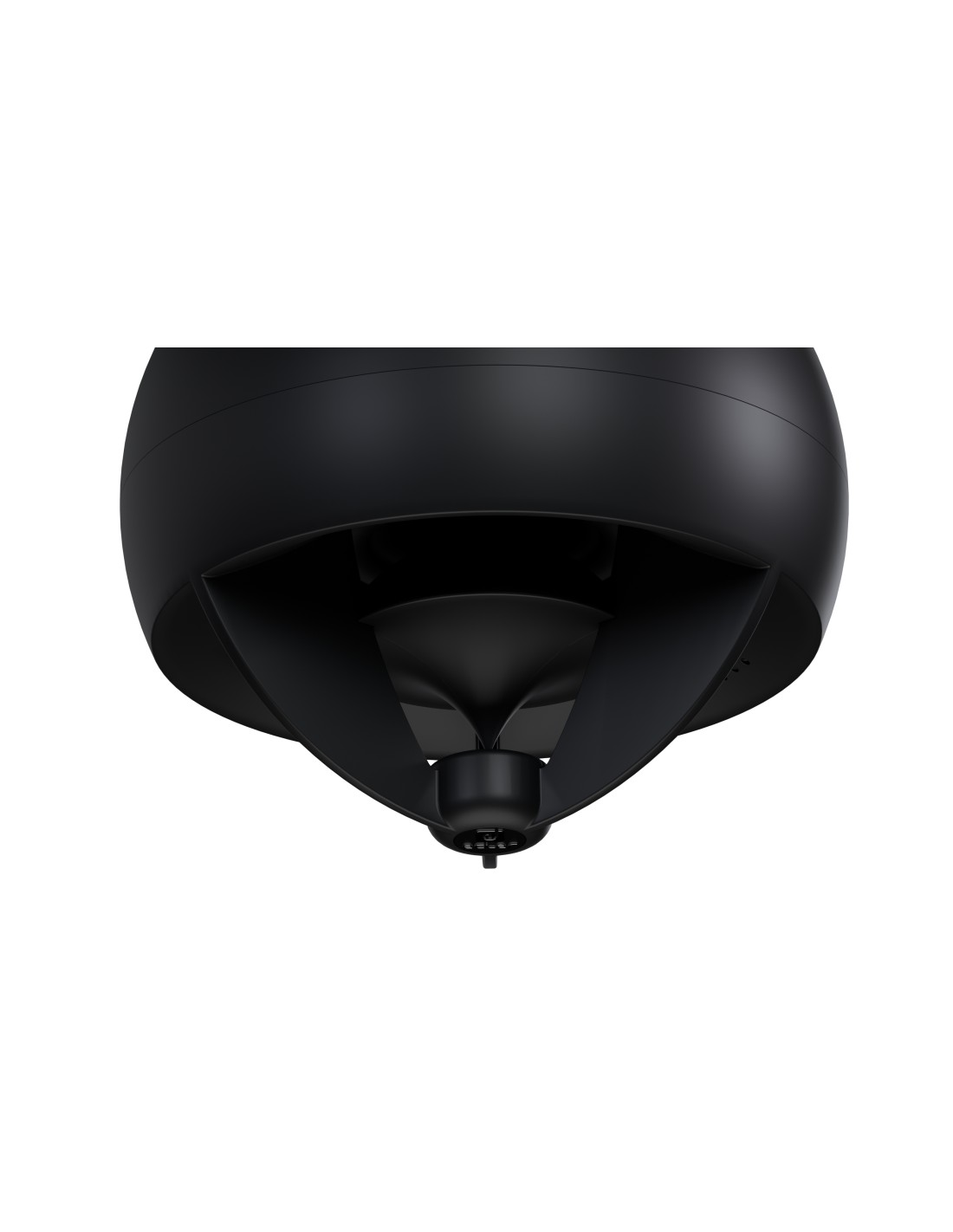

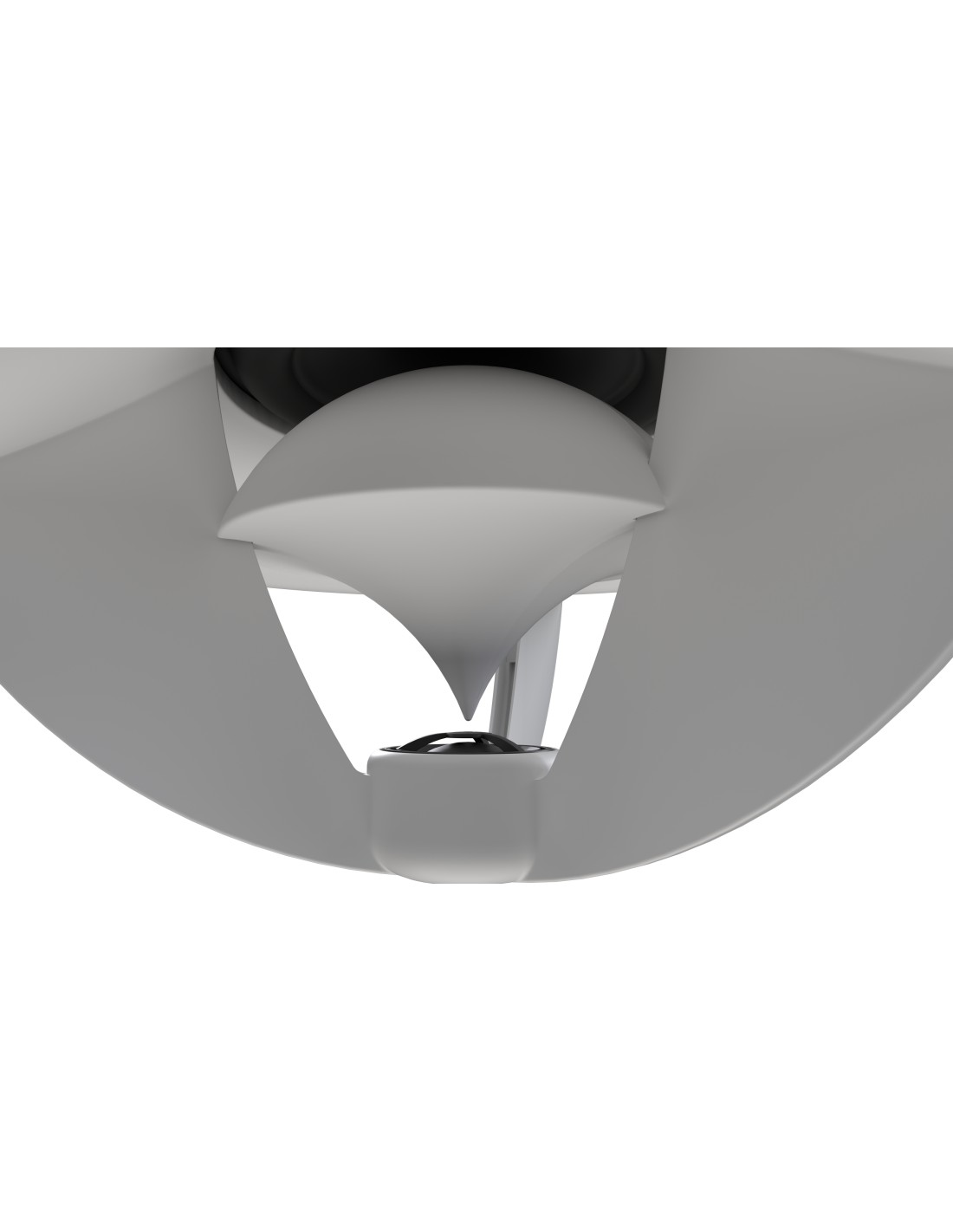

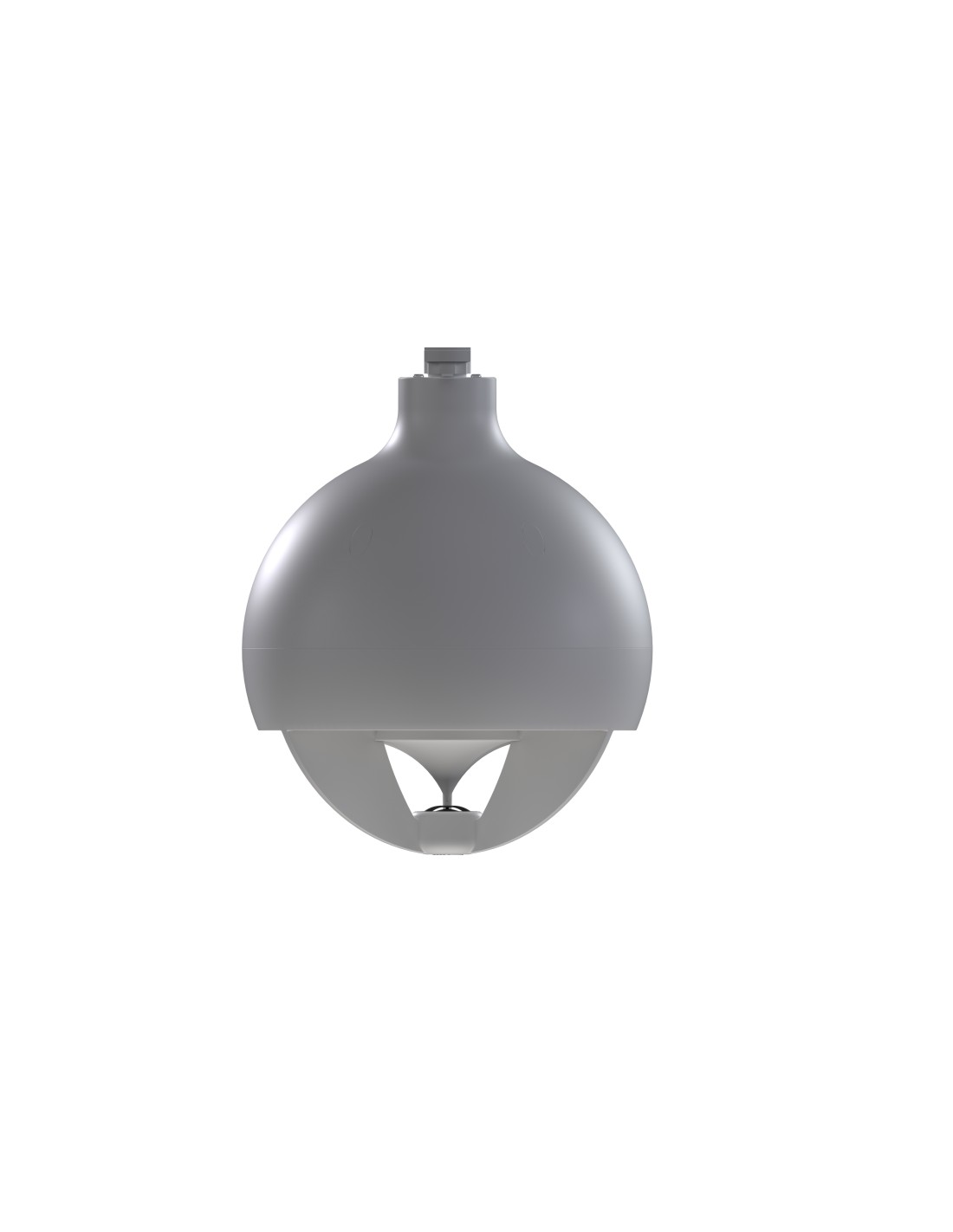

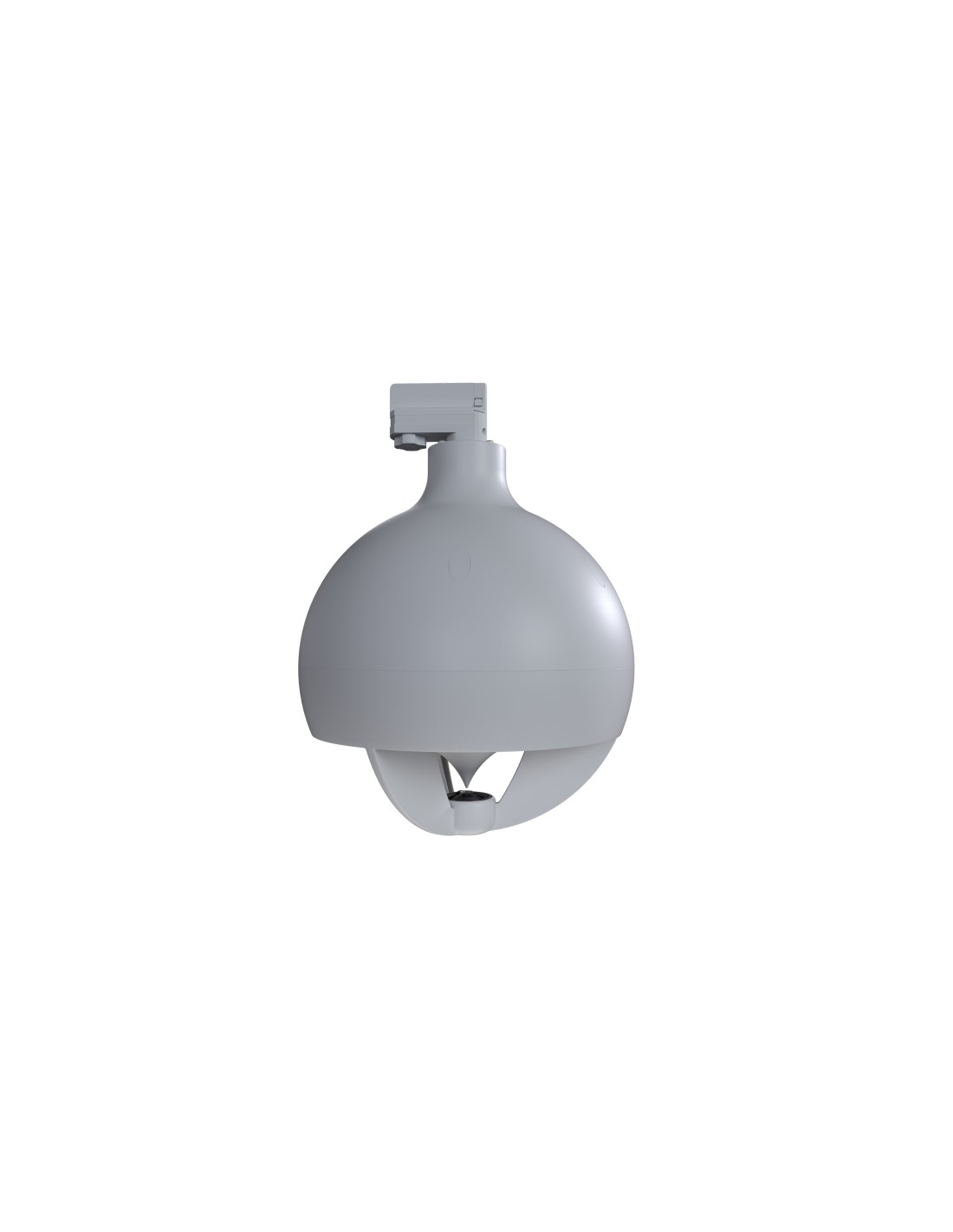

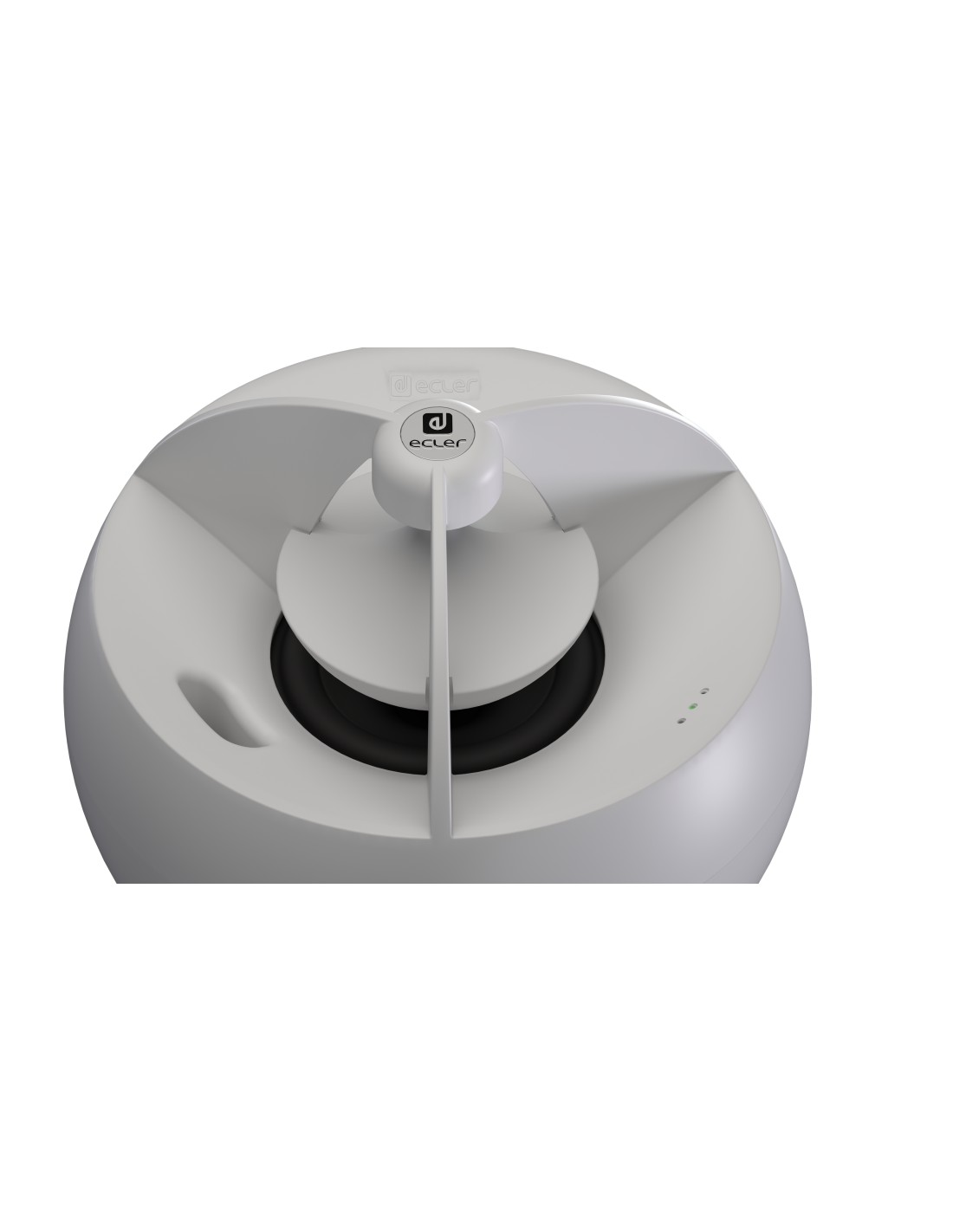

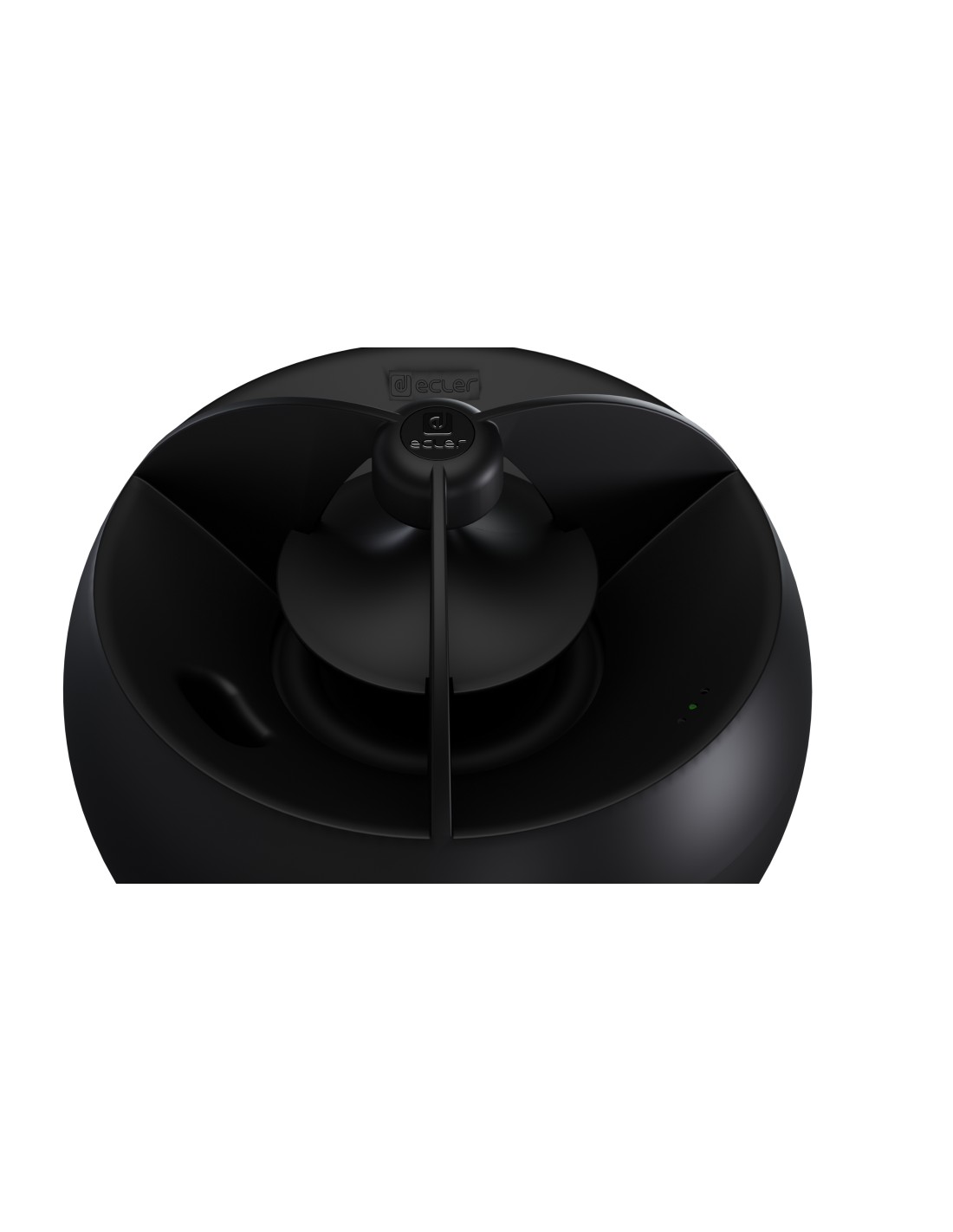

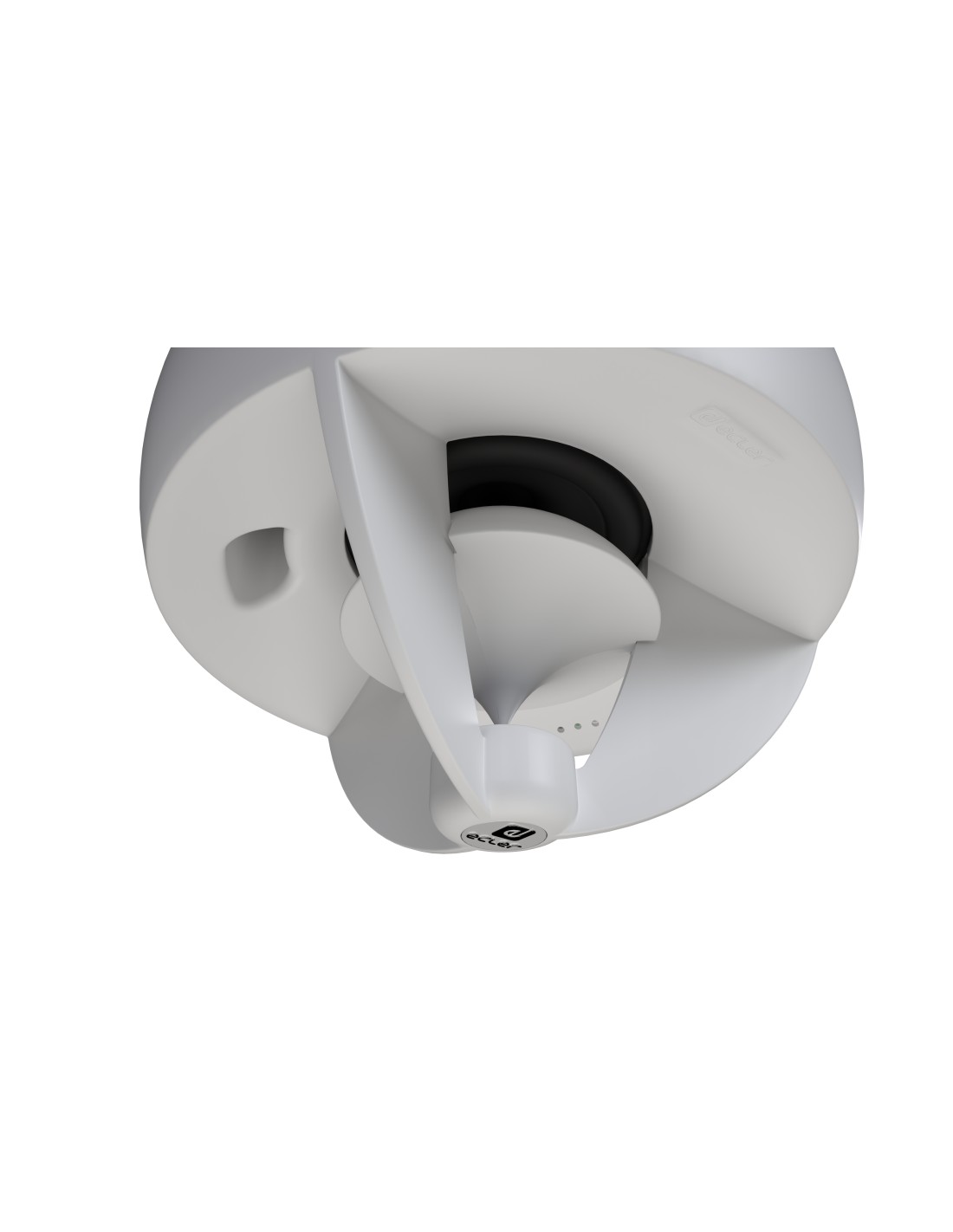

WiSpeak GLOBE is a 2-way self-powered sphere loudspeaker with wireless audio reception and control capabilities under the control of the Master unit. It includes a 5" woofer and a 1" silk dome tweeter. 360° horizontal dispersion. Available in two versions - with light-rail compatible installation system (RM) and pendant installation system (PD).
- Effective Freq. Range
- 70 Hz – 20 kHz (-10dB)
- Sensitivity
- 91 dB (1W/1m)
- Maximum SPL
- 106 dB Continuous / 112 dB Peak
- Ways
- 2-ways full range
- Low frequency driver
- 5" woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 4.2KHz
- Connection type
- Ceiling rail AC connection
- Installation options
- Rail Mount
- Environmental
- IP10
- Enclosure material
- ABS reinforced with fiberglass
- Operating temperature
- Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Storage humidity
- 90% HR
<90% HR - Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 287x331mm / 11.3"x 13" (ØxD)
- Weight
- 2.2 kg / 4.85 lb
- Pieces per box
- 1
- Shipping dimensions
- 360 x 480 x 360 mm / 14.2 x 18.9 x 14.2 in. (WxHxD)
- Shipping weight
- 3.7 kg / 8.15 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071314381
WH: 8435071314374 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 36
- Height (cm)
- 48
- Depth (cm)
- 36
- Vol. (dm3)
- 62.21
- Gross Weight (kg)
- 3.8
- Net Weight (kg)
- 2.3
- Format
- Unit
- Warranty (months)
- 36
- AC mains requirement
- 100-240 VAC @ 50-60Hz
- AC mains connector
- Ceiling rail connection
- Power consumption
- TBC
- Power supply
- Internal. Universal, regulated switch mode with PFC
(Power Factor Correction) - Release Date
- 10/03/2022
- Mounting system
- Ceiling rail connection
- Driver
- 5" woofer + 1" tweeter
- Power
- 32W RMS / 128W peak
- LED Indicators
- WiS and STR LEDs
- THD + Noise
- 0,15%
<0,15% - Latency
- From TX IN to RX AUX OUT 6ms
From TX IN to RX Speaker 6ms
Jitter among receivers ±1us
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us - Tone control
- via WiSpeak grip app
- Frequency band
- 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support"
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support" - Coverage range
- Up to 12m from a TX to any paired RX, direct line of sight
- Audio channels
- 1 mono audio ch received from the WiS TX network
- Audio transmission
- 24bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 24bit
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 20Hz – 20kHz (-0.1dB)
- Digital Audio converters
- DAC Resolution: 24 bit
DAC Dynamic range: 100dB - Pairing time
- Up to 120s
- Reconnection time
- Up to 120s
- Volume control
- via WiSpeak grip app
- Coverage angle
- 111º (conical)
- Signal Noise Ratio
- 95dB
>95dB - Other controls
- UNPAIR button
- Certifications
- FCC, EMC, CB
- Rail fixing system
- 4 wire 3 circuit track system
- Compatible rail systems
- Global Trac Pro or compatibles
Global Track Pro or compatibles - External diameter
- 287 mm / 11.3"
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70 Hz – 20 kHz (-10dB) |
|---|---|
| Sensitivity |
91 dB (1W/1m) |
| Maximum SPL |
106 dB Continuous / 112 dB Peak |
| Coverage angle |
111º (conical) |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
5" woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
8Ω |
| Driver |
5" woofer + 1" tweeter |
FILTERS
| Crossover filter |
4.2KHz |
|---|
PHYSICAL
| Connection type |
Ceiling rail AC connection |
|---|---|
| Installation options |
Rail Mount |
| Environmental |
IP10
|
| Enclosure material |
ABS reinforced with fiberglass |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
287x331mm / 11.3"x 13" (ØxD) |
| Weight |
2.2 kg / 4.85 lb |
| Pieces per box |
1 |
| Shipping dimensions |
360 x 480 x 360 mm / 14.2 x 18.9 x 14.2 in. (WxHxD) |
| Shipping weight |
3.7 kg / 8.15 lb |
| Format |
Unit |
| Mounting system |
Ceiling rail connection |
| Certifications |
FCC, EMC, CB |
| Rail fixing system |
4 wire 3 circuit track system |
| Compatible rail systems |
Global Track Pro or compatibles Global Trac Pro or compatibles |
| External diameter |
287 mm / 11.3" |
POWERED
| Power |
32W RMS / 128W peak
|
|---|---|
| Signal Noise Ratio |
>95dB 95dB |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071314381
WH: 8435071314374 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
36 |
| Height (cm) |
48 |
| Depth (cm) |
36 |
| Vol. (dm3) |
62.21 |
| Gross Weight (kg) |
3.8 |
| Net Weight (kg) |
2.3 |
| Warranty (months) |
36 |
| Release Date |
10/03/2022 |
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz |
|---|---|
| AC mains connector |
Ceiling rail connection |
| Power consumption |
TBC |
| Power supply |
Internal. Universal, regulated switch mode with PFC
(Power Factor Correction) |
AUDIO CONVERTERS
| Latency |
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us From TX IN to RX AUX OUT 6ms From TX IN to RX Speaker 6ms Jitter among receivers ±1us |
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support" 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide) Up to 24 non-overlapping RF channels DFS support" |
|---|---|
| Coverage range |
Up to 12m from a TX to any paired RX, direct line of sight |
| Audio channels |
1 mono audio ch received from the WiS TX network |
| Audio transmission |
24bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
24bit |
| Digital Audio Sampling rate |
48kHz |
| Digital Audio Frequency Response |
20Hz – 20kHz (-0.1dB) |
| Digital Audio converters |
DAC Resolution: 24 bit
DAC Dynamic range: 100dB |
| Pairing time |
Up to 120s |
| Reconnection time |
Up to 120s |
MONITORING AND CONTROL
| LED Indicators |
WiS and STR LEDs |
|---|---|
| Tone control |
via WiSpeak grip app |
| Volume control |
via WiSpeak grip app |
| Other controls |
UNPAIR button |
LINE OUTPUTS
| THD + Noise |
<0,15% 0,15% |
|---|
