TUBE WH
CTUBE3WH
Available
3" | 1-way | 18 WRMS | WiSpeak | powered | lamp style design | rail mount

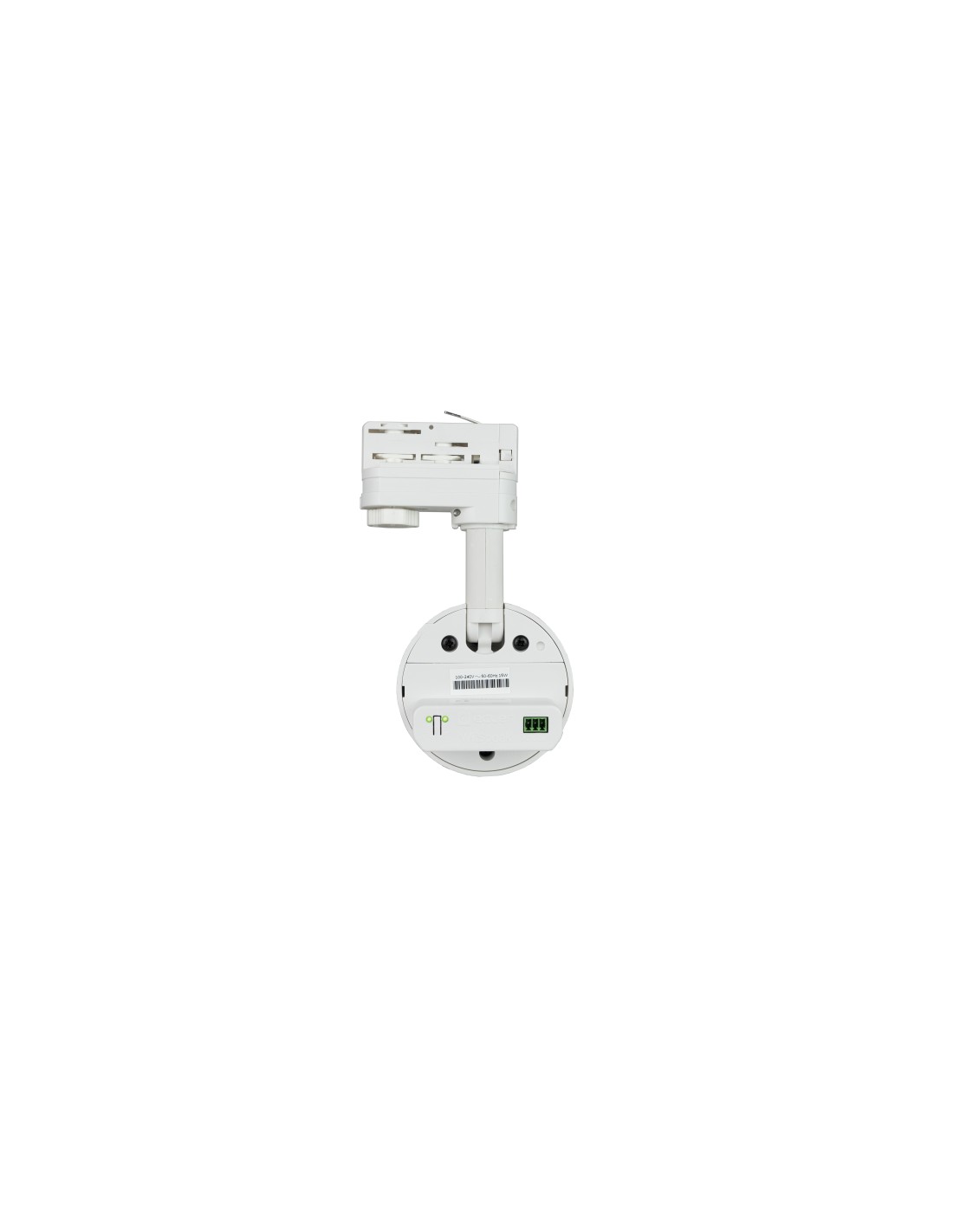

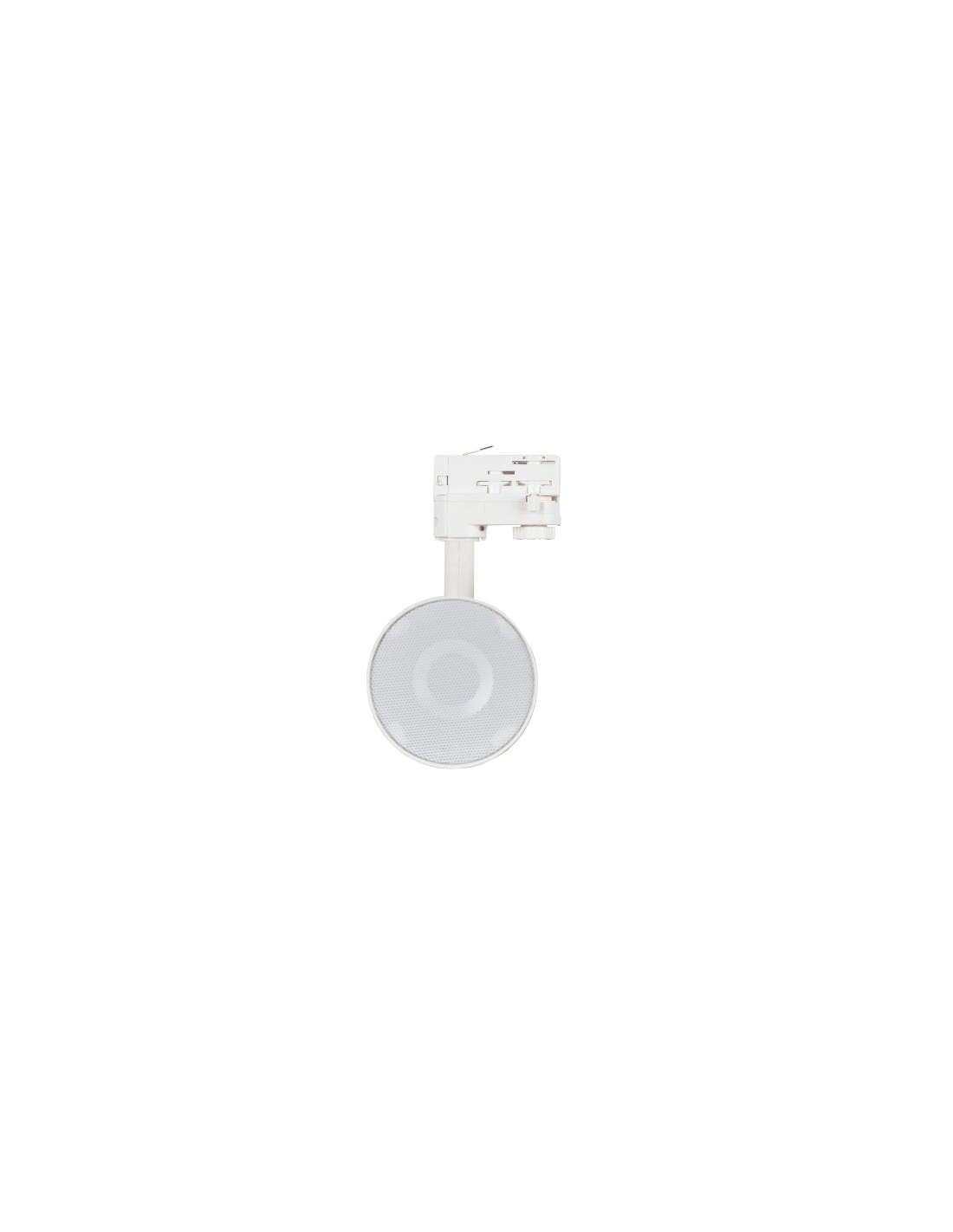

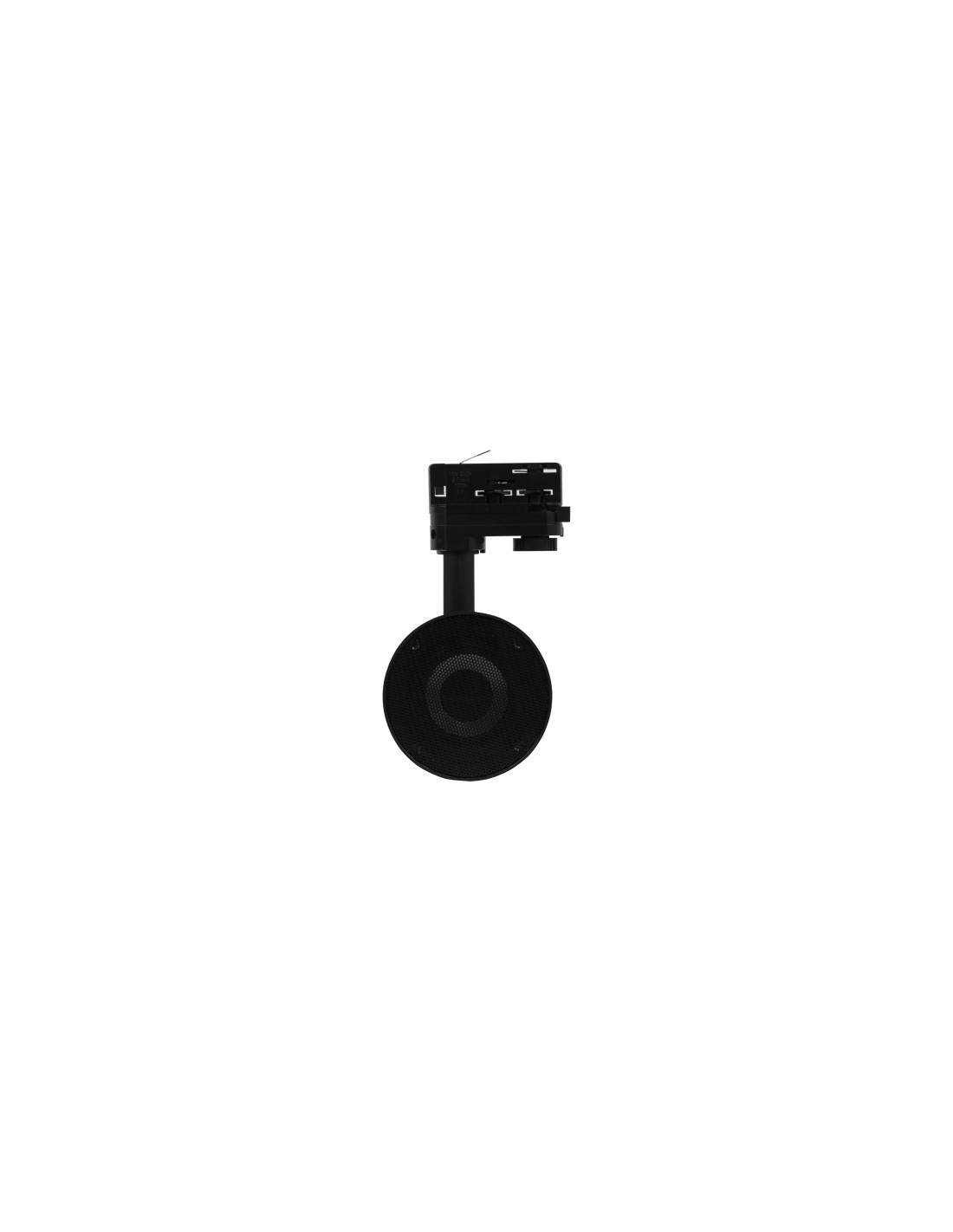

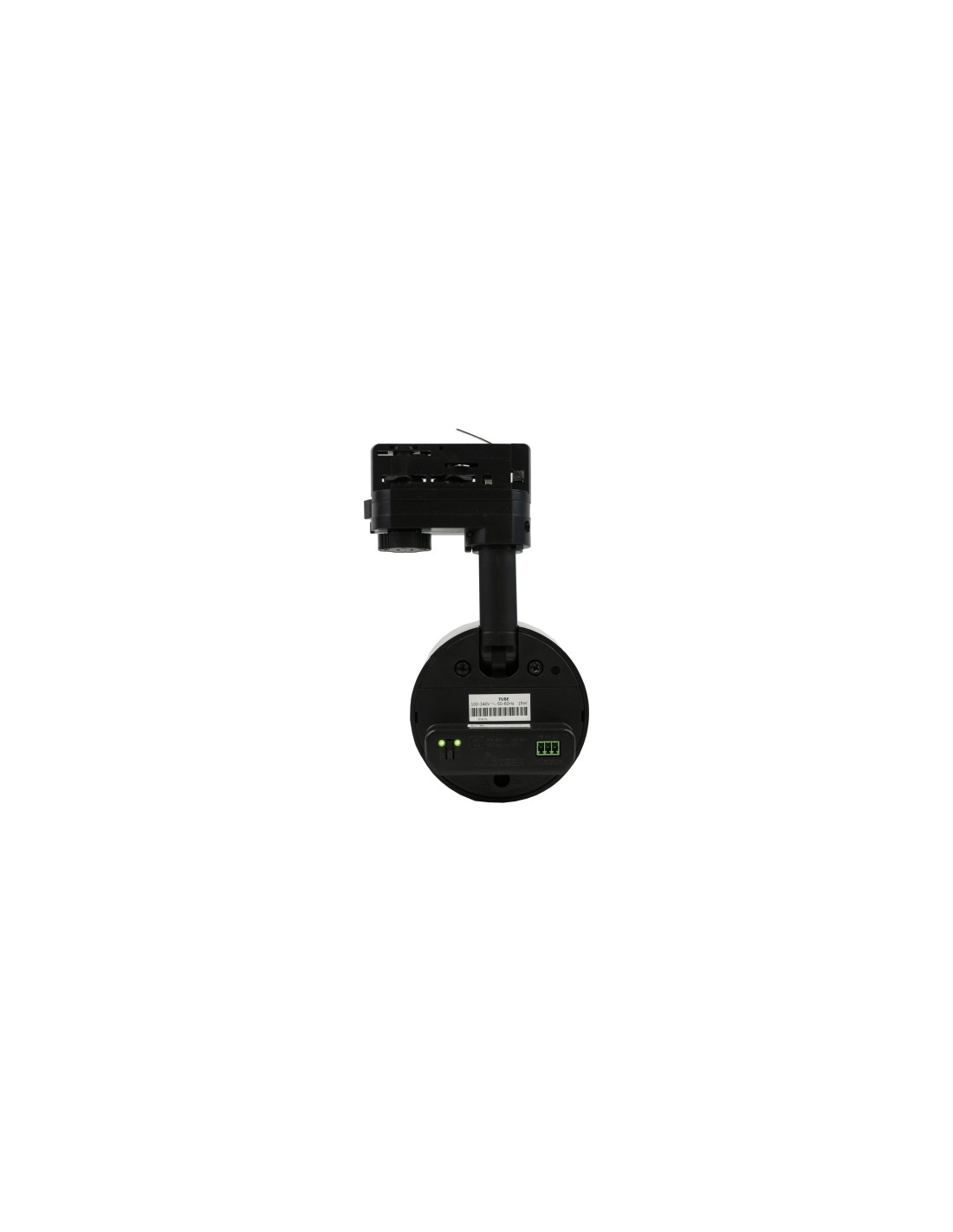

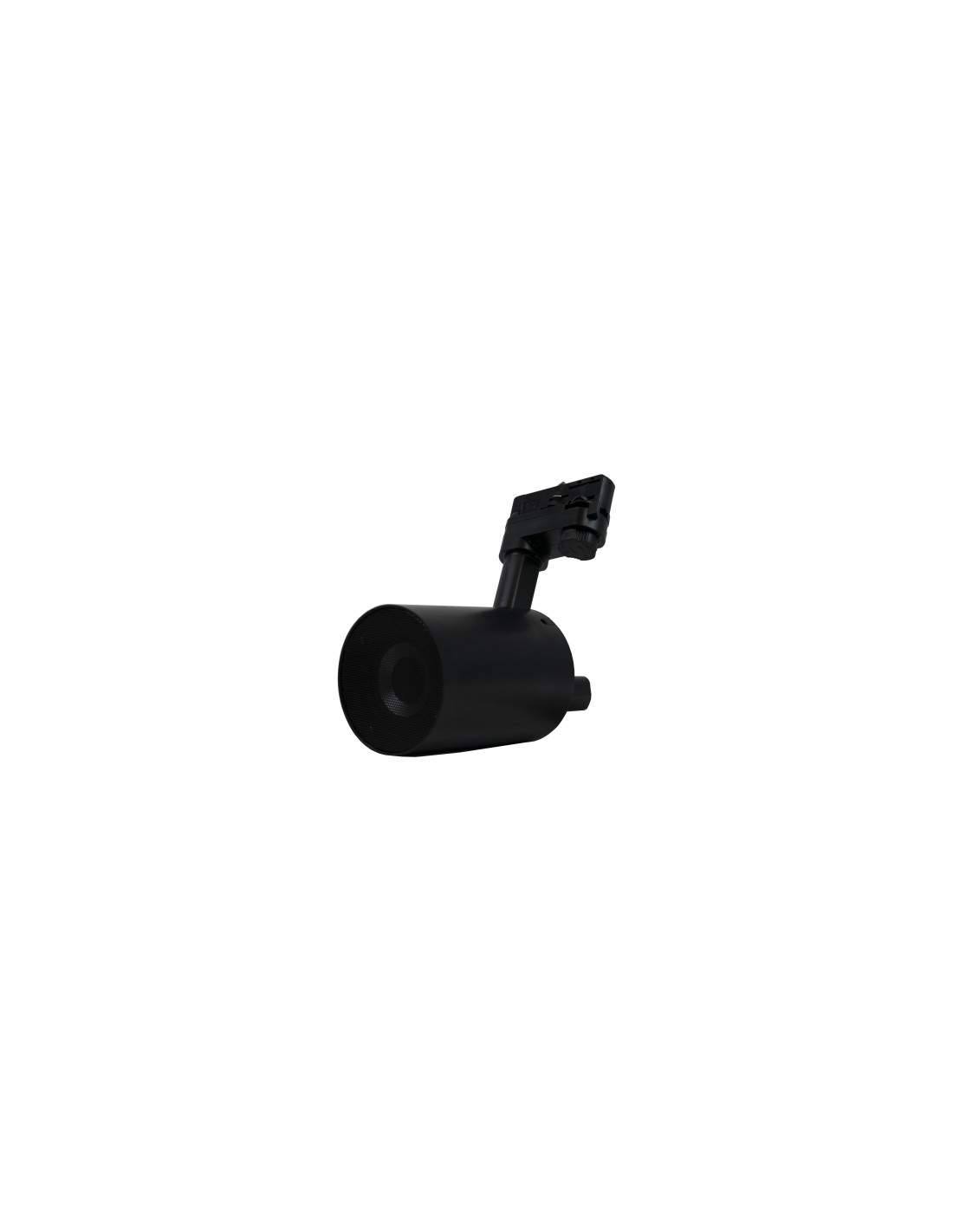

WiSpeak TUBE is a self-powered 3" lamp style loudspeaker with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails.
- Effective Freq. Range
- 105 - 20kHz (-10dB)
- Sensitivity
- 83 dB (1W/1m)
- Maximum SPL
- 96 dB continuous / 102 dB peak
- Ways
- 1-way
- Nominal impedance
- 4Ω
- Connection type
- Ceiling rail AC connection
- Installation options
- Ceiling light rails, or suface using TUBE SMA
- Pan and tilt wall-mount
- Swivel (pan and tilt)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR
- Included accessories
- Lighting rail mount
- Optional accessories
- Surface mount accessory (TUBE SMA)
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 96 x 130 mm / 3.8 x 5.1 in. (∅xD)
- Weight
- 0.8 kg / 1.76 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 195 x 185 x 245 mm / 7.68 x 7.28 x 9.65 in. (WxHxD)
- Shipping weight
- 1.12 kg / 2.47 lb
- Status
- New
- EAN code
- BK: 8435071312394
WH: 8435071312387 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- 0dBV / 10kΩ
- CMRR
- N/A
- Programing and control
- WiSpeak grip app
- AC mains requirement
- 100-240VAC @ 50-60Hz
- AC mains connector
- From lighting rail bracket
- Power consumption
- 15W (rated)
- Power supply
- Universal, internal power supply
- Mounting system
- Lighting rail mount compatible
- Driver
- 3” driver
- Power
- 18 W RMS / 72 W Peak
- Audio inputs
- CH1 / CH2: Digital, Mono, RF Wireless Audio
- Audio outputs
- Internal Loudspeaker: Analog, Mono, Self powered
AUX OUT: Analog, Mono, Balanced, Euroblock - LED Indicators
- WiS and STR LEDs
- THD + Noise
- 0.15% @1kHz Full power
<0.15% @1kHz Full power
- Latency
- From TX IN to RX AUX OUT 6ms
From TX IN to RX Speaker 6ms
Jitter among receivers ±1us
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us - Maximum fan noise
- N/A
- Tone control
- N/A
- Frequency band
- 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support - Coverage range
- Up to 12m from a TX to any paired RX, direct
line of sight - Audio channels
- WiSpeak CH1 / CH2
- Audio transmission
- 24bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 24 bits
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 20Hz – 20kHz (-0.1dB)
- Digital Audio converters
- DAC Resolution: 24 bit
DAC Dynaimic range: 100dB - Pairing time
- Up to 120s
- Reconnection time
- Up to 120s
- Volume control
- via WiSpeak grip app.
- Communication interfaces
- N/A
- Processing
- N/A
- Cable length
- N/A
- Coverage angle
- 180x180 (HxV)
- Signal Noise Ratio
- 95dB at RX AUX OUT
>95dB at RX AUX OUT
- Power consumption standby
- N/A
- Heat load
- N/A
- Ventilation
- N/A
- Other controls
- SOLO: via WiSpeak grip app
ID TEST SIGNAL: via WiSpeak grip app
PAIR / UNPAIR: via WiSpeak grip app and
Panel button - Auto standby time
- N/A
- Auto standby threshold
- N/A
- Certifications
- FCC, EMC
- Rail fixing system
- 4 wire 3 circuit track system compatible
- Compatible rail systems
- Global Trac Pro or compatibles
Global Track Pro or compatibles
- External diameter
- N/A
- Secondary power supply
- N/A
- Internal diameter
- N/A
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
105 - 20kHz (-10dB) |
|---|---|
| Sensitivity |
83 dB (1W/1m)
|
| Maximum SPL |
96 dB continuous / 102 dB peak |
| Coverage angle |
180x180 (HxV)
|
TRANSDUCERS
| Ways |
1-way
|
|---|---|
| Nominal impedance |
4Ω |
| Driver |
3” driver
|
PHYSICAL
| Connection type |
Ceiling rail AC connection
|
|---|---|
| Installation options |
Ceiling light rails, or suface using TUBE SMA |
| Pan and tilt wall-mount |
Swivel (pan and tilt) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR
90% HR |
| Included accessories |
Lighting rail mount
|
| Optional accessories |
Surface mount accessory (TUBE SMA)
|
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
96 x 130 mm / 3.8 x 5.1 in. (∅xD) |
| Weight |
0.8 kg / 1.76 lb
|
| Pieces per box |
1 unit
|
| Shipping dimensions |
195 x 185 x 245 mm / 7.68 x 7.28 x 9.65 in. (WxHxD) |
| Shipping weight |
1.12 kg / 2.47 lb
|
| Mounting system |
Lighting rail mount compatible
|
| Cable length |
N/A
|
| Certifications |
FCC, EMC |
| Rail fixing system |
4 wire 3 circuit track system compatible |
| Compatible rail systems |
Global Track Pro or compatibles
Global Trac Pro or compatibles |
| External diameter |
N/A
|
| Internal diameter |
N/A
|
POWERED
| Power |
18 W RMS / 72 W Peak
|
|---|---|
| Audio inputs |
CH1 / CH2: Digital, Mono, RF Wireless Audio |
| Audio outputs |
Internal Loudspeaker: Analog, Mono, Self powered
AUX OUT: Analog, Mono, Balanced, Euroblock |
| Signal Noise Ratio |
>95dB at RX AUX OUT
95dB at RX AUX OUT |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
BK: 8435071312394
WH: 8435071312387 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| AC mains requirement |
100-240VAC @ 50-60Hz
|
|---|---|
| AC mains connector |
From lighting rail bracket
|
| Power consumption |
15W (rated)
|
| Power supply |
Universal, internal power supply |
| Power consumption standby |
N/A
|
| Heat load |
N/A
|
| Ventilation |
N/A
|
| Secondary power supply |
N/A
|
AUDIO CONVERTERS
| Latency |
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us From TX IN to RX AUX OUT 6ms From TX IN to RX Speaker 6ms Jitter among receivers ±1us |
|---|
CONNECTIVITY
| Programing and control |
WiSpeak grip app
|
|---|
TECHNOLOGIES
| Maximum fan noise |
N/A
|
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support 5.18~5.32GHz, 5.55~5.825GHz (supported worldwide) Up to 24 non-overlapping RF channels DFS support |
|---|---|
| Coverage range |
Up to 12m from a TX to any paired RX, direct
line of sight |
| Audio channels |
WiSpeak CH1 / CH2
|
| Audio transmission |
24bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
24 bits
|
| Digital Audio Sampling rate |
48kHz
|
| Digital Audio Frequency Response |
20Hz – 20kHz (-0.1dB)
|
| Digital Audio converters |
DAC Resolution: 24 bit
DAC Dynaimic range: 100dB |
| Pairing time |
Up to 120s
|
| Reconnection time |
Up to 120s
|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dBV / 10kΩ
|
|---|
MONITORING AND CONTROL
| LED Indicators |
WiS and STR LEDs
|
|---|---|
| Tone control |
N/A
|
| Volume control |
via WiSpeak grip app.
|
| Communication interfaces |
N/A
|
| Processing |
N/A
|
| Other controls |
SOLO: via WiSpeak grip app
ID TEST SIGNAL: via WiSpeak grip app
PAIR / UNPAIR: via WiSpeak grip app and
Panel button |
| Auto standby time |
N/A
|
| Auto standby threshold |
N/A
|
LINE INPUTS
| CMRR |
N/A
|
|---|
LINE OUTPUTS
| THD + Noise |
<0.15% @1kHz Full power
0.15% @1kHz Full power |
|---|
