WiLD-TX
CWILDTX
Available
WiLD Series Audio Transmitter Master unit
WiLD-TX is a transmitter device that communicates with all the receiver devices to create a WiLD wireless network. WiLD is the ultimate long-distance wireless audio solution. Designed for retail spaces, museums, and other markets, WiLD offers a cost-effective, robust, and user-friendly installation that blends seamlessly into any environment. Experience superior sound quality with minimal visual impact. Upgrade to WiLD today and transform your audio experience!
The device features unbalanced (2XRCA) and Bluetooth® inputs with tone control. The main functions include pairing and sending audio content to all receiving devices (WiLD-14, WiLD-SB18), ensuring solid and stable communication. Additionally, it manages the global configuration of the system, including audio inputs in use, equalization, output levels, etc.
- Connection type
- 2 xRCA unbalanced
- Installation options

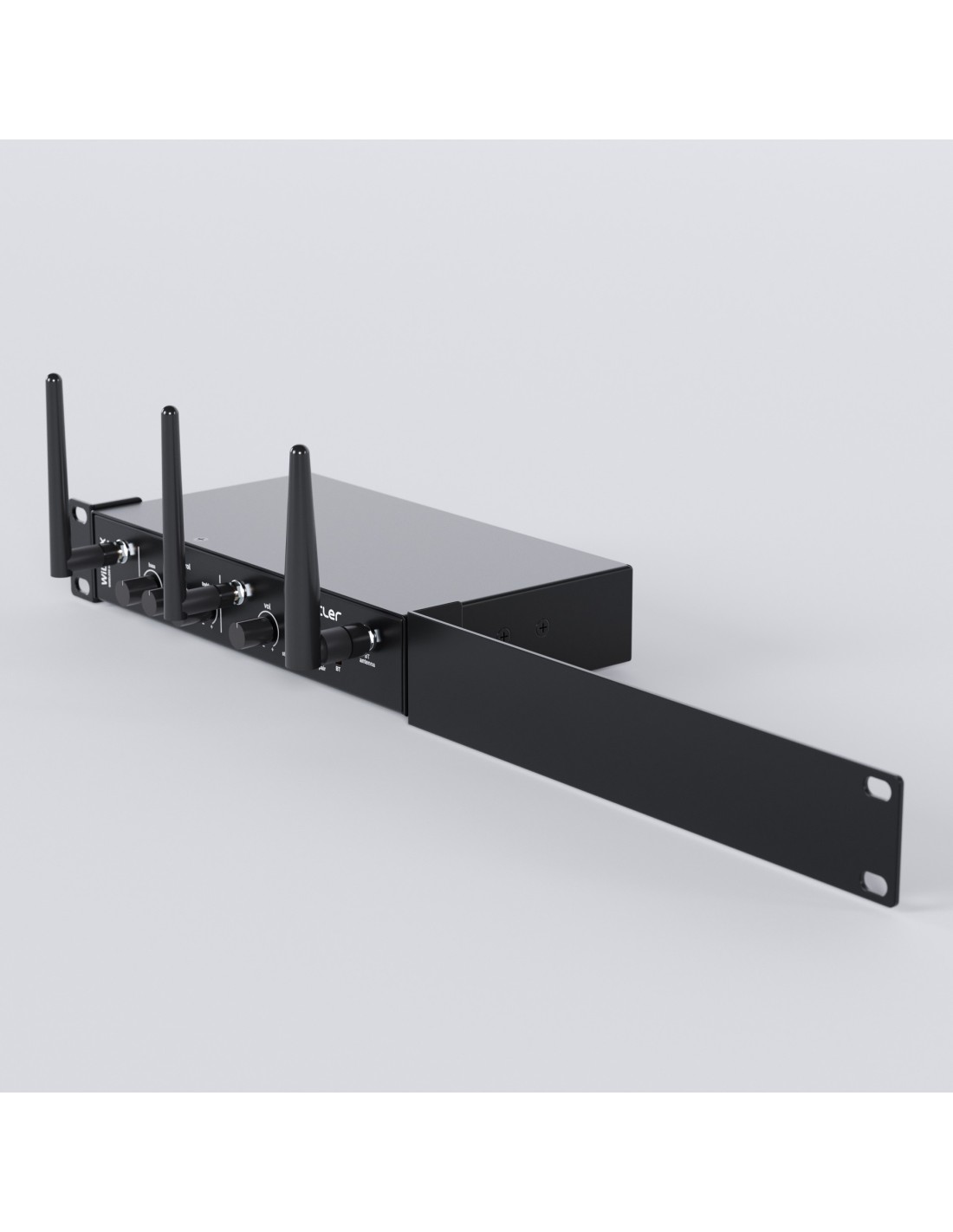

- 1 Rack U, Wall or under a surface (table, shelf, cupboard, etc.)
- Enclosure material
- Metal
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Storage humidity
- 90% HR
- Included accessories
- 1x External universal Power Supply, 2x DECT antennas, 1x BT Antenna, 1 x Half Rack Front Adapter, 2x Mounting ears, 1x Wall-mount. bracket, 1x Euroblock connector (mute).
- Optional accessories
- WPaVOL for volume control
- Finished colour
- Black (RAL 9005)
- Dimensions
- 217 x 44 x 117 mm / 8.54 x 1.73 x 4.61 in. (WxHxD)
217 x 111 x117 mm / 8.54 x 4.37 x 4.61 in. (WxHxD) (including antennas) - Weight
- 0.9 kg / 1.98 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 300 x 60 x 240 mm / 11.81 x 2.36 x 9.45 in. (WxHxD)
- Shipping weight
- 1.5 kg / 3.31 lb
- Input sensitivity
- -10dBV to 0dBV
- AC mains requirement
- 100-240 VAC @ 50-60Hz, using supplied DC adapter
- AC mains connector
- 5VDC IN mains USB-C
- Power consumption
- 1A at 5V
- Power supply
- External, universal Power Supply
- Mounting system
- Surface & Rack ears
- LED Indicators
- Status
- Input impedance
- 20kΩ
- Max input level
- +6.021dBV
- Latency
- From TX Analog Audio IN to RX Speaker 26ms
- External MUTE
- Normally Open
- Tone control
- front panel knob
- Frequency band
- 1880 - 1930MHz,EU DECT, US DECT
- Coverage range
- Up to 150m from a TX to any paired RX, direct line of sight
- Audio channels
- 1 stereo audio ch received from the WiLD-TX network
- Audio transmission
- 16 bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 16bit
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 10Hz – 15kHz (-1dB)
- Digital Audio converters
- ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB - Number of inputs
- 1
- THD + Noise
- 1% (1kHz)
- Class
- Compliant 5.3, Class 2&3
- Range
- 25m (ideal conditions)
- Profiles
- A2DP1.3.2/AVRCP1.6.2
- Supported codecs
- SBC
- USB
- Power supply and Service & firmware updates
- Analogue remote control
- Compatible with WPa series analogue volume control panels
- Paring control
- back panel button
- Source selection
- front panel switch
- Volume control
- front panel knob
- MUTE control
- GPI
- Auto standby time
- 1200 seg
- Auto standby threshold
- 20 dB
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
2 xRCA unbalanced |
|---|---|
| Installation options |
1 Rack U, Wall or under a surface (table, shelf, cupboard, etc.) |
| Enclosure material |
Metal |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Storage humidity |
90% HR |
| Included accessories |
1x External universal Power Supply, 2x DECT antennas, 1x BT Antenna, 1 x Half Rack Front Adapter, 2x Mounting ears, 1x Wall-mount. bracket, 1x Euroblock connector (mute). |
| Optional accessories |
WPaVOL for volume control |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
217 x 44 x 117 mm / 8.54 x 1.73 x 4.61 in. (WxHxD)
217 x 111 x117 mm / 8.54 x 4.37 x 4.61 in. (WxHxD) (including antennas) |
| Weight |
0.9 kg / 1.98 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
300 x 60 x 240 mm / 11.81 x 2.36 x 9.45 in. (WxHxD) |
| Shipping weight |
1.5 kg / 3.31 lb |
| Mounting system |
Surface & Rack ears |
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz, using supplied DC adapter |
|---|---|
| AC mains connector |
5VDC IN mains USB-C |
| Power consumption |
1A at 5V |
| Power supply |
External, universal Power Supply |
AUDIO CONVERTERS
| Latency |
From TX Analog Audio IN to RX Speaker 26ms |
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
1880 - 1930MHz,EU DECT, US DECT |
|---|---|
| Coverage range |
Up to 150m from a TX to any paired RX, direct line of sight |
| Audio channels |
1 stereo audio ch received from the WiLD-TX network |
| Audio transmission |
16 bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
16bit |
| Digital Audio Sampling rate |
48kHz |
| Digital Audio Frequency Response |
10Hz – 15kHz (-1dB) |
| Digital Audio converters |
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-10dBV to 0dBV |
|---|---|
| Number of inputs |
1 |
| THD + Noise |
1% (1kHz) |
BLUETOOTH AUDIO INPUT
| Class |
Compliant 5.3, Class 2&3 |
|---|---|
| Range |
25m (ideal conditions) |
| Profiles |
A2DP1.3.2/AVRCP1.6.2 |
| Supported codecs |
SBC |
CONTROL CONNECTIVITY
| External MUTE |
Normally Open |
|---|---|
| USB |
Power supply and Service & firmware updates |
| Analogue remote control |
Compatible with WPa series analogue volume control panels |
MONITORING AND CONTROL
| LED Indicators |
Status |
|---|---|
| Tone control |
front panel knob |
| Paring control |
back panel button |
| Source selection |
front panel switch |
| Volume control |
front panel knob |
| MUTE control |
GPI |
| Auto standby time |
1200 seg |
| Auto standby threshold |
20 dB |
LINE INPUTS
| Input impedance |
20kΩ |
|---|---|
| Max input level |
+6.021dBV |
