WiLD-SB18
CWILDSB18
Available

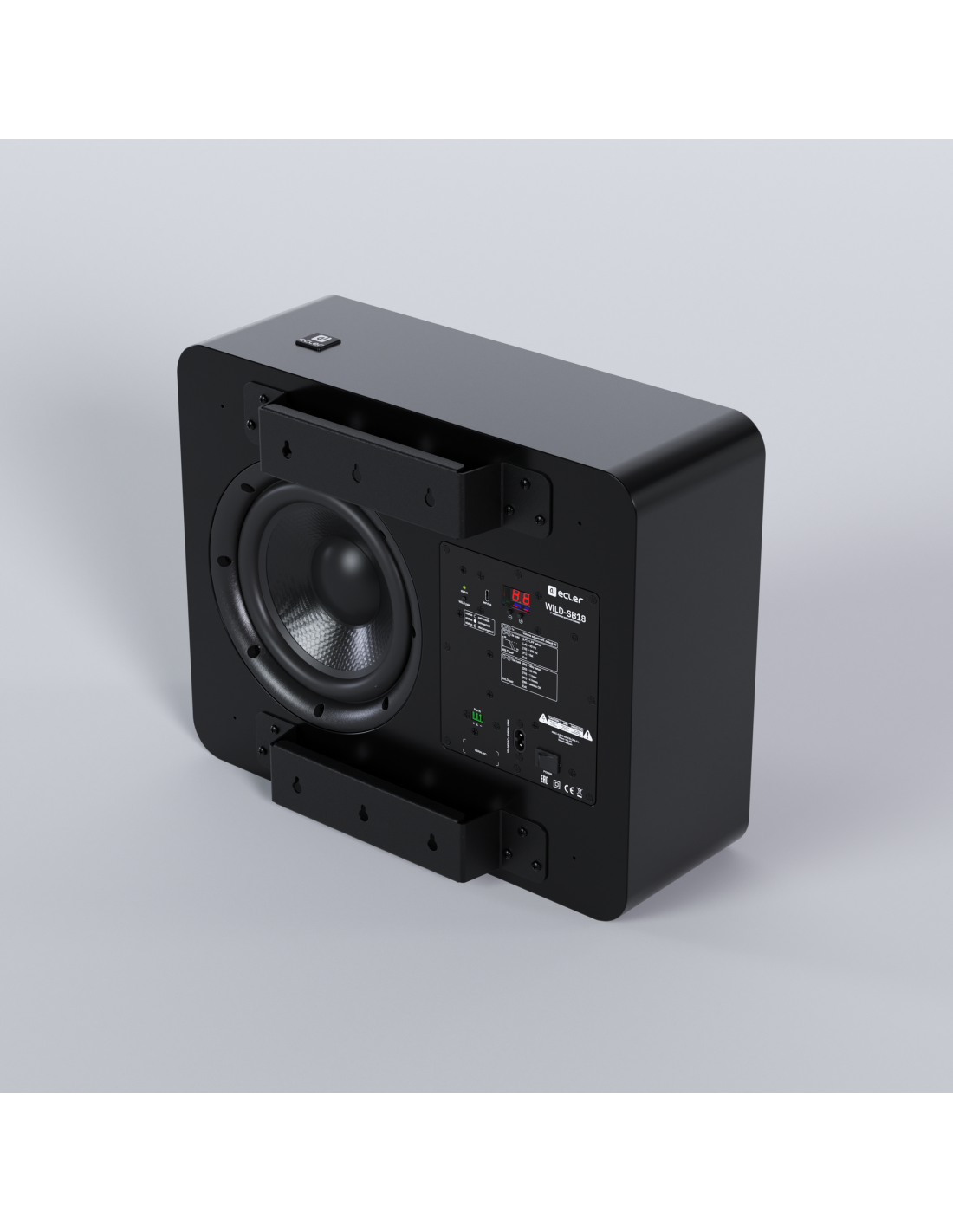

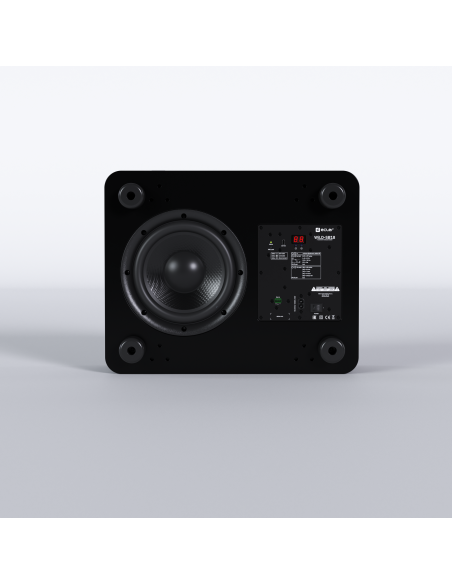

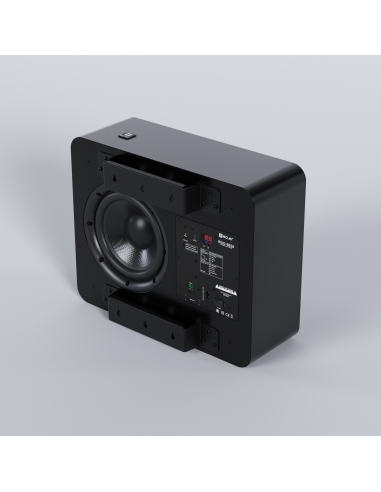

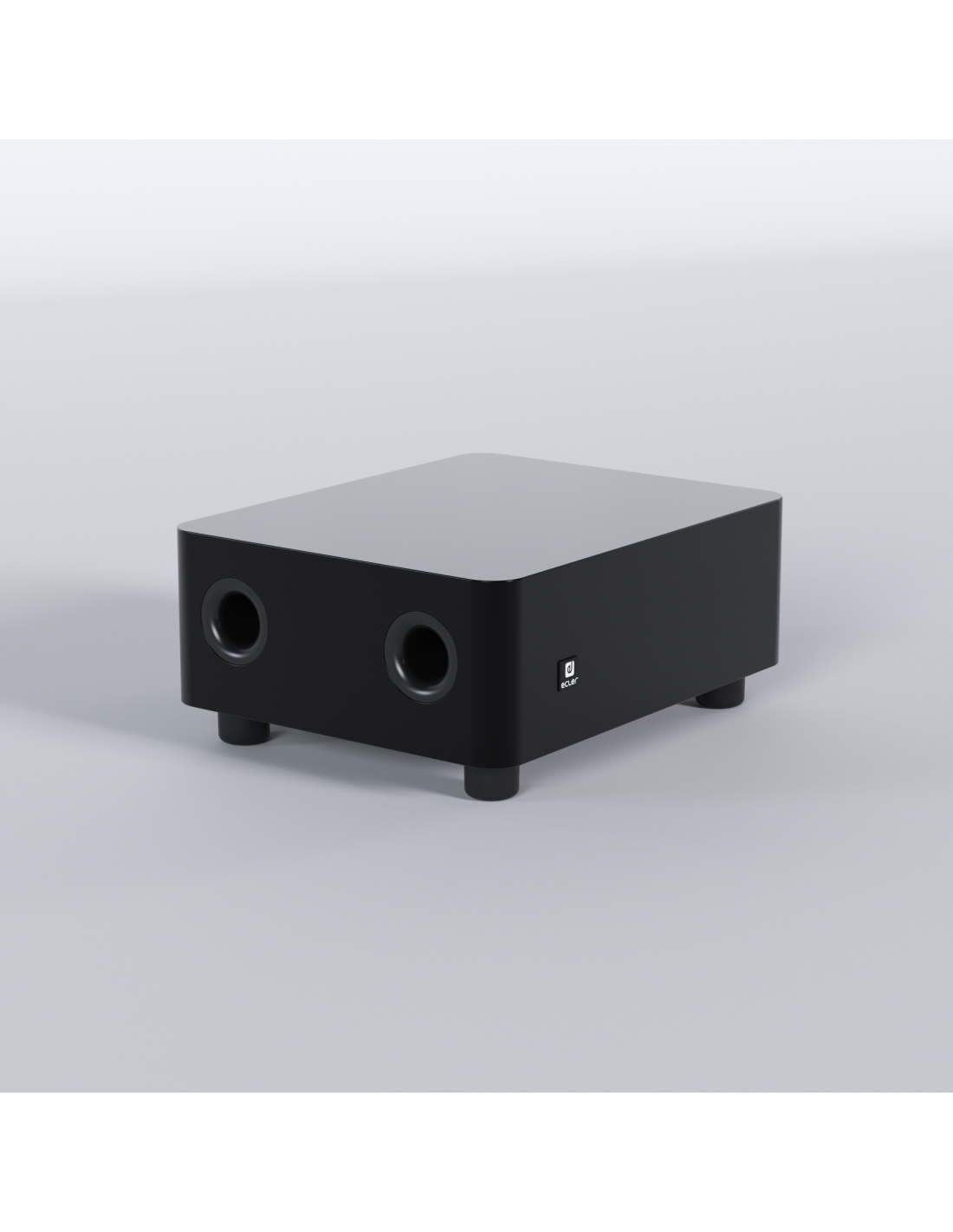

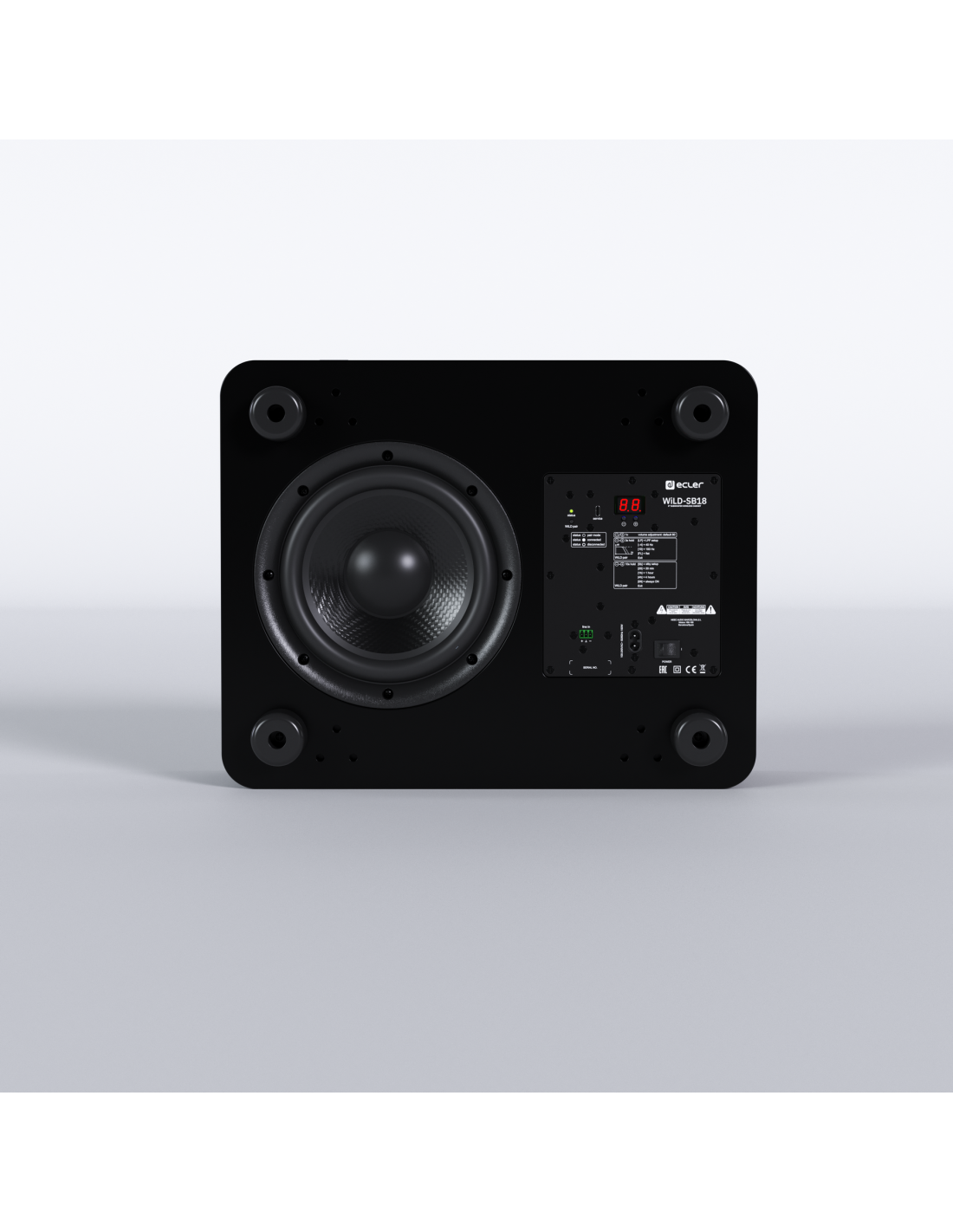

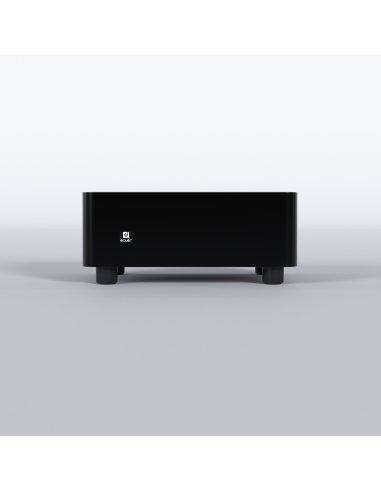

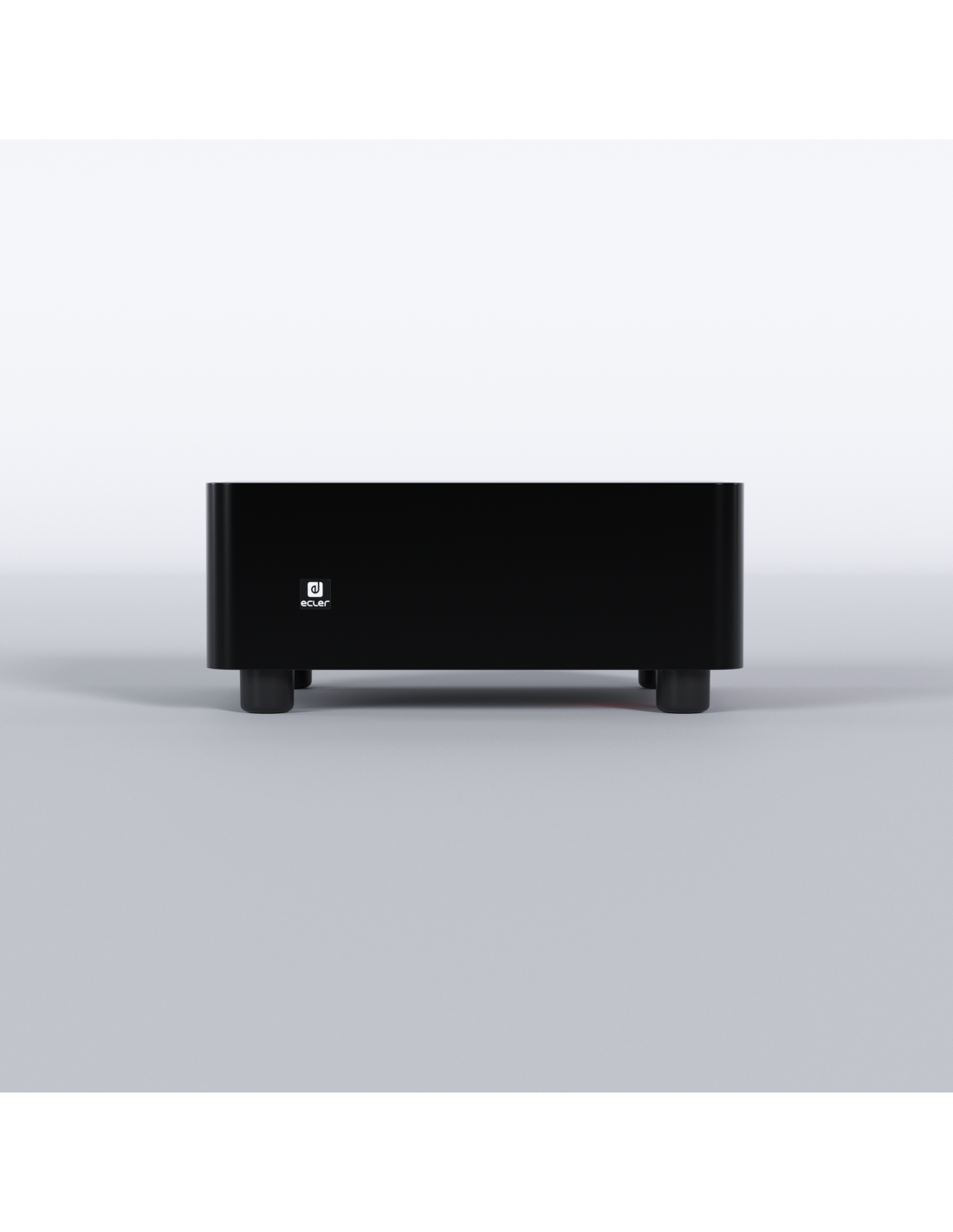

WiLD Series RX 8" Subwoofer
WiLD-SB18 is a compact self-powered 8" subwoofer with wireless audio reception under the control of the transmitter WiLD-TX. WiLD is the ultimate long-distance wireless audio solution. Designed for retail spaces, museums, and other markets, WiLD offers a cost-effective, robust, and user-friendly installation that blends seamlessly into any environment. Experience superior sound quality with minimal visual impact. Upgrade to WiLD today and transform your audio experience!
- Effective Freq. Range
- 57Hz-693Hz (-10dB)
- Sensitivity
- 92 dB (1W/1m)
- Maximum SPL
- 112 dB continuous / 118 dB peak
- Ways
- 1-way full range
- Nominal impedance
- 4Ω
- Installation options
- Floor, Wall-mount brackets
- Enclosure material
- MDF
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Storage humidity
- 90% HR
- Included accessories
- 1x EU AC voltage cord (3x1-1,5m) , 1 UK AC voltage cord (3x1-1,5m), 4x wall screws, 4x wall plugs, 2x Wall-mount brackets, 12x screws.
- Finished colour
- Black (RAL 9005)
- Dimensions
- 450 x 193 x 360 mm / 17.72 x 7.60 x 14.17 in. (WxHxD)
- Weight
- 9.1 kg / 20.06 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 550 x 382 x 460 mm / 21.65 x 15.04 x 18.11 in. (WxHxD)
- Shipping weight
- 11.5 kg / 25.35 lb
- Input sensitivity
- -8dBV / 10kΩ (wireless Audio)
-15 dBV / 10kΩ (line in) - AC mains requirement
- 100-240VAC @ 50-60Hz
- AC mains connector
- standard 2-pin AC plug
- Power consumption
- 150W
- Power supply
- Universal, internal power supply
- Mounting system
- Metal brackets
- Driver
- 8" woofer
- Power
- 100W RMS / 150W peak
- Audio inputs
- Wireless Audio: Digital, Mono
Line in: ST unbalanced 3-pin Euroblock - Audio outputs
- Internal Loudspeaker: Analog, Mono, Self powered
- LED Indicators
- Status
- THD + Noise
- 1% @1Hz Full power
- Latency
- From TX Analog Audio IN to RX Speaker 26ms
- Frequency band
- 1880 - 1930MHz,EU DECT, US DECT
- Coverage range
- Up to 150m from a TX to any paired RX, direct line of sight
- Audio channels
- 1 stereo audio ch received from the WiLD-TX network
- Audio transmission
- 16 bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 16bit
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 10Hz – 15kHz (-1dB)
- Digital Audio converters
- ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB - Pairing time
- Up to 60s
- Volume control
- Led display, +/- volume buttons
- Signal Noise Ratio
- 110dB @100W RMS
- Power consumption standby
- ＜2W
- Ventilation
- Convection cooled
- Other controls
- PAIR: via WiLD button
LP Filter: via volume buttons
StandBy: via volume buttons - Auto standby time
- 20min, 1H, 4H, On
- Auto standby threshold
- 50 dB
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
57Hz-693Hz (-10dB) |
|---|---|
| Sensitivity |
92 dB (1W/1m) |
| Maximum SPL |
112 dB continuous / 118 dB peak |
TRANSDUCERS
| Ways |
1-way full range |
|---|---|
| Nominal impedance |
4Ω |
| Driver |
8" woofer |
PHYSICAL
| Installation options |
Floor, Wall-mount brackets |
|---|---|
| Enclosure material |
MDF |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Storage humidity |
90% HR |
| Included accessories |
1x EU AC voltage cord (3x1-1,5m) , 1 UK AC voltage cord (3x1-1,5m), 4x wall screws, 4x wall plugs, 2x Wall-mount brackets, 12x screws. |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
450 x 193 x 360 mm / 17.72 x 7.60 x 14.17 in. (WxHxD) |
| Weight |
9.1 kg / 20.06 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
550 x 382 x 460 mm / 21.65 x 15.04 x 18.11 in. (WxHxD) |
| Shipping weight |
11.5 kg / 25.35 lb |
| Mounting system |
Metal brackets |
POWERED
| Power |
100W RMS / 150W peak |
|---|---|
| Audio inputs |
Wireless Audio: Digital, Mono
Line in: ST unbalanced 3-pin Euroblock |
| Audio outputs |
Internal Loudspeaker: Analog, Mono, Self powered |
| Signal Noise Ratio |
110dB @100W RMS |
ELECTRICAL
| AC mains requirement |
100-240VAC @ 50-60Hz |
|---|---|
| AC mains connector |
standard 2-pin AC plug |
| Power consumption |
150W |
| Power supply |
Universal, internal power supply |
| Power consumption standby |
＜2W |
| Ventilation |
Convection cooled |
AUDIO CONVERTERS
| Latency |
From TX Analog Audio IN to RX Speaker 26ms |
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
1880 - 1930MHz,EU DECT, US DECT |
|---|---|
| Coverage range |
Up to 150m from a TX to any paired RX, direct line of sight |
| Audio channels |
1 stereo audio ch received from the WiLD-TX network |
| Audio transmission |
16 bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
16bit |
| Digital Audio Sampling rate |
48kHz |
| Digital Audio Frequency Response |
10Hz – 15kHz (-1dB) |
| Digital Audio converters |
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB |
| Pairing time |
Up to 60s |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-8dBV / 10kΩ (wireless Audio)
-15 dBV / 10kΩ (line in) |
|---|
MONITORING AND CONTROL
| LED Indicators |
Status |
|---|---|
| Volume control |
Led display, +/- volume buttons |
| Other controls |
PAIR: via WiLD button
LP Filter: via volume buttons
StandBy: via volume buttons |
| Auto standby time |
20min, 1H, 4H, On |
| Auto standby threshold |
50 dB |
LINE OUTPUTS
| THD + Noise |
1% @1Hz Full power |
|---|
