WiLD-14
CWILD14WH
Check availability

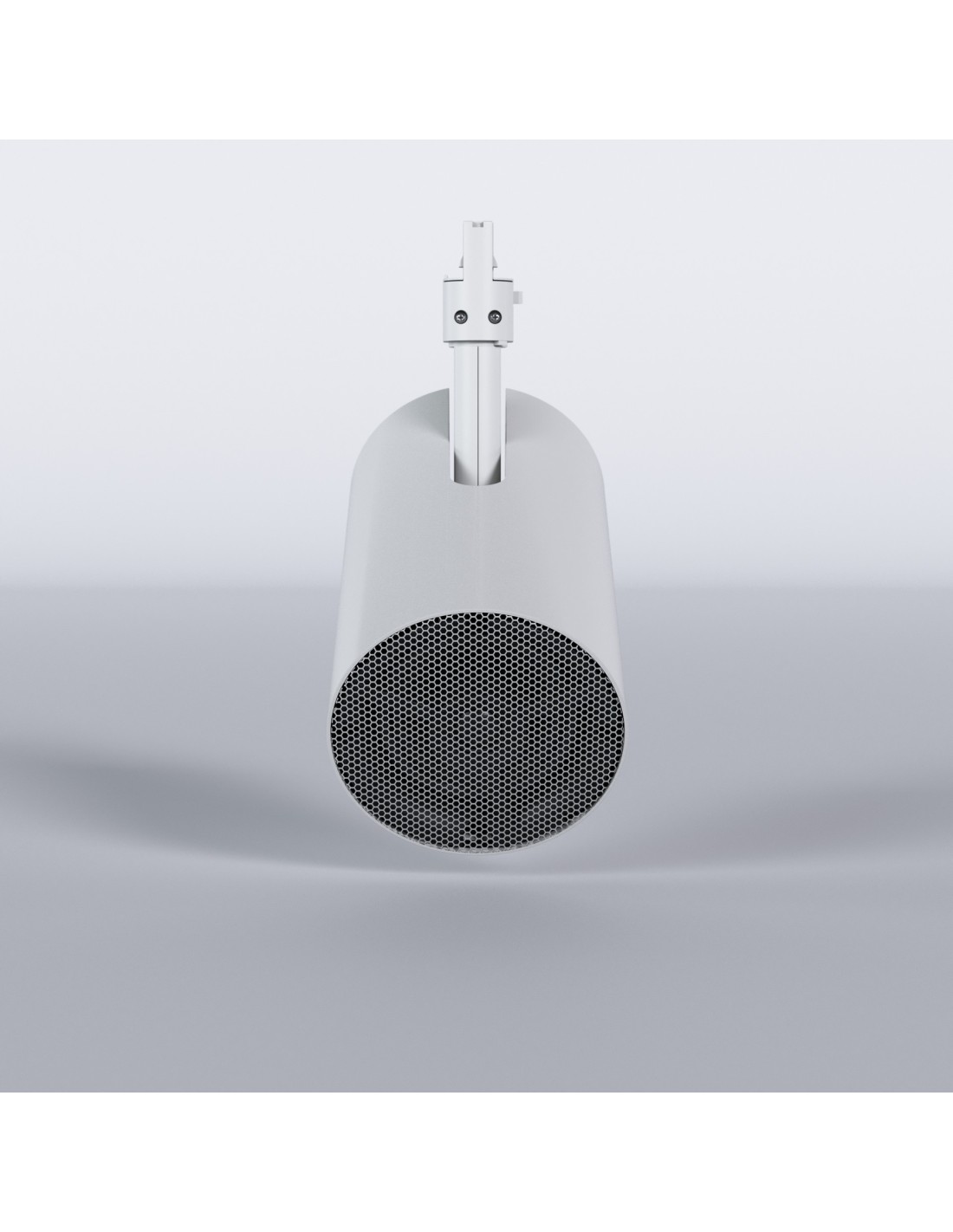

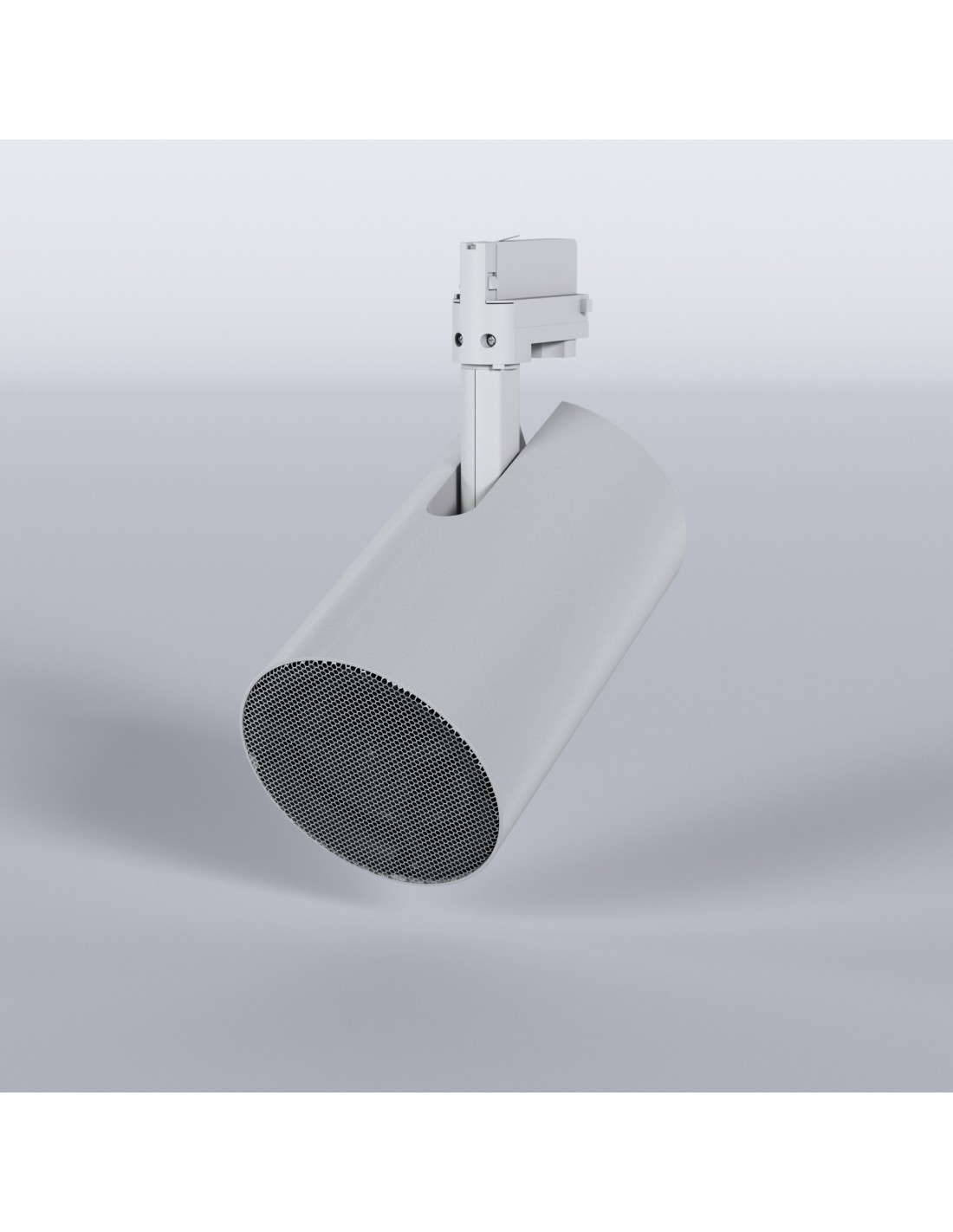

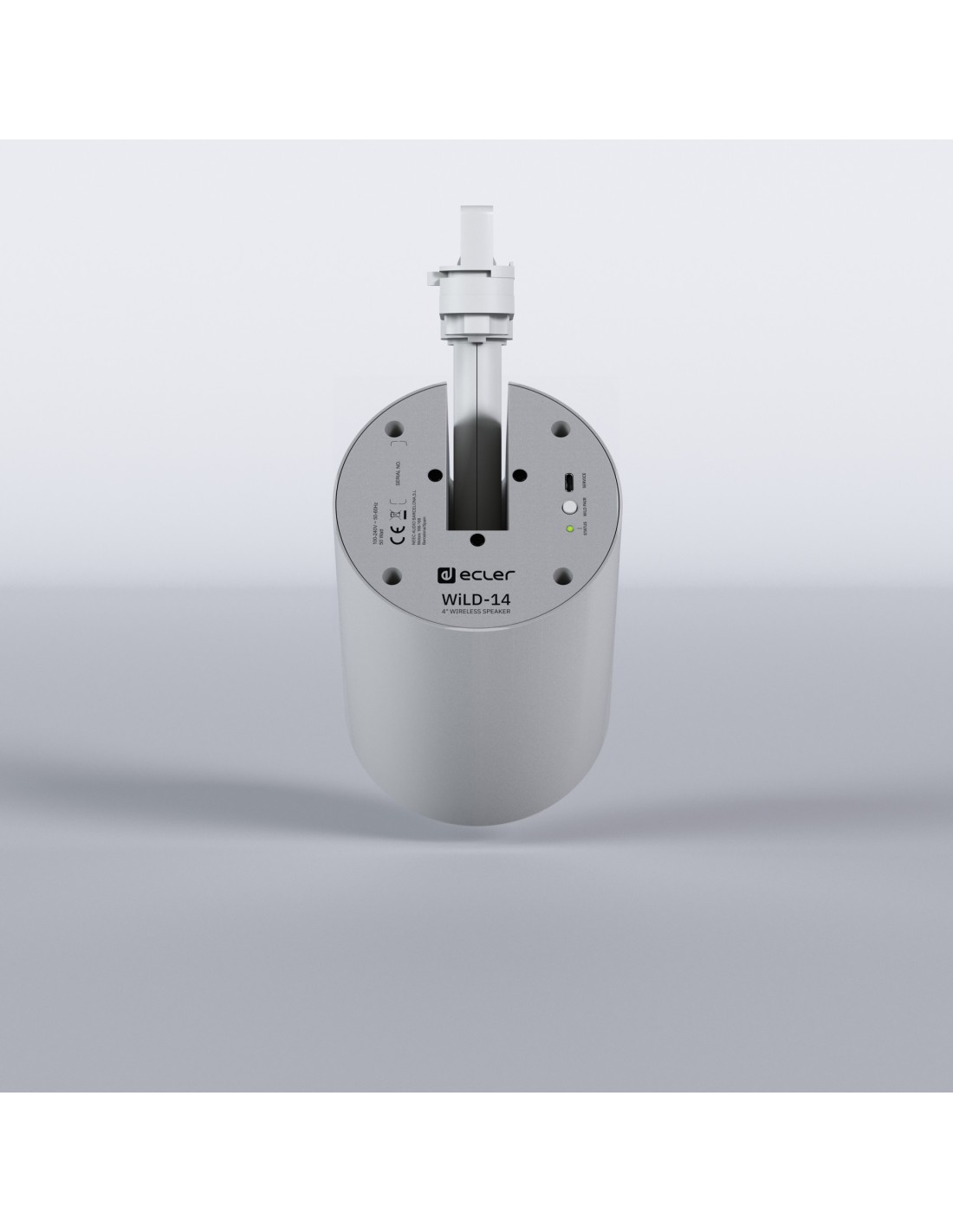

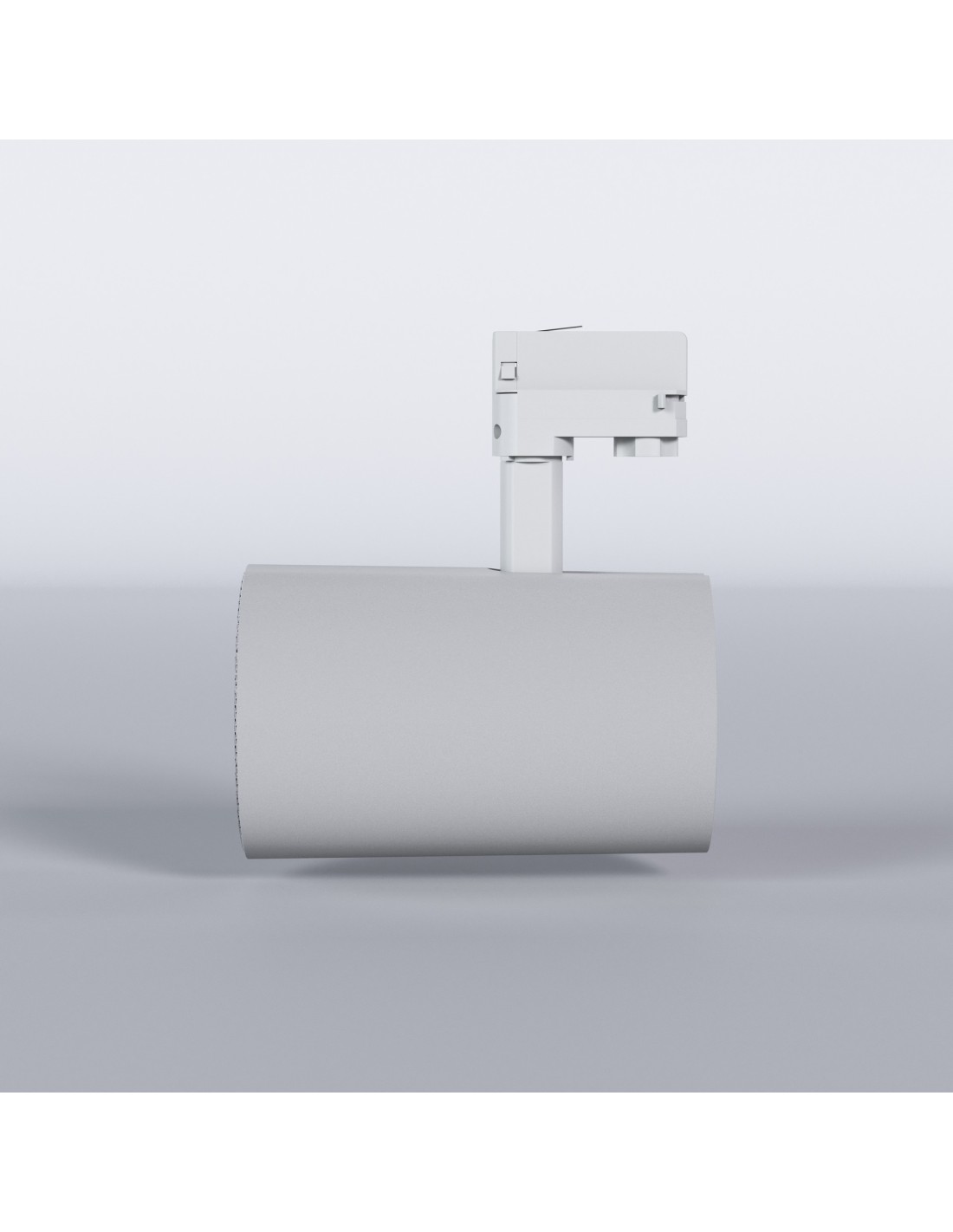

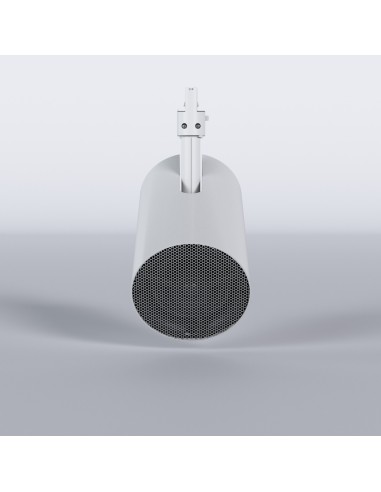

WiLD Series RX Rail-mount Loudspeaker

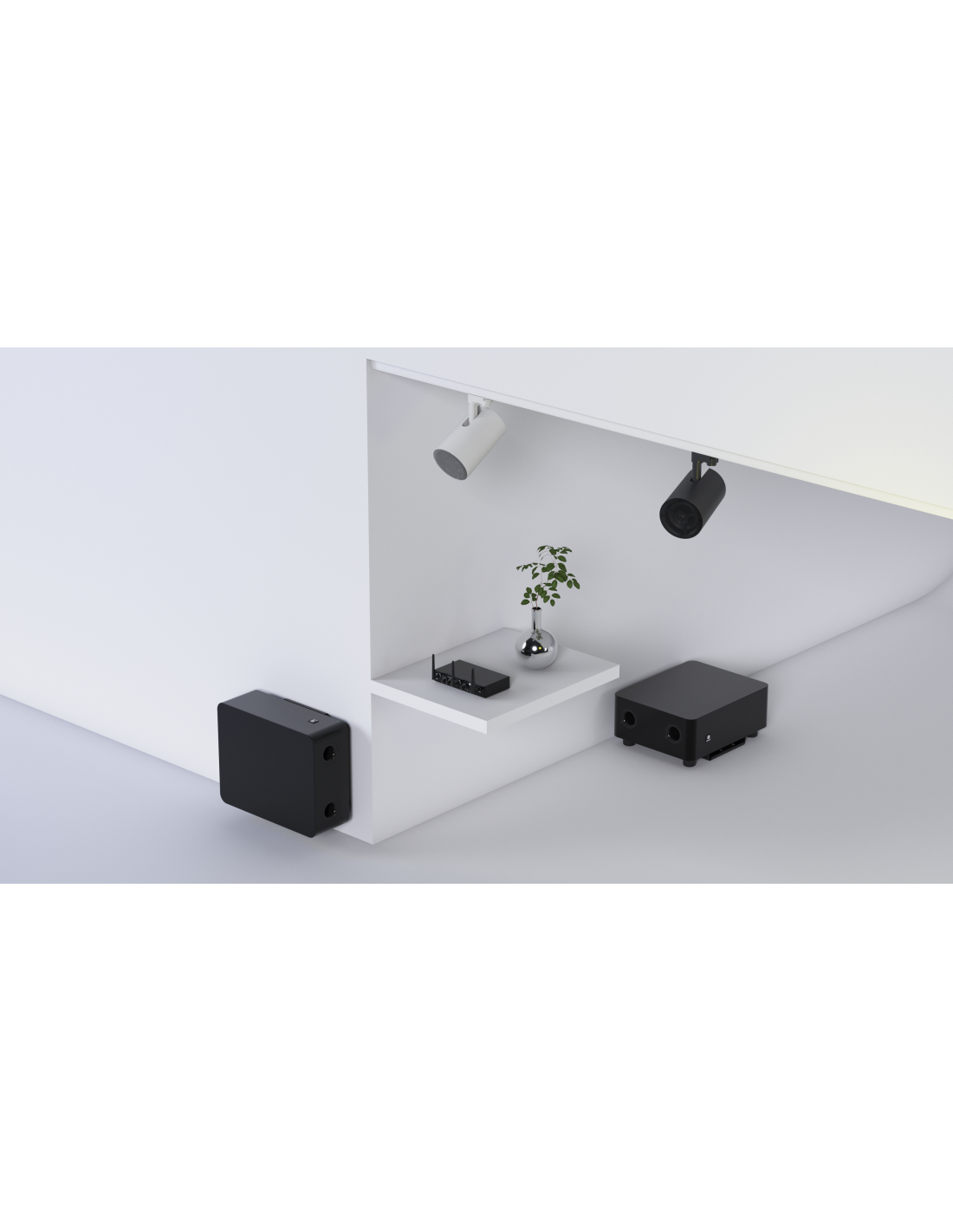

WiLD-14 is a self-powered 4" lamp style loudspeaker with wireless audio reception under the control of the transmitter WiLD-TX, featuring an installation system which is compatible with ceiling light rails. WiLD is the ultimate long-distance wireless audio solution. Designed for retail spaces, museums, and other markets, WiLD offers a cost-effective, robust, and user-friendly installation that blends seamlessly into any environment. Experience superior sound quality with minimal visual impact. Upgrade to WiLD today and transform your audio experience!
- Effective Freq. Range
- 63 - 20kHz (-10dB)
- Sensitivity
- 86 dB (1W/1m)
- Maximum SPL
- 102 dB continuous / 108 dB peak
- Ways
- 2 ways
- Low frequency driver
- 4" woofer
- High frequency driver
- 0,75” tweeter
- Nominal impedance
- 4Ω
- Connection type
- Ceiling rail AC connection
- Installation options
- Ceiling light rails, or suface using TUBE SMA
- Enclosure material
- ABS
- Grille material
- Metal
- Pan and tilt wall-mount
- Swivel (pan and tilt)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Storage humidity
- 90% HR
- Included accessories
- Lighting rail mount
- Optional accessories
- Surface mount accessory (TUBE SMA)
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 128.6 x 205.3 mm / 5.06 x 8.08 in. (∅xD)
- Weight
- 1.5 kg / 3.3 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 385 x 178 x 165 mm / 15.16 x 7.01 x 6.50 in. (WxHxD)
- Shipping weight
- 2.2 kg / 4.85 lb
- Input sensitivity
- 0dBV / 10kΩ
- AC mains requirement
- 100-240VAC @ 50-60Hz
- AC mains connector
- From lighting rail bracket
- Power consumption
- 50W
- Power supply
- Universal, internal power supply
- Mounting system
- Lighting rail mount compatible
- Power
- 40 W RMS / 160 W Peak
- Audio inputs
- Wireless Audio: Digital, Mono
- Audio outputs
- Internal Loudspeaker: Analogue, Mono, Self powered
- LED Indicators
- Status
- THD + Noise
- 1% @1kHz Full power
- Latency
- From TX Analog Audio IN to RX Speaker 26ms
- Frequency band
- 1880 - 1930MHz,EU DECT, US DECT
- Coverage range
- Up to 150m from a TX to any paired RX, direct line of sight
- Audio channels
- 1 stereo audio ch received from the WiLD-TX network
- Audio transmission
- 16 bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 16bit
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 10Hz – 15kHz (-1dB)
- Digital Audio converters
- ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB - Pairing time
- Up to 60s
- Communication interfaces
- USB-C Service & firmware updates
- Coverage angle
- 320°
- Signal Noise Ratio
- 90.5dB @30W RMS
- Power consumption standby
- 2W
- Other controls
- PAIR / UNPAIR: via Panel button
- Rail fixing system
- 4 wire 3 circuit track system compatible
- Compatible rail systems
- Global Trac Pro or compatibles
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
63 - 20kHz (-10dB) |
|---|---|
| Sensitivity |
86 dB (1W/1m) |
| Maximum SPL |
102 dB continuous / 108 dB peak |
| Coverage angle |
320° |
TRANSDUCERS
| Ways |
2 ways |
|---|---|
| Low frequency driver |
4" woofer |
| High frequency driver |
0,75” tweeter |
| Nominal impedance |
4Ω |
PHYSICAL
| Connection type |
Ceiling rail AC connection |
|---|---|
| Installation options |
Ceiling light rails, or suface using TUBE SMA |
| Enclosure material |
ABS |
| Grille material |
Metal |
| Pan and tilt wall-mount |
Swivel (pan and tilt) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Storage humidity |
90% HR |
| Included accessories |
Lighting rail mount |
| Optional accessories |
Surface mount accessory (TUBE SMA) |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
128.6 x 205.3 mm / 5.06 x 8.08 in. (∅xD) |
| Weight |
1.5 kg / 3.3 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
385 x 178 x 165 mm / 15.16 x 7.01 x 6.50 in. (WxHxD) |
| Shipping weight |
2.2 kg / 4.85 lb |
| Mounting system |
Lighting rail mount compatible |
| Rail fixing system |
4 wire 3 circuit track system compatible |
| Compatible rail systems |
Global Trac Pro or compatibles |
POWERED
| Power |
40 W RMS / 160 W Peak |
|---|---|
| Audio inputs |
Wireless Audio: Digital, Mono |
| Audio outputs |
Internal Loudspeaker: Analogue, Mono, Self powered |
| Signal Noise Ratio |
90.5dB @30W RMS |
ELECTRICAL
| AC mains requirement |
100-240VAC @ 50-60Hz |
|---|---|
| AC mains connector |
From lighting rail bracket |
| Power consumption |
50W |
| Power supply |
Universal, internal power supply |
| Power consumption standby |
2W |
AUDIO CONVERTERS
| Latency |
From TX Analog Audio IN to RX Speaker 26ms |
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
1880 - 1930MHz,EU DECT, US DECT |
|---|---|
| Coverage range |
Up to 150m from a TX to any paired RX, direct line of sight |
| Audio channels |
1 stereo audio ch received from the WiLD-TX network |
| Audio transmission |
16 bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
16bit |
| Digital Audio Sampling rate |
48kHz |
| Digital Audio Frequency Response |
10Hz – 15kHz (-1dB) |
| Digital Audio converters |
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB |
| Pairing time |
Up to 60s |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dBV / 10kΩ |
|---|
MONITORING AND CONTROL
| LED Indicators |
Status |
|---|---|
| Communication interfaces |
USB-C Service & firmware updates |
| Other controls |
PAIR / UNPAIR: via Panel button |
LINE OUTPUTS
| THD + Noise |
1% @1kHz Full power |
|---|
