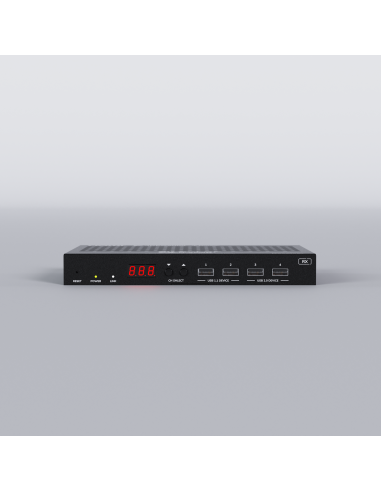

VEO-XRI4D
CVEOXRI4D
Available
JPEG2000 4K Over IP Video Receiver with Dante®

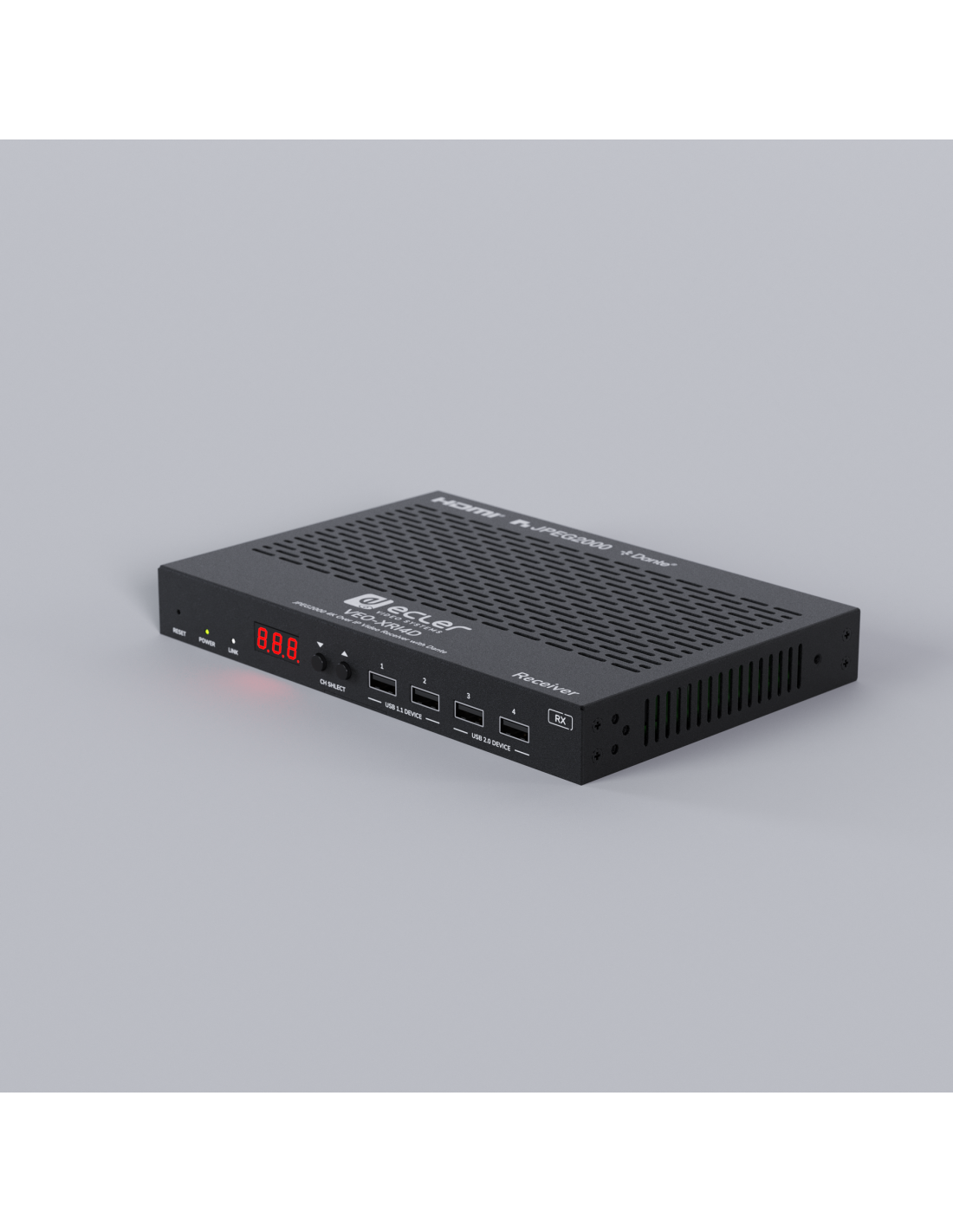

VEO-XRI4D receiver is a professional JPEG2000 over IP extender that enable secure HDMI® distribution with 18Gbps bandwidth, supporting 4K 60Hz 4:4:4 video over 1Gb Ethernet networks, reaching distances up to 100 meters on a single Cat 6 or higher cable and a transmission latency of 1-2 frames. Equipped with dual RJ-45 ports, the unit supports independent or combined network configurations for Dante AV-A. Designed for versatility, it features stereo audio insertion and extraction, along with digital audio outputs supporting ARC/eARC and SPDIF. Advanced video wall management up to a 9x9 configuration is also supported when paired with the VEO-XCTRL4D controller, along with additional control options. Front panel controls, PoE capability, and a built-in WebGUI with TCP and RS-232 control commands which offer straightforward setup and management, as well as relay and channel GPI/GPO control port, CEC, USB 2.0 KVM and IR extension, making it a robust, scalable solution ideal for professional AV installations demanding leading-edge signal distribution and control.
- Operating temperature
- Min: 0°C ; 32°F
Max: 40°C ; 104°F
- Operating humidity
- 20% - 90% RH, no condensing
- Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
- Storage humidity
- 20% - 90% RH, no condensing
- Included accessories
- 1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 3 x 3-pin 3.5mm Euroblock connector, 2 x 4-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x PSU 12V/2.5A
- Optional accessories
- VEO-XCTRL4D
- Finished colour
- Black
- Dimensions
- 204 x 25.5 x 136 mm / 8.03 x 1.0 x 5.35 in. (WxHxD)
- Weight
- 0.626 Kg / 1.38 lb
- Shipping dimensions
- 280 x 80 x 180 mm / 11.02 x 3.15 x 7.09 in. (WxHxD)
- Shipping weight
- 1.16 kg / 2.56 lb
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades (UK,US,AU,EU)
- Power consumption
- 7.8W
- Video Output Connectors
- 1 x HDMI® Type A Female, 2.0, 18Gbps
- Video Input Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
- Video Output Resolutions
- 1080p up to 60Hz, 4K up to 60Hz
- Chroma Subsampling
- 4:4:4，4:2:2，4:2:0
- Colour Depth
- 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
- Colour Space
- RGB, YCbCr, YUV
- HDCP
- 2.2
- HDR
- HDR10, HDR10+, Dolby Vision
- Audio Input Connectors
- 1 x 3-pin unbalanced Euroblock, 1 x Optical SPDIF
- Audio Output Connectors
- 1 x 3-pin unbalanced Euroblock
- Audio Formats
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X, Dante/AES67 (2/2 flows)
- Sample Rate
- 48KHz, 96KHz, 192KHz
- Bit Depth
- Up to 24-bit
- ARC/eARC
- Yes
- Control Buttons
- 1 x Reset button, 2 x Input selection
- EDID Management
- EDID Settings

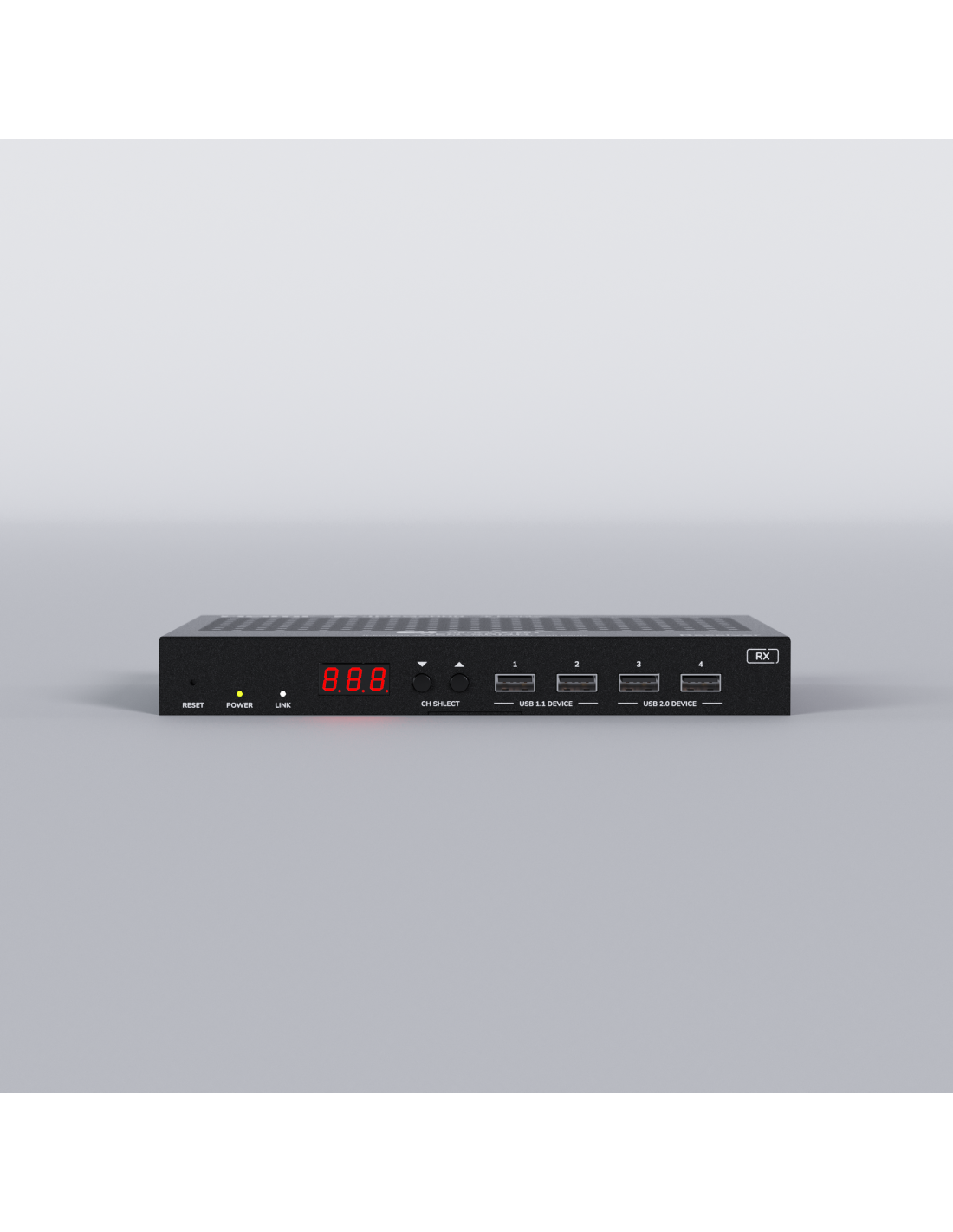

- Status Indicators
- Power LED, Link LED, 3 digit display
- Pass-through Connectors
- 4 x USB Type A, 1 x 3-pin Euroblock, 2 x 4-pin Euroblock , 2 x 3.5mm Jack, 1 x HDMI®
- Power supply
- PoE; External: Input 100-240 VAC @ 50/60Hz, Output: 12VDC-2.5A
- DC mains connector
- DC Locking
- Chassis material
- Metal
- Pass-through Protocols
- USB 2.0, USB 1.1, RS-232, Relay IO, IR, CEC
- Control Connectors
- 1x RJ-45, 1 x 3-pin Euroblock, 2 x Jack 3,5mm
- Control Protocols
- Web, Telnet, RS-232, IR

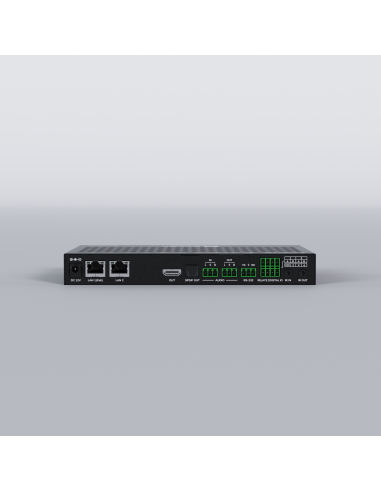

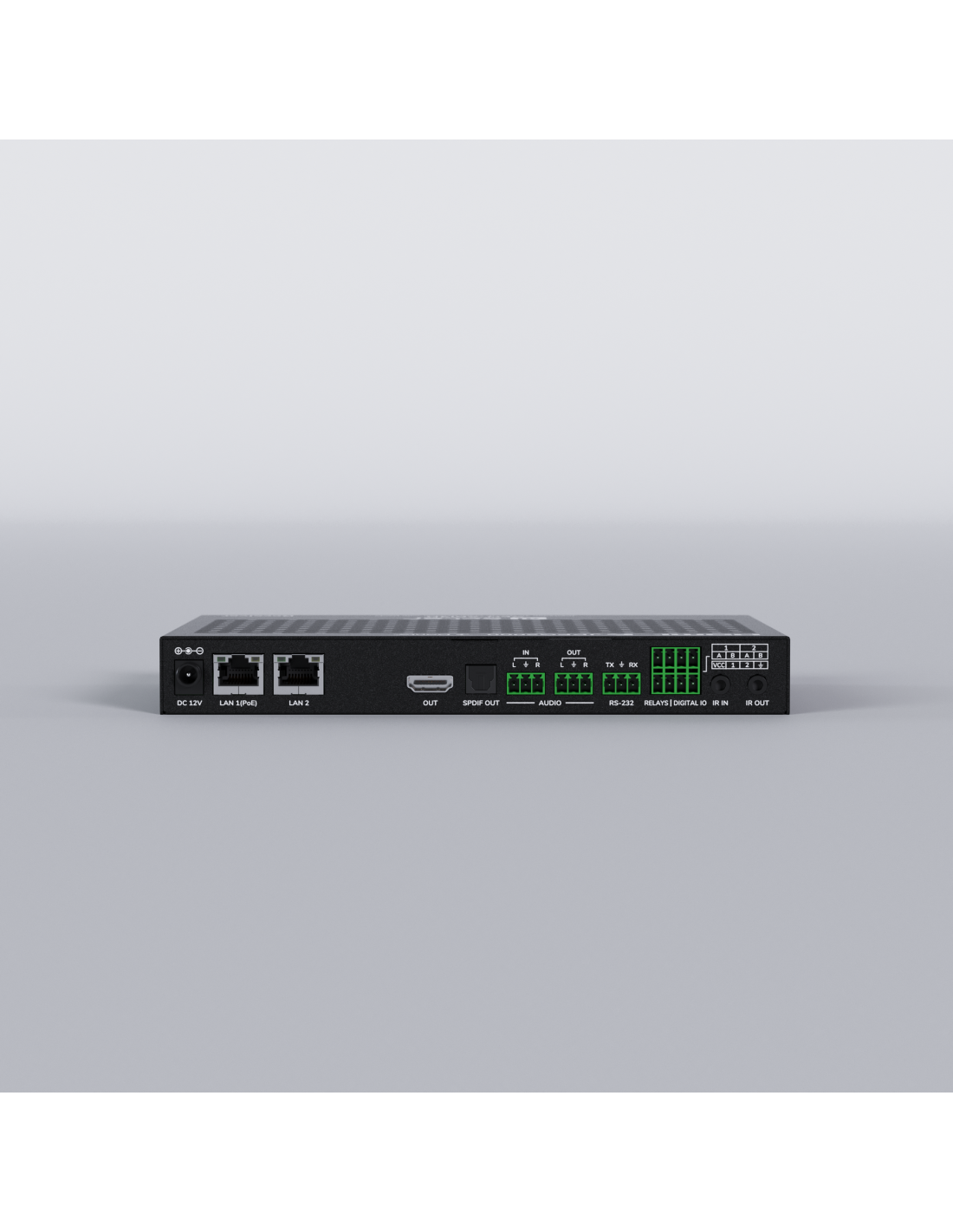

- Network Connectors
- 2 x RJ-45
- Video Composing Capabilities
- Videowall up to 9x9
- Average Streaming Bitrate
- 680Mbps for 4K/60Hz
- Transmission Distance
- 100m via Ethernet (CAT 6 / 6A / 7）
- Network Requirements
- Jumbo Frame, IGMP Management
- Scaling Features
- Up to 4K 60Hz
- Video Codec
- JPEG2000
- Transmission Latency
- 1-2 Frames
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
Min: 0°C ; 32°F
Max: 40°C ; 104°F
|
|---|---|
| Operating humidity |
20% - 90% RH, no condensing |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
|
| Storage humidity |
20% - 90% RH, no condensing |
| Included accessories |
1 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 3 x 3-pin 3.5mm Euroblock connector, 2 x 4-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x PSU 12V/2.5A |
| Optional accessories |
VEO-XCTRL4D |
| Finished colour |
Black |
| Dimensions |
204 x 25.5 x 136 mm / 8.03 x 1.0 x 5.35 in. (WxHxD) |
| Weight |
0.626 Kg / 1.38 lb |
| Shipping dimensions |
280 x 80 x 180 mm / 11.02 x 3.15 x 7.09 in. (WxHxD) |
| Shipping weight |
1.16 kg / 2.56 lb |
| Chassis material |
Metal |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades (UK,US,AU,EU) |
|---|---|
| Power consumption |
7.8W |
| Power supply |
PoE; External: Input 100-240 VAC @ 50/60Hz, Output: 12VDC-2.5A |
| DC mains connector |
DC Locking |
DEVICE CONTROL
| Control Buttons |
1 x Reset button, 2 x Input selection |
|---|---|
| EDID Management |
EDID Settings |
| Status Indicators |
Power LED, Link LED, 3 digit display |
| Control Connectors |
1x RJ-45, 1 x 3-pin Euroblock, 2 x Jack 3,5mm |
| Control Protocols |
Web, Telnet, RS-232, IR |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB) |
|---|
VIDEO PERFOMANCES
| Video Output Connectors |
1 x HDMI® Type A Female, 2.0, 18Gbps |
|---|---|
| Video Input Resolutions |
480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz |
| Video Output Resolutions |
1080p up to 60Hz, 4K up to 60Hz |
| Chroma Subsampling |
4:4:4，4:2:2，4:2:0 |
| Colour Depth |
8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0) |
| Colour Space |
RGB, YCbCr, YUV |
| HDCP |
2.2 |
| HDR |
HDR10, HDR10+, Dolby Vision |
| Video Composing Capabilities |
Videowall up to 9x9 |
| Scaling Features |
Up to 4K 60Hz |
| Video Codec |
JPEG2000 |
| Transmission Latency |
1-2 Frames |
AUDIO PERFORMANCES
| Audio Input Connectors |
1 x 3-pin unbalanced Euroblock, 1 x Optical SPDIF |
|---|---|
| Audio Output Connectors |
1 x 3-pin unbalanced Euroblock |
| Audio Formats |
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X, Dante/AES67 (2/2 flows) |
| Sample Rate |
48KHz, 96KHz, 192KHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
Yes |
PASS-THROUGH CONTROL
| Pass-through Connectors |
4 x USB Type A, 1 x 3-pin Euroblock, 2 x 4-pin Euroblock , 2 x 3.5mm Jack, 1 x HDMI® |
|---|---|
| Pass-through Protocols |
USB 2.0, USB 1.1, RS-232, Relay IO, IR, CEC |
NETWORK
| Network Connectors |
2 x RJ-45 |
|---|---|
| Average Streaming Bitrate |
680Mbps for 4K/60Hz |
| Network Requirements |
Jumbo Frame, IGMP Management |
HDBaseT SPECIFICATION
| Transmission Distance |
100m via Ethernet (CAT 6 / 6A / 7） |
|---|
