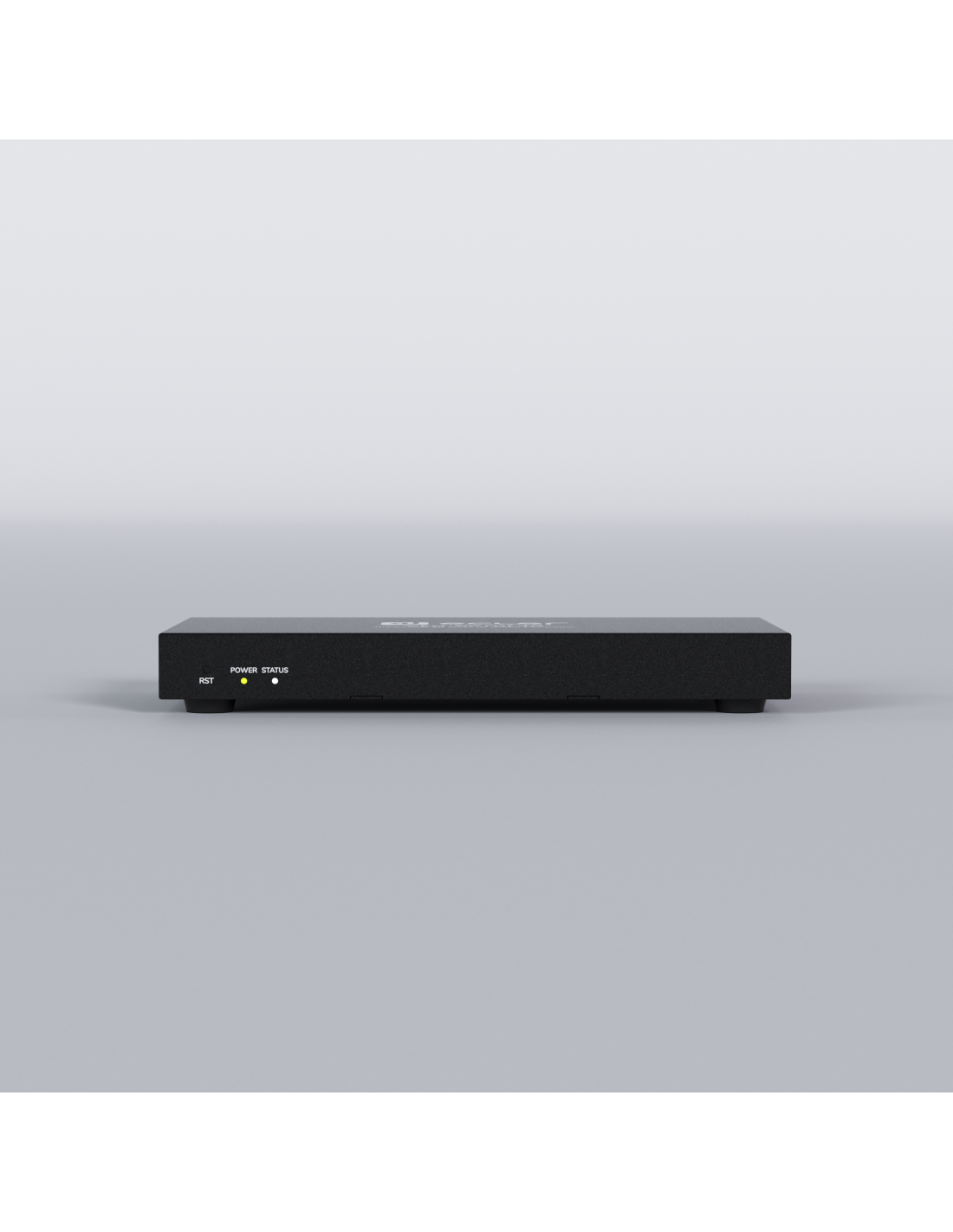

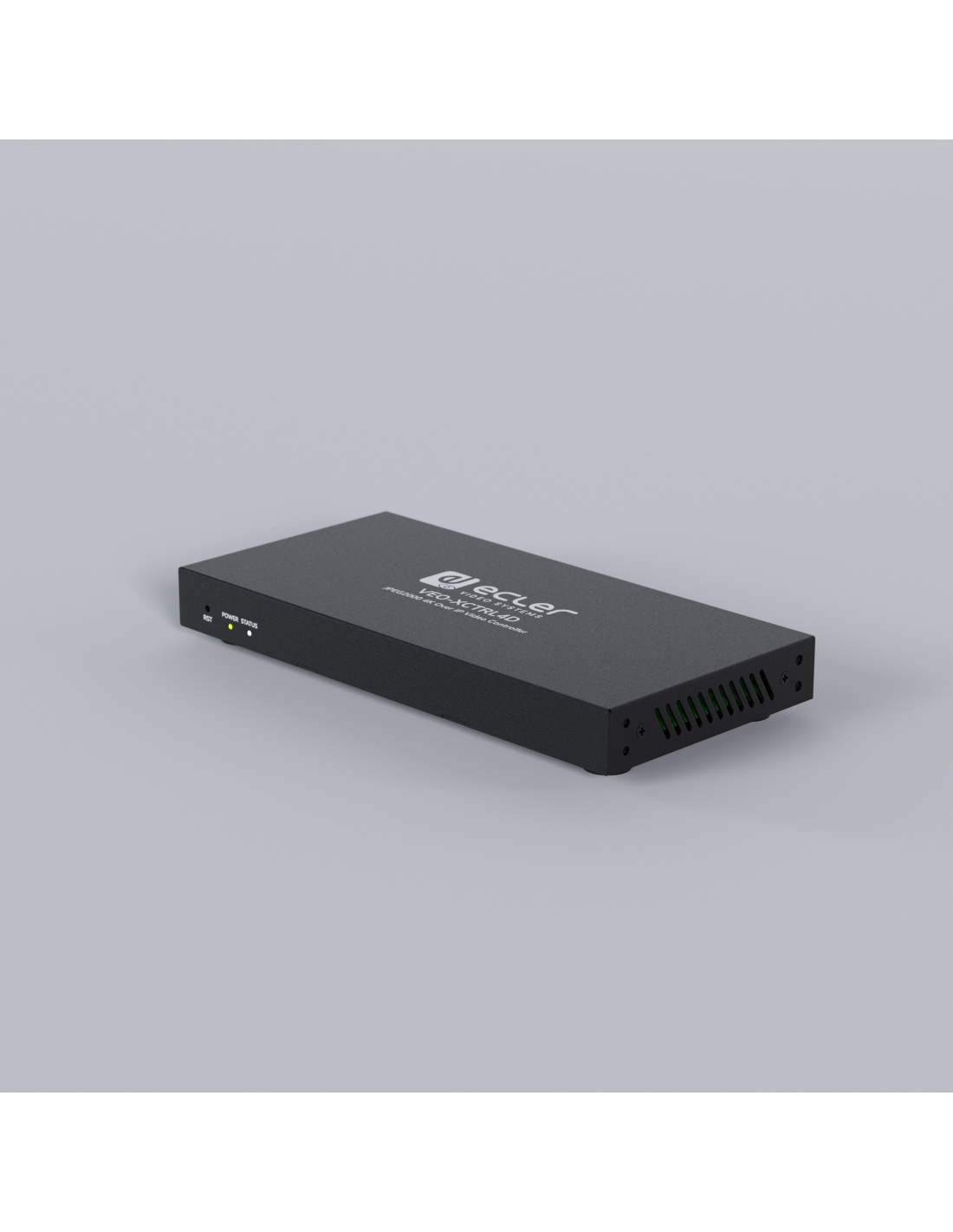

VEO-XCTRL4D
CVEOXCTRL4D
Check availability
JPEG2000 4K Over IP Video Controller
VEO-XCTRL4D is a controller module designed to manage and operate VEO-XTI4D and VEO-XRI4D video over IP devices in complex multipoint-to-multipoint AV systems. It features dual dedicated LAN ports to support independent Control and Video networks, ensuring seamless integration across diverse setups. The VEO-XCTRL4D includes a user-friendly web interface with a setup wizard, matrix control, smart video wall creation, drag-and-drop source selection, video preview, and TCP and RS-232 control commands. Supporting PoE functionality, the VEO-XCTRL4D is an advanced management tool suited for a wide range of AV over IP installations.
- Operating temperature
- Min: 0°C ; 32°F
Max: 40°C ; 104°F - Operating humidity
- 20% - 90% RH, no condensing
- Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
- Storage humidity
- 20% - 90% RH, no condensing
- Included accessories
- 1 x IR Receiver cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 1 x 6-pin 3.5mm Euroblock connector, 2 x Mounting ears, 4 x Mounting screw, 1 x PSU 12V/1A
- Finished colour
- Black
- Dimensions
- 204 x 21.5 x 98.5 mm / 8.03 x 0.85 x 3.88 in. (WxHxD)
- Weight
- 0.509 Kg / 1.12 lb
- Shipping dimensions
- 280 x 80 x 180 mm / 11.02 x 3.15 x 7.09 in. (WxHxD)
- Shipping weight
- 0.9 kg / 1.98 lb
- AC mains connector
- External PSU. Included 4 region power blades (UK,US,AU,EU)
- Power consumption
- 4.5W
- Control Buttons
- 1 x Reset button
- Status Indicators
- Power LED, Link LED, 3 digit display
- Pass-through Connectors
- 1 x 3-pin Euroblock, 1 x 6-pin Euroblock, 1 x 3.5mm Jack
- Power supply
- PoE; External: Input 100-240 VAC @ 50/60Hz, Output: 12VDC-1A
- DC mains connector
- DC Locking
- Chassis material
- Metal
- Pass-through Protocols
- RS-232, Relay IO, IR

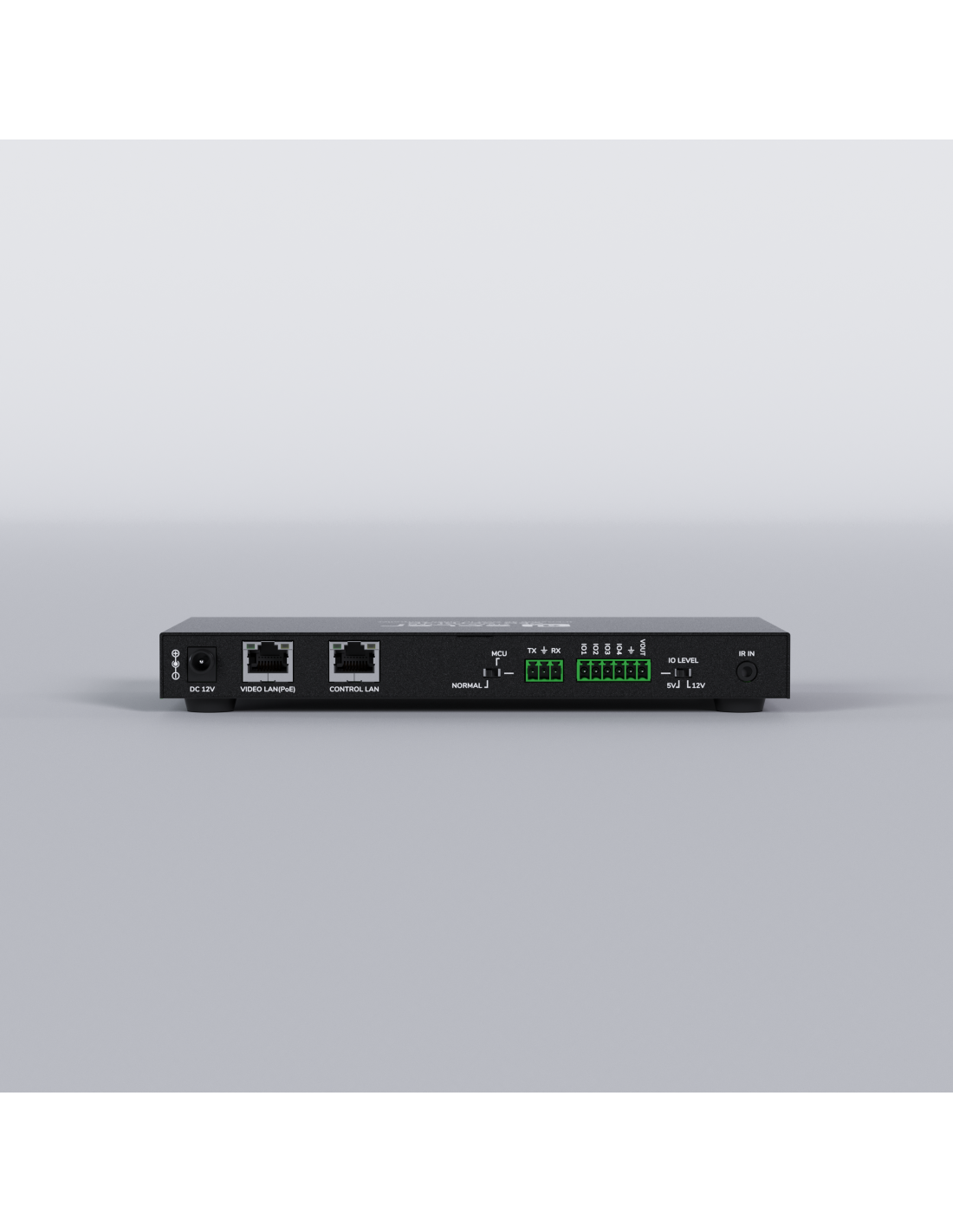

- Control Connectors
- 1 x RJ-45, 1 x 3-pin Euroblock, 1 x Jack 3,5mm
- Control Protocols
- Web, Telnet, RS-232, IR
- Network Connectors
- 2 x RJ- 45
- Average Streaming Bitrate
- Configurable via software 1-20 Mbps
- Transmission Distance
- 100m via Ethernet (CAT 6 / 6A / 7）
- Network Requirements
- Jumbo Frame, IGMP Management
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
Min: 0°C ; 32°F
Max: 40°C ; 104°F |
|---|---|
| Operating humidity |
20% - 90% RH, no condensing |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
|
| Storage humidity |
20% - 90% RH, no condensing |
| Included accessories |
1 x IR Receiver cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 1 x 6-pin 3.5mm Euroblock connector, 2 x Mounting ears, 4 x Mounting screw, 1 x PSU 12V/1A |
| Finished colour |
Black |
| Dimensions |
204 x 21.5 x 98.5 mm / 8.03 x 0.85 x 3.88 in. (WxHxD) |
| Weight |
0.509 Kg / 1.12 lb |
| Shipping dimensions |
280 x 80 x 180 mm / 11.02 x 3.15 x 7.09 in. (WxHxD) |
| Shipping weight |
0.9 kg / 1.98 lb |
| Chassis material |
Metal |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades (UK,US,AU,EU) |
|---|---|
| Power consumption |
4.5W |
| Power supply |
PoE; External: Input 100-240 VAC @ 50/60Hz, Output: 12VDC-1A |
| DC mains connector |
DC Locking |
DEVICE CONTROL
| Control Buttons |
1 x Reset button |
|---|---|
| Status Indicators |
Power LED, Link LED, 3 digit display |
| Control Connectors |
1 x RJ-45, 1 x 3-pin Euroblock, 1 x Jack 3,5mm |
| Control Protocols |
Web, Telnet, RS-232, IR |
PASS-THROUGH CONTROL
| Pass-through Connectors |
1 x 3-pin Euroblock, 1 x 6-pin Euroblock, 1 x 3.5mm Jack |
|---|---|
| Pass-through Protocols |
RS-232, Relay IO, IR |
NETWORK
| Network Connectors |
2 x RJ- 45 |
|---|---|
| Average Streaming Bitrate |
Configurable via software 1-20 Mbps |
| Network Requirements |
Jumbo Frame, IGMP Management |
HDBaseT SPECIFICATION
| Transmission Distance |
100m via Ethernet (CAT 6 / 6A / 7） |
|---|
