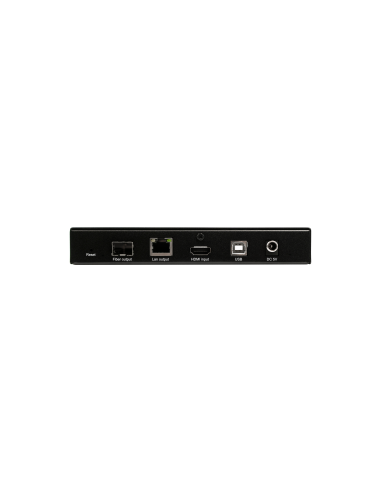

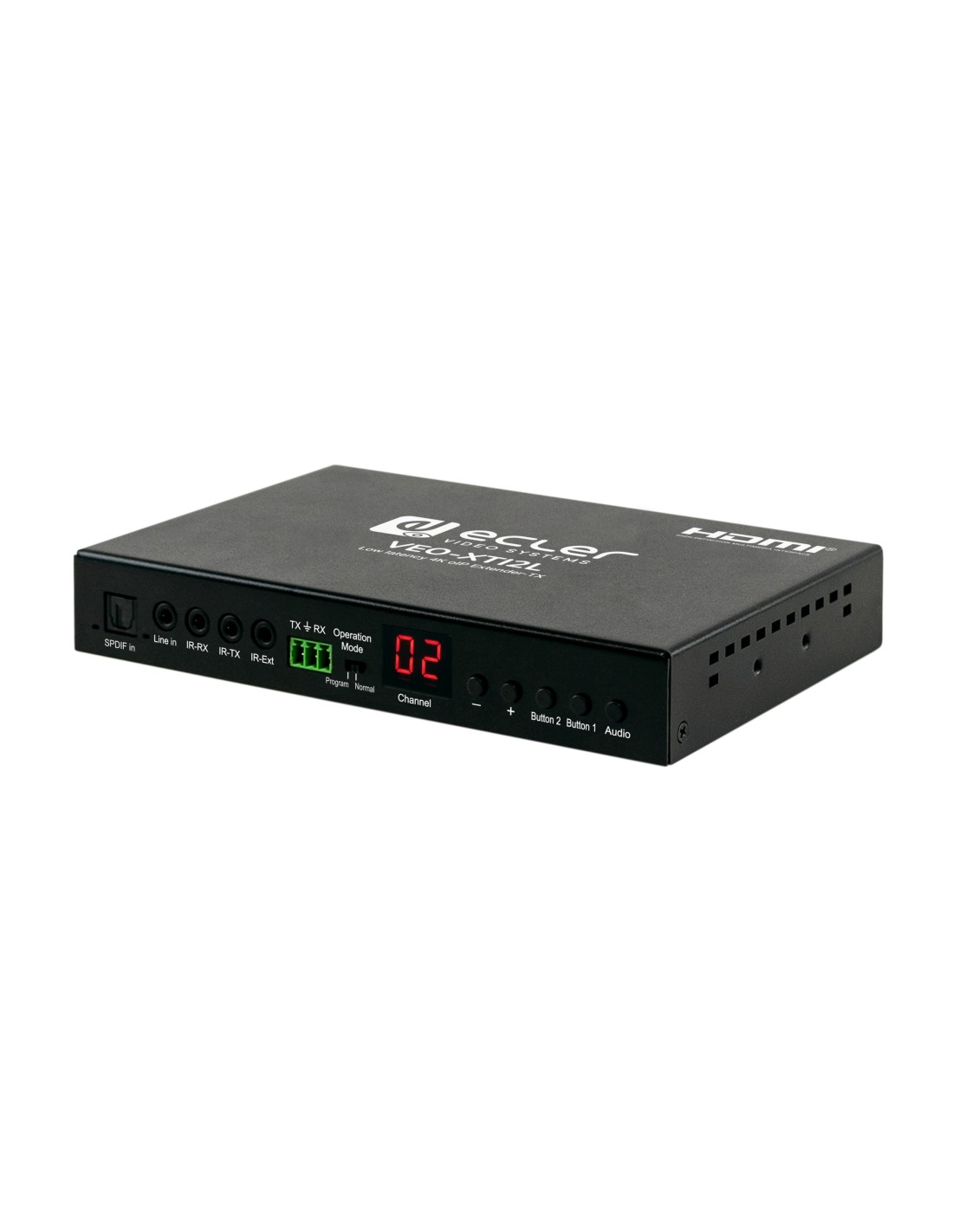

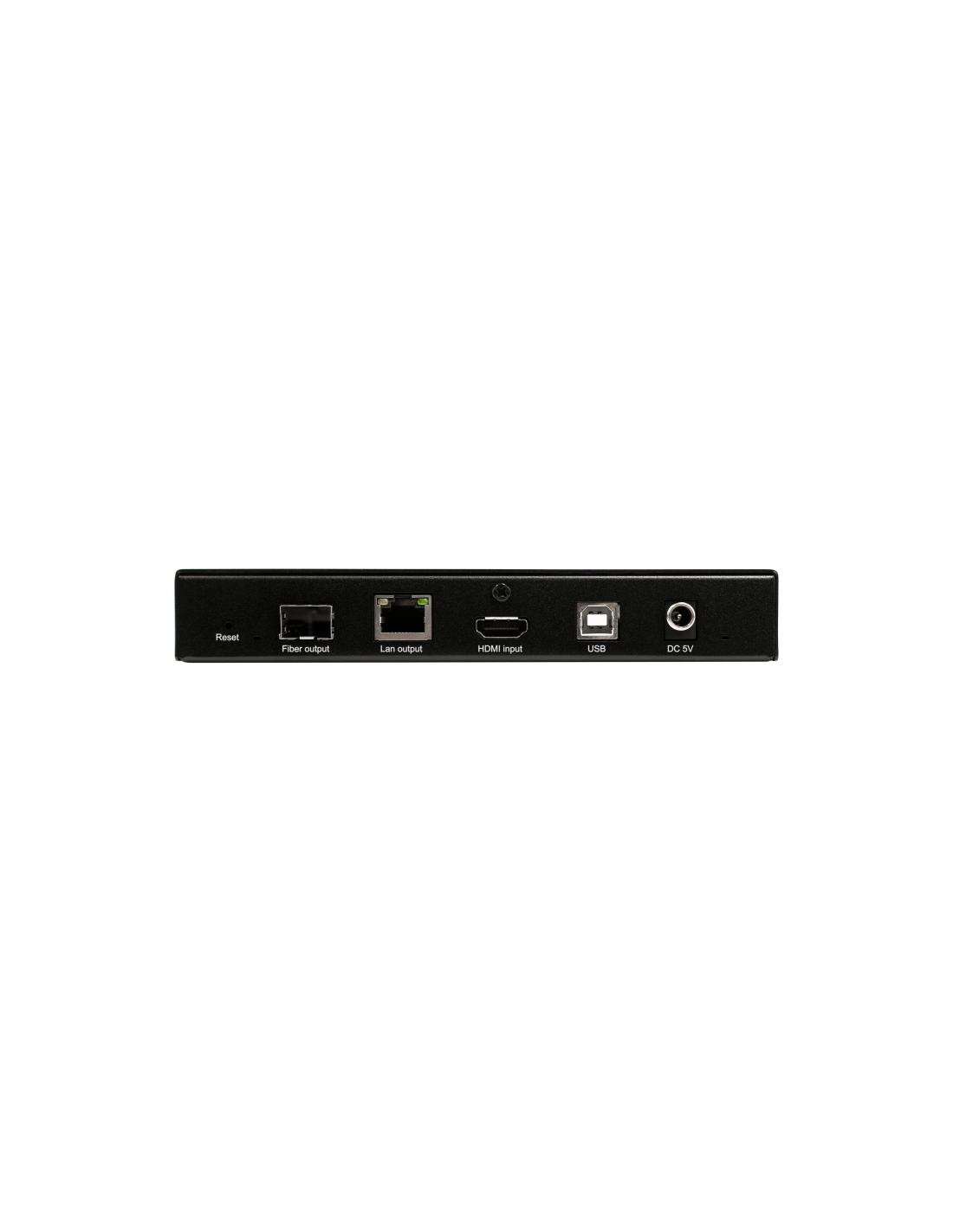

VEO-XTI2L
CVEOXTI2L
Available
4K Low Latency Over IP Video Extender
VEO-XTI2L is a low latency 4K HDMI® extenders over IP. They also provide optional fiber optic connection for extension of 4K signals up to 2Km. This over IP solution is widely suitable for all the applications that require low latency video extension such as real time application or KVM. An intuitive user panel with LEDs display allows to select the stream channel just out of the box, without the need of connecting a PC. The extenders can be power supplied both via PoE or via the included external PSU. Web browser interface, PC tools and third party control protocol are available for advanced settings and advanced control.
- Installation options
- Desktop, VEO-RACK19 - TBC
- Operating temperature
- Min: 0°C ; 32°F
Max: 50°C ; 122°F - Operating humidity
- 20 to 90% non-condensing
- Included accessories
- IR remote control, IR TX cable, 2x IR RX cable, Phoenix connector, 4x screws, 2x detachable mounting tabs, 5VDC power adaptor
- Finished colour
- Black
- Dimensions
- 170 x 26 x 109 mm / 6.69 x 1.02 x 4.29 in. (WxHxD)
- Weight
- 0.470 kg / 1.04 lb
- Shipping dimensions
- 320 x 80 x 170 mm / 12.6 x 3.15 x 6.69 in. (WxHxD)
- Shipping weight
- 1.0 kg / 2.2 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307598
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Power consumption
- 3W Maximum
- Video Input Connectors
- HDMI Type A Female, 1.4 with thread lock
HDMI® Type A Female, 1.4 with thread lock - Video Output Connectors
- 1x Fiber optic SFP receptacle, 1x USB B, 2.0
- Video Input Resolutions
- 3840X2160@30HZ
3840X2160@60Hz(4:2:0) supported and converted to 3840X2160@30Hz,
1080P/1080i/720P/576P/576i/480P/480i - Video Output Resolutions
- 3840X2160@30HZ
3840X2160@60Hz(4:2:0) supported and converted to 3840X2160@30Hz,
1080P/1080i/720P/576P/576i/480P/480i - HDCP
- 1.4/2.2 Compliant
- HDMI Distance
- up to 10 meters with Ecler VEO cables
- Audio Input Connectors
- 3.5mm stereo minijack, S/PDIF Toslink
- Audio Formats
- LPCM 2.0, Dolby True HD, DTS-HD Master Audio
- Sample Rate
- Up to 192 KHz
- Bit Depth
- Up to 24-bit
- Control Buttons
- Reset button, Normal/Program mode switch, Group ID Increase/Decrease button, 2x Function buttons, Audio selection button
- EDID Management
- Software
- Status Indicators
- Analogue audio status indicator, Group ID LED screen, Fibre optic connection indicator, LED Power indicator
- Pass-through Connectors
- USB type B, Euroblock 3-pin, 3.5mm minijack
- Power supply
- PoE; AC 100V - 240V @ 50-60Hz
Output: DC 5V-1A - DC mains connector
- DC 5V Connector
- Chassis material
- Metal
- Pass-through Protocols
- USB, RS-232, IR
- Control Connectors
- RJ-45, Minijack 3.5mm
RJ45, Minijack 3.5mm - Control Protocols
- Web, Telnet, IR
- Network Connectors
- RJ-45 with LED indication and SFP receptacle
RJ45 with LED indication and SFP receptacle - Video Composing Capabilities
- Videowall up to 8x8
- Average Streaming Bitrate
- Up to 300Mps per stream
- Transmission Distance
- Up to 120m. (via CATx) in point-to-point topolgy;
Up to 100m when connected to standard Ethernet devices;
Up to 60Km via single mode Fiber;
Up to 2Km via multi mode Fiber. - Network Requirements
- IGMP and Jumbo Frames compliance
- Scaling Features
- Yes
- Transmission Latency
- Typical 1 to 3 frames depending on network conditions
- Video Composing Capibilities
- Videowall up to 8x8
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 - TBC |
|---|---|
| Operating temperature |
Min: 0°C ; 32°F
Max: 50°C ; 122°F |
| Operating humidity |
20 to 90% non-condensing |
| Included accessories |
IR remote control, IR TX cable, 2x IR RX cable, Phoenix connector, 4x screws, 2x detachable mounting tabs, 5VDC power adaptor |
| Finished colour |
Black |
| Dimensions |
170 x 26 x 109 mm / 6.69 x 1.02 x 4.29 in. (WxHxD) |
| Weight |
0.470 kg / 1.04 lb |
| Shipping dimensions |
320 x 80 x 170 mm / 12.6 x 3.15 x 6.69 in. (WxHxD) |
| Shipping weight |
1.0 kg / 2.2 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307598
|
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
3W Maximum |
|---|---|
| Power supply |
PoE; AC 100V - 240V @ 50-60Hz
Output: DC 5V-1A |
| DC mains connector |
DC 5V Connector |
DEVICE CONTROL
| Control Buttons |
Reset button, Normal/Program mode switch, Group ID Increase/Decrease button, 2x Function buttons, Audio selection button |
|---|---|
| EDID Management |
Software |
| Status Indicators |
Analogue audio status indicator, Group ID LED screen, Fibre optic connection indicator, LED Power indicator |
| Control Connectors |
RJ45, Minijack 3.5mm RJ-45, Minijack 3.5mm |
| Control Protocols |
Web, Telnet, IR |
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 1.4 with thread lock HDMI® Type A Female, 1.4 with thread lock |
|---|---|
| Video Output Connectors |
1x Fiber optic SFP receptacle, 1x USB B, 2.0 |
| Video Input Resolutions |
3840X2160@30HZ
3840X2160@60Hz(4:2:0) supported and converted to 3840X2160@30Hz,
1080P/1080i/720P/576P/576i/480P/480i |
| Video Output Resolutions |
3840X2160@30HZ
3840X2160@60Hz(4:2:0) supported and converted to 3840X2160@30Hz,
1080P/1080i/720P/576P/576i/480P/480i |
| HDCP |
1.4/2.2 Compliant |
| HDMI Distance |
up to 10 meters with Ecler VEO cables |
| Video Composing Capabilities |
Videowall up to 8x8 |
| Scaling Features |
Yes |
| Transmission Latency |
Typical 1 to 3 frames depending on network conditions |
| Video Composing Capibilities |
Videowall up to 8x8 |
AUDIO PERFORMANCES
| Audio Input Connectors |
3.5mm stereo minijack, S/PDIF Toslink |
|---|---|
| Audio Formats |
LPCM 2.0, Dolby True HD, DTS-HD Master Audio |
| Sample Rate |
Up to 192 KHz |
| Bit Depth |
Up to 24-bit |
PASS-THROUGH CONTROL
| Pass-through Connectors |
USB type B, Euroblock 3-pin, 3.5mm minijack |
|---|---|
| Pass-through Protocols |
USB, RS-232, IR |
NETWORK
| Network Connectors |
RJ45 with LED indication and SFP receptacle RJ-45 with LED indication and SFP receptacle |
|---|---|
| Average Streaming Bitrate |
Up to 300Mps per stream |
| Network Requirements |
IGMP and Jumbo Frames compliance |
HDBaseT SPECIFICATION
| Transmission Distance |
Up to 120m. (via CATx) in point-to-point topolgy;
Up to 100m when connected to standard Ethernet devices;
Up to 60Km via single mode Fiber;
Up to 2Km via multi mode Fiber. |
|---|
