VEO-XRI1CG2
CVEOXRI1CG2
Available
H.265 Full HD over IP Video Extenders
VEO-XTI1CG2 transmitter and VEO-XRI1CG2 receiver are a H.265 / H.264 over IP set of extenders that allow for HDMI® distribution over 1Gb Ethernet networks with up to 1080p@60Hz video support. These devices represent a professional high-quality compression and low bandwidth solution aimed for point-to-point, as well as multipoint-to-multipoint scenarios over a single 100m Cat5e/6/7 cable.
VEO-XTI1CG2 and VEO-XRI1CG2 are widely suitable for various applications which also require PoE, audio management, video wall compositing or remote control, such as educational, commercial, or corporate installations, where flexible and scalable AV systems are in need. Furthermore, this encoder and decoder can be paired with VEO-XCTRLG2 control module for and expanded management experience with in-built WEB configuration interface.
- Installation options
- Desktop, 19" racks (1/2RU), VEO-RACK19
Desktop, 19" racks (1/2RU), VEO-RK1CG2 - Operating temperature
- Min: -10°C ; 14°F
Max: 45°C ; 113°F - Operating humidity
- 90% HR
<90% HR
- Included accessories
- EU power chord, x1 Euroblock 3-pin connectors, warranty card
- Optional accessories
- VEO-XCTRLG2, VEO-RK1CG2
- Finished colour
- Black
- Dimensions
- 120mm x 21.5mm x 95mm / 4.7 x 0.85 x 3.7 in (WxHxD)
- Weight
- 0.074Kg
- Status
- New
- Origin Production
- China
- EAN code
- 8435071316552
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 18.8
- Height (cm)
- 7.5
- Depth (cm)
- 13.7
- Vol. (dm3)
- 1.93
- Gross Weight (kg)
- 0.7
- Net Weight (kg)
- 0.3
- Format
- Unit
- Warranty (months)
- 60
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades
- Power consumption
- 3W

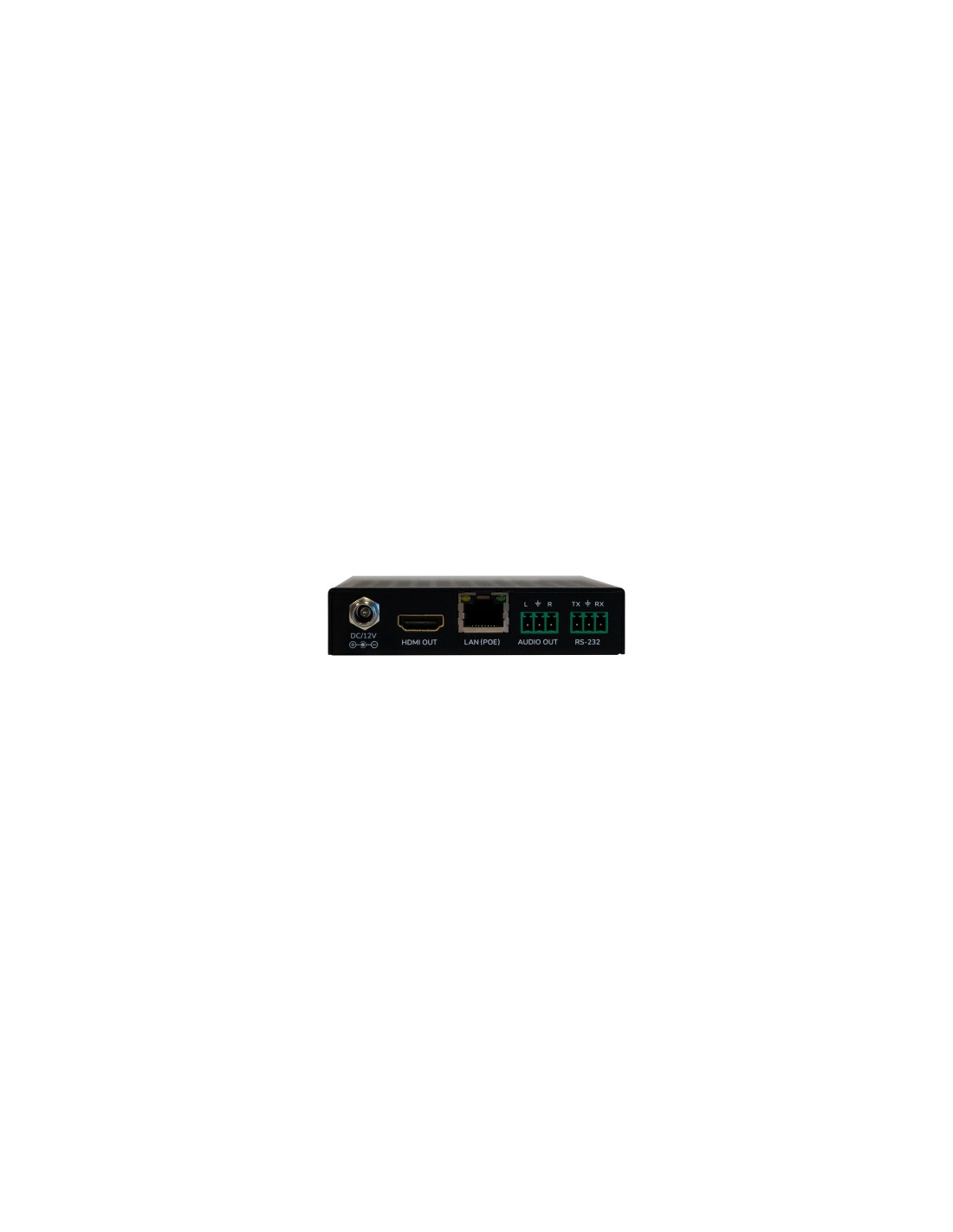

- Video Output Connectors
- HDMI Type A Female, 1.4, 10.2 Gbps
HDMI Type A Female, 10.2 Gbps - Video Input Resolutions
- 1920 x 1200 @ 60Hz
- Video Output Resolutions
- 1920 x 1200 @ 60Hz
- Chroma Subsampling
- 4:4:4
- Colour Depth
- 8-bit, 10-bit, 12-bit (1080p@60Hz)
- Colour Space
- RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- HDCP
- 1.4
- HDMI Distance
- 15m with Ecler VEO Cables
- Audio Output Connectors
- 3-pins unbalanced Euroblock
- Audio Formats
- LPCM 2.0CH
- Sample Rate
- 32/44.1/48KHz
- Bit Depth
- Up to 24-bit
- ARC/eARC
- No
- Control Buttons
- 1 x UP button
1 x DOWN button - EDID Management
- Front Panel,Web settings

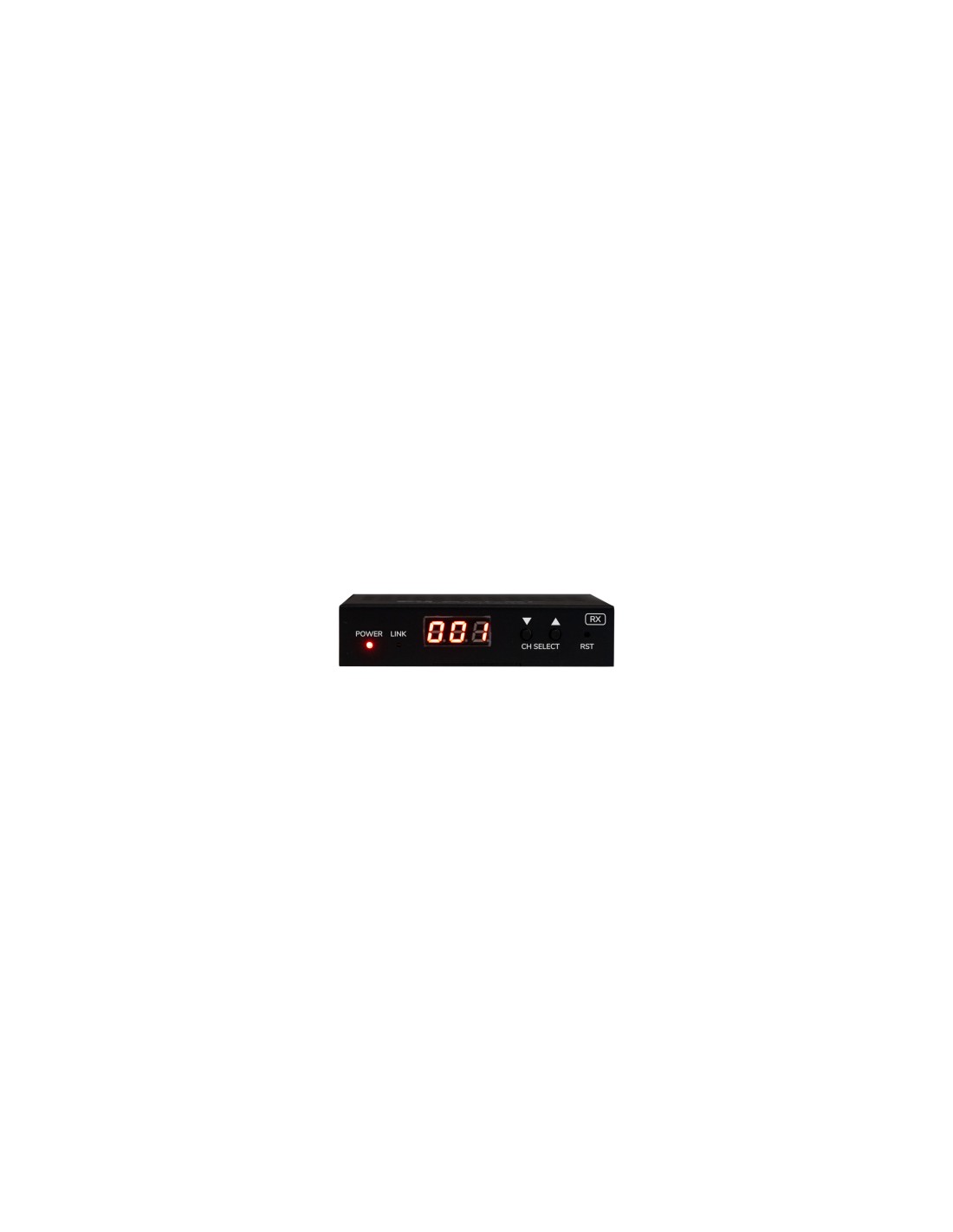

- Status Indicators
- POWER LED: Red
LINK LED: Green
LCD display - Pass-through Connectors
- Euroblock
- Power supply
- PoE; External: Input 100-240 VAC @ 50-60Hz, Output: 12VDC-1A
- DC mains connector
- DC coaxial
- Chassis material
- Metal
- Pass-through Protocols
- RS-232
- Control Connectors
- RJ45, Euroblock
- Control Protocols
- Web, TCP (only with VEO-XCTRLG2), RS-232
- Network Connectors
- RJ45
- Average Streaming Bitrate
- 100 Mbps
- Transmission Distance
- 100m via Ethernet
- Network Requirements
- IGMP
- Video Codec
- H.265 / H.264
- Transmission Latency
- 100ms
<100ms
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, 19" racks (1/2RU), VEO-RACK19 Desktop, 19" racks (1/2RU), VEO-RK1CG2 |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 45°C ; 113°F |
| Operating humidity |
<90% HR
90% HR |
| Included accessories |
EU power chord, x1 Euroblock 3-pin connectors, warranty card |
| Optional accessories |
VEO-XCTRLG2, VEO-RK1CG2 |
| Finished colour |
Black |
| Dimensions |
120mm x 21.5mm x 95mm / 4.7 x 0.85 x 3.7 in (WxHxD) |
| Weight |
0.074Kg
|
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071316552 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
18.8 |
| Height (cm) |
7.5 |
| Depth (cm) |
13.7 |
| Vol. (dm3) |
1.93 |
| Gross Weight (kg) |
0.7 |
| Net Weight (kg) |
0.3 |
| Warranty (months) |
60 |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades |
|---|---|
| Power consumption |
3W |
| Power supply |
PoE; External: Input 100-240 VAC @ 50-60Hz, Output: 12VDC-1A |
| DC mains connector |
DC coaxial
|
DEVICE CONTROL
| Control Buttons |
1 x UP button
1 x DOWN button |
|---|---|
| EDID Management |
Front Panel,Web settings
|
| Status Indicators |
POWER LED: Red
LINK LED: Green
LCD display |
| Control Connectors |
RJ45, Euroblock
|
| Control Protocols |
Web, TCP (only with VEO-XCTRLG2), RS-232 |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB)
|
|---|
VIDEO PERFOMANCES
| Video Output Connectors |
HDMI Type A Female, 1.4, 10.2 Gbps HDMI Type A Female, 10.2 Gbps |
|---|---|
| Video Input Resolutions |
1920 x 1200 @ 60Hz
|
| Video Output Resolutions |
1920 x 1200 @ 60Hz
|
| Chroma Subsampling |
4:4:4
|
| Colour Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz) |
| Colour Space |
RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDCP |
1.4 |
| HDMI Distance |
15m with Ecler VEO Cables
|
| Video Codec |
H.265 / H.264
|
| Transmission Latency |
<100ms
100ms |
AUDIO PERFORMANCES
| Audio Output Connectors |
3-pins unbalanced Euroblock |
|---|---|
| Audio Formats |
LPCM 2.0CH |
| Sample Rate |
32/44.1/48KHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
No
|
PASS-THROUGH CONTROL
| Pass-through Connectors |
Euroblock |
|---|---|
| Pass-through Protocols |
RS-232 |
NETWORK
| Network Connectors |
RJ45 |
|---|---|
| Average Streaming Bitrate |
100 Mbps |
| Network Requirements |
IGMP |
HDBaseT SPECIFICATION
| Transmission Distance |
100m via Ethernet |
|---|
