VEO-XCTRLG2
CVEOXCTRLG2
Available

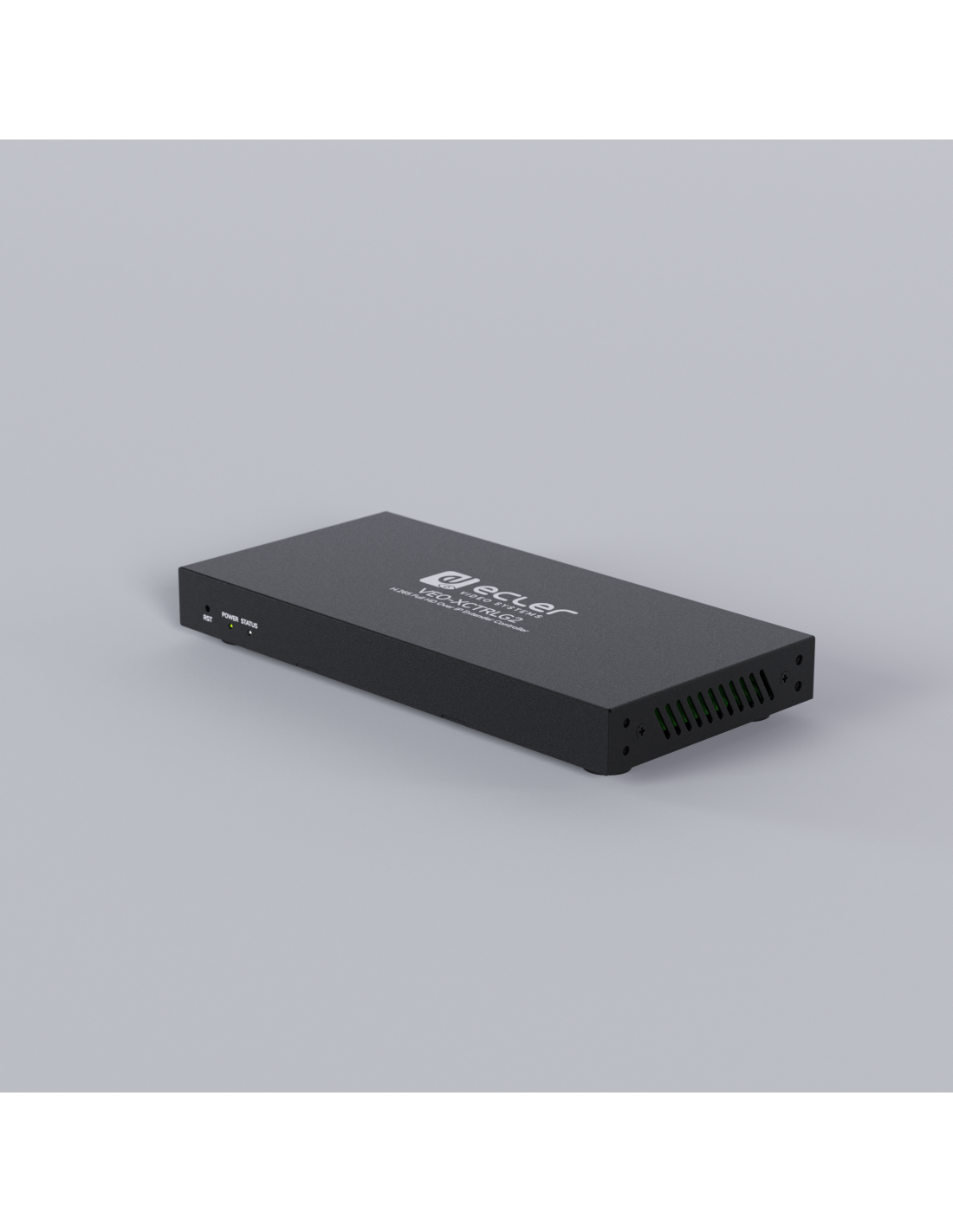

H.265 Full HD over IP Video Extender Controller
VEO-XCTRLG2 is a controller module that allows the user to manage and operate VEO-XTI1CG2 and VEO-XRI1CG2 video over IP devices in large multipoint to multipoint systems. It mounts two dedicated LAN ports to host independent Control and Video networks. VEO-XCTRLG2 offers a dedicated web interface that features a setup wizard, matrix control, videowall smart creation and operation, drag and drop source selection, video preview and TCP and RS-232 control commands. It supports POE function which makes this advanced managing tool a perfect fit more all sorts of AV over IP installations.
- Installation options
- Desktop
Desktop, 19" racks (1/2RU)
Desktop, 19" racks (1/2RU), VEO-RACK19 - Operating temperature
- Min: 0°C ; 32°F
Max: 40°C ; 104°F - Operating humidity
- 90% HR
<90% HR - Included accessories
- 2x 3pins Euroblock connector, 4x M3 screws 4mm, 2x Mounting Ears, 1x 12V PSU
- Optional accessories
- VEO-RACK19
VEO-RK1CG2 - Finished colour
- Black
- Dimensions
- 204 x 21.5 x 98.5mm / 4.7 x 0.85 x 3.88 in. (WxHxD)
- Weight
- 0.540 Kg / 1.19 lb
- Shipping dimensions
- 257 x 78 x 159 mm / 10.12 x 30.07 x 6.26 in. (WxHxD)
- Shipping weight
- 0.95 Kg / 0.21 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071316576
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 25.7
- Height (cm)
- 7.8
- Depth (cm)
- 15.9
- Vol. (dm3)
- 3.19
- Gross Weight (kg)
- 0.95
- Net Weight (kg)
- 0.5
- Format
- Unit
- Warranty (months)
- 60
- AC mains connector
- 100-240VAC 50-60Hz with EU, UK ,US , AU blades
- Power consumption
- 4.5W

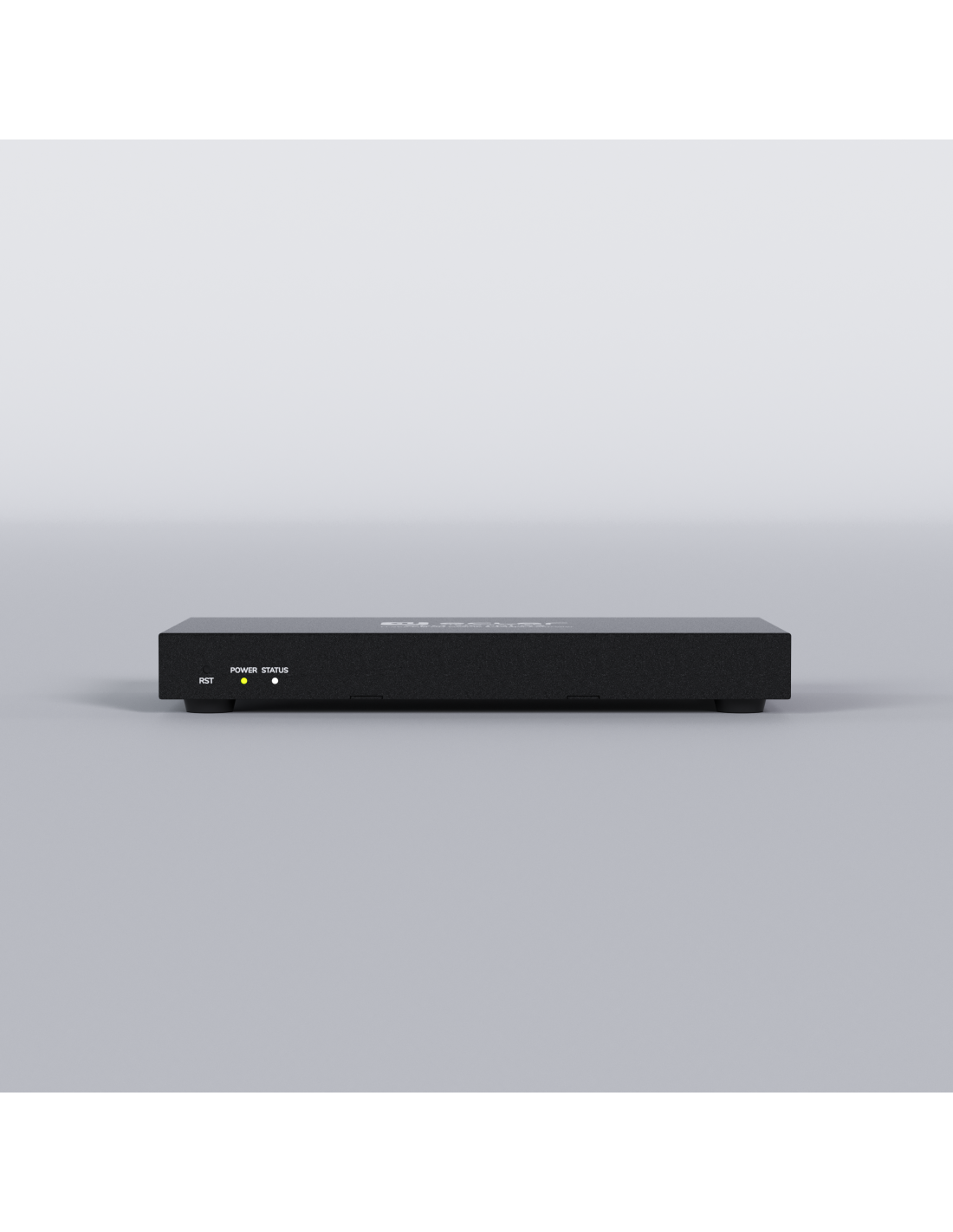

- Status Indicators
- POWER LED: Red,
STATUS LED: Green - Pass-through Connectors
- Euroblock, Jack 3.5mm
- Power supply
- PoE (802.3af Class 3) or External Power supply
- DC mains connector
- 12VDC-1A with coaxial DC connector
- Chassis material
- Metal
- Pass-through Protocols
- RS-232
- Control Connectors
- RJ-45, Euroblock, Jack 3.5mm
- Control Protocols
- Web, TCP, RS-232

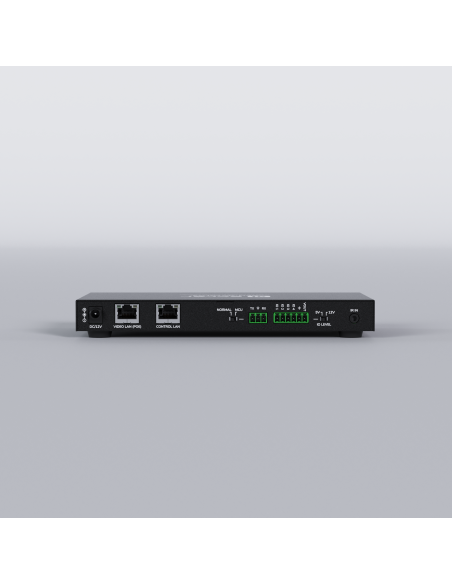

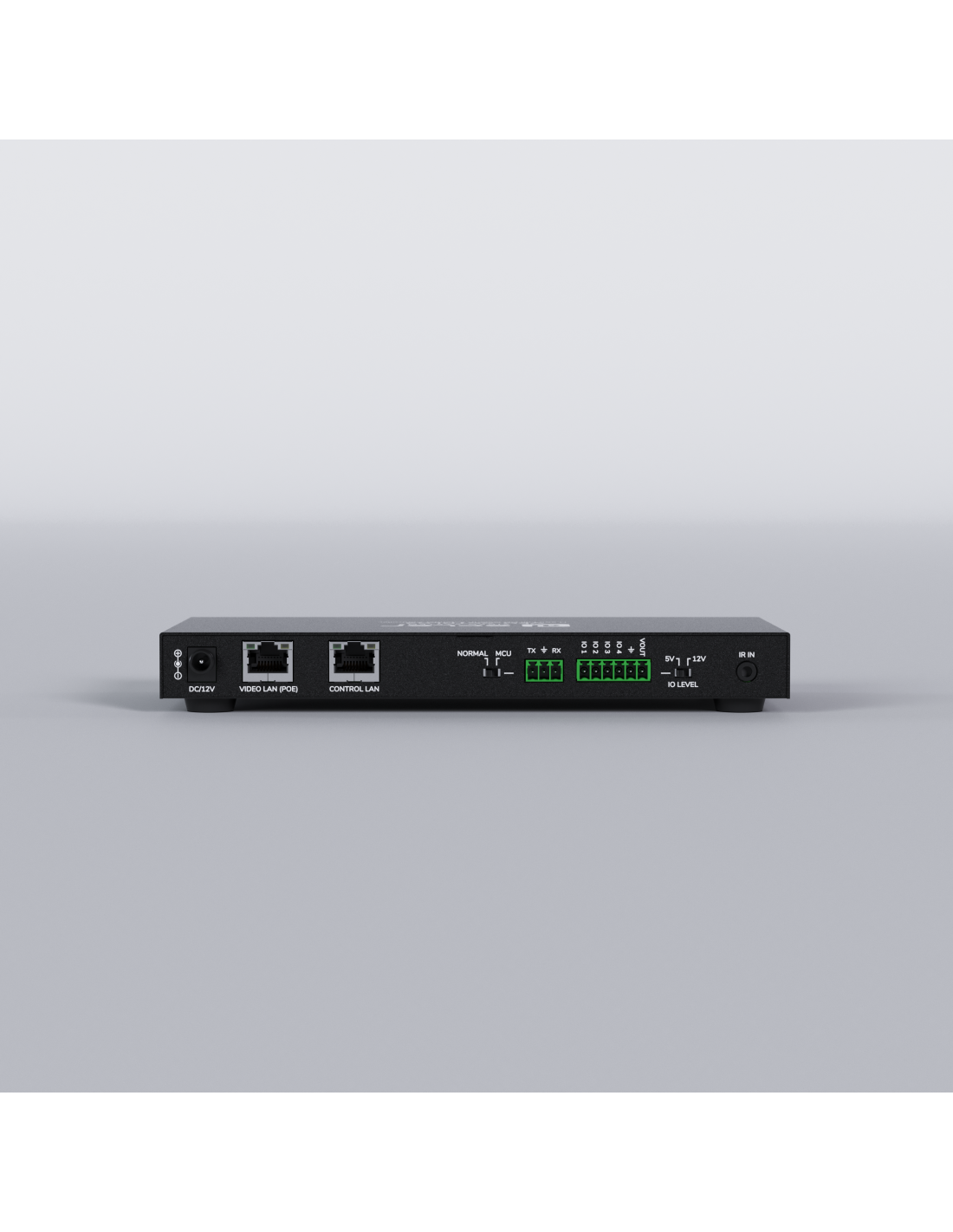

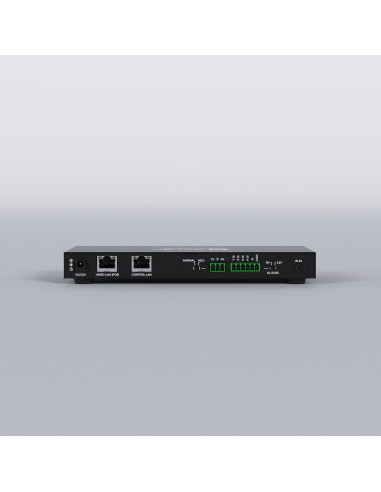

- Network Connectors
- RJ-45 x 2
- Average Streaming Bitrate
- Configurable via software 1-20 Mbps
- Transmission Distance
- 100m via Ethernet
- Network Requirements
- IGMP Snooping
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop Desktop, 19" racks (1/2RU), VEO-RACK19 Desktop, 19" racks (1/2RU) |
|---|---|
| Operating temperature |
Min: 0°C ; 32°F
Max: 40°C ; 104°F |
| Operating humidity |
<90% HR 90% HR |
| Included accessories |
2x 3pins Euroblock connector, 4x M3 screws 4mm, 2x Mounting Ears, 1x 12V PSU |
| Optional accessories |
VEO-RACK19 VEO-RK1CG2 |
| Finished colour |
Black |
| Dimensions |
204 x 21.5 x 98.5mm / 4.7 x 0.85 x 3.88 in. (WxHxD) |
| Weight |
0.540 Kg / 1.19 lb |
| Shipping dimensions |
257 x 78 x 159 mm / 10.12 x 30.07 x 6.26 in. (WxHxD) |
| Shipping weight |
0.95 Kg / 0.21 lb |
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071316576 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
25.7 |
| Height (cm) |
7.8 |
| Depth (cm) |
15.9 |
| Vol. (dm3) |
3.19 |
| Gross Weight (kg) |
0.95 |
| Net Weight (kg) |
0.5 |
| Warranty (months) |
60 |
ELECTRICAL
| AC mains connector |
100-240VAC 50-60Hz with EU, UK ,US , AU blades |
|---|---|
| Power consumption |
4.5W |
| Power supply |
PoE (802.3af Class 3) or External Power supply |
| DC mains connector |
12VDC-1A with coaxial DC connector |
DEVICE CONTROL
| Status Indicators |
POWER LED: Red,
STATUS LED: Green |
|---|---|
| Control Connectors |
RJ-45, Euroblock, Jack 3.5mm |
| Control Protocols |
Web, TCP, RS-232 |
PASS-THROUGH CONTROL
| Pass-through Connectors |
Euroblock, Jack 3.5mm |
|---|---|
| Pass-through Protocols |
RS-232 |
NETWORK
| Network Connectors |
RJ-45 x 2 |
|---|---|
| Average Streaming Bitrate |
Configurable via software 1-20 Mbps |
| Network Requirements |
IGMP Snooping |
HDBaseT SPECIFICATION
| Transmission Distance |
100m via Ethernet |
|---|
