eCA120HZ
CECA120HZC
Available
120W@100V | mono | micro-amplifier

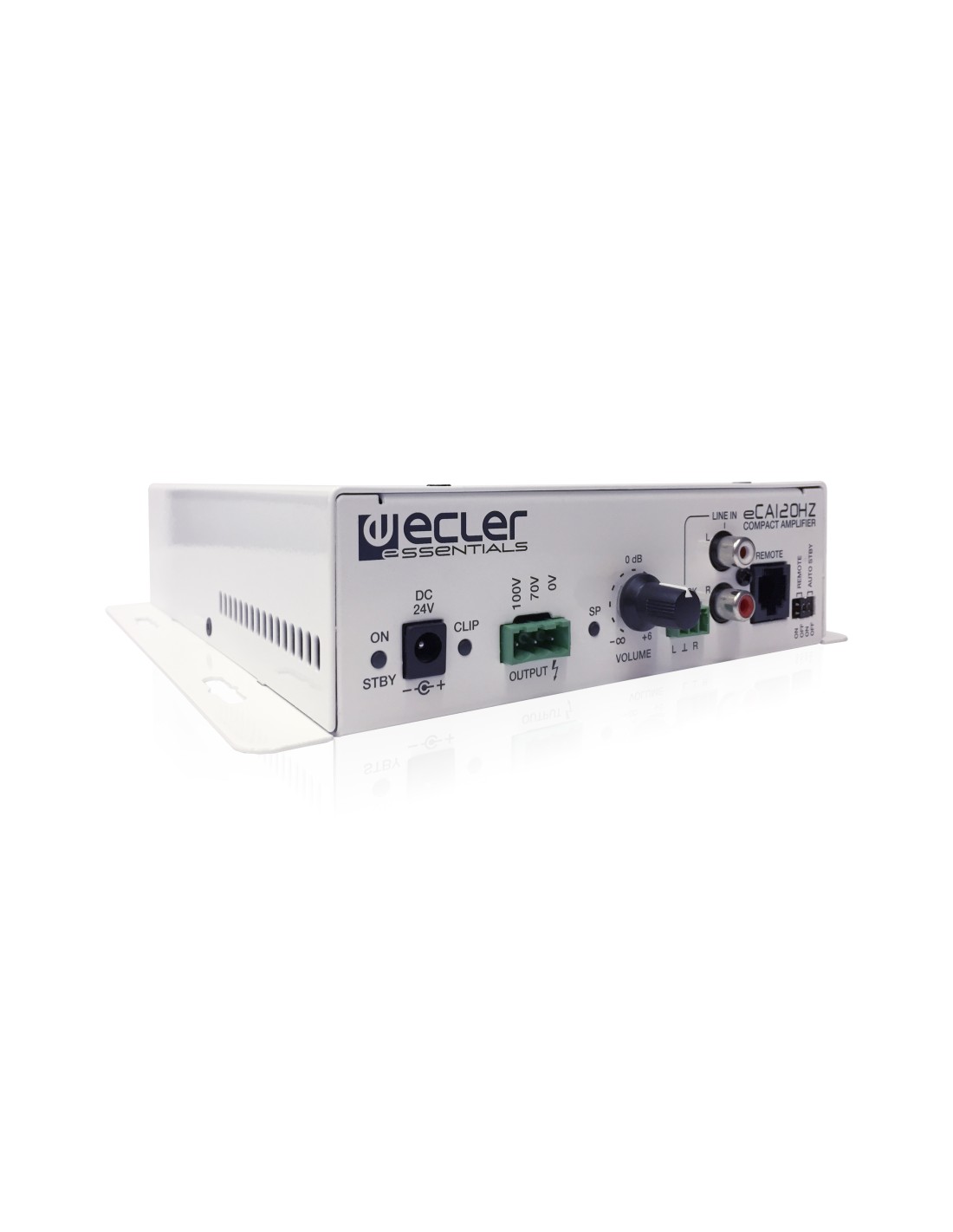

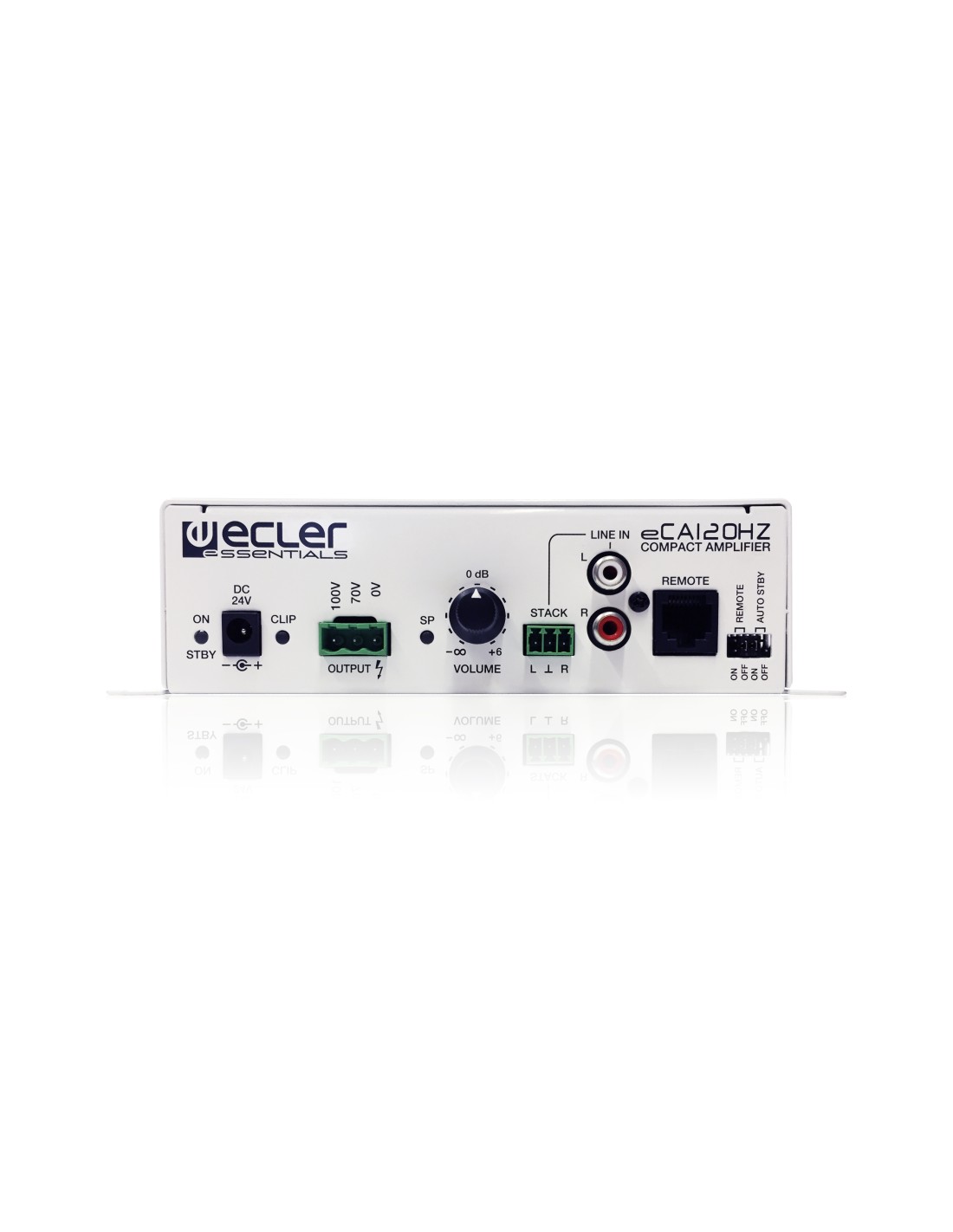

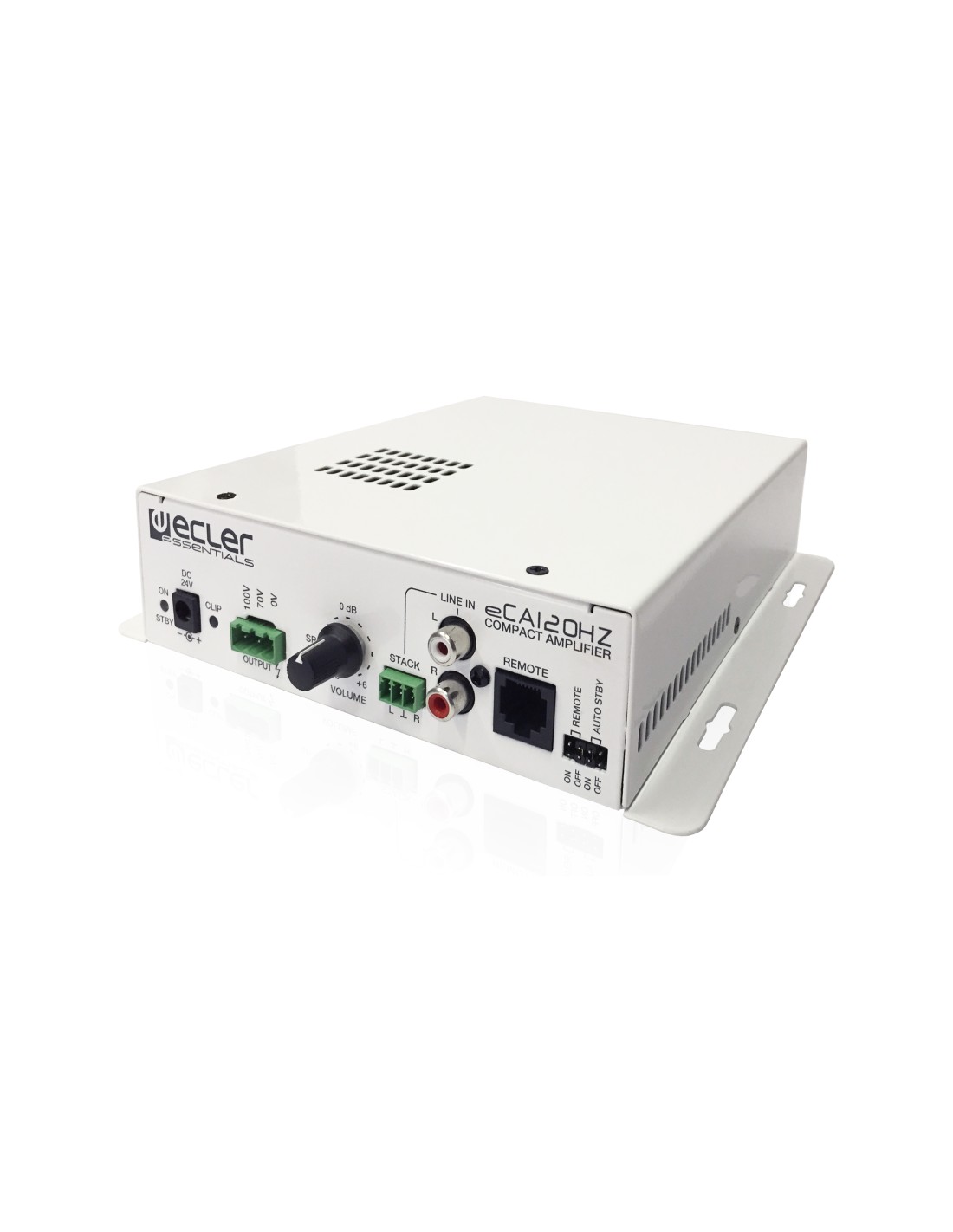

eCA120HZ is a mono micro-amplifier delivering 1 x 106W RMS @ 70V / 100 V line level (high impedance), built in a very compact format and a light and silent (fanless) design. It features 1 LINE stereo input, AUTO STANDBY function and volume remote control, compatible with ECLER WPaVOL and WPaVOL-SR wall panels (0-10 VDC). External, universal and CE/UL/CCC certified power supply.
- Installation options
- Wall or under a surface (table, shelf, cupboard, etc.)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPaVOL series for remote control
- Dimensions
- 190 x 48 x 190 mm / 7.48 x 1.89 x 7.48 in. (WxHxD) (knobs and connectors excluded)
- Weight
- 2.3 kg / 5.07 lb
- Shipping dimensions
- 340 x 60 x 220 mm / 13.39 x 2.36 x 8.66 in. (WxHxD)
- Shipping weight
- 3.1 kg / 6.83 lb
- Status
- Descat
- Origin Production
- Spain
- EAN code
- 8435071305037
8435071308328 - Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 34.00
- Height (cm)
- 6.00
- Depth (cm)
- 22.00
- Vol. (dm3)
- 4.49
- Gross Weight (kg)
- 3.10
- Net Weight (kg)
- 2.30
- Format
- Unit
- Warranty (months)
- 36
- Frequency response
- 70Hz - 30kHz (-3dB)
- Input sensitivity
- 0dBV
- Crosstalk
- 65dB @ 1kHz
>65dB @ 1kHz - GPIs
- x1 GPI (0-10VDC) for volume control
- AC mains requirement
- 100-240 V @ 50-60Hz + External PSU 24VDC
- AC mains connector
- DC24V power connector
- Power supply

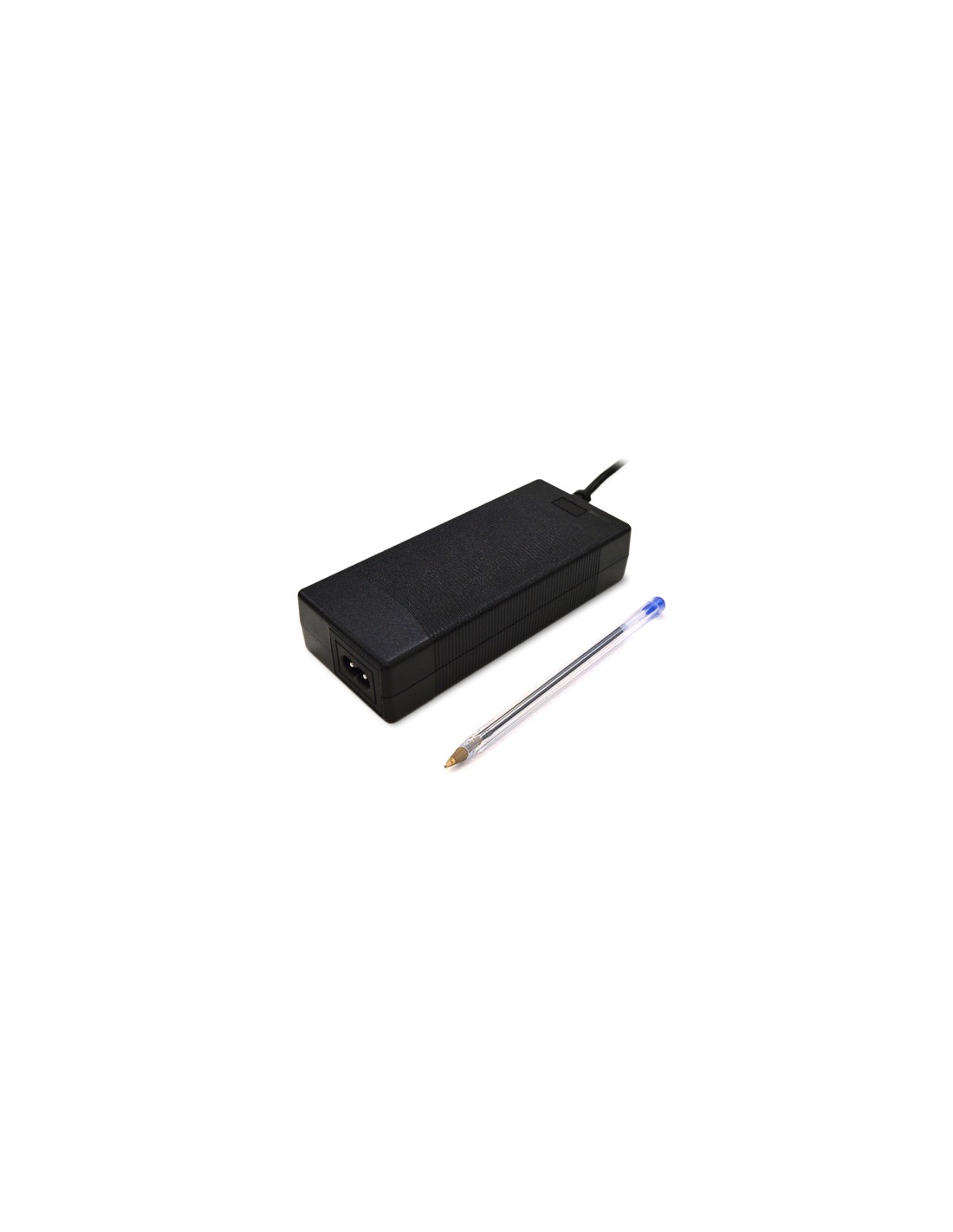

- External, universal Power Supply
- SNR
- 85dB (VOLUME at 0dB)
>85dB (VOLUME at 0dB) - Output connection type
- Euroblock
- Number of output channels
- 1
- Number of input channels
- 1
- Input connection type
- Dual RCA and 3-pin Euroblock
- Max output power @ 100V
- 106 W @ 100Ω
- Input impedance
- 20kΩ
>20kΩ - THD + Noise
- SPKR OUT 0.07% @ 1kHz
SPKR OUT < 0.07% @ 1kHz - Cooling
- Convection (fanless)
- Power Consumption (STBY)
- <2.5W
- Output configuration
- 1 x 106W RMS @ 70V / 100V line level (high impedance) amplifier
- Input configuration
- LINE / STACK input
- Power Consumption (1/3 POWER, @ 4Ω)
- pink noise, 51W / 61VA
- Power Consumption (1/8 POWER, @ 4Ω)
- pink noise, 26W / 38VA
- Energy save
- Auto standby function
- AC protection
- No
- DC protection
- No
- VHF protection
- No
- Short-circuit protection
- No
- Clip limiter
- No
- Long term limiter
- No
- Thermal protection
- No
- Attenuators
- Front panel knob
- Output settings
- 70V/100V outputs
- Auto stand-by function
- Front panel jumper
- Auto stand-by time
- 120 seconds
- Signal Present
- SP LED (Green)
- Cliping
- CLIP LED (Red)
- Standby
- STBY LED (Orange)
- Filters
- 70Hz High Pass Filter (internal, not removable)
- Auto standby time
- 120 seconds
- Auto standby threshold
- -40dBV (L&R)
- Auto stand-by threshold
- -40dBV (L&R)
- Energy saving
- Auto standby function
- Power Consumption (STBY/SLEEP)
- 2.5W
<2.5W - Auto standby function
- Front panel jumper
- Power Consumption (1/3 POWER, @ 4Ω all channels driven)
- pink noise, 51W / 61VA
- Power Consumption (1/8 POWER, @ 4Ω all channels driven)
- pink noise, 26W / 38VA
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Number of input channels |
1 |
|---|
PHYSICAL
| Installation options |
Wall or under a surface (table, shelf, cupboard, etc.) |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPaVOL series for remote control |
| Dimensions |
190 x 48 x 190 mm / 7.48 x 1.89 x 7.48 in. (WxHxD) (knobs and connectors excluded) |
| Weight |
2.3 kg / 5.07 lb |
| Shipping dimensions |
340 x 60 x 220 mm / 13.39 x 2.36 x 8.66 in. (WxHxD) |
| Shipping weight |
3.1 kg / 6.83 lb |
| Format |
Unit |
LOGISTICS
| Status |
Descat |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071305037
8435071308328 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
34.00 |
| Height (cm) |
6.00 |
| Depth (cm) |
22.00 |
| Vol. (dm3) |
4.49 |
| Gross Weight (kg) |
3.10 |
| Net Weight (kg) |
2.30 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz + External PSU 24VDC |
|---|---|
| AC mains connector |
DC24V power connector |
| Power supply |
External, universal Power Supply |
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
>65dB @ 1kHz 65dB @ 1kHz |
|---|
REMOTE CONTROL CONNECTIONS
| GPIs |
x1 GPI (0-10VDC) for volume control |
|---|
CHANNELS
| Number of output channels |
1 |
|---|---|
| Output configuration |
1 x 106W RMS @ 70V / 100V line level (high impedance) amplifier |
| Input configuration |
LINE / STACK input |
SIGNAL
| SNR |
>85dB (VOLUME at 0dB) 85dB (VOLUME at 0dB) |
|---|
POWER CONSUMPTION
| Power Consumption (STBY) |
<2.5W |
|---|---|
| Power Consumption (1/3 POWER, @ 4Ω) |
pink noise, 51W / 61VA |
| Power Consumption (1/8 POWER, @ 4Ω) |
pink noise, 26W / 38VA |
| Power Consumption (STBY/SLEEP) |
<2.5W 2.5W |
| Power Consumption (1/3 POWER, @ 4Ω all channels driven) |
pink noise, 51W / 61VA |
| Power Consumption (1/8 POWER, @ 4Ω all channels driven) |
pink noise, 26W / 38VA |
TECHNOLOGIES
| Cooling |
Convection (fanless) |
|---|---|
| Energy save |
Auto standby function |
| Energy saving |
Auto standby function |
PROTECTIONS
| AC protection |
No |
|---|---|
| DC protection |
No |
| VHF protection |
No |
| Short-circuit protection |
No |
| Clip limiter |
No |
| Long term limiter |
No |
| Thermal protection |
No |
SETTINGS
| Output settings |
70V/100V outputs |
|---|---|
| Auto stand-by function |
Front panel jumper |
| Auto stand-by time |
120 seconds |
| Auto stand-by threshold |
-40dBV (L&R) |
| Auto standby function |
Front panel jumper |
MONITORING
| Signal Present |
SP LED (Green) |
|---|---|
| Cliping |
CLIP LED (Red) |
| Standby |
STBY LED (Orange) |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dBV |
|---|
MONITORING AND CONTROL
| Auto standby time |
120 seconds |
|---|---|
| Auto standby threshold |
-40dBV (L&R) |
MIC INPUTS
| Filters |
70Hz High Pass Filter (internal, not removable) |
|---|
LINE INPUTS
| Input connection type |
Dual RCA and 3-pin Euroblock |
|---|---|
| Input impedance |
>20kΩ 20kΩ |
LINE OUTPUTS
| Frequency response |
70Hz - 30kHz (-3dB) |
|---|---|
| Output connection type |
Euroblock |
| THD + Noise |
SPKR OUT < 0.07% @ 1kHz SPKR OUT 0.07% @ 1kHz |
LOCAL CONTROL
| Attenuators |
Front panel knob |
|---|
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
106 W @ 100Ω |
|---|
