GTX-20KD

GTX-20KD

CLYGTX20KD
Check availability
4x 5000W DSP amplifier (Dante)
See more Features Resources

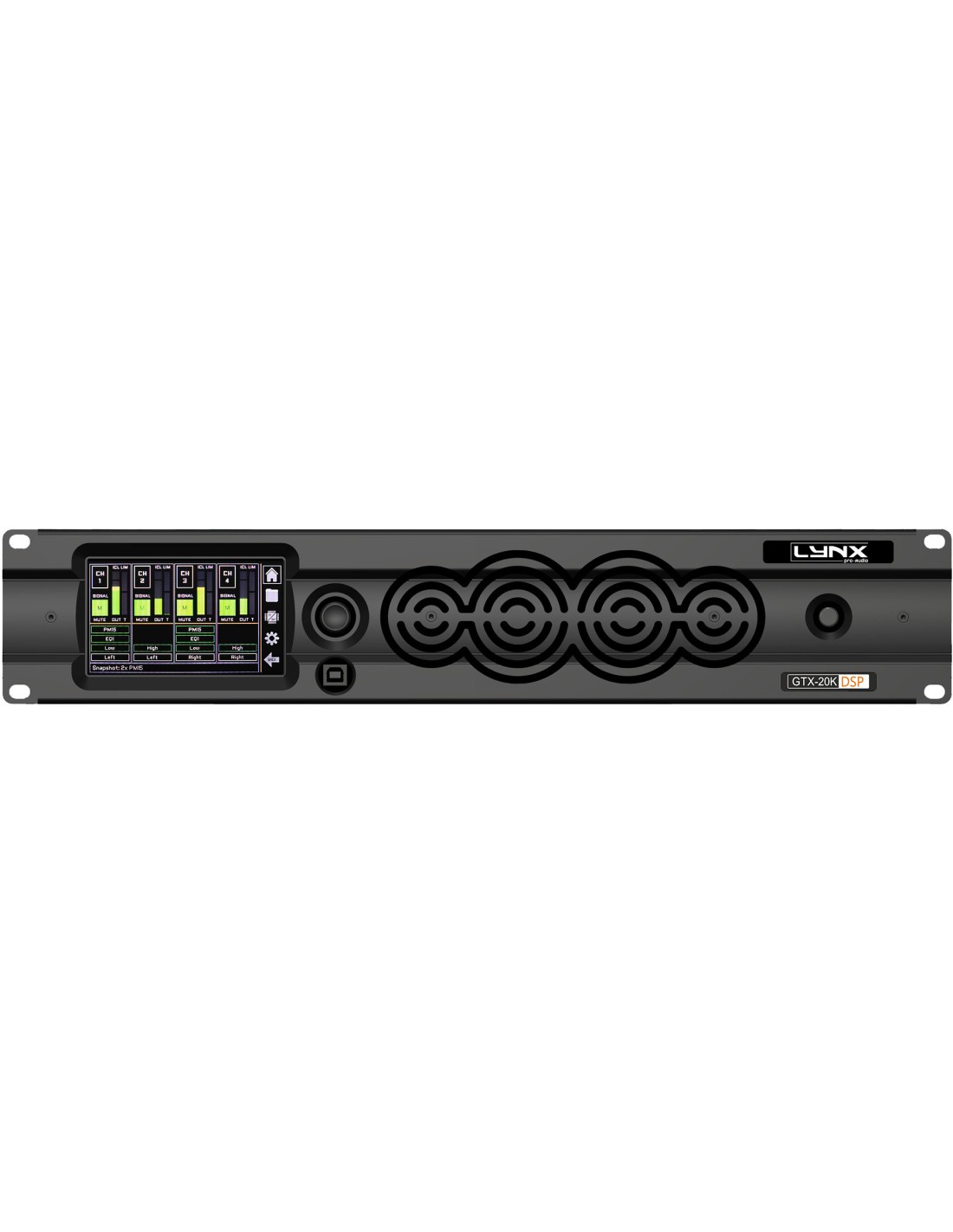

The GTX Series are 4-channel, extremely high power level amplifiers designed to withstand the rough requirements of the touring market. With outstanding, high efficiency, these amplifiers have been equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.
Dimensions
483x89x355 (WxHxD)
Weight
7kg (15,4 Ibs)
Status
New
EAN code
8436612043166
Tariff code
8518900000
Shipping Location
Spain
Crosstalk
20Khz-1KHz), typical: 70 dB
20Khz-1KHz), typical: >70 dB
AC mains requirement
Operating Voltage (50Hz60Hz): 90V-140V AC
1/8 Rated Power (@ 4 ohms): 10 A
SNR
113 dBA
Number of output channels
4
Max output power @ 100V
4 x 3500 / 1 x 4200 W
Max output power @ 70V
4 x 2950 / 1 x 2950 W
Gain
26 dB to 44 dB
DC protection
Yes
Short-circuit protection
Yes
Thermal protection
Yes

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Dimensions 483x89x355 (WxHxD)
Weight 7kg (15,4 Ibs)
LOGISTICS
Status New
EAN code 8436612043166
Tariff code 8518900000
Shipping Location Spain
ELECTRICAL
AC mains requirement Operating Voltage (50Hz60Hz): 90V-140V AC 1/8 Rated Power (@ 4 ohms): 10 A
ANALOGUE AUDIO OUTPUT PORTS
Crosstalk 20Khz-1KHz), typical: >70 dB
20Khz-1KHz), typical: 70 dB
CHANNELS
Number of output channels 4
SIGNAL
SNR 113 dBA
PROTECTIONS
DC protection Yes
Short-circuit protection Yes
Thermal protection Yes
SETTINGS
Gain 26 dB to 44 dB
OUTPUT POWER - All channels driven @ 1%THD
Max output power @ 100V 4 x 3500 / 1 x 4200 W
Max output power @ 70V 4 x 2950 / 1 x 2950 W
