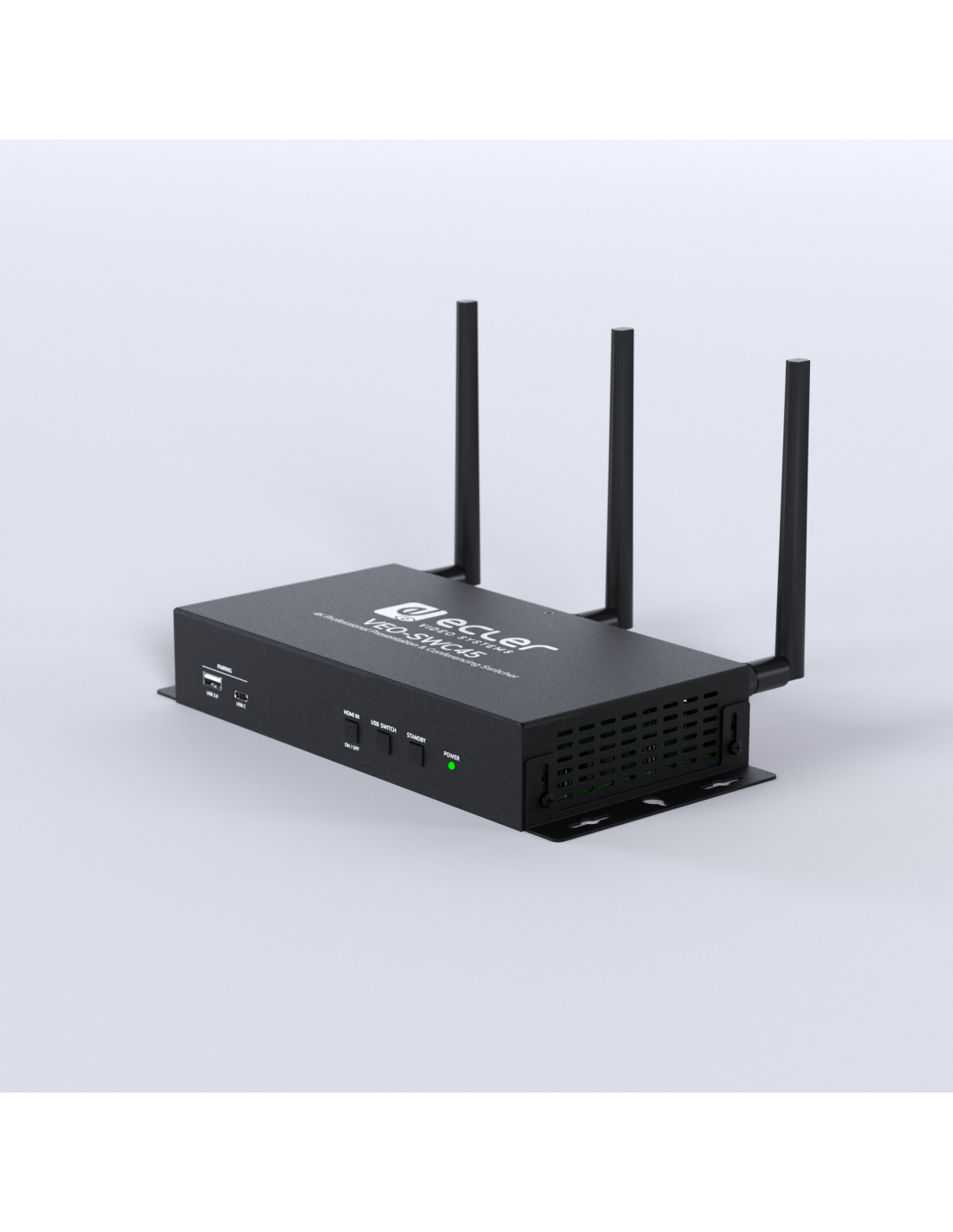

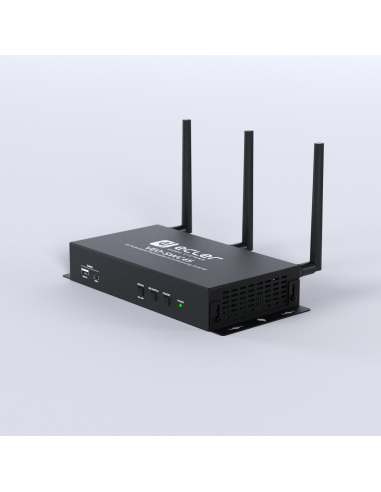

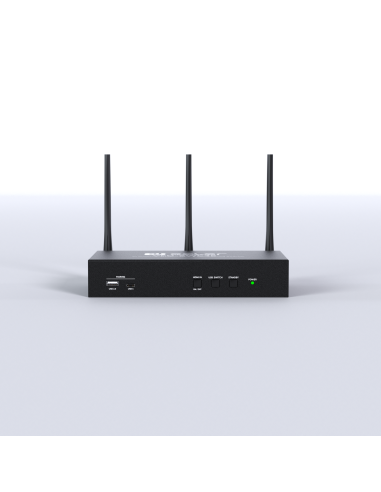

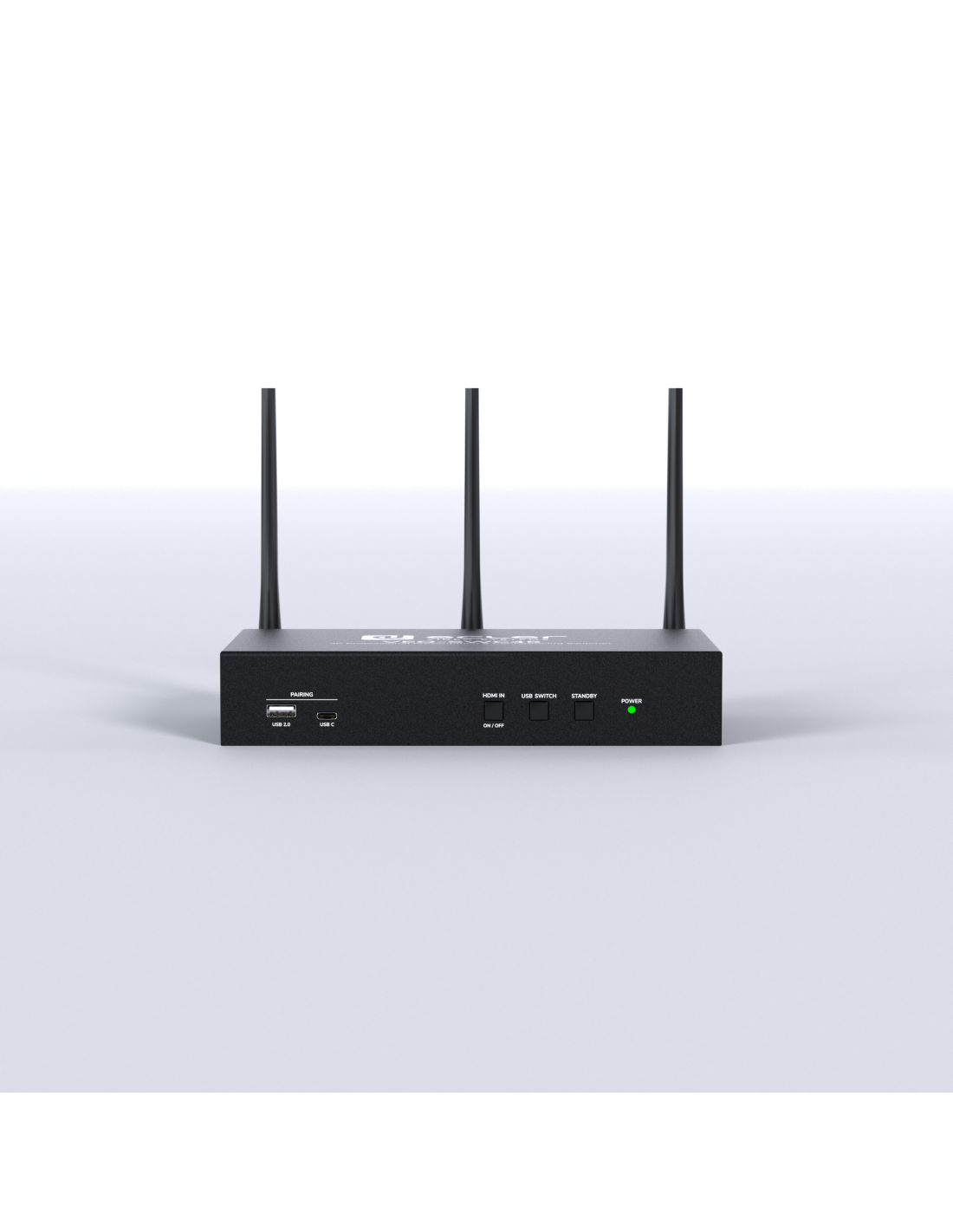

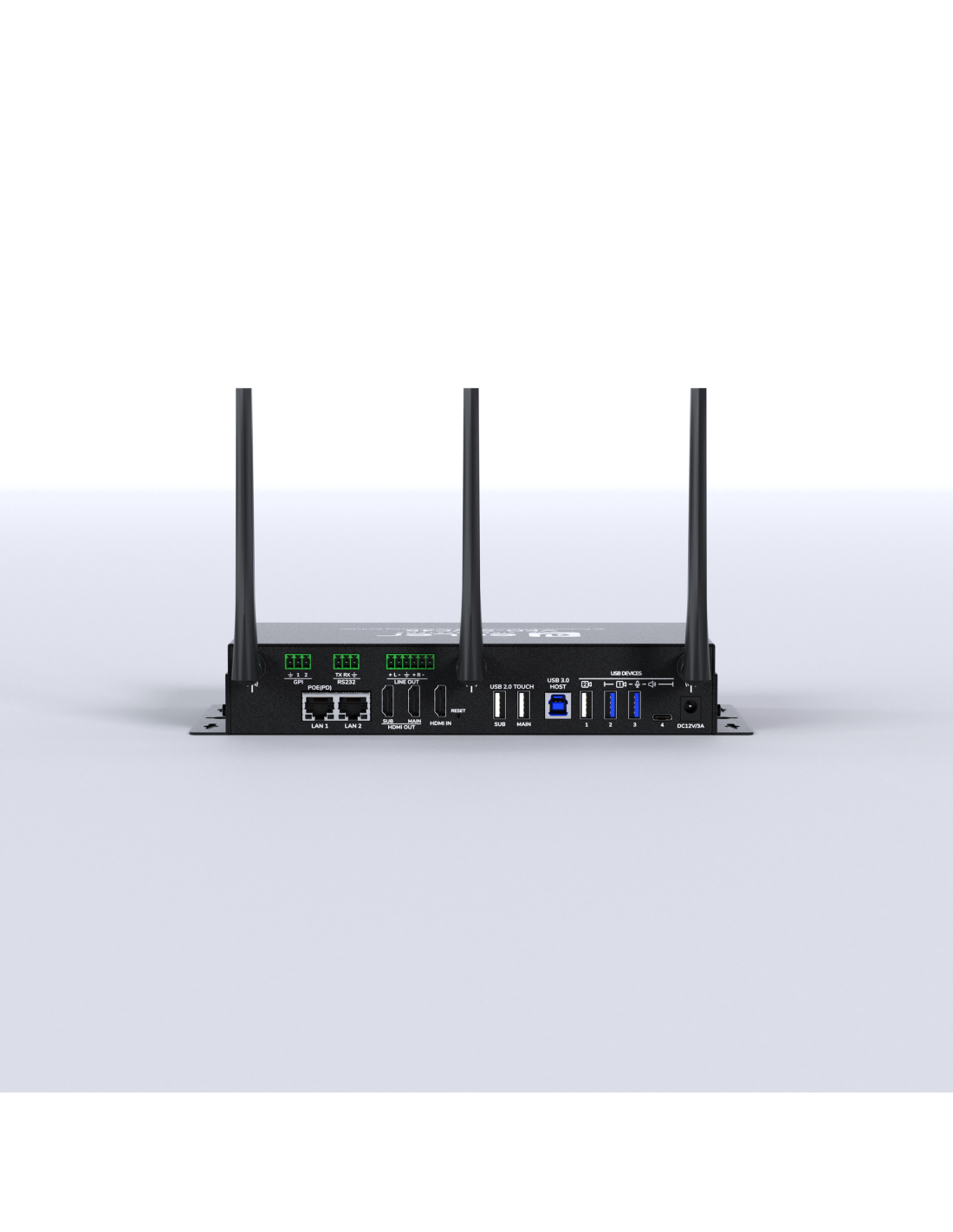

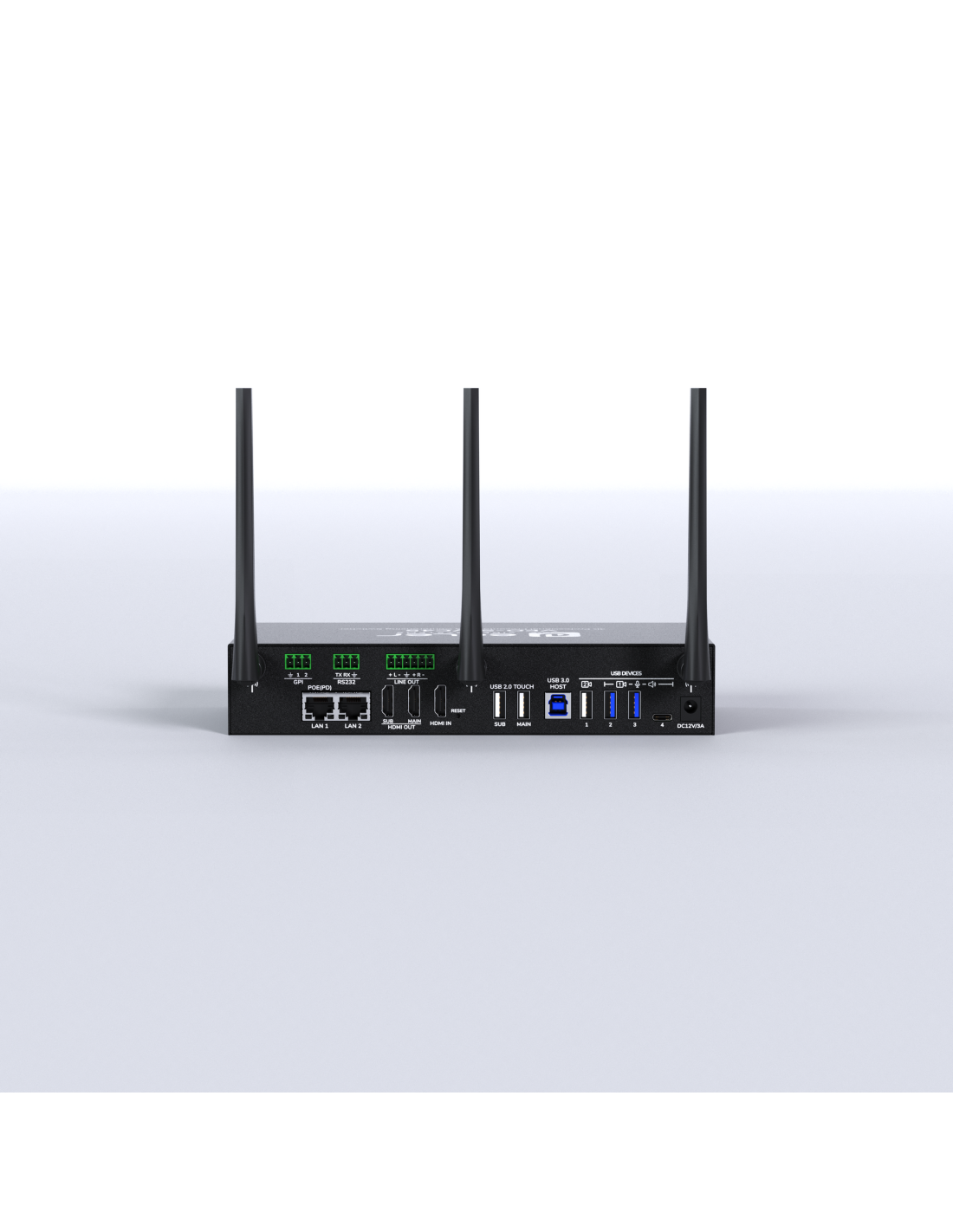

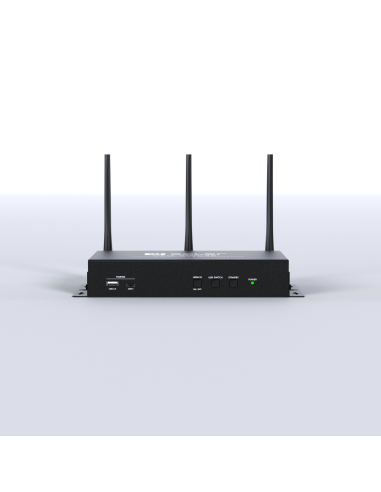

VEO-SWC45
CVEOSWC45
Available
4K Professional Presentation and Conferencing Switcher
VEO-SWC45 is a professional 4K video conferencing and presentation switcher designed for hybrid -wired and wireless- connectivity. It features two HDMI® outputs, advanced display management and USB ports for integrating video conferencing systems with intelligent camera switching. It supports wireless presentation via Chromecast, Miracast, Airplay, the VEOShare application and 4K accessories such as VEO-SWC45TH and VEO-SWC45TU for HDMI® and USB-C connections. The main HDMI® output supports up to 4K/60Hz and features a balanced stereo audio extractor with Euroblock connector. It includes a built-in Web GUI interface for configuration and control, plus GPI, RS-232 and TCP/IP via two RJ-45 ports with independent LAN connections. It allows up to five devices to be displayed simultaneously in multi-view format and supports up to 15 additional participants. With HDCP 2.2 and PoE+ support, the VEO-SWC45 delivers a powerful, scalable solution for modern presentation and conferencing needs.
- Operating temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F - Operating humidity
- 20% - 90% RH, no condensing
- Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F - Storage humidity
- 20% - 90% RH, no condensing
- Included accessories
- 1 x 3-pin 3.5mm Euroblock connector, 3 x antennas, 1 x PSU 12V/3A
- Optional accessories
- VEO-SWC45TH, VEO-SWC45TU
- Finished colour
- Black
- Dimensions
- 222 x 42 x 120 mm / 8.74 x 1.65 x 4.72 in.
222 x 155 x 120 mm / 8.74 x 6.1 x 4.72 in. (including antenna)
- Weight
- 0.930 Kg / 2.05 lb
- Shipping dimensions
- 345 x 75 x 205 mm / 13.58 x 2.95 x 8.07 in (WxHxD)
- Shipping weight
- 1.5 kg / 3.31 lb
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades (UK,US,AU,EU)
- Power consumption
- 30W
- Video Input Connectors
- 2 x USB 3.0, 1 x USB-C, 1 x USB 2.0 (UVC)
1 x HDMI® Type A Female, 10.2Gbps - Video Output Connectors
- 1 x HDMI® Type A Female, 1.4, 10.2Gbps (SUB)
1 x HDMI® Type A Female, 2.0, 18Gbps (MAIN) - Video Input Resolutions
- 1080p up to 30Hz (Airplay, Miracast, Chromecast, "VEOShare" application),
4K up to 30Hz (HDMI® and USB-C Transmitters, HDMI® IN), 80-120ms Transmission Delay - Video Output Resolutions
- MAIN: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz, 4K up to 60Hz
SUB: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit (4K 60Hz 4:4:4)
- Colour Space
- RGB, YCbCr, YUV
- HDCP
- MAIN OUT: 2.2
SUB OUT/HDMI® IN: 1.4 - Audio Output Connectors
- 1 x 6-pin balanced Euroblock
- Audio Formats
- PCM
- Sample Rate
- Wireless Transmitter: 44.1 KHz, 48khz
HDMI® out: 48KHz
USB speakerphone for video conference: 16KHz
USB speakerphone for audio out: 48KHz - Bit Depth
- Up to 24-bit
- Control Buttons
- 1 x Standby button, 1 x Reset button, 1 x HDMI® IN on/off, 1 x USB Switch
- Status Indicators
- POWER LED
- Power supply
- PoE+ (IEEE802.3at.); External: Input 100-240 VAC 50/60Hz, Output: 12VDC-3A
- DC mains connector
- 12VDC-3A with coaxial DC connector
- Chassis material
- Metal
- Control Connectors
- 1 x USB Type A, 1 x 3-pin Euroblock, 2 x RJ-45
- Audio De-Embedding
- Yes
- Control Protocols
- Web, Telnet, RS-232, GPI
- Network Connectors
- 2 x RJ-45 (1Gbps), WIFI IEEE 802.11 a/g/n/ac/ax (Antennas MIMO 2x2, MIMO 1x1)
- Video Composing Capabilities
- Multiviewing up to 5 windows; 15 participants on hold
- Screen Mirroring
- Airplay, Chromecast, Miracast, VEOShare application, Wireless Transmitter
- Wireless Conferencing
- Yes (Video Playback Frame Rate: 20-60fps)
- Other Features
- Whiteboard annotation tool, Wireless Touchback, Customizable background, CEC compliant
- Average Streaming Bitrate
- Up to 1200Mbps
- Transmission Distance
- 100m via Ethernet Network
- Network Requirements
- Compatible with 2.4 GHz and 5GHz frequency bands with 35m coverage (environment dependant), Security: AES, WPA PSK, WPA2 PSK, HTTPS
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F |
|---|---|
| Operating humidity |
20% - 90% RH, no condensing |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F |
| Storage humidity |
20% - 90% RH, no condensing |
| Included accessories |
1 x 3-pin 3.5mm Euroblock connector, 3 x antennas, 1 x PSU 12V/3A |
| Optional accessories |
VEO-SWC45TH, VEO-SWC45TU |
| Finished colour |
Black |
| Dimensions |
222 x 42 x 120 mm / 8.74 x 1.65 x 4.72 in.
222 x 155 x 120 mm / 8.74 x 6.1 x 4.72 in. (including antenna)
|
| Weight |
0.930 Kg / 2.05 lb |
| Shipping dimensions |
345 x 75 x 205 mm / 13.58 x 2.95 x 8.07 in (WxHxD) |
| Shipping weight |
1.5 kg / 3.31 lb |
| Chassis material |
Metal |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades (UK,US,AU,EU) |
|---|---|
| Power consumption |
30W |
| Power supply |
PoE+ (IEEE802.3at.); External: Input 100-240 VAC 50/60Hz, Output: 12VDC-3A |
| DC mains connector |
12VDC-3A with coaxial DC connector |
DEVICE CONTROL
| Control Buttons |
1 x Standby button, 1 x Reset button, 1 x HDMI® IN on/off, 1 x USB Switch |
|---|---|
| Status Indicators |
POWER LED |
| Control Connectors |
1 x USB Type A, 1 x 3-pin Euroblock, 2 x RJ-45 |
| Control Protocols |
Web, Telnet, RS-232, GPI |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB) |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
2 x USB 3.0, 1 x USB-C, 1 x USB 2.0 (UVC)
1 x HDMI® Type A Female, 10.2Gbps |
|---|---|
| Video Output Connectors |
1 x HDMI® Type A Female, 1.4, 10.2Gbps (SUB)
1 x HDMI® Type A Female, 2.0, 18Gbps (MAIN) |
| Video Input Resolutions |
1080p up to 30Hz (Airplay, Miracast, Chromecast, "VEOShare" application),
4K up to 30Hz (HDMI® and USB-C Transmitters, HDMI® IN), 80-120ms Transmission Delay |
| Video Output Resolutions |
MAIN: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz, 4K up to 60Hz
SUB: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit (4K 60Hz 4:4:4) |
| Colour Space |
RGB, YCbCr, YUV |
| HDCP |
MAIN OUT: 2.2
SUB OUT/HDMI® IN: 1.4 |
| Video Composing Capabilities |
Multiviewing up to 5 windows; 15 participants on hold |
| Screen Mirroring |
Airplay, Chromecast, Miracast, VEOShare application, Wireless Transmitter |
| Wireless Conferencing |
Yes (Video Playback Frame Rate: 20-60fps) |
| Other Features |
Whiteboard annotation tool, Wireless Touchback, Customizable background, CEC compliant |
AUDIO PERFORMANCES
| Audio Output Connectors |
1 x 6-pin balanced Euroblock |
|---|---|
| Audio Formats |
PCM |
| Sample Rate |
Wireless Transmitter: 44.1 KHz, 48khz
HDMI® out: 48KHz
USB speakerphone for video conference: 16KHz
USB speakerphone for audio out: 48KHz |
| Bit Depth |
Up to 24-bit |
| Audio De-Embedding |
Yes |
NETWORK
| Network Connectors |
2 x RJ-45 (1Gbps), WIFI IEEE 802.11 a/g/n/ac/ax (Antennas MIMO 2x2, MIMO 1x1) |
|---|---|
| Average Streaming Bitrate |
Up to 1200Mbps |
| Network Requirements |
Compatible with 2.4 GHz and 5GHz frequency bands with 35m coverage (environment dependant), Security: AES, WPA PSK, WPA2 PSK, HTTPS |
HDBaseT SPECIFICATION
| Transmission Distance |
100m via Ethernet Network |
|---|
