VEO-SWM44
CVEOSWM44
Only a few left

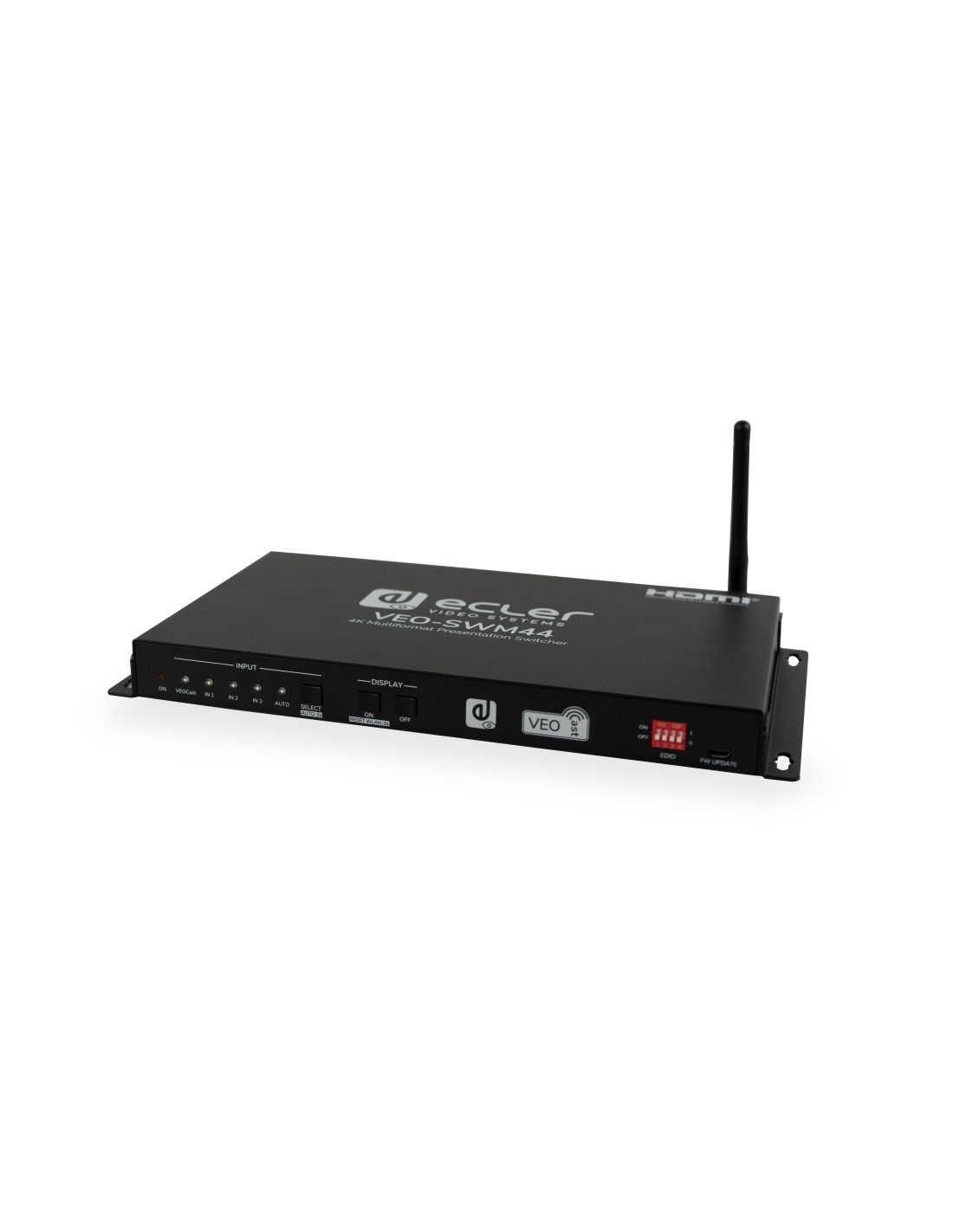

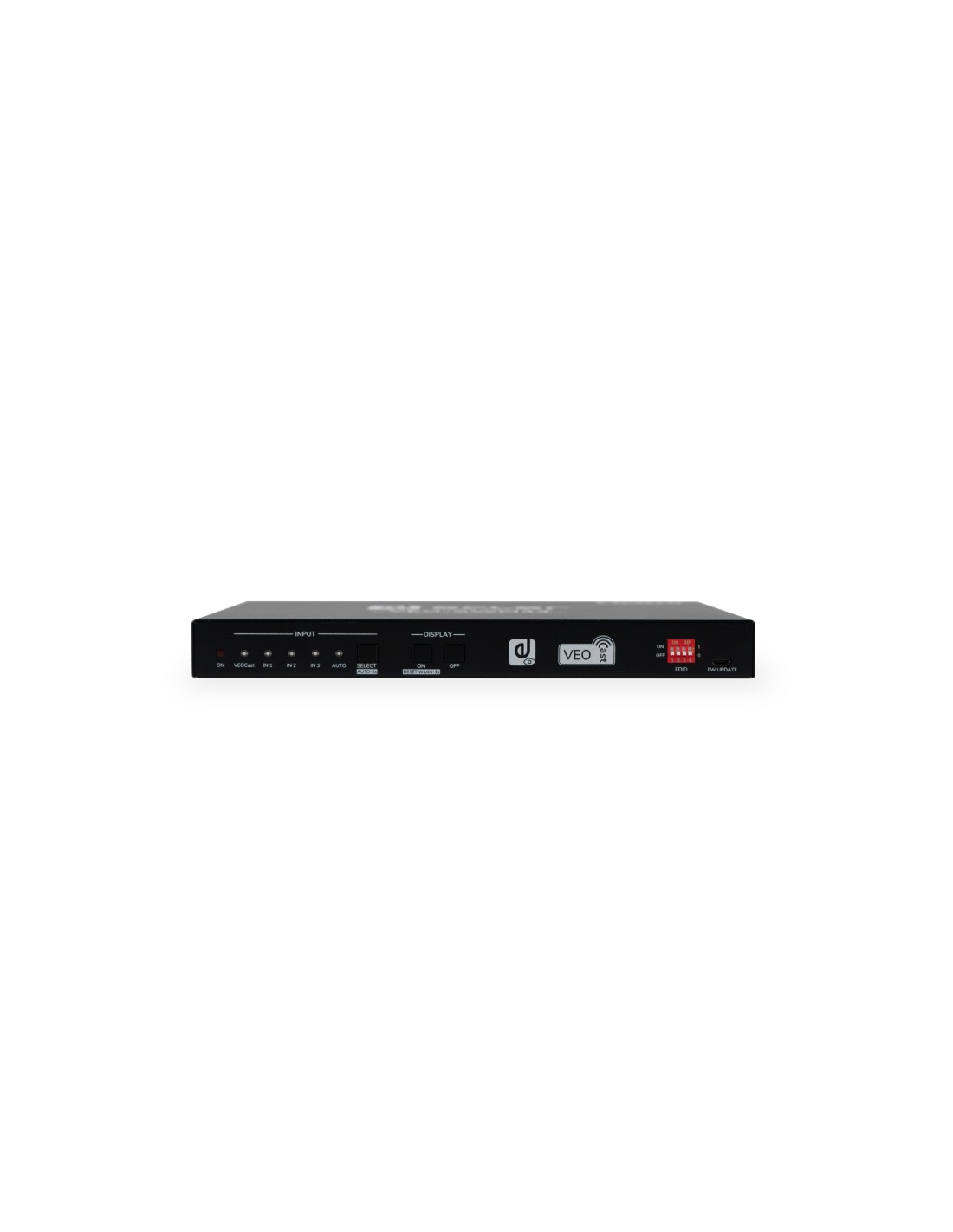

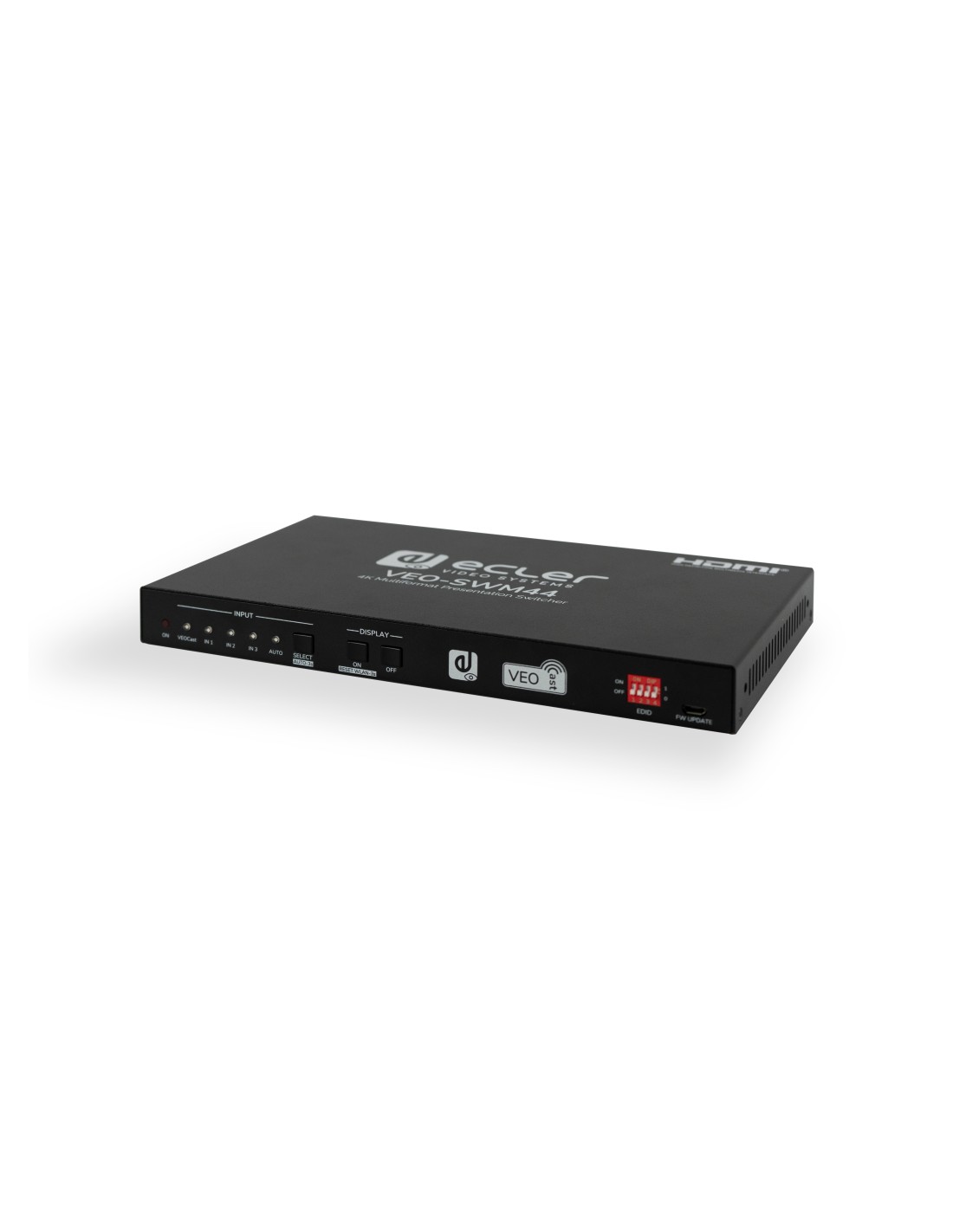

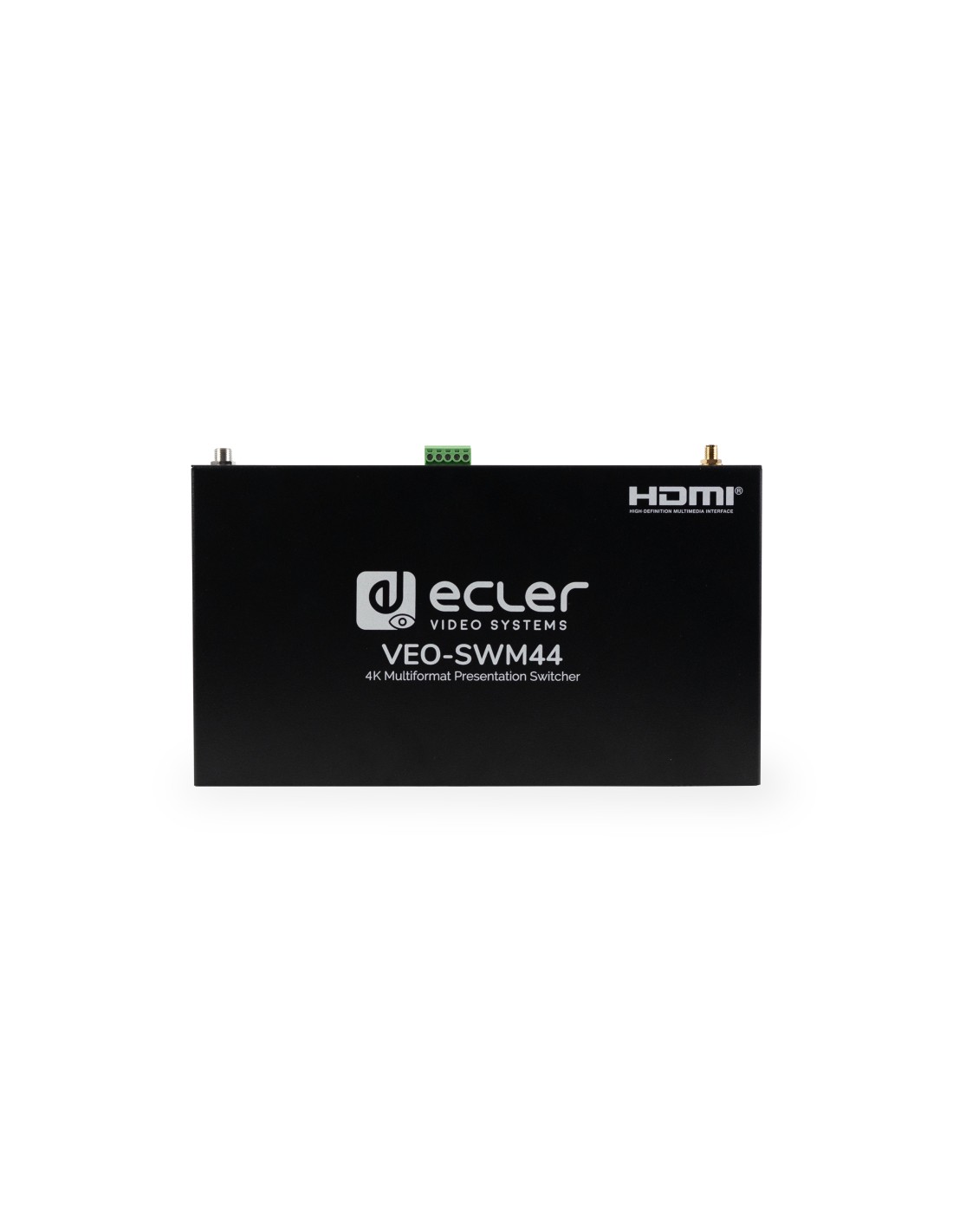

4K 4x1 Presentation SWITCHER | with VEOCast
VEO-SWM44 is a compact 4K presentation switcher that includes 2 HDMI®, a USB-C and wireless input selection via VEOCast to a single HDMI® output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision. An integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors. VEO-SWM44 includes 2 USB 3.0 type B and 2 USB 3.0 type A in order to support soft codec applications and external devices like webcam and KVM kits. Input selection is available via Auto-switching function, front panel buttons or RS-232. Display control via front panel buttons through CEC or RS-232. Smart EDID management and HDCP 2.2 support.
- Operating temperature
- -5˚C - +55˚C / 23˚F - 131˚F
- Operating humidity
- 10 - 90% RH (no condensation)
- Finished colour
- Black
- Dimensions
- 238x 24.5 x 135 mm / 9.37 x 0.96 x 5.31 in. (WxHxD)
- Weight
- 1.25 kg / 2.75 lb
- Shipping dimensions
- 350.5 x 77 x 255 mm / 13.79 x 3.03 x 10.03 in. (WxHxD)
- Shipping weight
- 1.90 kg / 4.18 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071312684
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 35.50
- Height (cm)
- 7.70
- Depth (cm)
- 25.50
- Vol. (dm3)
- 6.97
- Gross Weight (kg)
- 1.90
- Net Weight (kg)
- 0.90
- Format
- Unit
- Warranty (months)
- 36 months
- Frequency response
- 20Hz–20KHz, ±3dB
- Power consumption
- 85W Max with the included PSU
60W Max power charging over USB-C - Video Input Connectors
- 2 x Type A female HDMI
1 x Type C USB 3.0 with DP ALT-MODE connector
1 x External Antenna connector
2 x Type A female HDMI
1 x Type C USB 3.0 with DP ALT-MODE connector
1 x External Antenna connector
2 x Type A female HDMI®
1 x Type C USB 3.0 with DP ALT-MODE connector
1 x External Antenna connector
- Video Output Connectors
- 1 x Type A female HDMI
1 x Type A female HDMI® - Video Input Resolutions
- HDMI: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4
VEOCast: Up to 4K@30Hz 4:4:4
HDMI®: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4
VEOCast: Up to 4K@30Hz 4:4:4
- Video Output Resolutions
- Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
- Chroma Subsampling
- 4:4:4
- Colour Depth
- Up to 12-bit
- HDCP
- 2.2/1.4 Compliant
- HDMI Distance
- up to 10 meters (33 feet) with Ecler VEO cables
- Audio Input Connectors
- 5-pin Euroblock (Balanced Stereo)
- Audio Formats
- Dolby® Atmos, Dolby® TrueHD, Dolby® Digital Plus,
Dolby® Digital, DTS-X™, DTS-HD Master Audio™, DTS
5.1™, PCM - Sample Rate
- 32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz,
192 KHz - Bit Depth
- Up to 24-bit

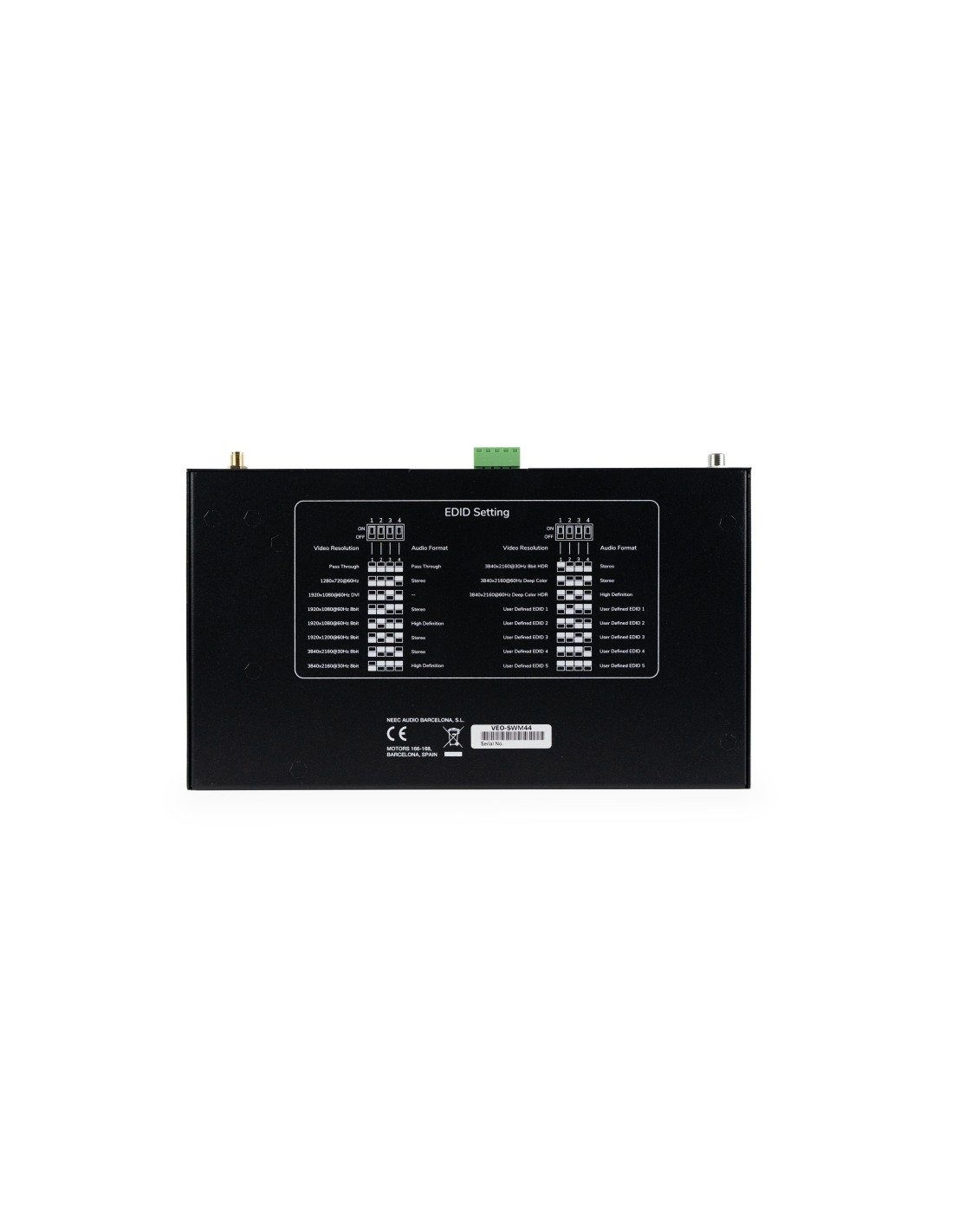

- EDID Management
- mini-switch DIP (4 contacts)
- Power supply
- AC 100V ~ 240V 50/60Hz Output: DC 24V---5A
- Chassis material
- Metal
- Control Connectors
- 2 x Type-B USB 3.0
2 x Type-A USB 3.0
1x Type-C USB 3.0
1 x 3-pin Euroblock
1 x Micro-USB - Control Protocols
- 1 x 4-pin DIP switch
2 x HOST (PC1&PC2),
2 x DEVICES
1 x RS-232
1 x FW Update
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
-5˚C - +55˚C / 23˚F - 131˚F |
|---|---|
| Operating humidity |
10 - 90% RH (no condensation)
|
| Finished colour |
Black |
| Dimensions |
238x 24.5 x 135 mm / 9.37 x 0.96 x 5.31 in. (WxHxD) |
| Weight |
1.25 kg / 2.75 lb |
| Shipping dimensions |
350.5 x 77 x 255 mm / 13.79 x 3.03 x 10.03 in. (WxHxD) |
| Shipping weight |
1.90 kg / 4.18 lb |
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071312684 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
35.50 |
| Height (cm) |
7.70 |
| Depth (cm) |
25.50 |
| Vol. (dm3) |
6.97 |
| Gross Weight (kg) |
1.90 |
| Net Weight (kg) |
0.90 |
| Warranty (months) |
36 months |
ELECTRICAL
| Power consumption |
85W Max with the included PSU
60W Max power charging over USB-C |
|---|---|
| Power supply |
AC 100V ~ 240V 50/60Hz Output: DC 24V---5A |
DEVICE CONTROL
| EDID Management |
mini-switch DIP (4 contacts) |
|---|---|
| Control Connectors |
2 x Type-B USB 3.0
2 x Type-A USB 3.0
1x Type-C USB 3.0
1 x 3-pin Euroblock
1 x Micro-USB |
| Control Protocols |
1 x 4-pin DIP switch
2 x HOST (PC1&PC2),
2 x DEVICES
1 x RS-232
1 x FW Update |
LINE OUTPUTS
| Frequency response |
20Hz–20KHz, ±3dB |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
2 x Type A female HDMI
1 x Type C USB 3.0 with DP ALT-MODE connector
1 x External Antenna connector
2 x Type A female HDMI 1 x Type C USB 3.0 with DP ALT-MODE connector 1 x External Antenna connector 2 x Type A female HDMI® 1 x Type C USB 3.0 with DP ALT-MODE connector 1 x External Antenna connector |
|---|---|
| Video Output Connectors |
1 x Type A female HDMI 1 x Type A female HDMI® |
| Video Input Resolutions |
HDMI: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4
VEOCast: Up to 4K@30Hz 4:4:4
HDMI®: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4 VEOCast: Up to 4K@30Hz 4:4:4 |
| Video Output Resolutions |
Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision |
| Chroma Subsampling |
4:4:4 |
| Colour Depth |
Up to 12-bit |
| HDCP |
2.2/1.4 Compliant |
| HDMI Distance |
up to 10 meters (33 feet) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Input Connectors |
5-pin Euroblock (Balanced Stereo) |
|---|---|
| Audio Formats |
Dolby® Atmos, Dolby® TrueHD, Dolby® Digital Plus,
Dolby® Digital, DTS-X™, DTS-HD Master Audio™, DTS
5.1™, PCM |
| Sample Rate |
32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz,
192 KHz |
| Bit Depth |
Up to 24-bit
|
