VEO-SWH44
CVEOSWH44
Available

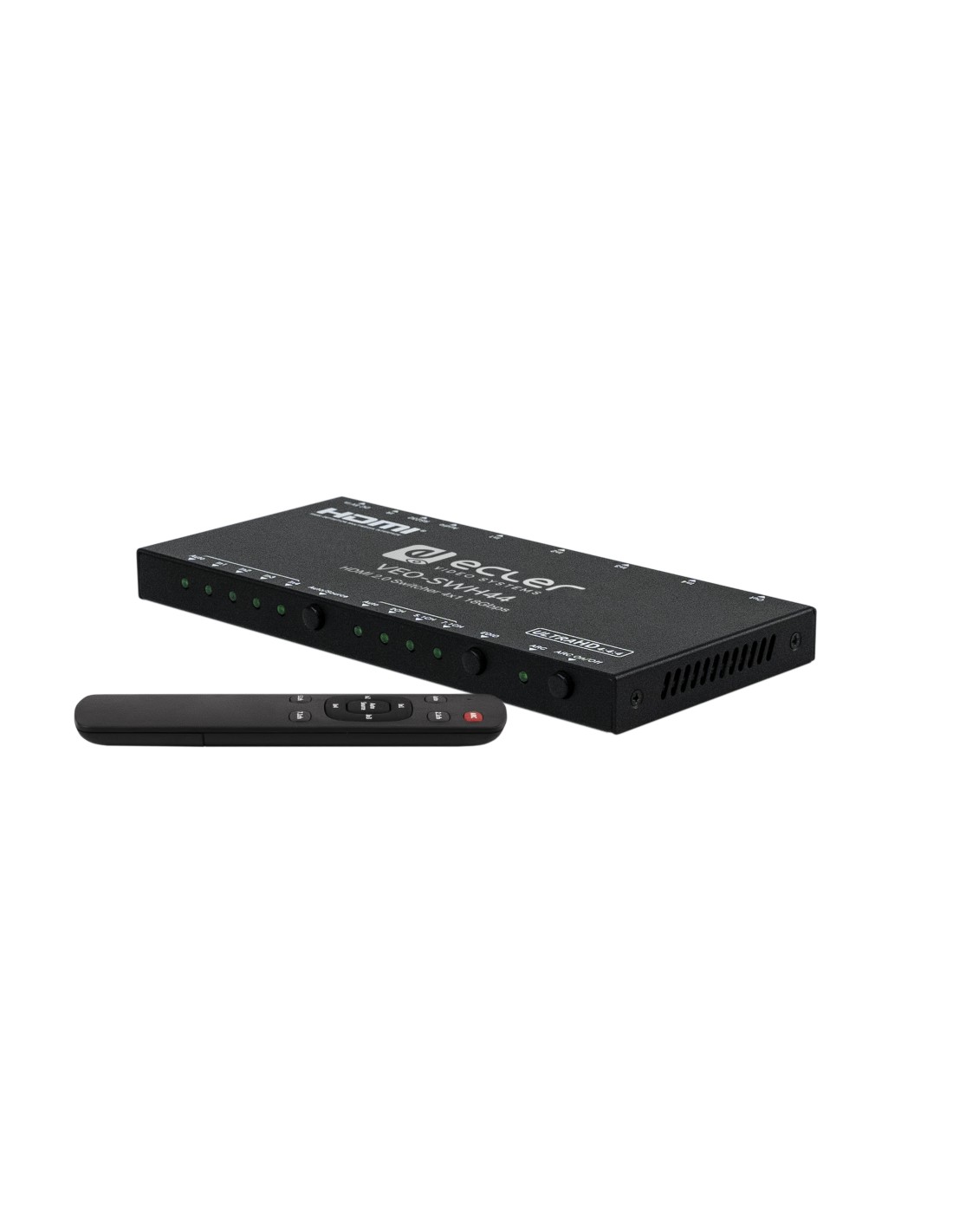

4x1 HDMI® SWITCHER with audio De-embedder
VEO-SWH44 is a 4x1 HDMI® switcher for high dynamic range (HDR) formats. It is the ideal solution for applications requiring 4K/UHD and HDR sources and displays. VEO-SWH44 includes audio de-embedding features and audio EDID management. The HDMI® selection could be automatic (sense selection) and manual (frontal panel, remote control or serial commands). The controls include ARC mute and LED indications of the selected sources and settings.
- Installation options
- Desktop, VEO-RACK19
- Operating temperature
- Min: 0°C ; 32°F
Max: 40°C ; 104°F - Operating humidity
- 20 - 90% RH (no condensation)
- Included accessories

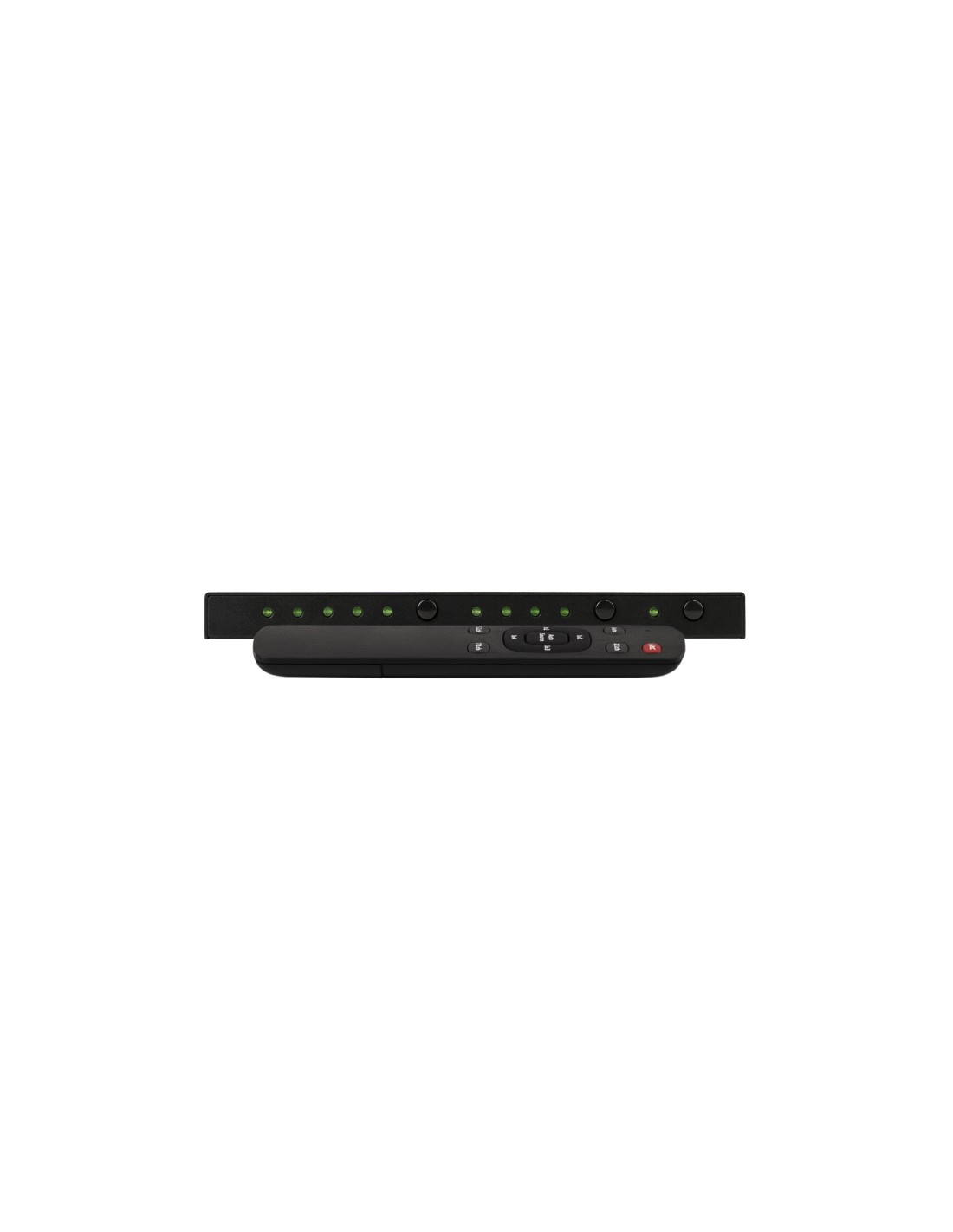

- 1 x 5V DC 1A International Power Supply, 1 x IR RX cable, 1 x Optical Adapter (for SPDIF audio output), 1 x HDMI 4x1 IR Remote
- Finished colour
- Black
- Dimensions
- 180 x 12 x 80 mm / 7.09 x 0.47 x 3.15 in. (WxHxD)
- Weight
- 0.3 kg / 0.661 lb
- Shipping dimensions
- 250 x 55 x 185 mm / 9.84 x 2.17 x 7.28 in. (WxHxD)
- Shipping weight
- 0.7 kg / 1.54 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307642
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Power consumption
- 2.5W Maximum

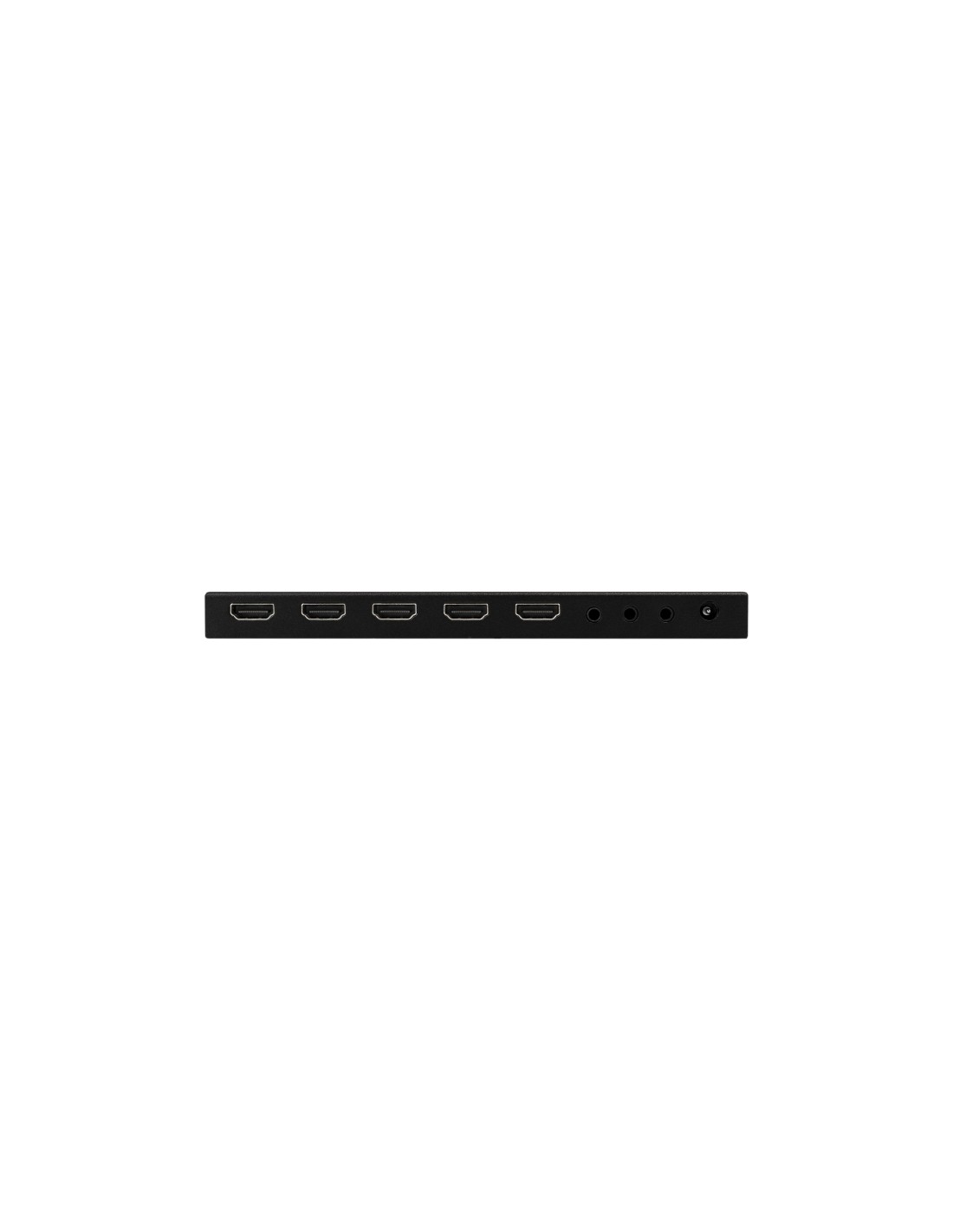

- Video Input Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 18 Gbps - Video Output Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 18 Gbps - Video Input Resolutions
- 4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,
576i, 480p, 480i
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,576i, 480p, 480i
1920x1200@60Hz - Video Output Resolutions
- 4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,
576i, 480p, 480i
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
1920x1200@60Hz - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- YCbCr, RGB
- HDCP
- 2.2, 1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters (33 feet) with Ecler VEO cables
- Audio Output Connectors
- Analog 3.5mm Stereo Minijack or Toslink Digital Output using the included adapter
- Audio Formats
- PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS
5.1, Dolby TrueHD, DTS-HD Master Audio - Sample Rate
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz - Bit Depth
- Up to 24-bit
- ARC/eARC
- Yes

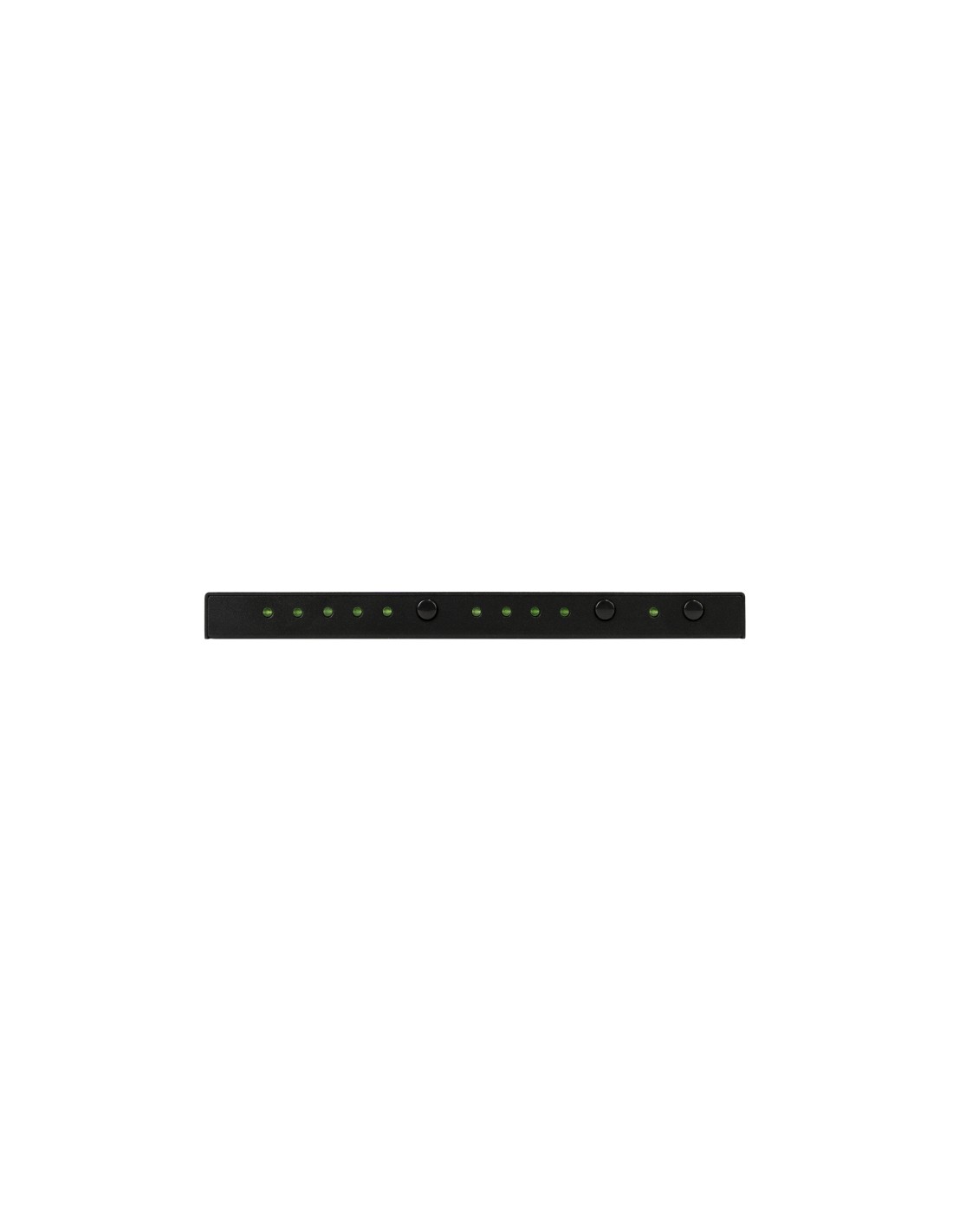

- Control Buttons
- Source selection mode button (Auto/Manual), EDID select button, ARC Activation button
- EDID Management
- Button
- Status Indicators
- Source Selection LED indicators, EDID Status LED, ARC Status LED
- Power supply
- AC100 - 240V 50/60Hz Output: DC 5V/1A
- DC mains connector
- DC 5V Connector
- Chassis material
- Metal
- Control Connectors
- 2 x Minijack 3.5mm
- Audio De-Embedding
- Yes
- Audio Embedding
- No
- Control Protocols
- RS-232, IR
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 |
|---|---|
| Operating temperature |
Min: 0°C ; 32°F
Max: 40°C ; 104°F |
| Operating humidity |
20 - 90% RH (no condensation) |
| Included accessories |
1 x 5V DC 1A International Power Supply, 1 x IR RX cable, 1 x Optical Adapter (for SPDIF audio output), 1 x HDMI 4x1 IR Remote |
| Finished colour |
Black |
| Dimensions |
180 x 12 x 80 mm / 7.09 x 0.47 x 3.15 in. (WxHxD) |
| Weight |
0.3 kg / 0.661 lb |
| Shipping dimensions |
250 x 55 x 185 mm / 9.84 x 2.17 x 7.28 in. (WxHxD) |
| Shipping weight |
0.7 kg / 1.54 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307642 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
2.5W Maximum |
|---|---|
| Power supply |
AC100 - 240V 50/60Hz Output: DC 5V/1A |
| DC mains connector |
DC 5V Connector |
DEVICE CONTROL
| Control Buttons |
Source selection mode button (Auto/Manual), EDID select button, ARC Activation button |
|---|---|
| EDID Management |
Button |
| Status Indicators |
Source Selection LED indicators, EDID Status LED, ARC Status LED |
| Control Connectors |
2 x Minijack 3.5mm |
| Control Protocols |
RS-232, IR |
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 18 Gbps |
| Video Input Resolutions |
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,
576i, 480p, 480i 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108 0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,576i, 480p, 480i 1920x1200@60Hz |
| Video Output Resolutions |
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108
0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p,
576i, 480p, 480i 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p 1080p@23.98/24/25/29.97/30/50/59.94/60Hz,108 0i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i 1920x1200@60Hz |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0
|
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
YCbCr, RGB
|
| HDCP |
2.2, 1.4 Compliant |
| HDR |
HDR10
|
| HDMI Distance |
up to 10 meters (33 feet) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Output Connectors |
Analog 3.5mm Stereo Minijack or Toslink Digital Output using the included adapter |
|---|---|
| Audio Formats |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS
5.1, Dolby TrueHD, DTS-HD Master Audio |
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
Yes |
| Audio De-Embedding |
Yes |
| Audio Embedding |
No |
