CXA-18S
CLYCXA18S
Check availability

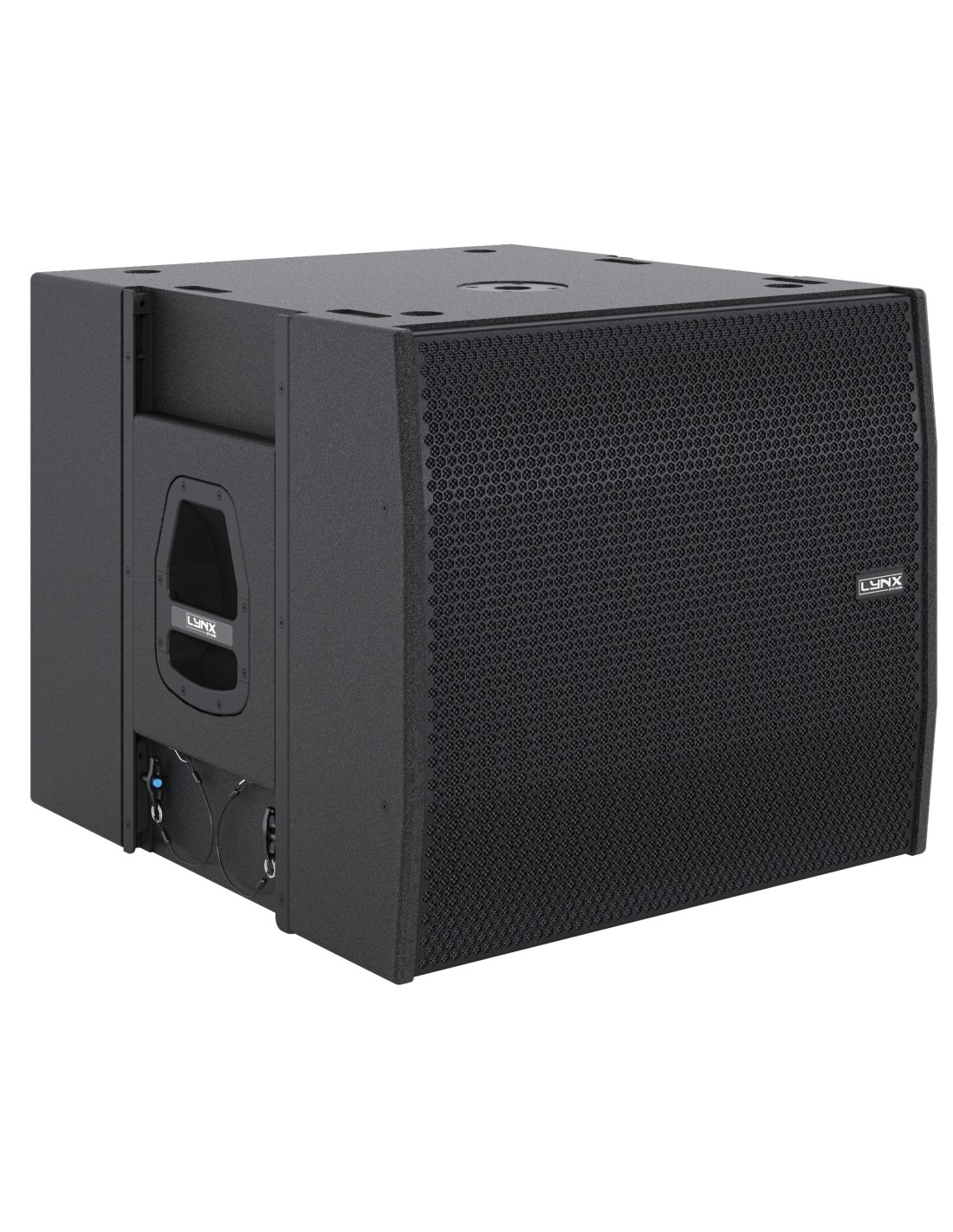

Powered compact subwoofer for CXA-12
High output, self powered (class D switch mode power supply with PFC), omni-directional subwoofer cabinet.
Consists of a 18″ (4″ ventilated voice coil) neodymium transducer. DSP controlled with 1400W amplification, 132dB SPL.
The CXA-18S is a self-powered subwoofer enclosure specially designed to reinforce the low frequencies of the CXA-12 linear array elements.
- Effective Freq. Range
- Frequency range: 30 Hz - 140 Hz (-10dB)
Frequency response: 35 Hz - 125 Hz (± 3dB) - Coverage angle / Dispersion
- Omnidirectional
- Power handling
- LF: 18”, 4” voice coil, Neodymiun magnet assembly
- Maximum SPL
- 132 dB
- Connection type
- Ethernet (OCS) / USB (DSP programming)
- Grille material
- 18 mm Premium birch plywood
- Dimensions
- 556 x 632 x 696 mm (H x W x D)
- Weight
- 45 Kg (99 lbs)
- Status
- New
- EAN code
- 8436612040875
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power supply
- 90 – 264V. 50/60 Hz with PFC
- Finish
- Polyurea coating, high grade resistant paint
- Power options (Hi Z Multi-tap)
- 1400 W Class D with switching power supply & PFC
LF amplifier: 1 x 1400 W - Audio inputs
- Analog / AES3 (optional)
- Display
- User control interface with 2.8” IPS screen
- AC connections
- 16A Neutrik powercon true1 with
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 30 Hz - 140 Hz (-10dB)
Frequency response: 35 Hz - 125 Hz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
Omnidirectional |
| Power handling |
LF: 18”, 4” voice coil, Neodymiun magnet assembly |
| Maximum SPL |
132 dB |
| Power options (Hi Z Multi-tap) |
1400 W Class D with switching power supply & PFC
LF amplifier: 1 x 1400 W |
PHYSICAL
| Connection type |
Ethernet (OCS) / USB (DSP programming) |
|---|---|
| Grille material |
18 mm Premium birch plywood |
| Dimensions |
556 x 632 x 696 mm (H x W x D) |
| Weight |
45 Kg (99 lbs) |
| Finish |
Polyurea coating, high grade resistant paint |
POWERED
| Audio inputs |
Analog / AES3 (optional) |
|---|---|
| AC connections |
16A Neutrik powercon true1 with |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040875 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
90 – 264V. 50/60 Hz with PFC |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8” IPS screen |
|---|
