CS-8SUB
CLYCS8SUB
Check availability

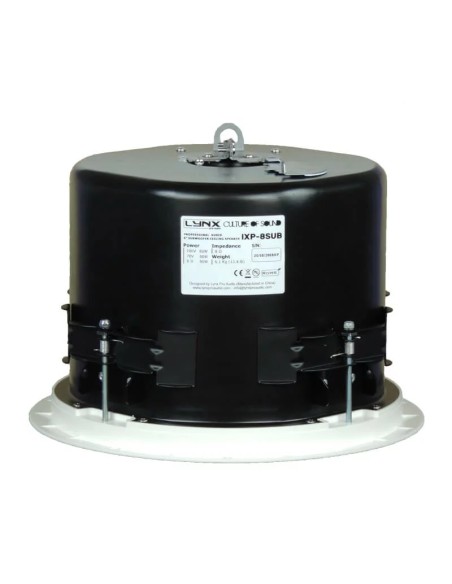

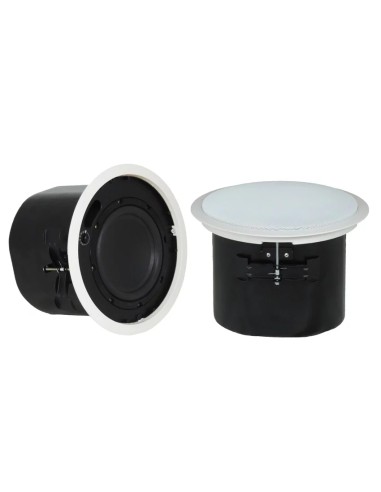

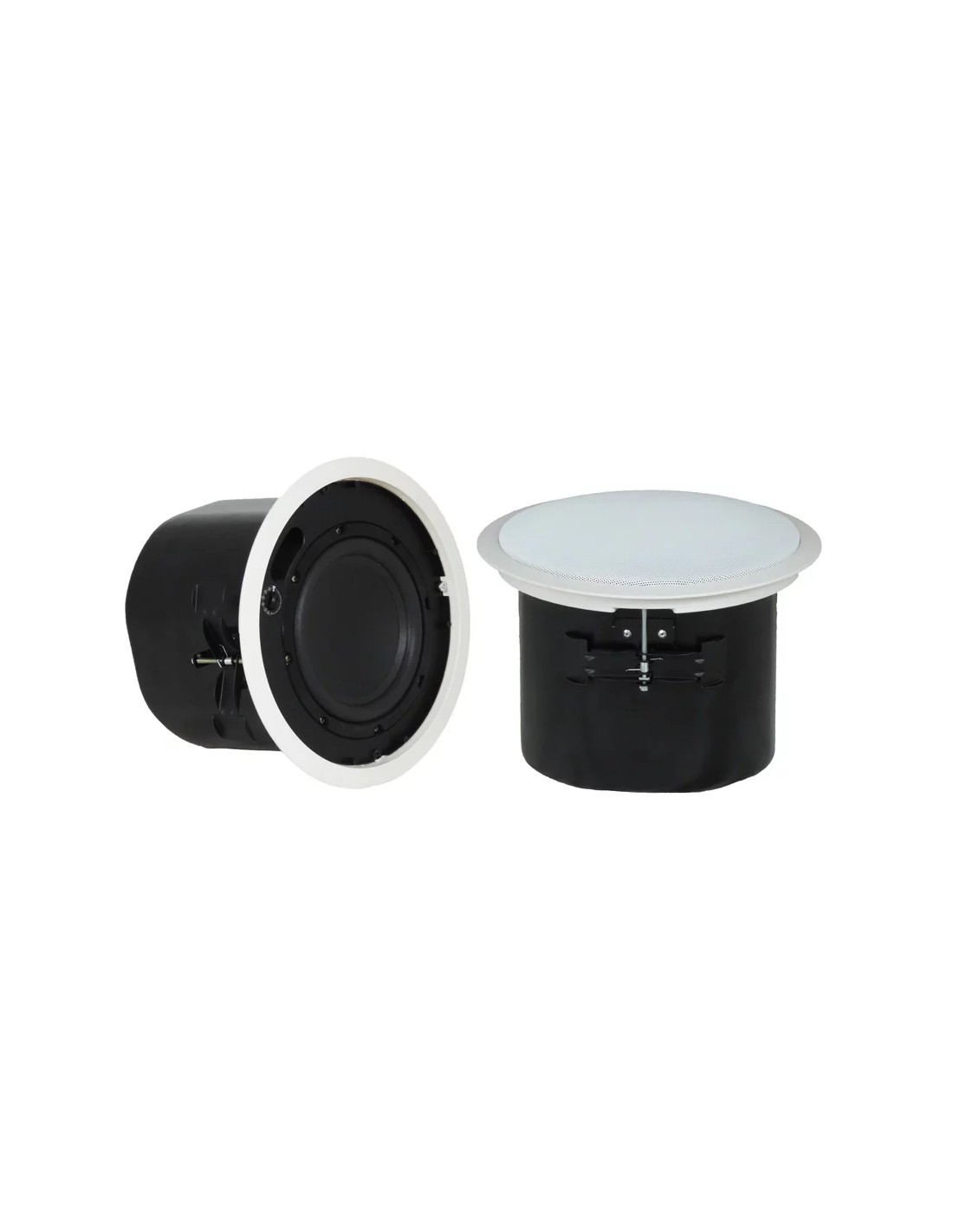

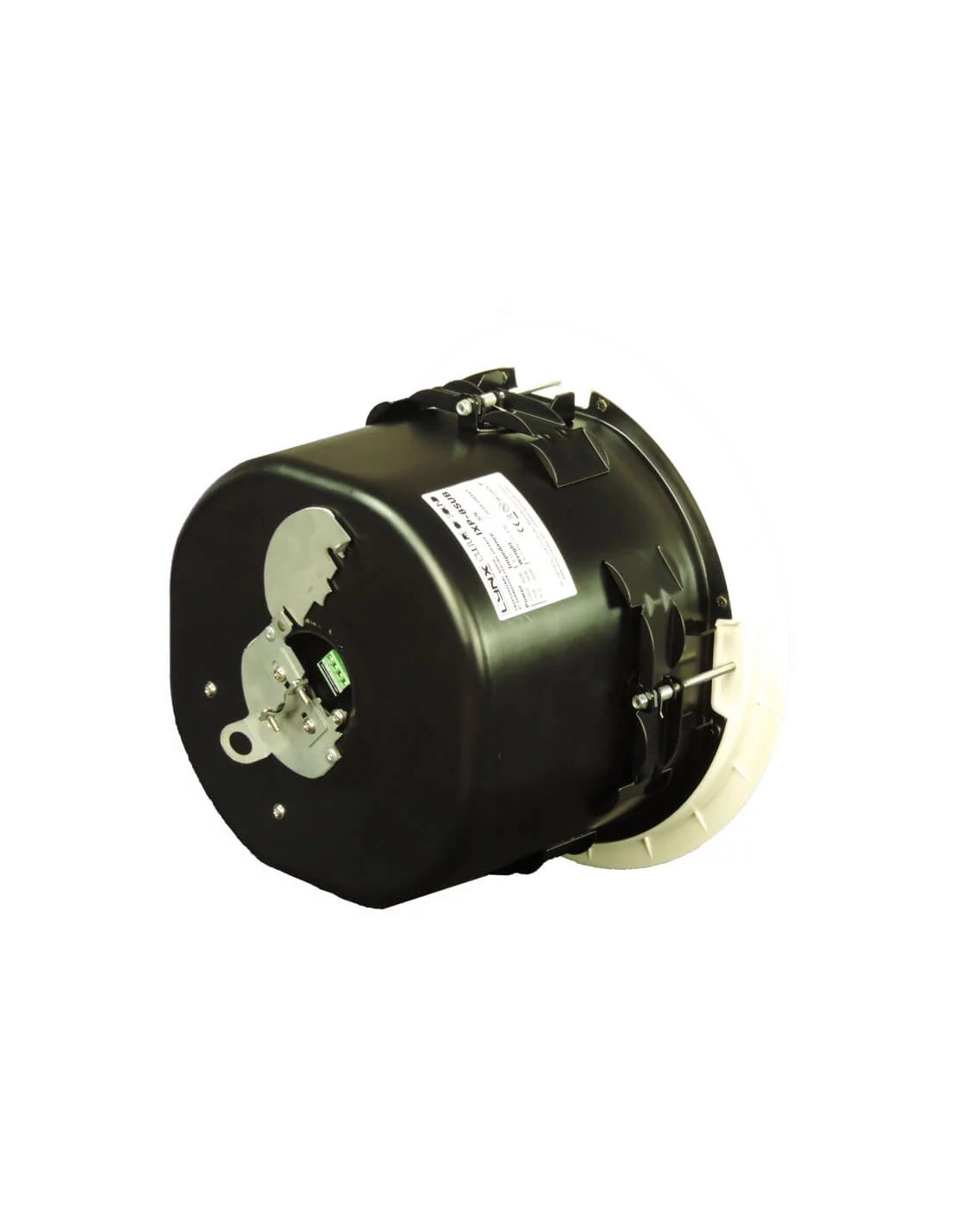

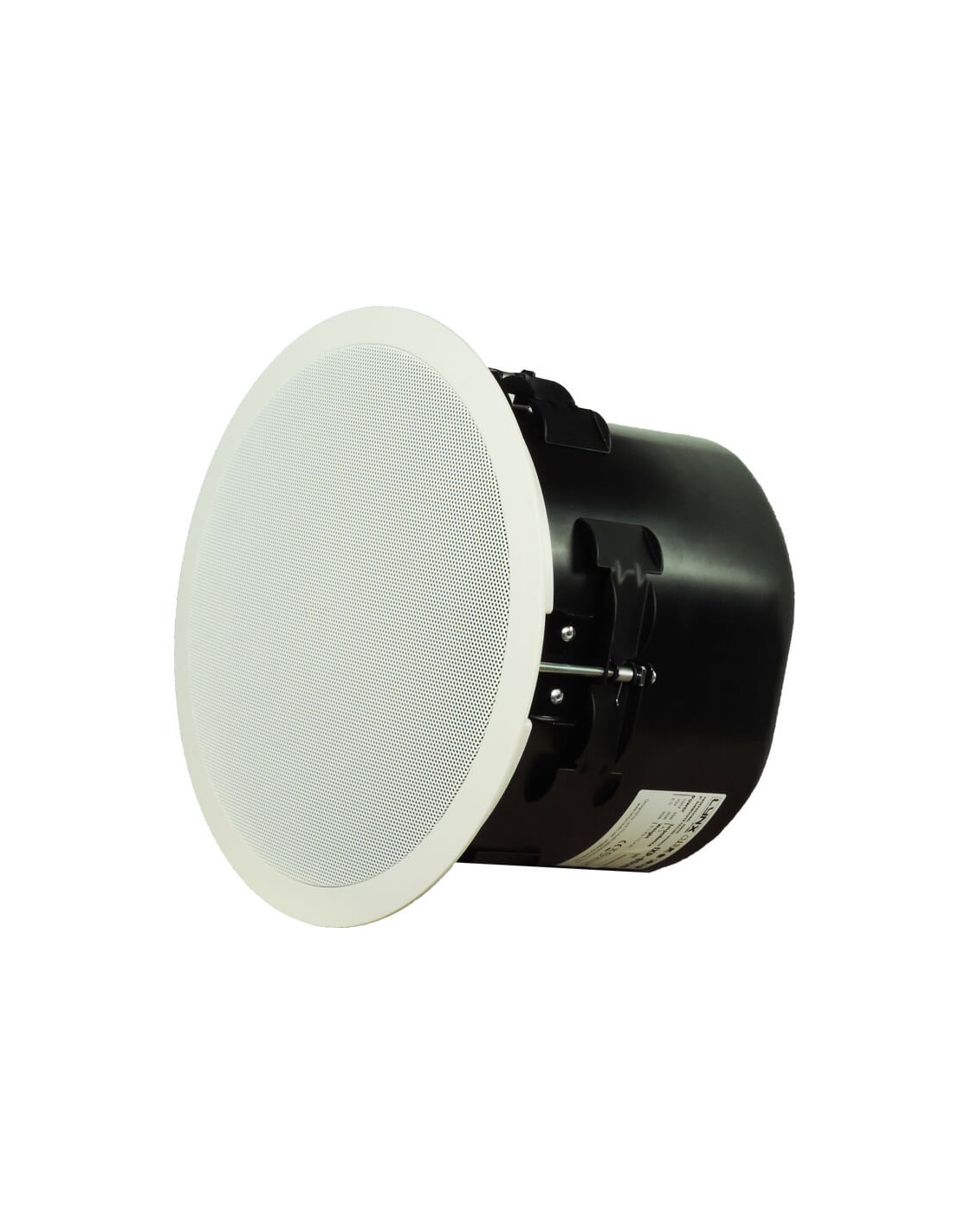

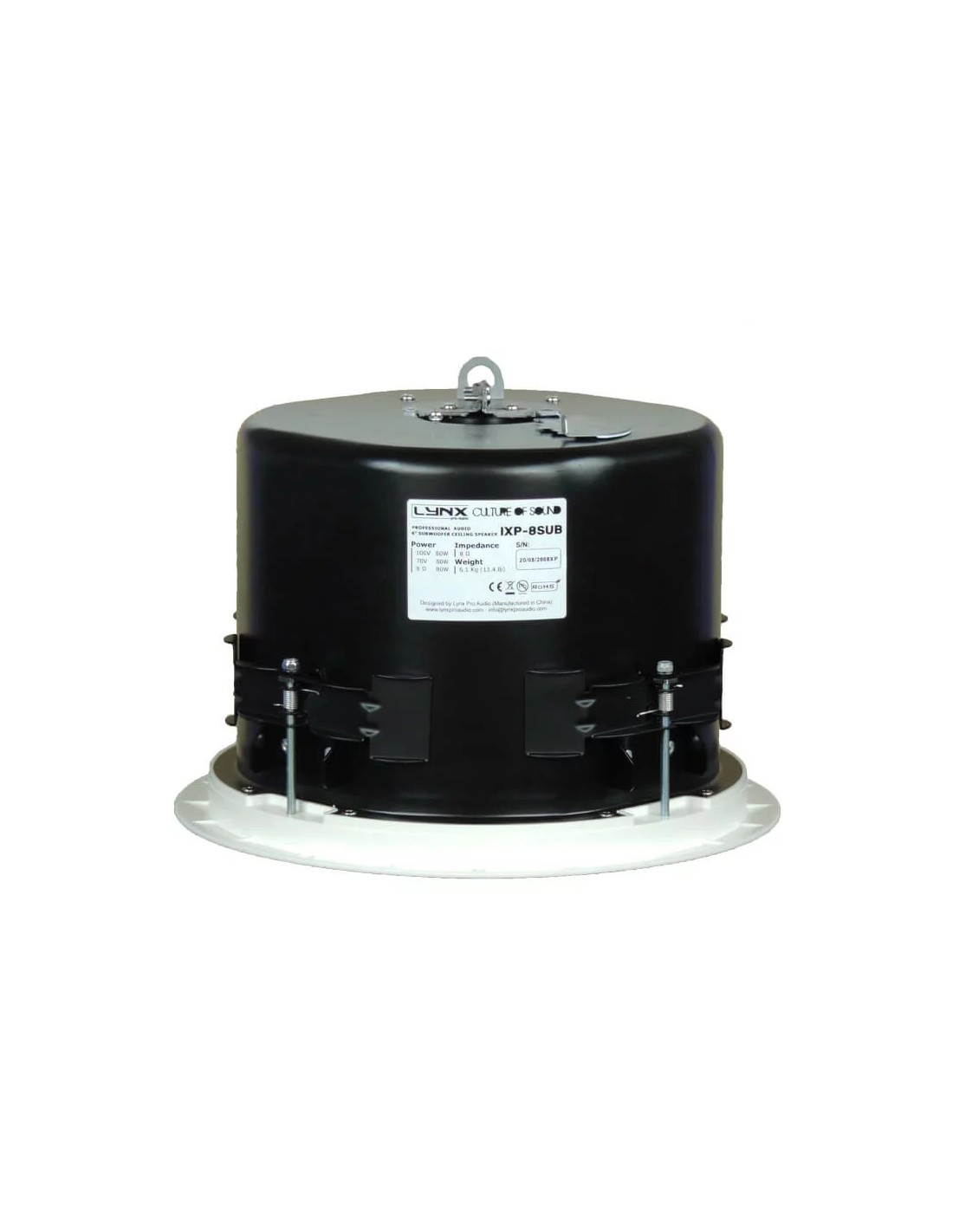

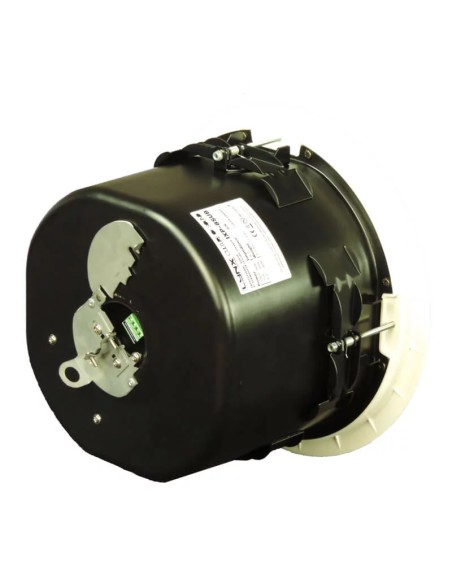

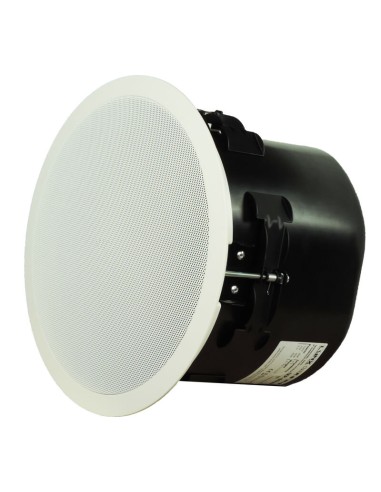

IX 8" 80W Ceiling Subwoofer
The IXP-8SUB is a professional in-ceiling subwoofer speaker that offers great clarity and sound performance. It is a speaker designed to extend the low frequencies of the IXP series ceiling speakers. It uses a transformer that offers a choice of high impedance line (100V/70V) or 8Ω bypass.
- Effective Freq. Range
- 50 – 200 Hz
- Sensitivity
- 90 dB 1W / 1m @ Zn average 60 Hz to 110 Hz
- Maximum SPL
- 8Ω 110 dB / 116 dB
100V / 70V 107 dB / 113 dB - Nominal impedance
- 8 Ω
- Crossover filter
- 180 Hz 12dB/octave HP/LP filter
- Grille material
- Powder coated steel, white finish, paintable
- Dimensions
- 248 mm x 320 mm (9.7 in x 12.5 in)
- Weight
- 5.62 Kg (12.3 lbs)
- Status
- New
- EAN code
- 8436612043272
- Tariff code
- 8518900000
SYSTEM
| Effective Freq. Range |
50 – 200 Hz |
|---|---|
| Sensitivity |
90 dB 1W / 1m @ Zn average 60 Hz to 110 Hz |
| Maximum SPL |
8Ω 110 dB / 116 dB
100V / 70V 107 dB / 113 dB |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|
FILTERS
| Crossover filter |
180 Hz 12dB/octave HP/LP filter |
|---|
PHYSICAL
| Grille material |
Powder coated steel, white finish, paintable |
|---|---|
| Dimensions |
248 mm x 320 mm (9.7 in x 12.5 in) |
| Weight |
5.62 Kg (12.3 lbs) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612043272 |
| Tariff code |
8518900000 |
