CLS-218SP
CLYCLS218SP
Check availability
Subwoofer unit in direct radiation configuration (pasive)

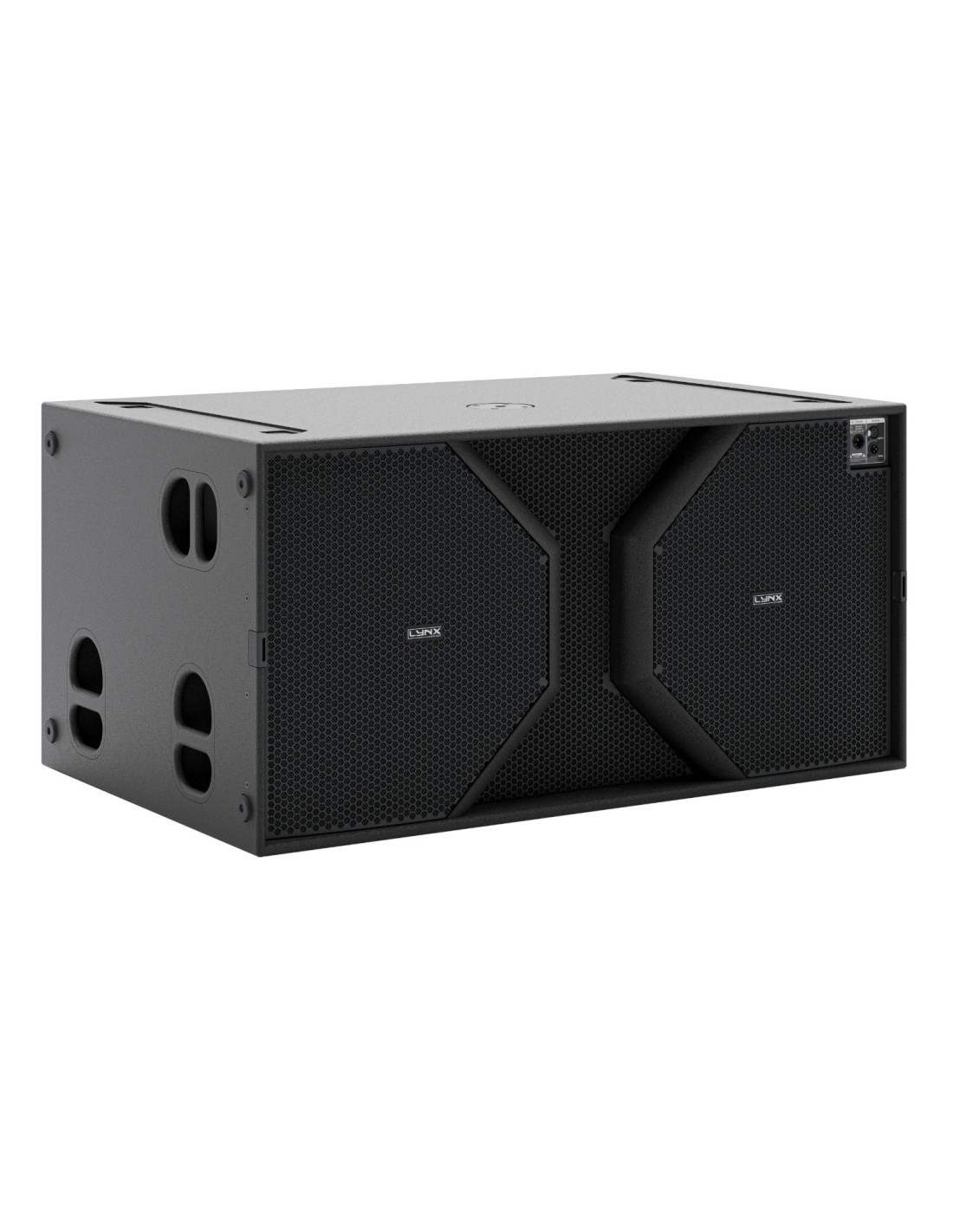

The CLS-218SP is a high-output, extremely powerful sub-bass element designed to be used in unison with the coaxial CLS-212P line array module.
It uses two low distortion 18” (4.5” Split winding copper voice coil) custom speaker with double silicon spider with optimized compliance, ventilated voice coil for reduced power compression and aluminium demodulating ring for very low distortion.
- Effective Freq. Range
- Frequency range: 25 Hz – 250 Hz (preset 100 Hz)
Frequency response: 30 Hz – 100 Hz (preset 100 Hz) / 28 Hz – 80 Hz (preset infra) - Coverage angle / Dispersion
- Quasi Omnidirectional
- Power handling
- 3400W / 6800W / 13600W peak
- Sensitivity
- (Sensitive 1w/1m half space) 101 dB
- Nominal impedance
- 4 Ω
- Grille material
- 15 mm / 18 mm Premium birch plywood
- Dimensions
- 600 x 1200 x 770 mm (HxWxD)
- Weight
- 81 Kg (178.5 lbs)
- Status
- New
- EAN code
- 8436612040103
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Polyurea coating, high grade resistant paint
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 25 Hz – 250 Hz (preset 100 Hz)
Frequency response: 30 Hz – 100 Hz (preset 100 Hz) / 28 Hz – 80 Hz (preset infra) |
|---|---|
| Coverage angle / Dispersion |
Quasi Omnidirectional |
| Power handling |
3400W / 6800W / 13600W peak |
| Sensitivity |
(Sensitive 1w/1m half space) 101 dB |
TRANSDUCERS
| Nominal impedance |
4 Ω |
|---|
PHYSICAL
| Grille material |
15 mm / 18 mm Premium birch plywood |
|---|---|
| Dimensions |
600 x 1200 x 770 mm (HxWxD) |
| Weight |
81 Kg (178.5 lbs) |
| Finish |
Polyurea coating, high grade resistant paint |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040103 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
