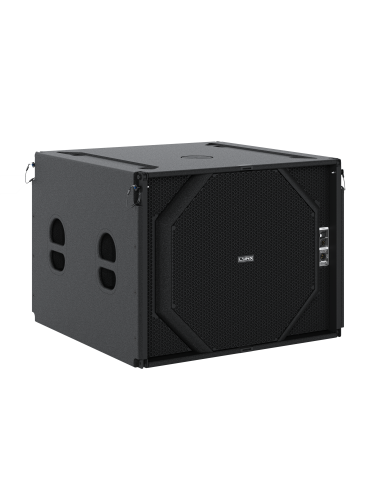

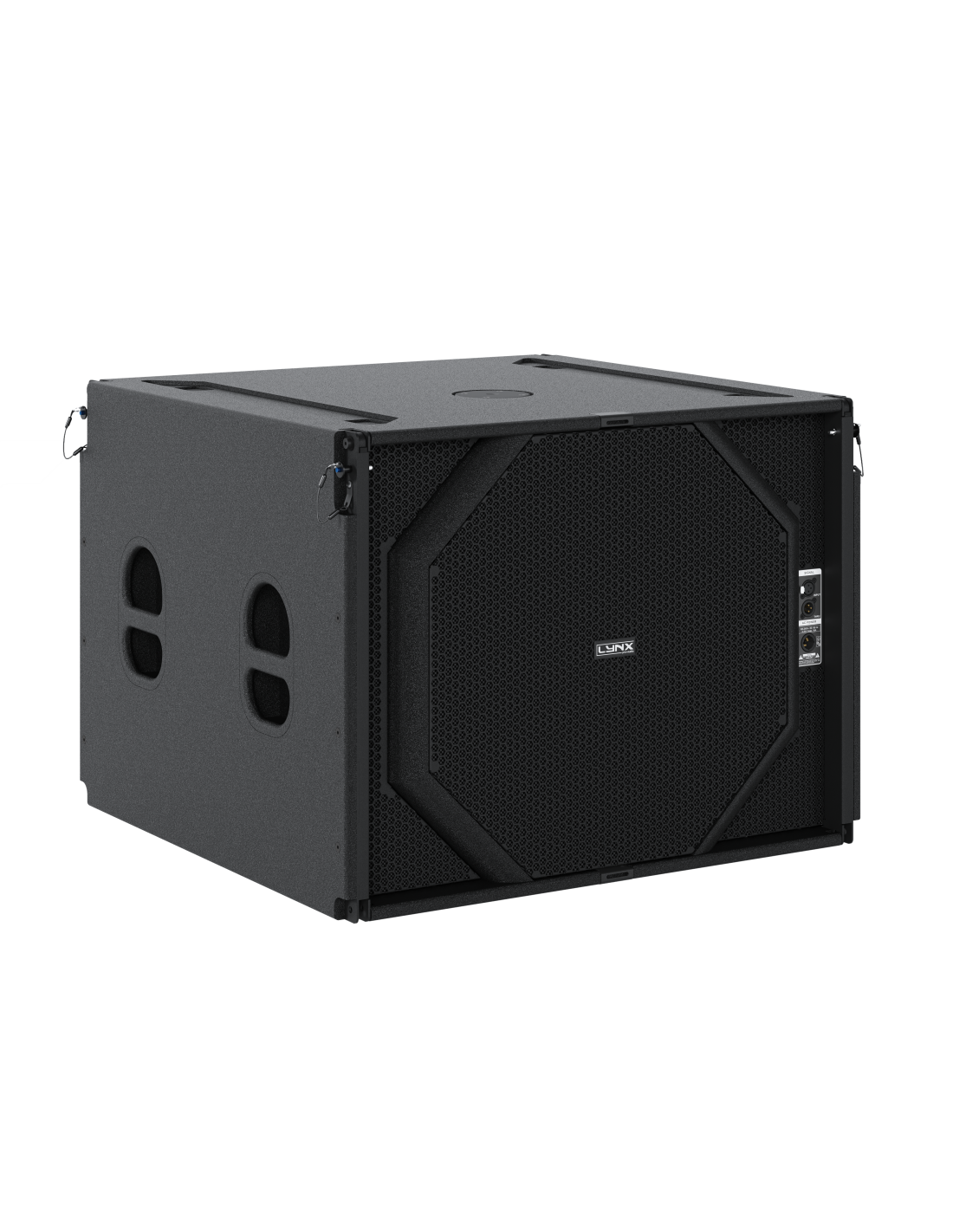

CLS-121S
CLYCLS121S
Check availability
Very high power compact enclosure for subwoofers.
Very high power compact subwoofer enclosure. 3000 W Class-D self-powered system with integrated PFC and DSP. 21″ neodymium transducer (4.5″ coil) in direct radiation configuration.
- Effective Freq. Range
- 30 Hz – 90 Hz (preset 90 Hz)
- Coverage angle / Dispersion
- Quasi Omnidirectional
- Maximum SPL
- 131 dB / 137 dB
- Recommended amplifier power
- 3000W Class D with switching power supply & PFC
- Grille material
- 15 mm / 18 mm Premium birch plywood
- Dimensions
- 608 x 800 x 778 mm (H x W x D) / with pins 814.5 mm (W)
- Weight
- 64 Kg (141 lbs)
- Status
- New
- EAN code
- 8436612040073
8436612040080 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- 100 – 240V AC @ 50-60 Hz
- Finish
- Polyurea coating, high grade resistant paint
- Audio inputs
- BAL/ UNBAL XLR connectors analog input + loop AES/EBU digital input + loop
- Display
- User control interface with 2.8″ IPS and multifunction joystick controller
- AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision
High performance 32 bit 96 KHz AD/DA converters 120dB
SYSTEM
| Effective Freq. Range |
30 Hz – 90 Hz (preset 90 Hz) |
|---|---|
| Coverage angle / Dispersion |
Quasi Omnidirectional |
| Maximum SPL |
131 dB / 137 dB |
| Recommended amplifier power |
3000W Class D with switching power supply & PFC |
PHYSICAL
| Grille material |
15 mm / 18 mm Premium birch plywood |
|---|---|
| Dimensions |
608 x 800 x 778 mm (H x W x D) / with pins 814.5 mm (W) |
| Weight |
64 Kg (141 lbs) |
| Finish |
Polyurea coating, high grade resistant paint |
POWERED
| Audio inputs |
BAL/ UNBAL XLR connectors analog input + loop AES/EBU digital input + loop |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision
High performance 32 bit 96 KHz AD/DA converters 120dB |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040073
8436612040080 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
100 – 240V AC @ 50-60 Hz |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8″ IPS and multifunction joystick controller |
|---|
