CLS-118SP
CLYCLS118SP
Check availability

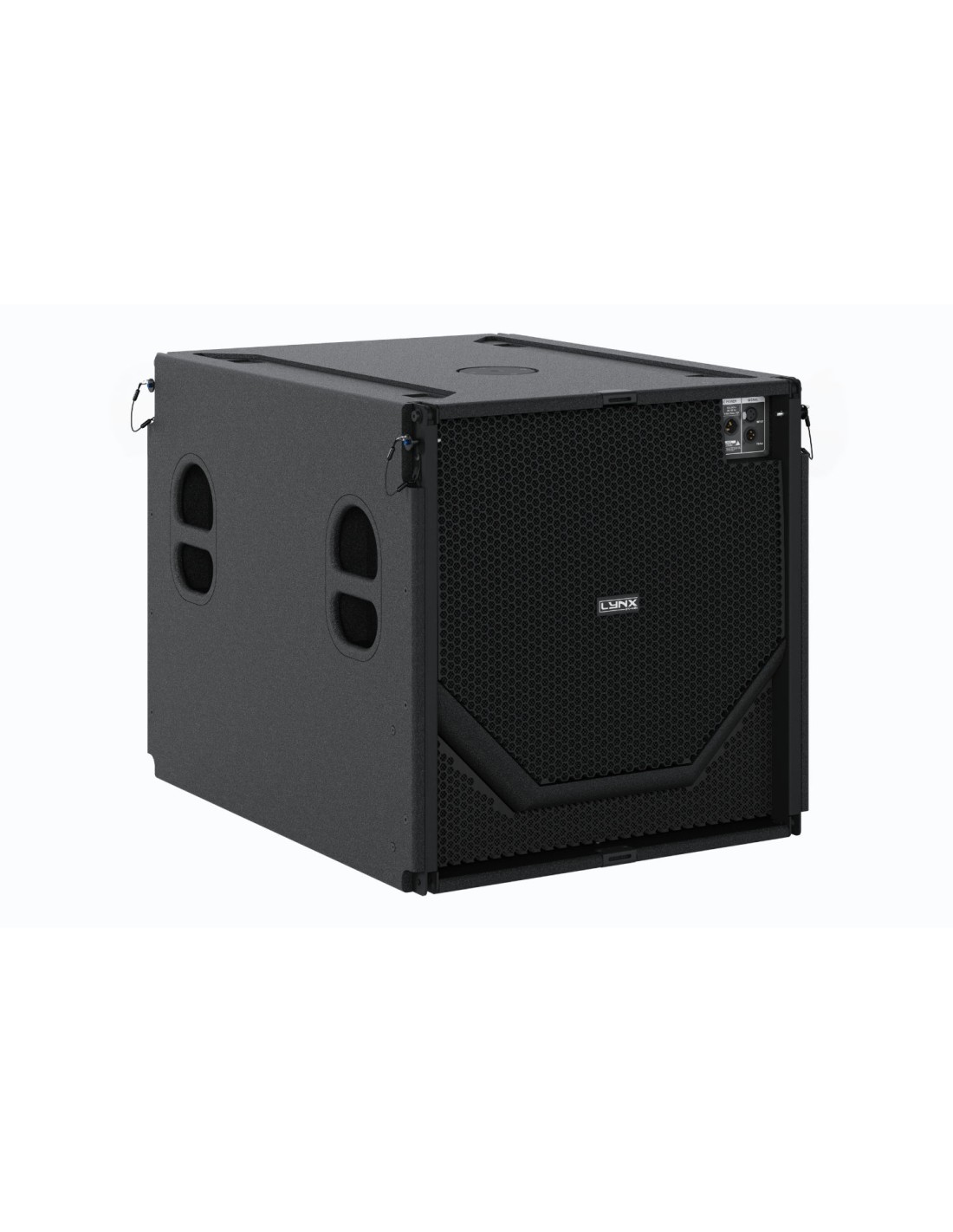

Passive subwoofer unit in direct radiation configuration
The CLS-118SP is a high-output, extremely powerful sub-bass element designed to be used in unison with the coaxial CLS-28P line array module.
It uses one low distortion 18” (4.5” Split winding copper voice coil) custom speaker with double silicon spider with omptimized compliance, ventilated voice coil for reduced power compression and aluminium demodulating ring for very low distortion.
- Effective Freq. Range
- 30 Hz – 100 Hz (preset 100 Hz)
- Coverage angle / Dispersion
- Quasi-omnidirectional
- Power handling
- 1700W (3400W program, 7400W peak)
- Maximum SPL
- 131 dB / 137 dB
- Nominal impedance
- 8 Ω
- Connection type
- 2 x Neutrik Speakon NL4MP rear, 2 x Neutrik Speakon NL4MP front
- Grille material
- 15 mm / 18 mm Premium birch plywood
- Dimensions
- 600 x 613 x 770 mm (HxWxD) / with pins 609 x 613 mm (HxW)
- Weight
- 55 Kg (121.2 lbs)
- Status
- New
- EAN code
- 8436612040066
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- 99 dB
- Finish
- Black Polyurea coating, high grade resistant paint. other colours (RAL) available
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
30 Hz – 100 Hz (preset 100 Hz) |
|---|---|
| Coverage angle / Dispersion |
Quasi-omnidirectional |
| Power handling |
1700W (3400W program, 7400W peak) |
| Maximum SPL |
131 dB / 137 dB |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP rear, 2 x Neutrik Speakon NL4MP front |
|---|---|
| Grille material |
15 mm / 18 mm Premium birch plywood |
| Dimensions |
600 x 613 x 770 mm (HxWxD) / with pins 609 x 613 mm (HxW) |
| Weight |
55 Kg (121.2 lbs) |
| Finish |
Black Polyurea coating, high grade resistant paint. other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040066 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
99 dB |
|---|
