CLS-118S
CLYCLS118S
Check availability

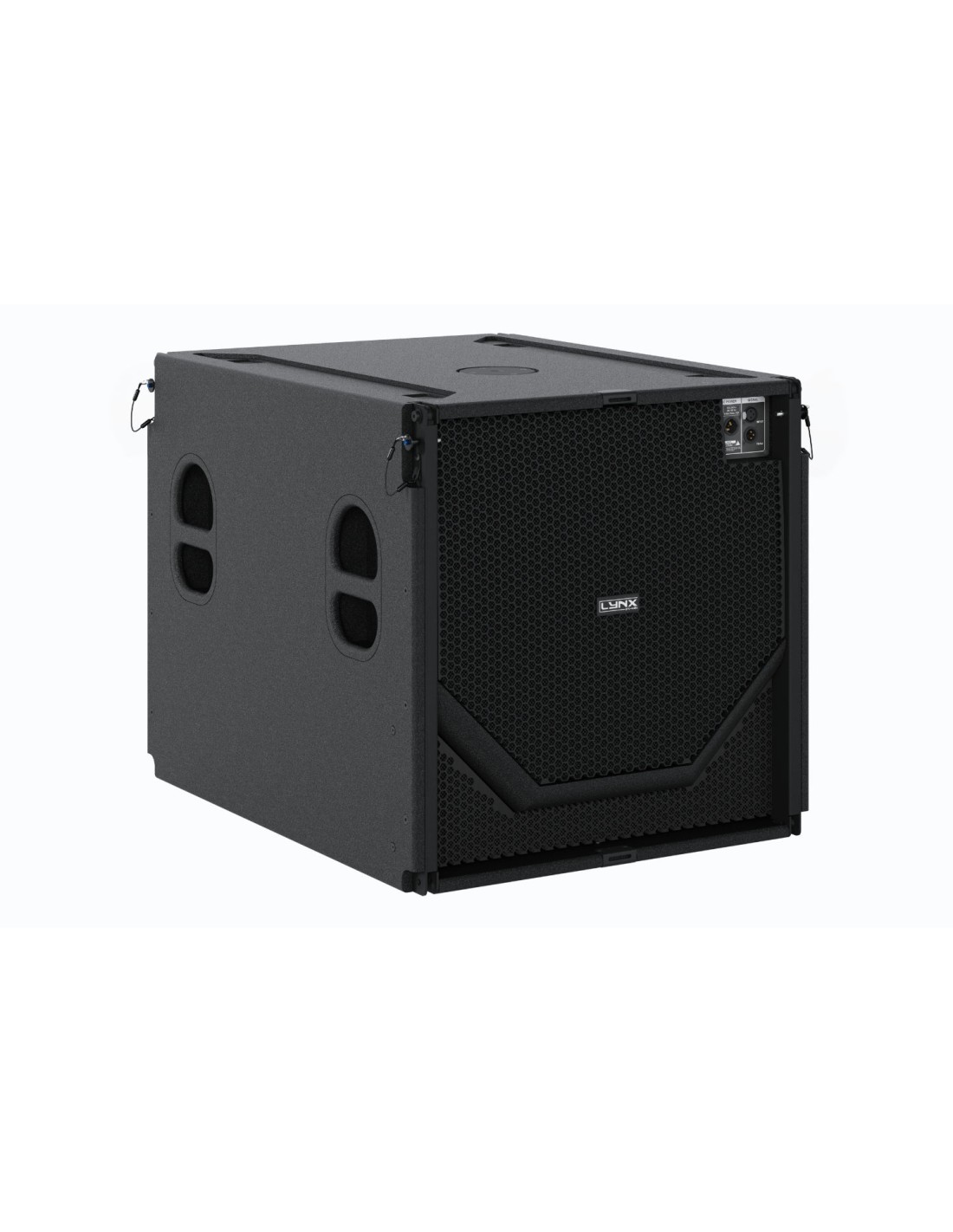

Very high power compact enclosure for subwoofers.
Very high power compact subwoofer enclosure. 3000 W Class-D self-powered system with integrated PFC and DSP. 18″ neodymium transducer (4.5″ coil) in direct radiation configuration.
- Effective Freq. Range
- 30 Hz - 100 Hz ( preset 100 Hz)
- Coverage angle / Dispersion
- Quasi Omnidirectional
- Maximum SPL
- 131 dB/ 137 dB
- Recommended amplifier power
- 3000W Class D with switching power supply & PFC
- Connection type
- USB (DSP programming)
Dual Ethernet port, Online Control System - Grille material
- 15 mm / 18 mm Premium birch plywood
- Finished colour
- Polyurea coating, high grade resistant paint
- Dimensions
- 600 x 613 x 770 mm (H x W x D) / with pins 609 x 613 mm
(H x W) - Weight
- 58 Kg (127.8 lbs)
- Status
- New
- EAN code
- 8436612040059
8436612040066 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- 100 - 240V AC @ 50-60 Hz
- Audio inputs
- BAL/ UNBAL XLR connectors analog input + loop
AES3 digital input + loop - Display
- User control interface with 2.8” IPS display and multifunction
joystick controller - AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision
High performance 32 bit 96 KHz AD/DA converters 120dB
SYSTEM
| Effective Freq. Range |
30 Hz - 100 Hz ( preset 100 Hz) |
|---|---|
| Coverage angle / Dispersion |
Quasi Omnidirectional |
| Maximum SPL |
131 dB/ 137 dB |
| Recommended amplifier power |
3000W Class D with switching power supply & PFC |
PHYSICAL
| Connection type |
USB (DSP programming)
Dual Ethernet port, Online Control System |
|---|---|
| Grille material |
15 mm / 18 mm Premium birch plywood |
| Finished colour |
Polyurea coating, high grade resistant paint |
| Dimensions |
600 x 613 x 770 mm (H x W x D) / with pins 609 x 613 mm
(H x W) |
| Weight |
58 Kg (127.8 lbs) |
POWERED
| Audio inputs |
BAL/ UNBAL XLR connectors analog input + loop
AES3 digital input + loop |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision
High performance 32 bit 96 KHz AD/DA converters 120dB |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040059
8436612040066 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
100 - 240V AC @ 50-60 Hz |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8” IPS display and multifunction
joystick controller |
|---|
