HR-218-36W
CLYHR21836W
Check availability
Very high performance passive subwoofer to work in conjunction with HR series enclosures

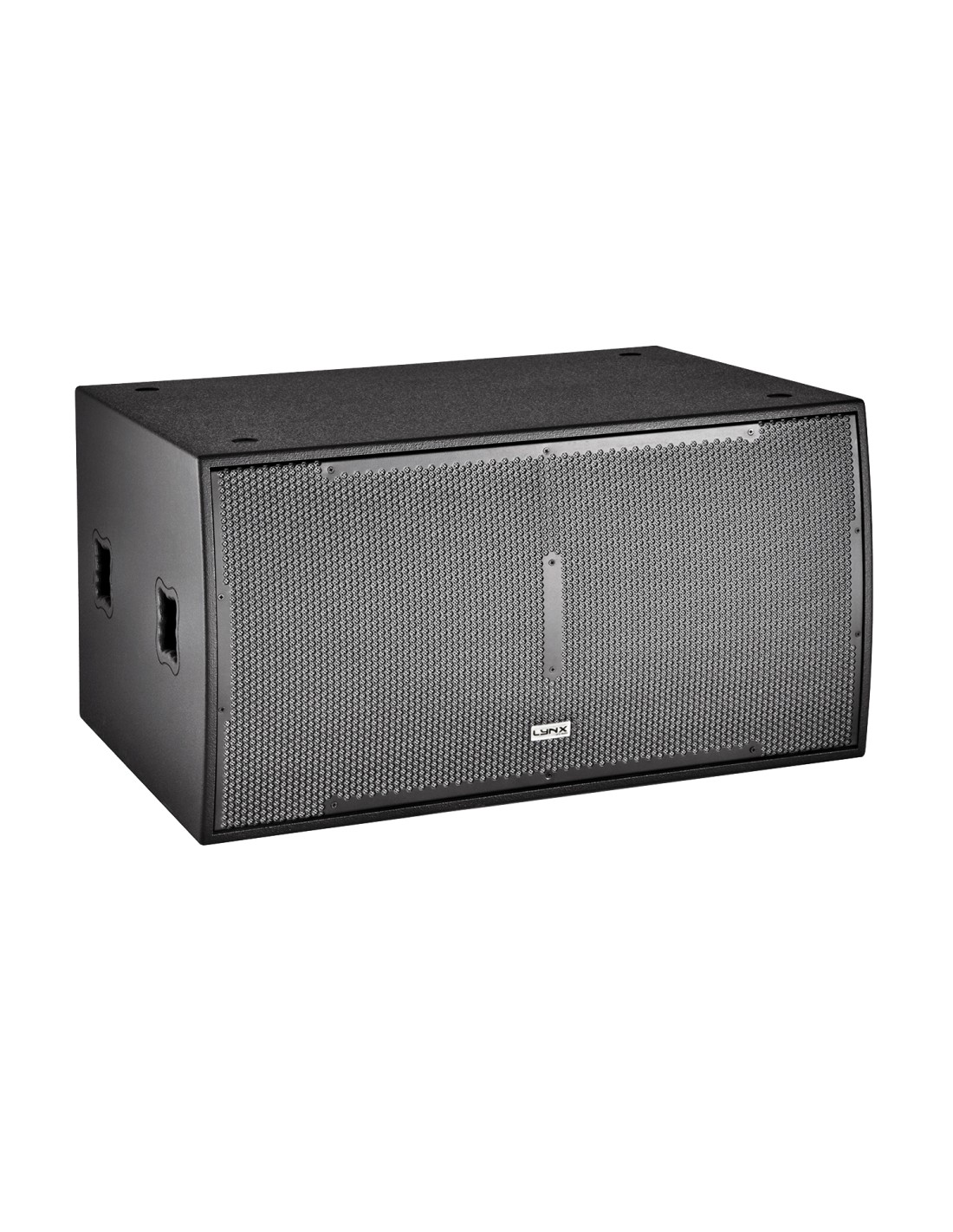

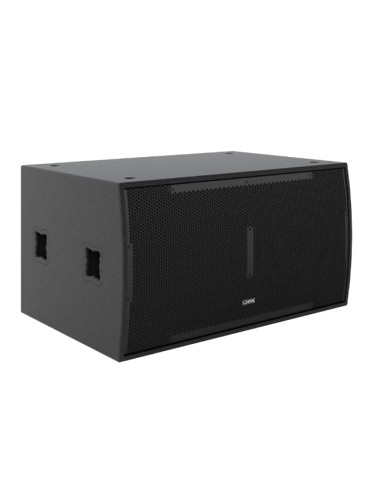

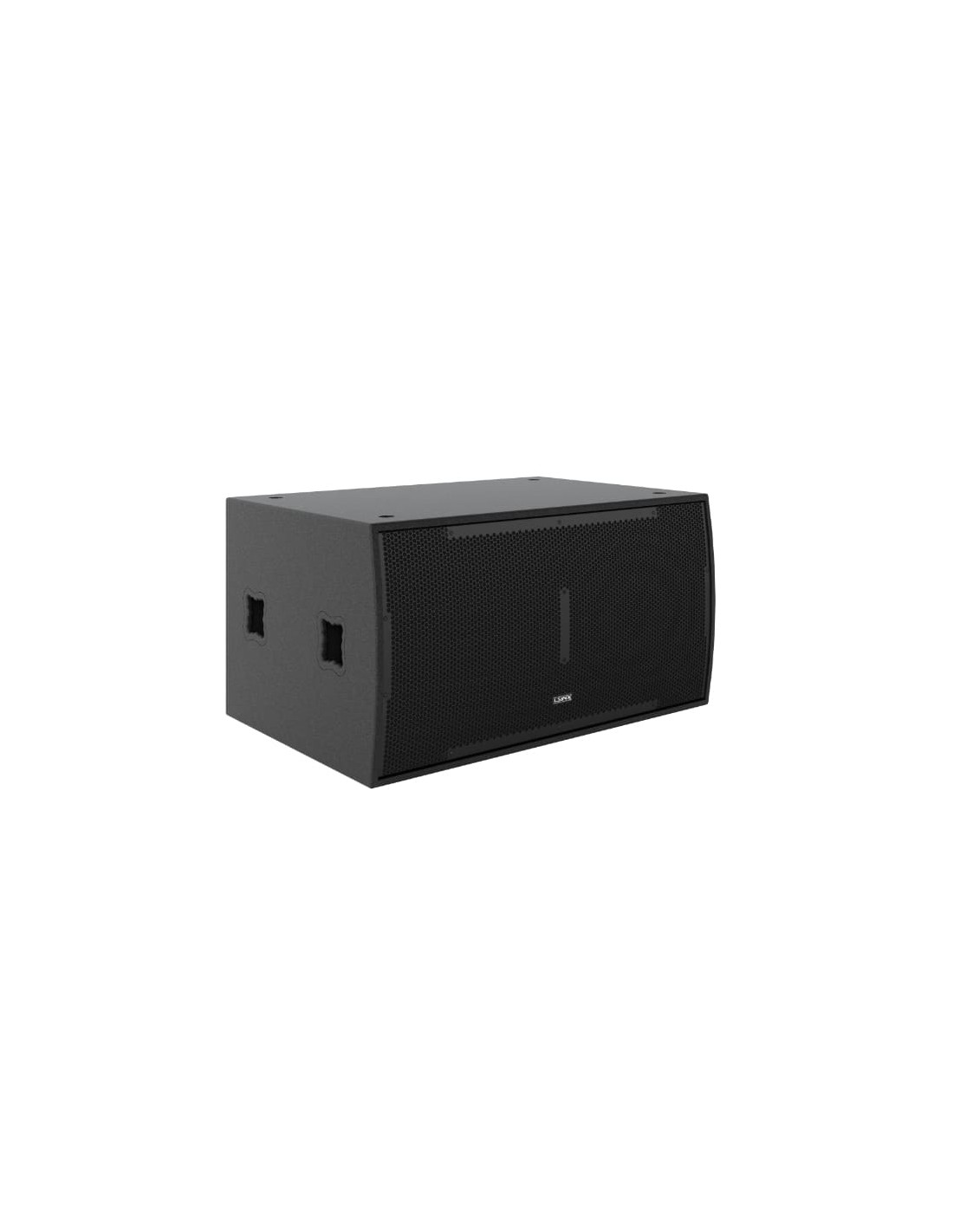

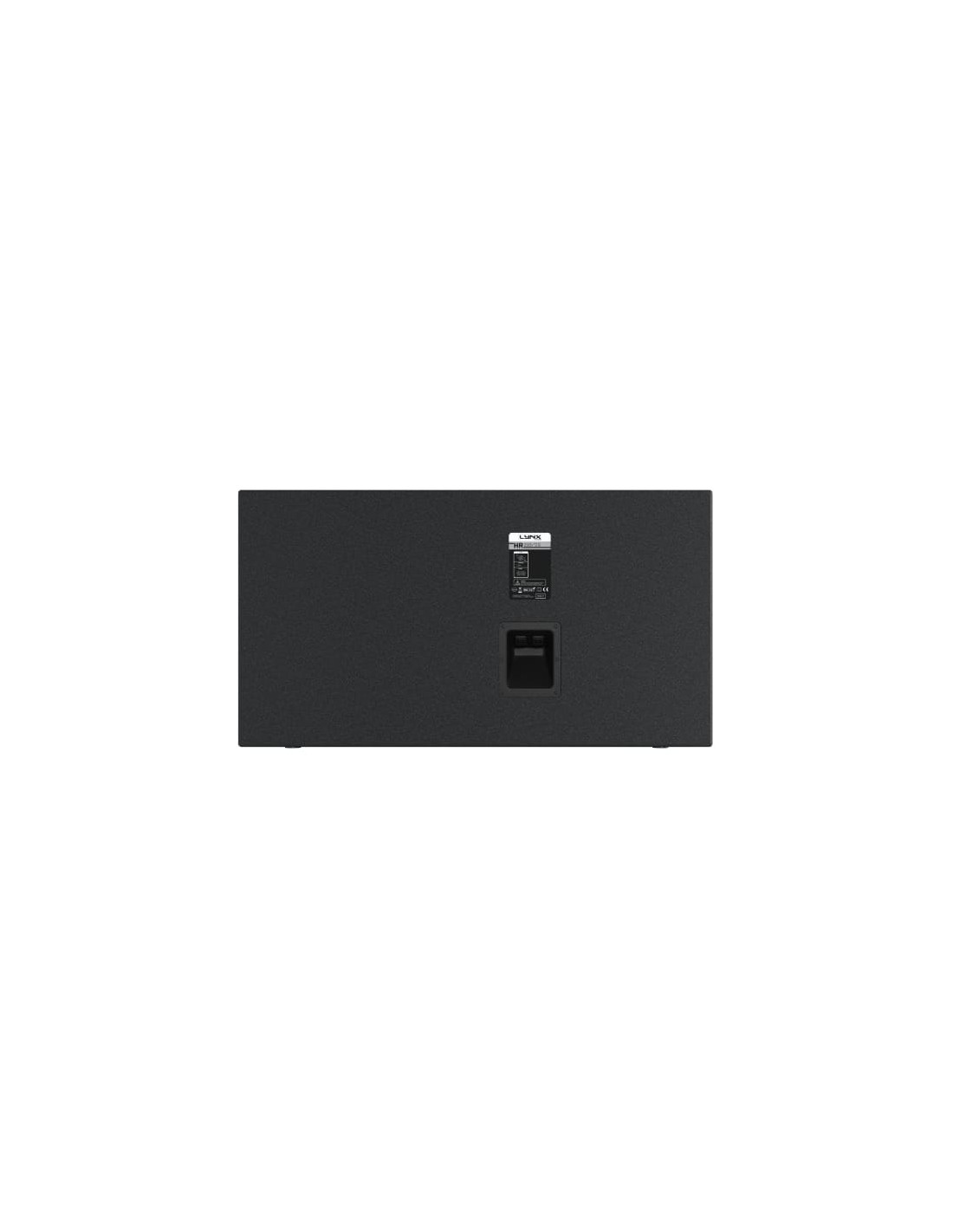

The HR218/36 is a very high performance passive subwoofer designed to work together with the HR series full range enclosures, offering an impressive very high power reinforcement between 34 and 200 Hz.
It features two 18" speakers that reach very high pressure levels in a clear and powerful way.
This enclosure offers an extraordinary power-to-volume-to-weight ratio, being a very versatile subwoofer in all types of installation projects.
- Effective Freq. Range
- Frequency range: 29 Hz – 200 Hz (-10dB)
Frequency response: 34 Hz – 200 Hz (± 3dB) - Coverage angle / Dispersion
- Omnidirectional
- Power handling
- LF: 2 x 18”, 4” tetracoil dual voice coil
- Sensitivity
- 103 dB (1W@1m) π
- Maximum SPL
- 139 dB – 145 dB Peak
- Nominal impedance
- 4 Ω
- Crossover filter
- Active
- Connection type
- 2 x Neutrik Speakon NL4MP
- Grille material
- 18 mm Premium birch plywood
- Dimensions
- 585 x 1080 x 781 mm (H x W x D)
- Weight
- 82 Kg (180 lbs)
- Status
- New
- EAN code
- 8436612041636
- Tariff code
- 8518220000
- Finish
- Polyurea coating - other colours (RAL) available
- Power options (Hi Z Multi-tap)
- 3600 W (7200 W program, 14400 W peak)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 29 Hz – 200 Hz (-10dB)
Frequency response: 34 Hz – 200 Hz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
Omnidirectional |
| Power handling |
LF: 2 x 18”, 4” tetracoil dual voice coil |
| Sensitivity |
103 dB (1W@1m) π |
| Maximum SPL |
139 dB – 145 dB Peak |
| Power options (Hi Z Multi-tap) |
3600 W (7200 W program, 14400 W peak) |
TRANSDUCERS
| Nominal impedance |
4 Ω |
|---|
FILTERS
| Crossover filter |
Active |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP |
|---|---|
| Grille material |
18 mm Premium birch plywood |
| Dimensions |
585 x 1080 x 781 mm (H x W x D) |
| Weight |
82 Kg (180 lbs) |
| Finish |
Polyurea coating - other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612041636 |
| Tariff code |
8518220000 |
