HR-218-20MG

HR-218-20MG

CLYHR21820MG
Check availability
Subwoofer for installation projects
See more Features Resources

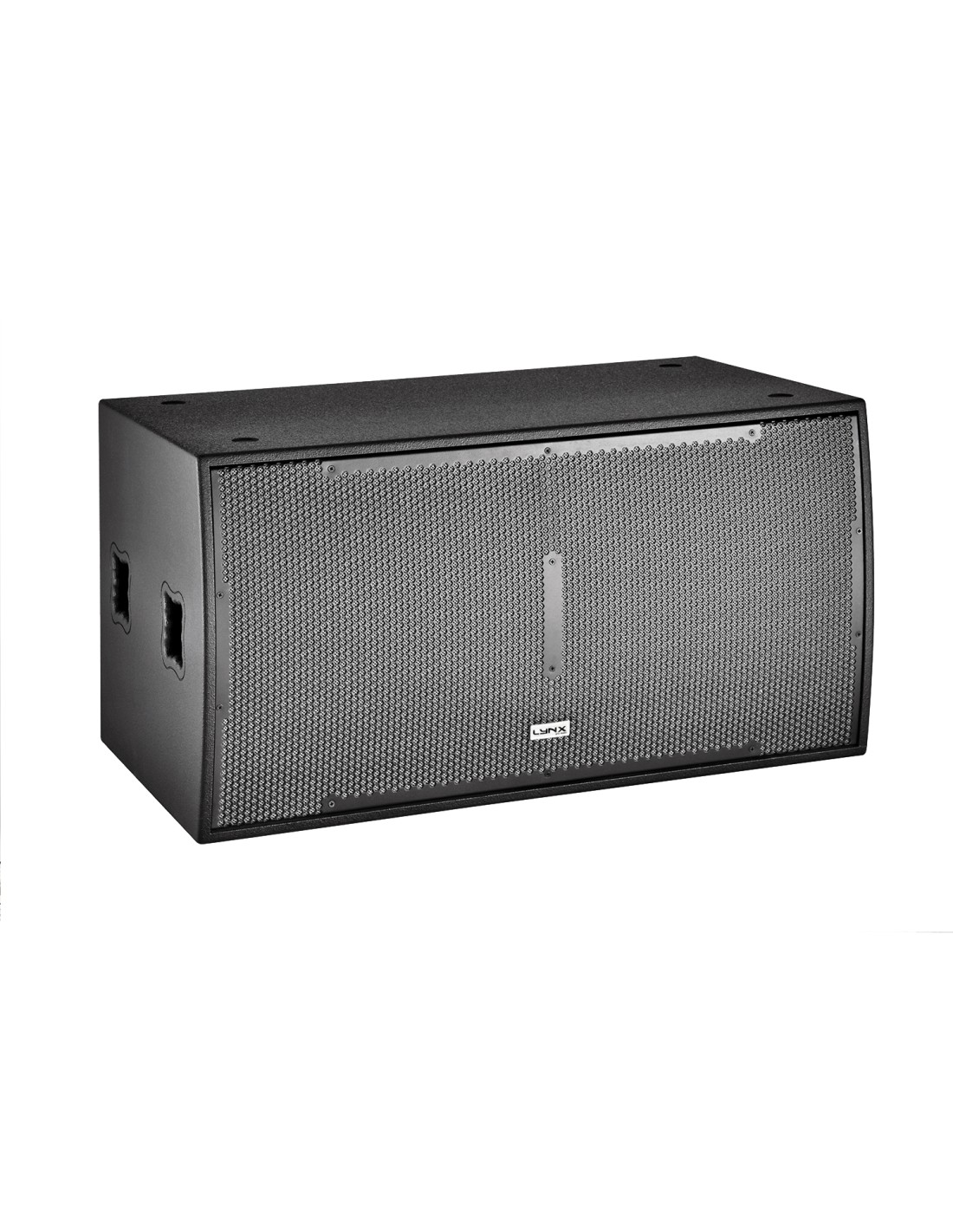

The HR-218/20 is a high performance passive subwoofer designed to work together with the HR series full range enclosures, offering a powerful reinforcement in the low frequencies. It features two 18" loudspeakers that reach high pressure levels in a clear and powerful way. This enclosure offers an excellent power-to-volume-to-weight ratio, being a very versatile subwoofer in all types of installation projects.
Effective Freq. Range
Frequency range: 40 Hz – 200 Hz (-10dB)
Frequency response: 46 Hz – 200 Hz (± 3dB)
Coverage angle / Dispersion
Omnidirectional
Power handling
LF: 2 x 18”, 3” copper voice coil
Sensitivity
105 dB (1W@1m) π
Maximum SPL
136 dB – 142 dB Peak
Nominal impedance
4 Ω
Crossover filter
Active
Connection type
2 x Neutrik Speakon NL4MP
Grille material
18 mm Premium birch plywood
Dimensions
585 x 1080 x 624 mm (H x W x D)
Weight
68 Kg (150 lbs)
Status
New
EAN code
8436612043302
Tariff code
8518220000
Finish
Polyurea coating - other colours (RAL) available
Power options (Hi Z Multi-tap)
2000 W (4000 W program, 8000 W peak)
