GXR-D18AAE
CLYGXRD18AAE
Check availability

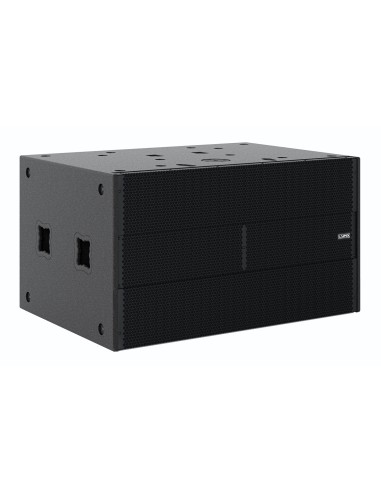

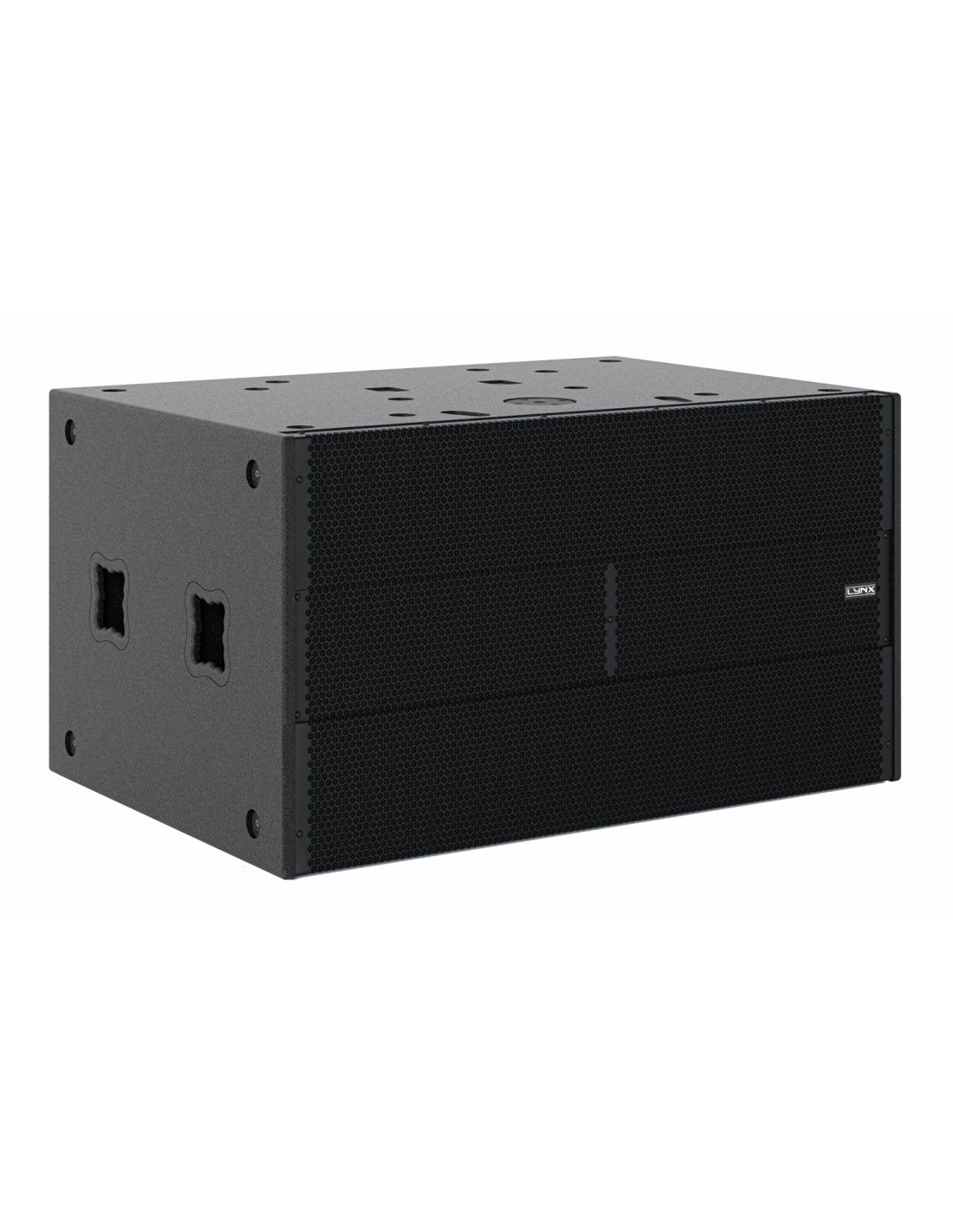

Self-powered subwoofer enclosure in class D, AES3 and equipped with two 18″ loudspeakers.
The GXR-D18A is a self-powered subwoofer enclosure designed to provide extreme pressure levels. It is the perfect complement to the GXR-LA210A and GXR-D15A units with which it configures an ideal system for installation projects or live setups where a compact line array system that provides great pressure levels in the low frequencies is required.
The enclosure mounts two 18" loudspeakers and is bi-amplified with a total of 3000 W in class D, with switching power supply and integrated DSP processor. This system can be controlled online in real time.
- Effective Freq. Range
- Frequency range: 30 Hz - 120 Hz (-10dB)
Frequency response: 35 Hz - 100 Hz (± 3dB) - Coverage angle / Dispersion
- Omnidirectiona
- Power handling
- 2 x 18”, 4” voice coil
- Maximum SPL
- 135 dB / 141 dB Peak
- Connection type
- USB (DSP updating) / Ethernet (OCS)
- Grille material
- 18 mm Premium birch plywood
- Status
- New
- EAN code
- 8436612040448
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Polyurea coating, high grade resistant paint
- Power options (Hi Z Multi-tap)
- 3000 W Class D with switching power supply & PFC
1 x 3000 W - Power type selector
- Analog / AES3 (optional)
- Display
- User control interface with 2.8” IPS screen
- Auto standby time
- N/
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency range: 30 Hz - 120 Hz (-10dB)
Frequency response: 35 Hz - 100 Hz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
Omnidirectiona |
| Power handling |
2 x 18”, 4” voice coil |
| Maximum SPL |
135 dB / 141 dB Peak |
| Power options (Hi Z Multi-tap) |
3000 W Class D with switching power supply & PFC
1 x 3000 W |
PHYSICAL
| Connection type |
USB (DSP updating) / Ethernet (OCS) |
|---|---|
| Grille material |
18 mm Premium birch plywood |
| Finish |
Polyurea coating, high grade resistant paint |
| Power type selector |
Analog / AES3 (optional) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040448 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
MONITORING AND CONTROL
| Auto standby time |
N/ |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8” IPS screen |
|---|
