LABI1-SB18p
CLABI1SB18P
Check availability
18" | 1200 WRMS| 2x2400 WRMS | powered | Class D

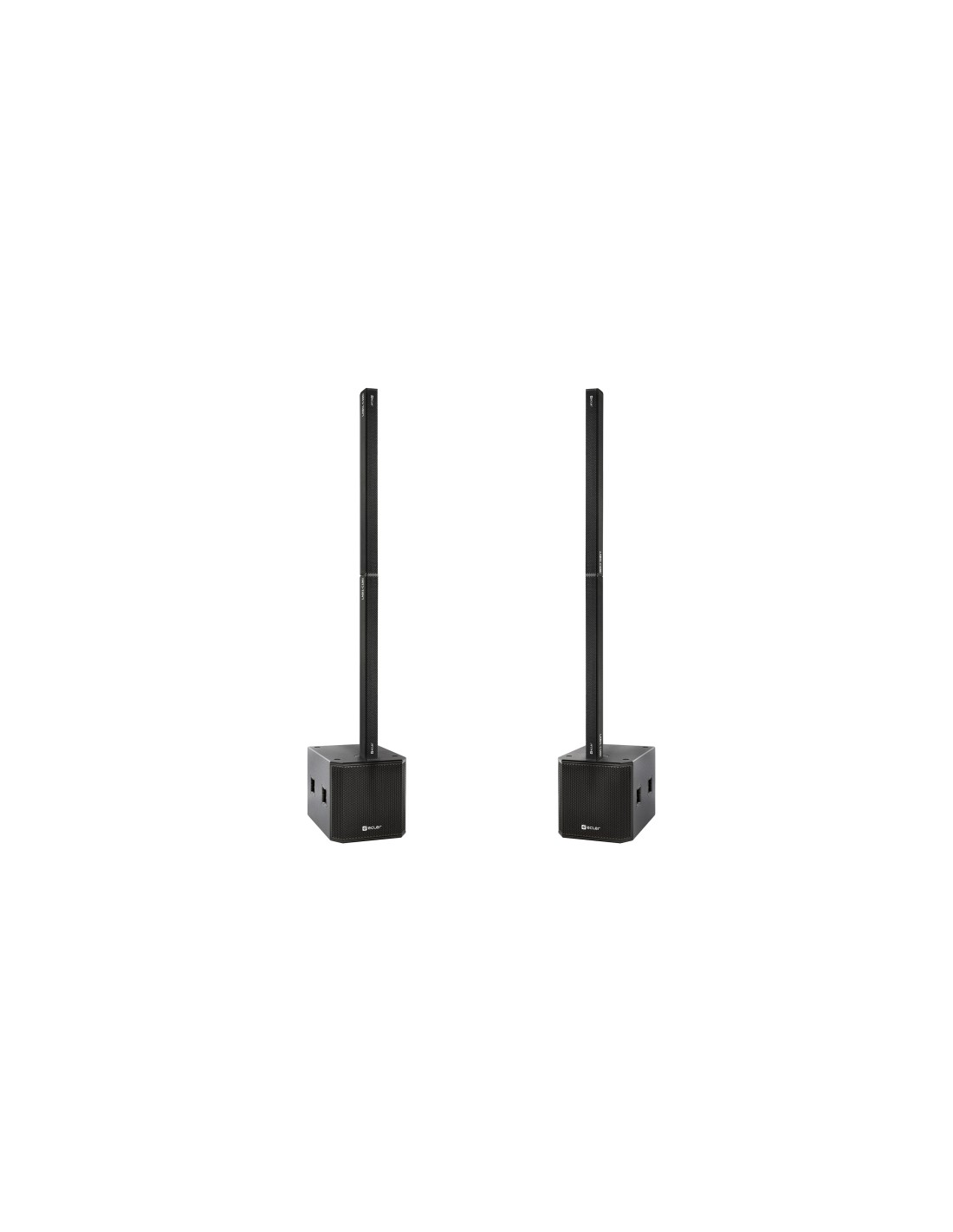

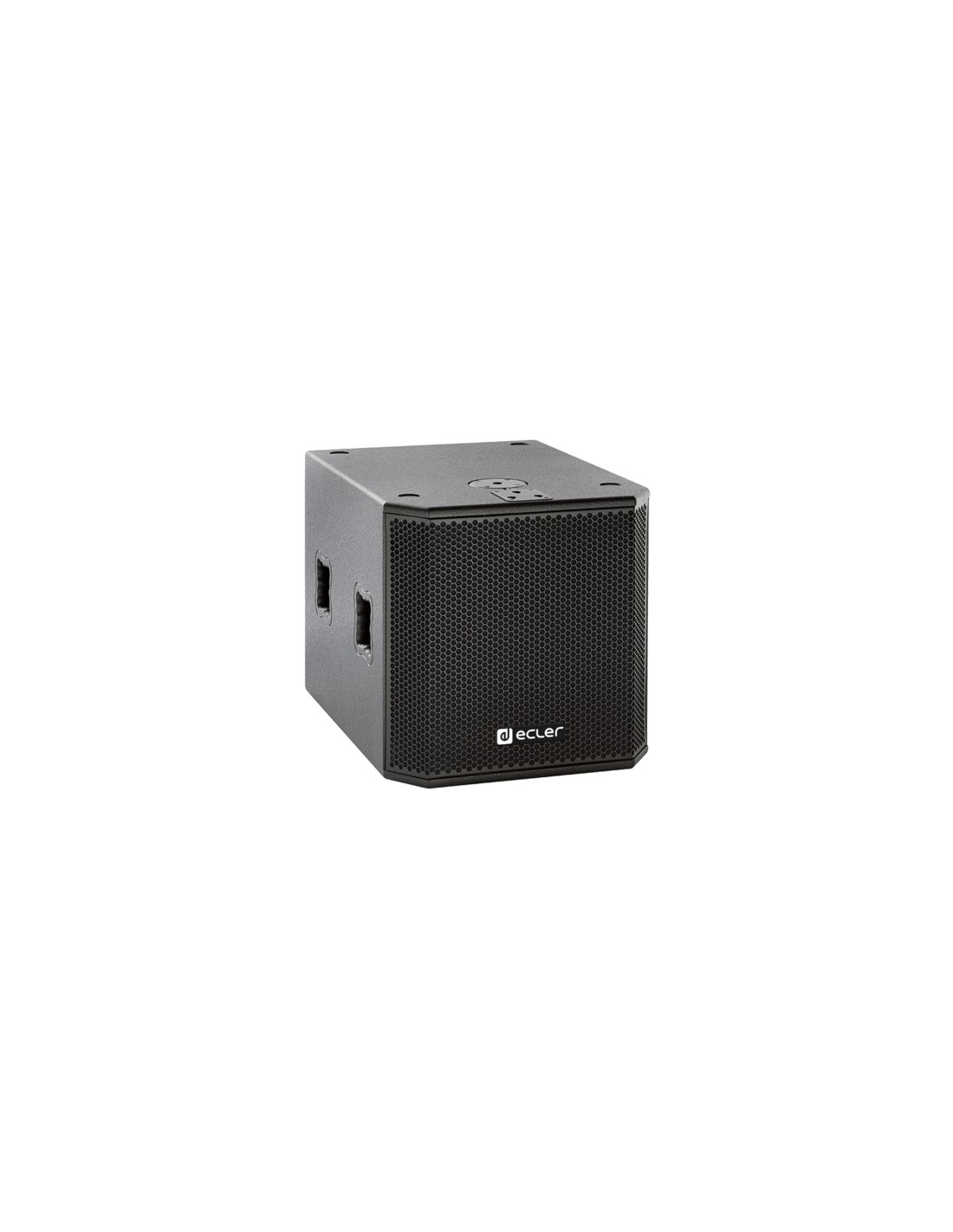

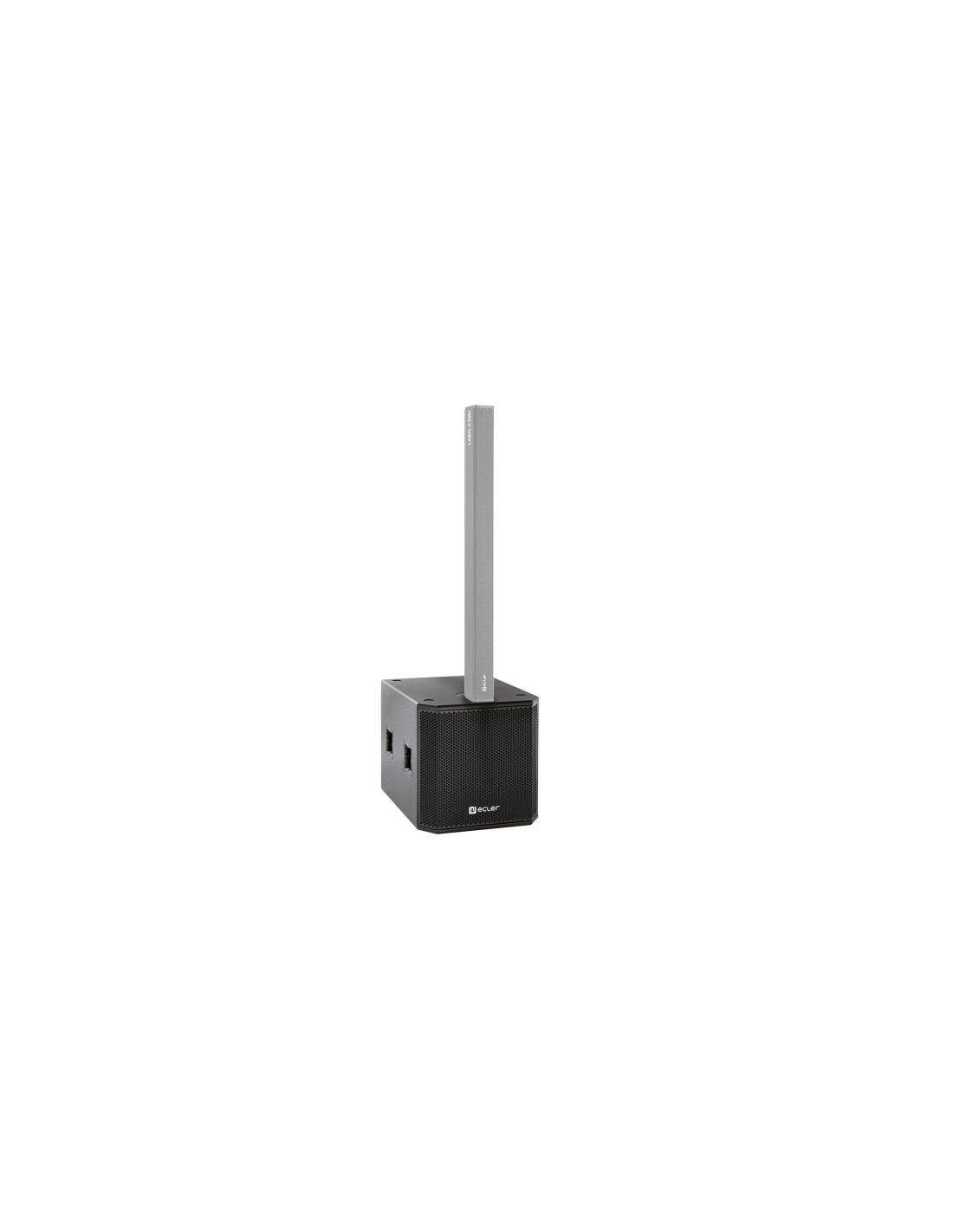

LABI1-SB18p is an 18” powered subwoofer, designed for fixed installations and portable applications. A stand alone compact subwoofer or combined with LABI1-C100i to create a complete powerful solution, easy to mount and plug and play.
It performs 2400W Class D built-in amplification power: 1 x 1200W for its low frequency woofer, and 2x600W amplifiers, able to power up to 4 x LABI1-C100i. It also features DC protection to avoid damage to the loudspeakers.
LAB1-SB18p also performs 18 factory presets - selectable through the LCD screen - allowing the user to choose different configurations, depending on the needs required and the desired performance of the system.
LABI1 series offers a modular solution to satisfy the most demanding fixed installations and mobile public address applications. Combining the different products of the series, it can fulfill any requirement.
- Effective Freq. Range
- 38 Hz - 250 Hz (-10dB)
- Maximum SPL
- 132 dB
- Ways
- 1-way
- Connection type
- 2 x XLR, 2 x XLR3, 2 x Speakon®
- Installation options
- Fixed installations and portable applications
- Environmental
- IP20 rated
- Enclosure material
- 15mm premium birch plywood with polyurea coating
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories
- powerCON TRUE1 TOP connectors (NAC3FX-W-TOP & NAC3MX-WTOP), 250cm AC cable (EU plug) and 120cm Speakon
- Optional accessories
- LABI1-SAC, LABI1-SWK, LABI1-SPC
- Finished colour
- Black (RAL 9005)
- Dimensions
- 513 x 513 x 704 mm / 20.2 x 20.2 x 27.7 in. (WxHxD)
- Weight
- 39.1 kg / 86.2 lb
- Pieces per box
- Unit
- Shipping dimensions
- 540 x 550 x 740 mm / 21.26 x 21.65 x 29.13 in. (WxHxD)
- Shipping weight
- 42.7 kg /
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071308441
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 54.00
- Height (cm)
- 55.00
- Depth (cm)
- 74.00
- Vol. (dm3)
- 219.78
- Gross Weight (kg)
- 42.70
- Net Weight (kg)
- 39.10
- Format
- Unit
- Warranty (months)
- 36
- Power consumption
- 600W (1/8 power)
- Power supply
- Switching power supply and PFC system
- Mounting system
- Several mounting options
- Driver
- 18" subwoofer + 3" voice coil
- Power
- 2400W Class D built-in amplification power with DC protection:
Low freq: 1x1200W
Speaker output (bal. load): 600W@4Ω + 600W@4Ω
Speaker output (unbal. load): 800W@4Ω + 400W@8Ω
- Audio inputs
- 2 x XLR3 balanced
- Audio outputs
- 2 x XLR3 balanced
- LED Indicators
- CLIP
- Mains
- AC 100-240V / 50-60Hz with PFC
- AC connections
- 16A Neutrik® powerCON TRUE1 TOP with looping output
- Processing (DSP)
- 48 KHz / 56 bit double precision DSP
18 factory presets - Communication interfaces
- LCD display and navigation keys
USB-B: Only for configuration purposes - Powered outputs
- 2 x Speakon®
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
38 Hz - 250 Hz (-10dB) |
|---|---|
| Maximum SPL |
132 dB |
TRANSDUCERS
| Ways |
1-way |
|---|---|
| Driver |
18" subwoofer + 3" voice coil |
PHYSICAL
| Connection type |
2 x XLR, 2 x XLR3, 2 x Speakon® |
|---|---|
| Installation options |
Fixed installations and portable applications |
| Environmental |
IP20 rated |
| Enclosure material |
15mm premium birch plywood with polyurea coating |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
powerCON TRUE1 TOP connectors (NAC3FX-W-TOP & NAC3MX-WTOP), 250cm AC cable (EU plug) and 120cm Speakon |
| Optional accessories |
LABI1-SAC, LABI1-SWK, LABI1-SPC |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
513 x 513 x 704 mm / 20.2 x 20.2 x 27.7 in. (WxHxD) |
| Weight |
39.1 kg / 86.2 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
540 x 550 x 740 mm / 21.26 x 21.65 x 29.13 in. (WxHxD) |
| Shipping weight |
42.7 kg / |
| Format |
Unit |
| Mounting system |
Several mounting options |
POWERED
| Power |
2400W Class D built-in amplification power with DC protection:
Low freq: 1x1200W
Speaker output (bal. load): 600W@4Ω + 600W@4Ω
Speaker output (unbal. load): 800W@4Ω + 400W@8Ω
|
|---|---|
| Audio inputs |
2 x XLR3 balanced |
| Audio outputs |
2 x XLR3 balanced |
| Mains |
AC 100-240V / 50-60Hz with PFC |
| AC connections |
16A Neutrik® powerCON TRUE1 TOP with looping output |
| Processing (DSP) |
48 KHz / 56 bit double precision DSP
18 factory presets |
| Powered outputs |
2 x Speakon® |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071308441 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
54.00 |
| Height (cm) |
55.00 |
| Depth (cm) |
74.00 |
| Vol. (dm3) |
219.78 |
| Gross Weight (kg) |
42.70 |
| Net Weight (kg) |
39.10 |
| Warranty (months) |
36 |
ELECTRICAL
| Power consumption |
600W (1/8 power) |
|---|---|
| Power supply |
Switching power supply and PFC system |
MONITORING AND CONTROL
| LED Indicators |
CLIP |
|---|---|
| Communication interfaces |
LCD display and navigation keys
USB-B: Only for configuration purposes |
