Very high performance passive subwoofer to work in conjunction with HR series enclosures
See more Features Resources

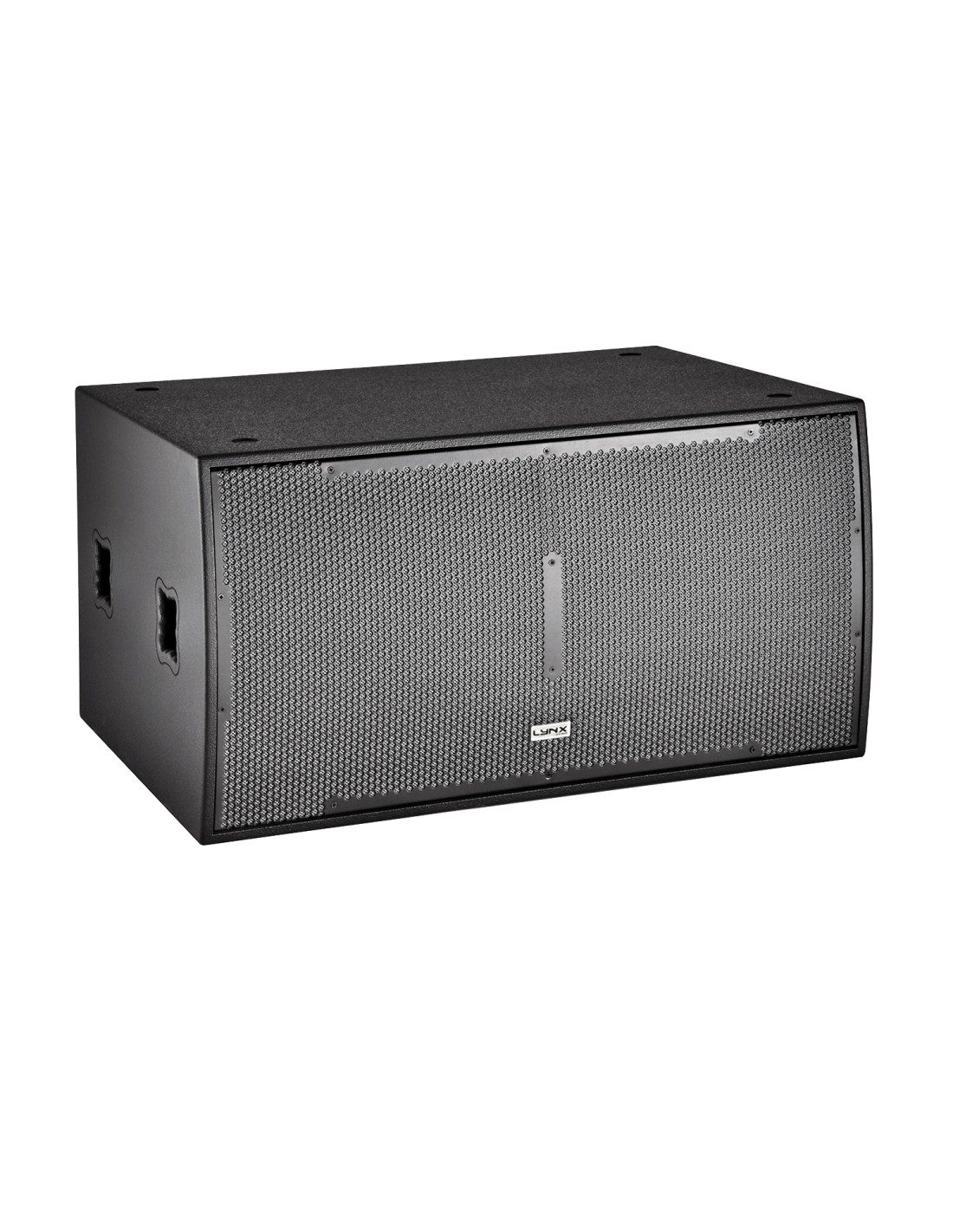

The HR218/36 is a very high performance passive subwoofer designed to work together with the HR series full range enclosures, offering an impressive very high power reinforcement between 34 and 200 Hz. It features two 18" speakers that reach very high pressure levels in a clear and powerful way. This enclosure offers an extraordinary power-to-volume-to-weight ratio, being a very versatile subwoofer in all types of installation projects.
Effective Freq. Range
Frequency range: 29 Hz – 200 Hz (-10dB)
Frequency range: 29 Hz – 200 Hz (-10dB)
Coverage angle / Dispersion
Omnidirectional
Power handling
LF: 2 x 18”, 4” tetracoil dual voice coil
Sensitivity
103 dB (1W@1m) π
Maximum SPL
139 dB – 145 dB Peak
Crossover filter
Active
Connection type
2 x Neutrik Speakon NL4MP
Dimensions
585 x 1080 x 781 mm (H x W x D)
Weight
82 Kg (180 lbs)
Finish
Polyurea coating - other colours (RAL) available
Power options (Hi Z Multi-tap)
3600 W (7200 W program, 14400 W peak)
