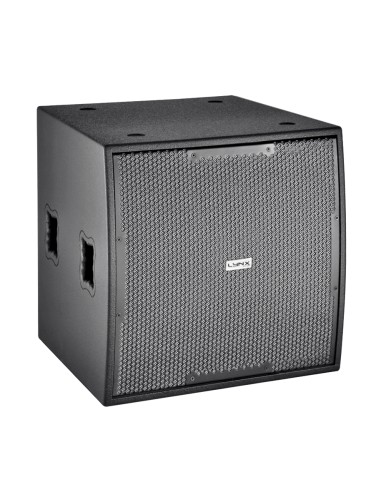

HR-1810RAL
CLYHR1810RA
Check availability
Compact subwoofer with a high power-to-volume-to-weight ratio
The HR-18/10 is a compact subwoofer with a great power-to-volume-to-weight ratio. This enclosure is designed to work together with the full range units of the HR series, offering an important reinforcement in the low frequencies.
The enclosure mounts an 18"" loudspeaker in bass reflex configuration with 1000 W of power and offers an excellent choice for subwoofer reinforcement in all types of installation projects.
- Effective Freq. Range
- Frequency range: 40 Hz – 200 Hz (-10dB)
Frequency response: 46 Hz – 200 Hz (± 3dB) - Coverage angle / Dispersion
- Omnidirectional
- Power handling
- LF: 1 x 18”, 3” copper voice coil
- Sensitivity
- 101 dB (1W@1m) π
- Maximum SPL
- 129 dB – 135 dB Peak
- Nominal impedance
- 8 Ω
- Crossover filter
- Active
- Connection type
- 2 x Neutrik Speakon NL4MP
- Grille material
- 18 mm Premium birch plywood
- Dimensions
- 511 x 505 x 681 mm (H x W x D)
- Weight
- 32 Kg (70.5 lbs)
- Finish
- Polyurea coating - other colours (RAL) available
- Power options (Hi Z Multi-tap)
- 1000 W (2000 W program, 4000 W peak)
SYSTEM
| Effective Freq. Range |
Frequency range: 40 Hz – 200 Hz (-10dB)
Frequency response: 46 Hz – 200 Hz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
Omnidirectional |
| Power handling |
LF: 1 x 18”, 3” copper voice coil |
| Sensitivity |
101 dB (1W@1m) π |
| Maximum SPL |
129 dB – 135 dB Peak |
| Power options (Hi Z Multi-tap) |
1000 W (2000 W program, 4000 W peak) |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|
FILTERS
| Crossover filter |
Active |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP |
|---|---|
| Grille material |
18 mm Premium birch plywood |
| Dimensions |
511 x 505 x 681 mm (H x W x D) |
| Weight |
32 Kg (70.5 lbs) |
| Finish |
Polyurea coating - other colours (RAL) available |
